Chengli Special Automobile Co., Ltd. specializes in products such as sealed garbage trucks, compressed garbage trucks, swing arm garbage trucks, hanging bucket garbage trucks, carriage detachable garbage trucks, self dumping garbage trucks, vacuum cleaners, road sweepers, sprinkler trucks, truck mounted cranes, oil tank trucks, concrete mixer trucks, and fire trucks. LED advertising vehicles, aerial work vehicles, snow removal vehicles, sewage suction vehicles, etc
Chengli Special Vehicle Co., Ltd. produces 3 ton garbage trucks, 5 ton garbage trucks, 8 ton garbage trucks, 10 ton garbage trucks, 12 ton, 15 ton, 18 ton, and 20 ton garbage trucks. The garbage trucks produced by the company have the advantages of simple structure, stable and convenient operation, high degree of loading and unloading, mechanization and automation, and labor saving
Garbage trucks are widely used in environmental sanitation, municipal administration, factories and mining enterprises, property communities, and residential areas with concentrated garbage. Garbage trucks are divided into compressed garbage trucks, swing arm, self dumping, sealed, docking, hook arm garbage trucks, etc. Garbage trucks can carry multiple large containers, effectively avoiding secondary pollution during loading and unloading.
Compared to other factories, the quality of our compressed garbage trucks far exceeds that of the same level, making us a leader in the environmental sanitation equipment manufacturing industry. Our compressed garbage trucks have a high compression ratio of 1:3, automatic welding of the filler, no desoldering or missed welding, and the paint adopts electrostatic spraying technology. It has been in good condition for 3 years, with an external inverted oil cylinder that has a greater thrust and an enlarged hydraulic oil tank to prevent high hydraulic oil temperatures. The integrated through-hole shaft is used, Long term use without deformation or welding detachment.
Today we recommend a small capacity JAC compressed garbage truck, which is customized by African customers and has been repurchased multiple times

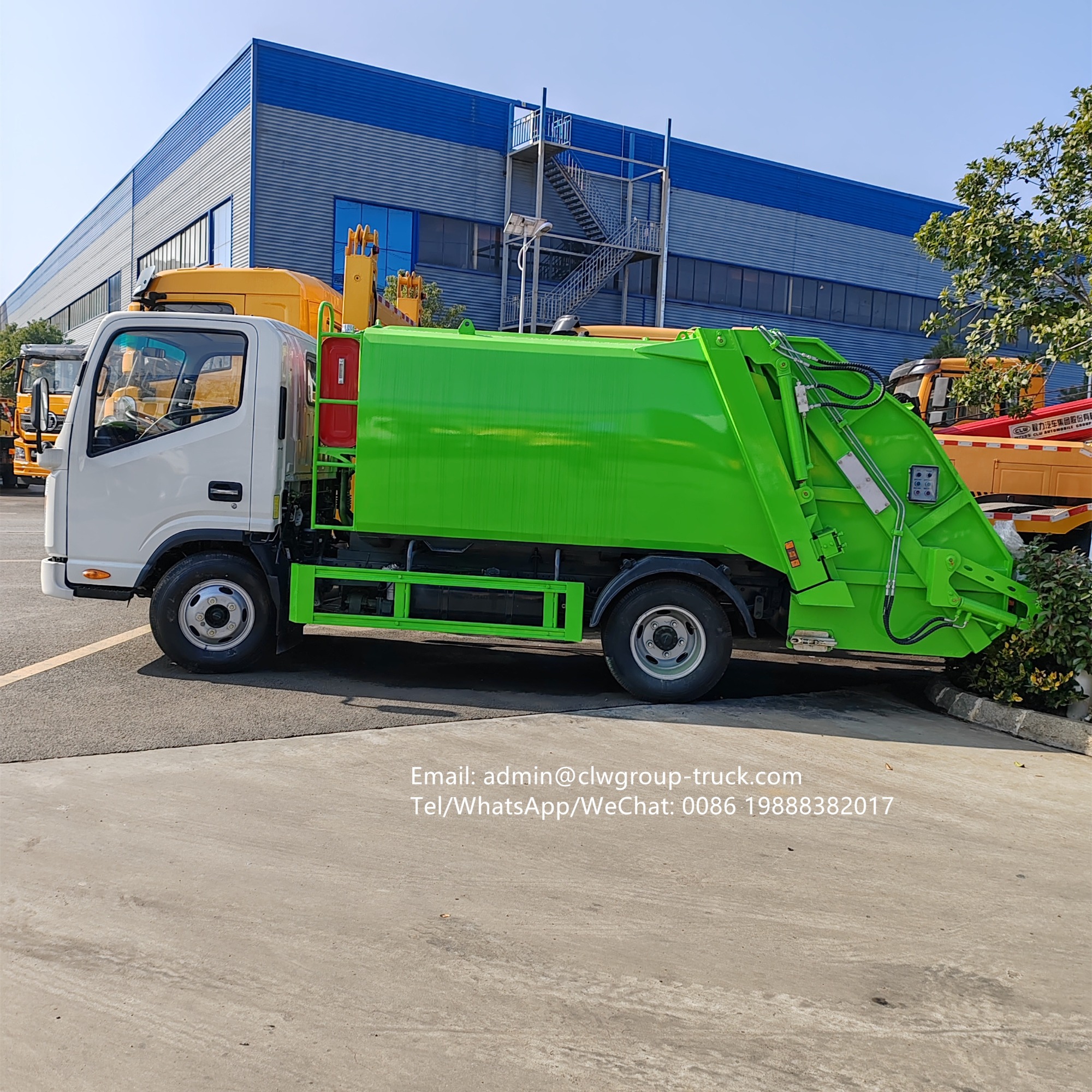

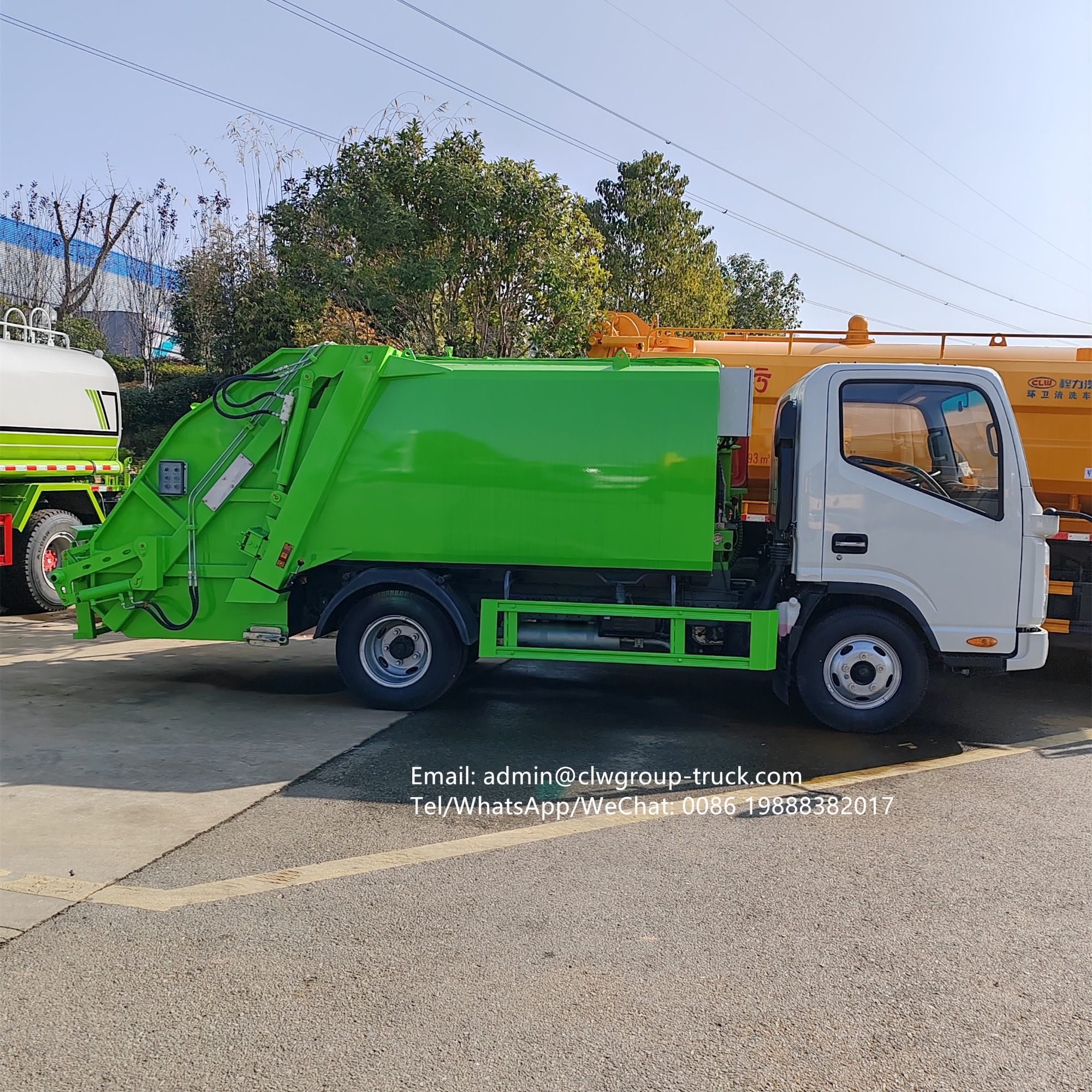

JAC 5 cubic meter compressed garbage truck chassis configuration:

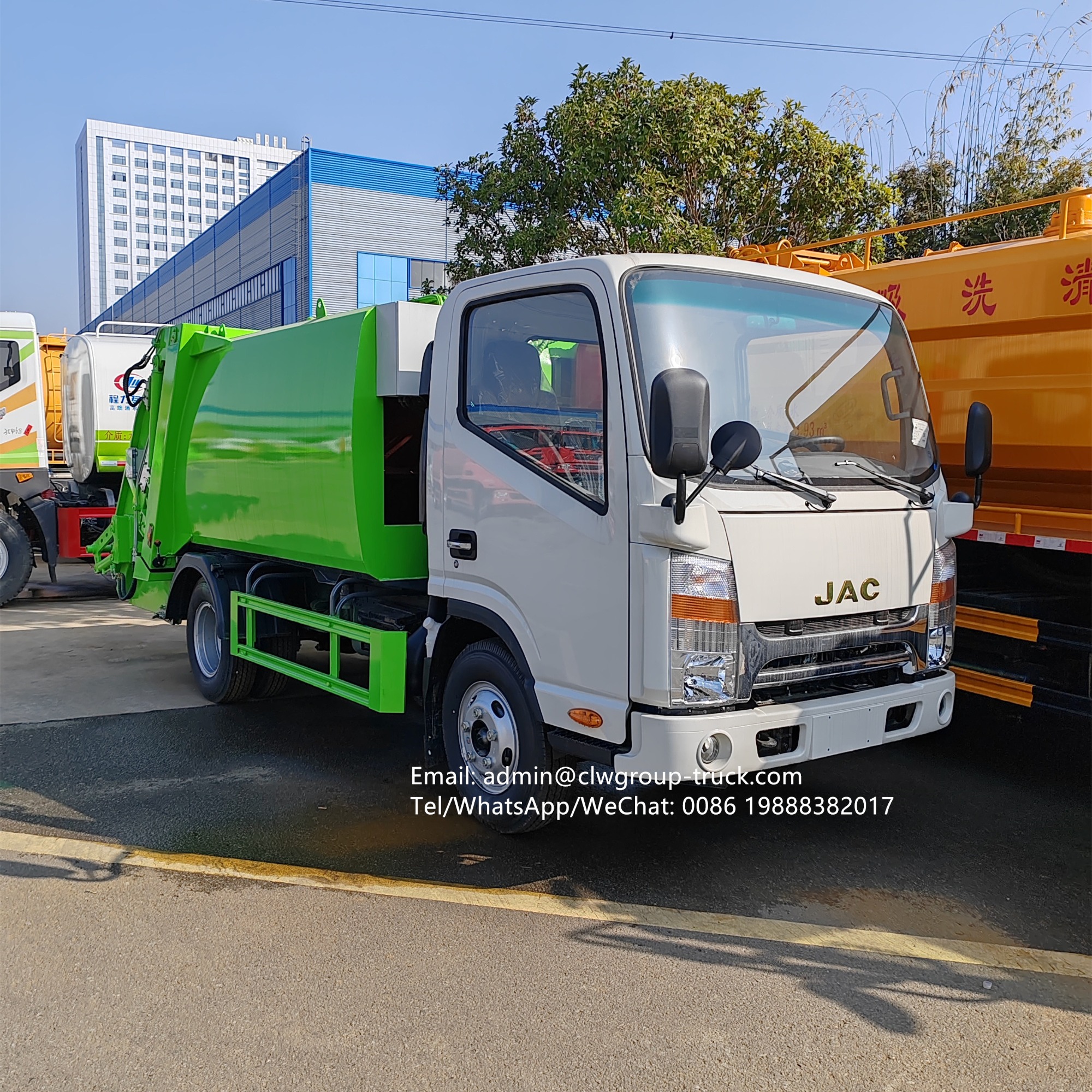

The JAC cab is 1720 wide, with a full diesel engine of 115 horsepower, equipped with dynamic transmission, air conditioning, electric glass, six tooth 5-speed transmission, air brake, front axle of 2.5 tons, rear axle of 5 tons, and 180 double-layer beam.
JAC 5 cubic meter compressed garbage truck upper installation configuration:
Curved box body (with edge beam), with a volume of 4 cubic meters, made of high-strength steel plate, with a bottom plate of 4mm and edge plate of 4mm, Boli oil cylinder, Yangzhou Zhongmei multiple way valve; The filling machine lifting oil cylinder is equipped with a hydraulic lock device, and the upper part is equipped with an Anhui Liquid fast hydraulic pump, a large flow fast hand electric integrated multiple directional valve, a one key circulation system, a pneumatic control multiple valve, a well-known domestic brand hydraulic cylinder (imported oil seal) high-density high-pressure oil pipe, and an imported Ximenzi PLC (programmable controller) intelligent integrated control (with one key operation, electric and manual operation control methods), There are three electronic control operation boxes (one in the driver's cab, one on each side of the rear loader) and one sewage tank. The unloading driver can complete the unloading work without getting off the vehicle. Optional triangular garbage bin at the rear end, with a remote control included
Special configuration for JAC 5 cubic meter compressed garbage truck:
The car can be optionally equipped with square or curved sealed compartments, with a volume of 4 cubic meters.
Optional working devices: ① No feeding device; ② Bucket flipping device; ③ Semi sealed tipping device; ④ Fully enclosed tipping device; ⑤ Swinging arm device;

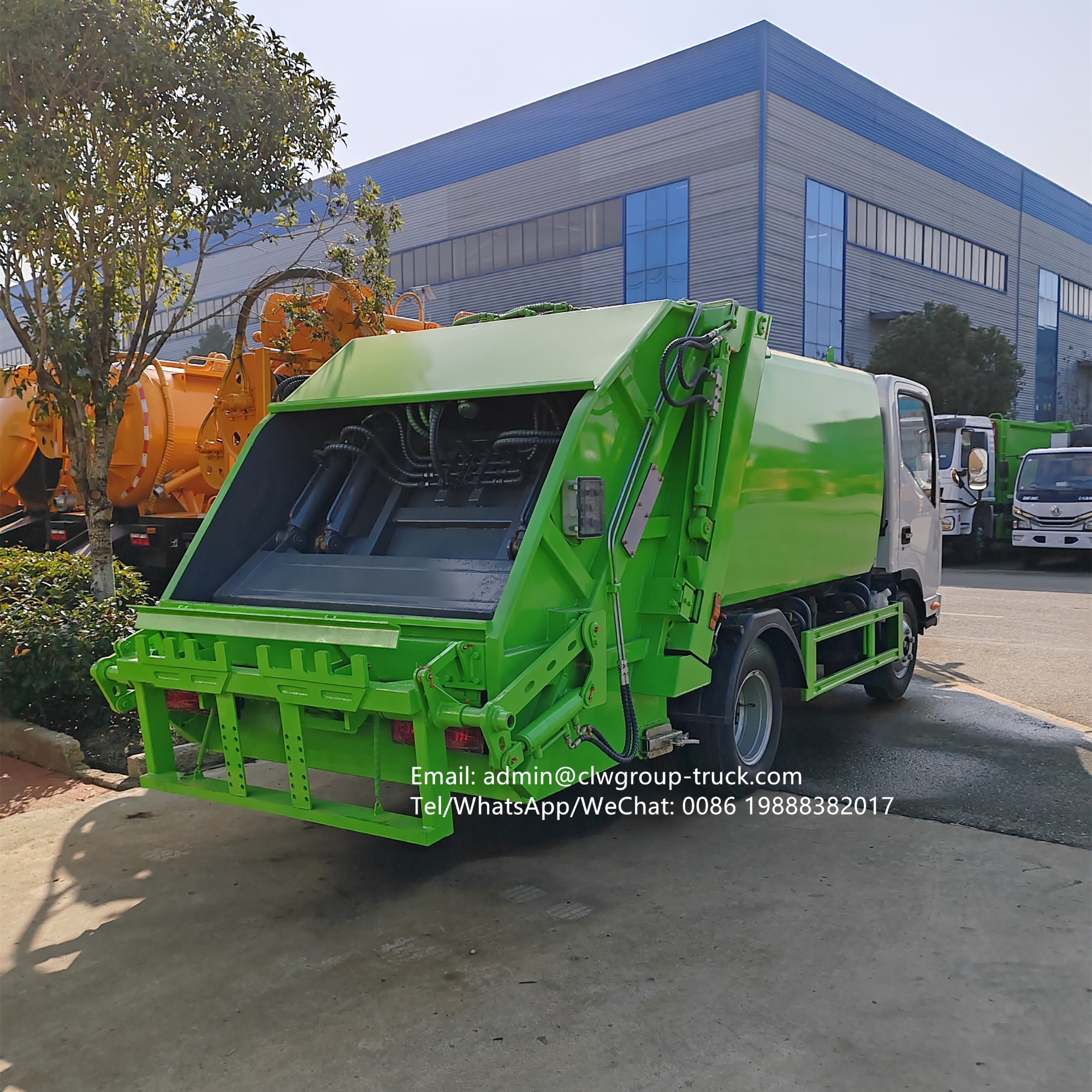

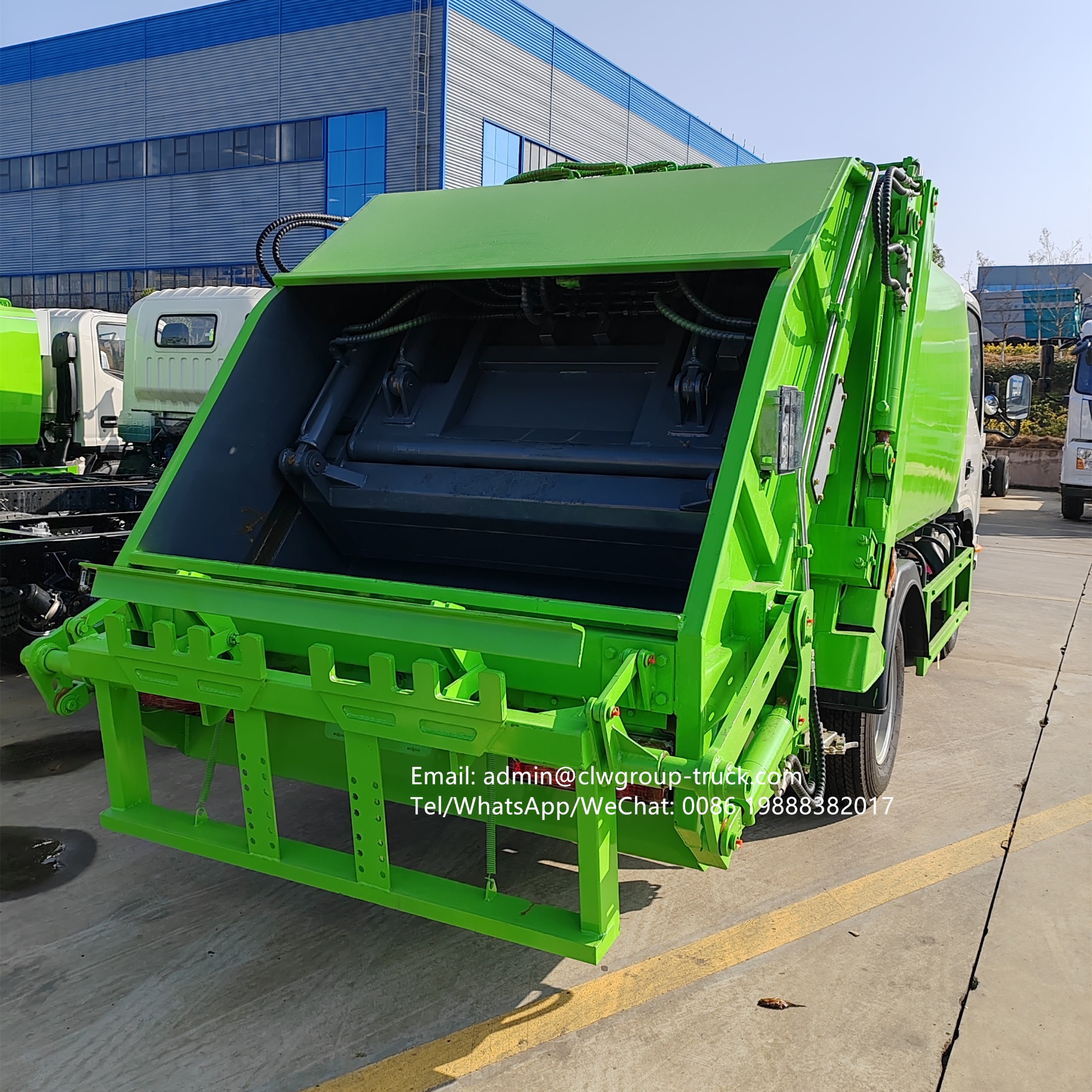

The garbage bin, rear filler, and rear skip are made of high-quality Q345 manganese steel material. The bottom of the garbage bin is made of a concave structure, with 9 hydraulic cylinders for braking. The hydraulic control operation system is electric and manual, and the loading cycle is one key operation. There is one set of electric unloading operation system on the left and right sides of the rear of the car, with a rear flipping mechanism. The sewage collection box at the bottom of the filler can be discharged through a ball valve
