Chengli Special Vehicle Co., Ltd. specializes in the production of stainless steel sprinkler trucks, stainless steel water tank trucks, stainless steel water supply trucks, and has won wide acclaim from customers due to its good quality and favorable price.

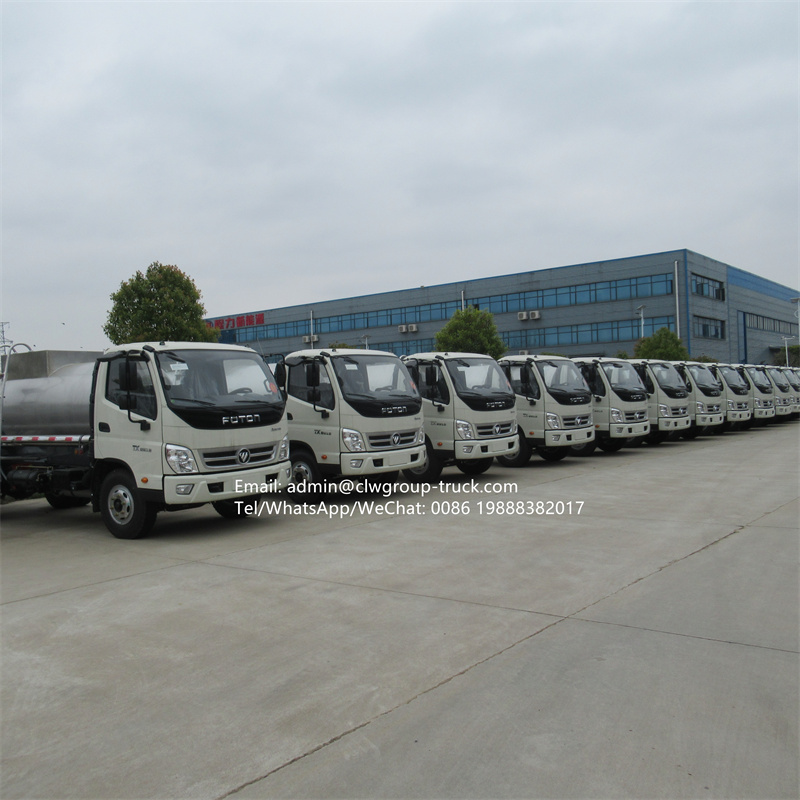

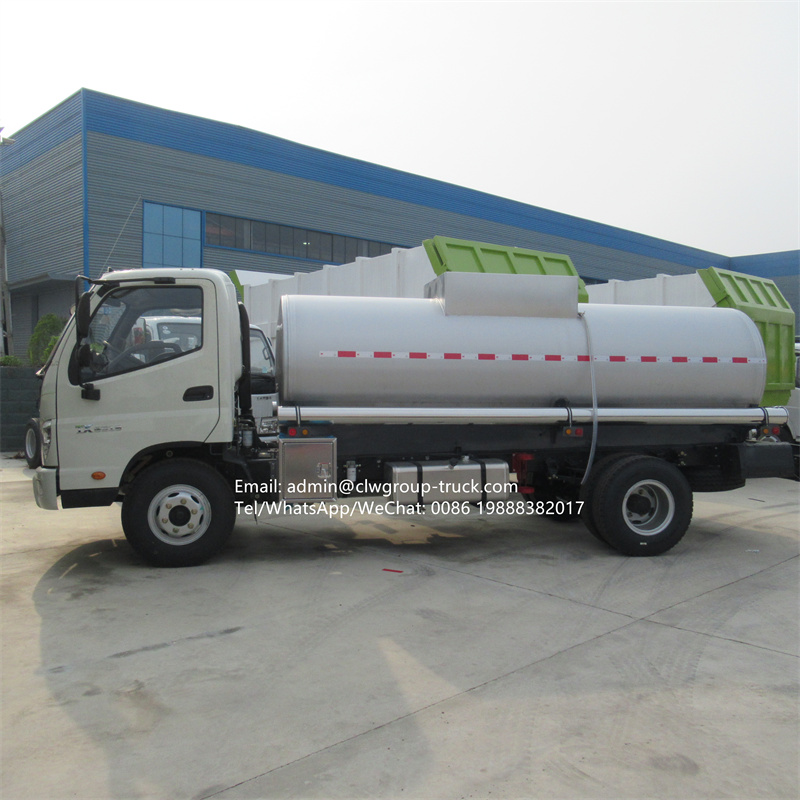

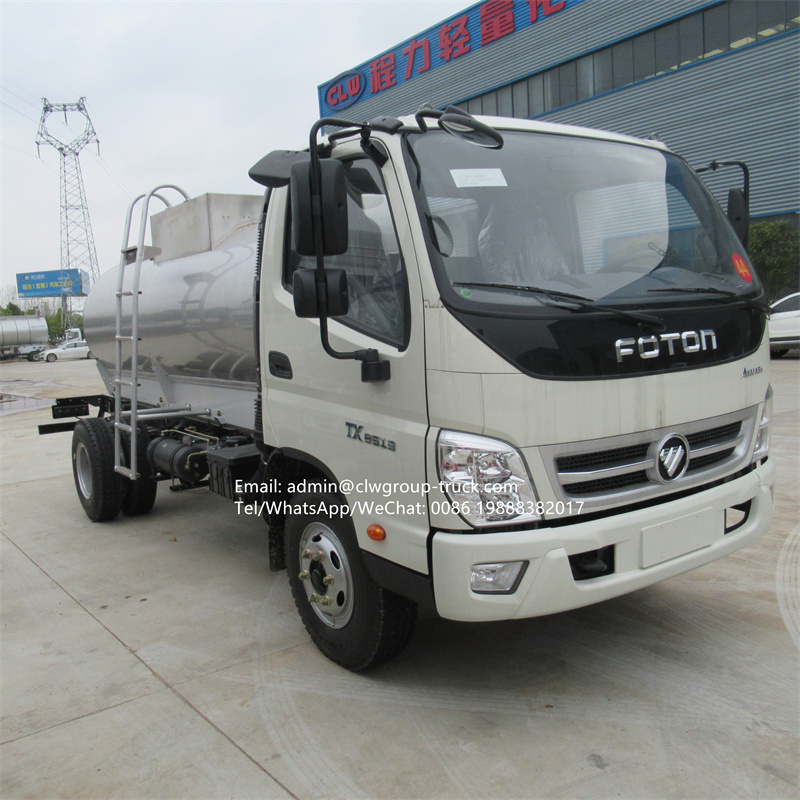

After a long-term investigation, the customer ordered a batch of more than 100 Foton stainless steel water trucks
Foton chassis parameters:
Wheelbase: 3800mm
Engine: Yuchai YC4D130-33
Transmission: 6 gears
Front and rear axles, front axle 2.5 tons, rear axle 6 tons
Girder size: 192X65X6
Leaf spring: 9/11+6

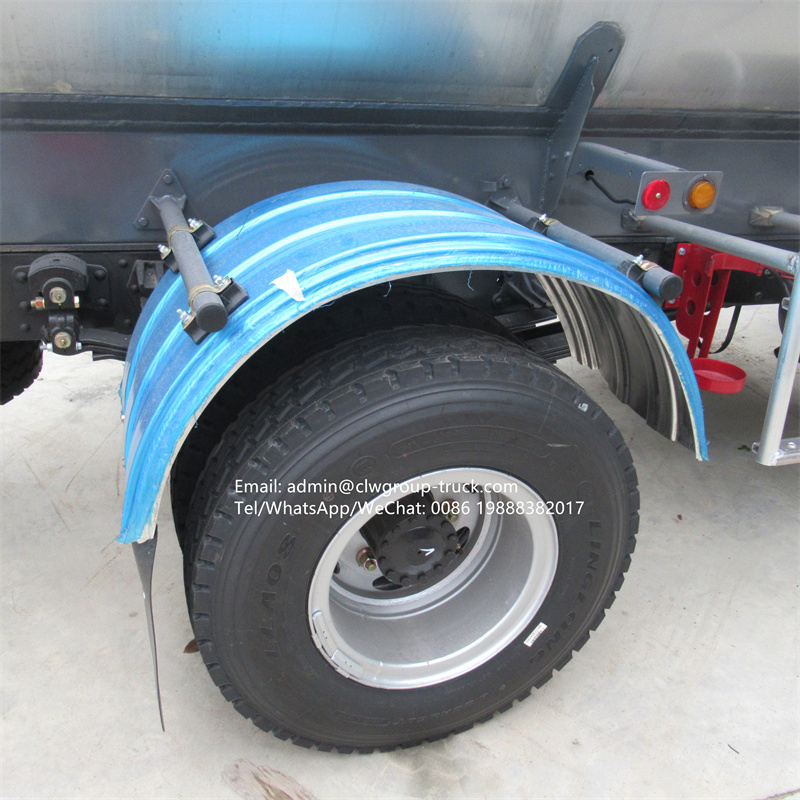

Tires: 8.25R16
Brake: Air brake
Stainless steel water tanker tank parameters

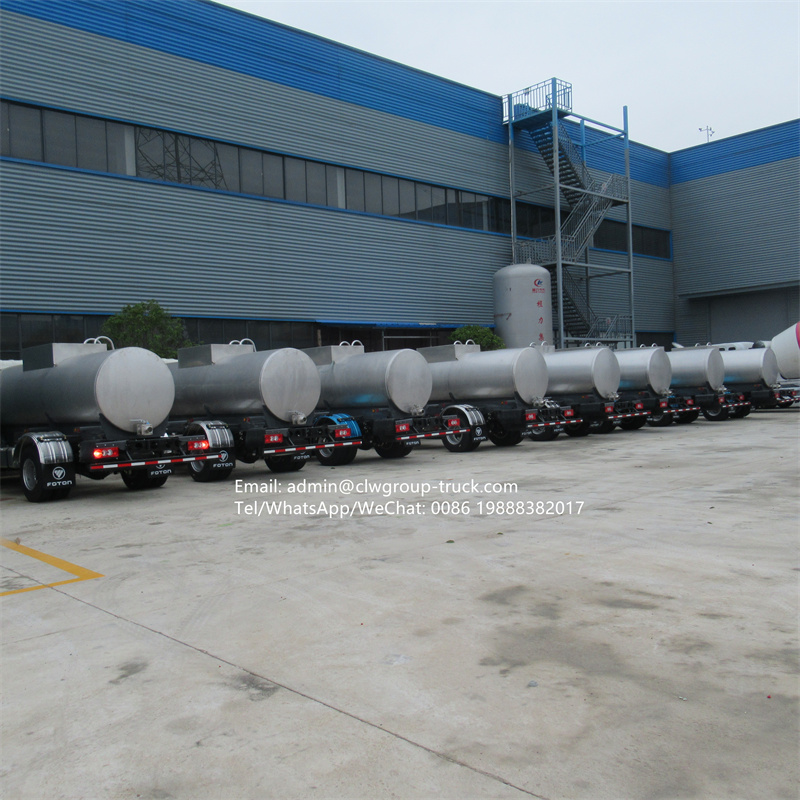

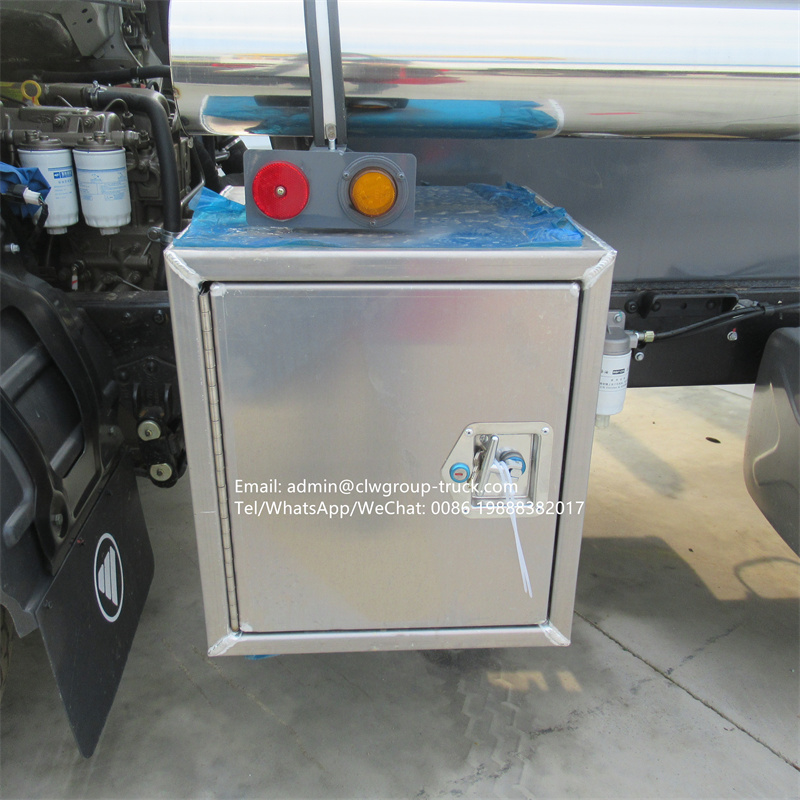

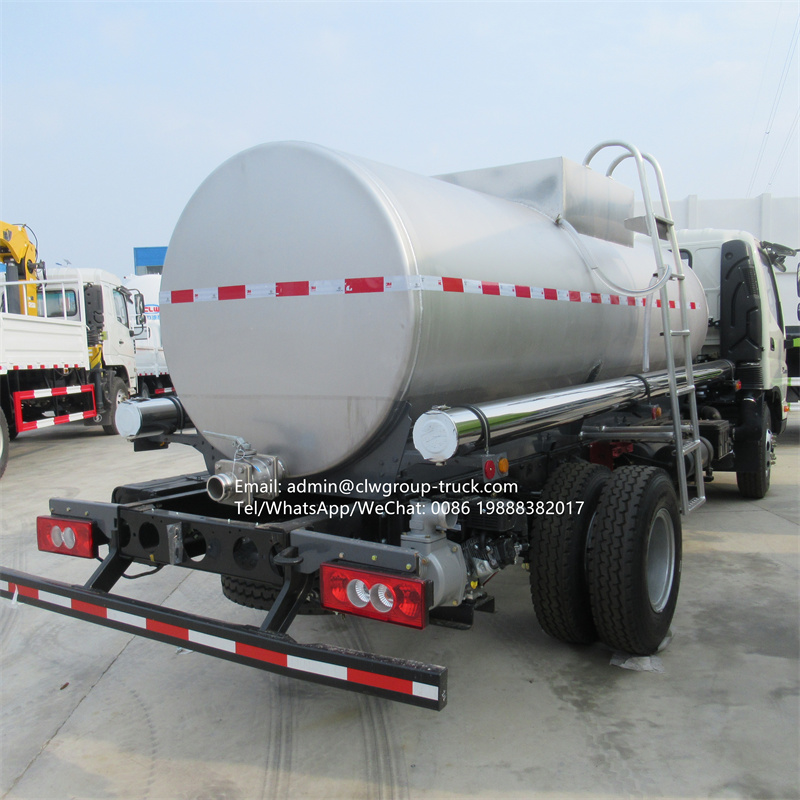

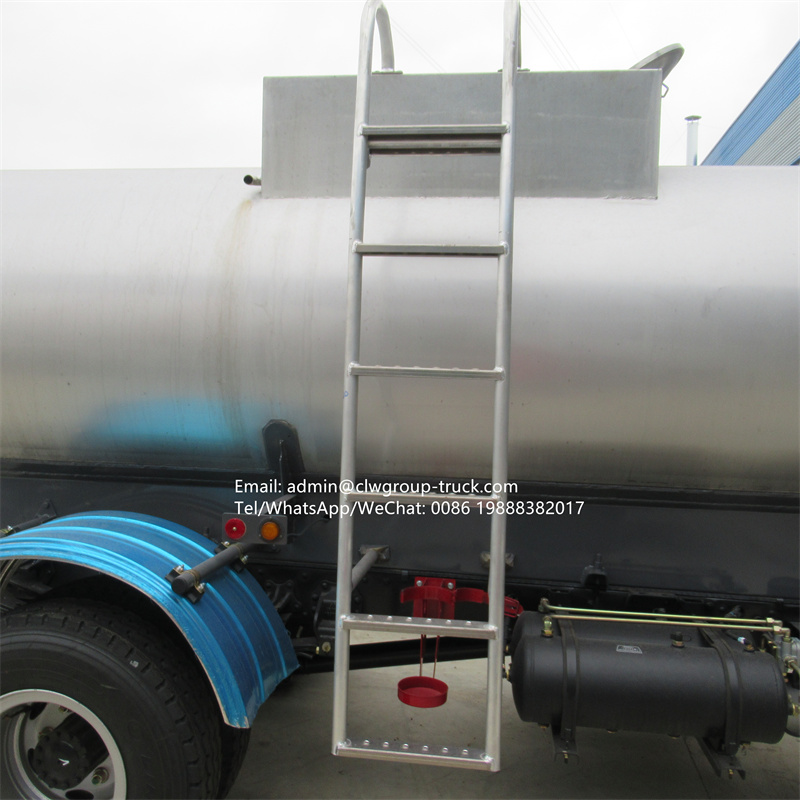

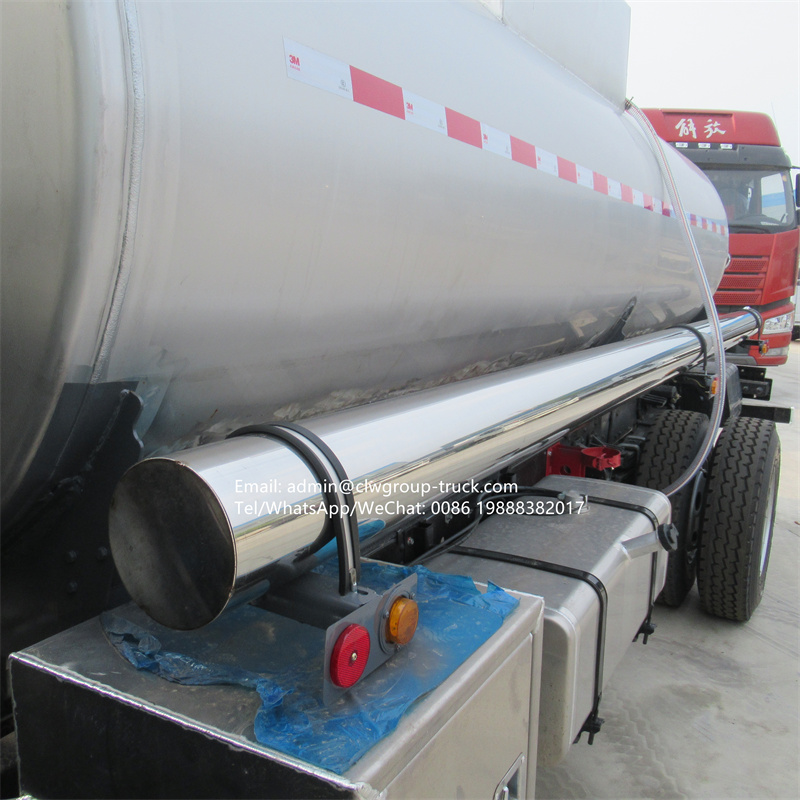

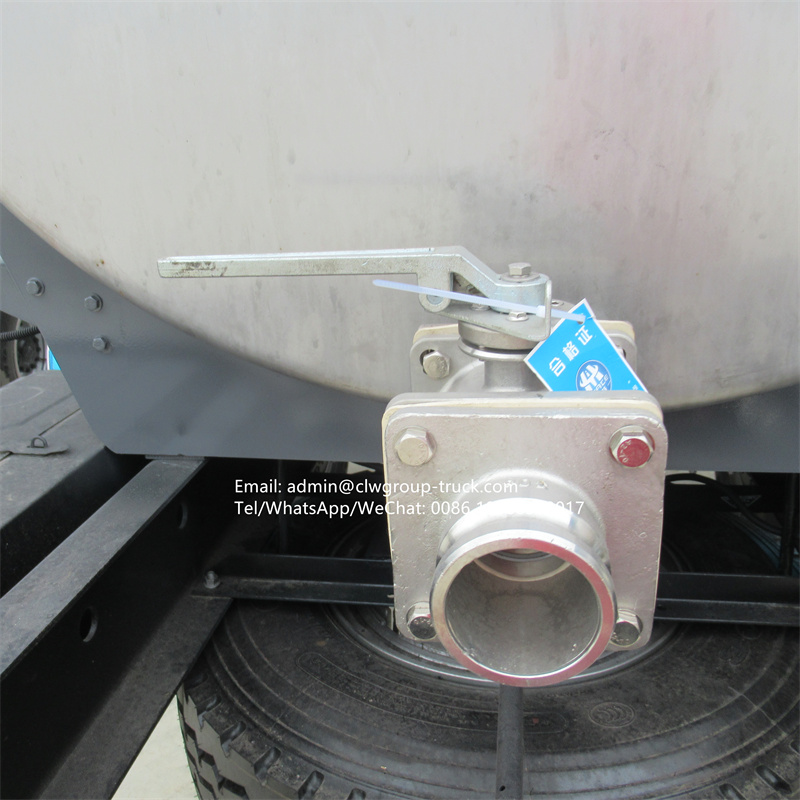

The tank body is made of 5 mm thick food-grade stainless steel plate 302-2B, the outer surface of the tank body is polished, and the internal welding seam polishing ensures the sanitation and cleanliness of water transportation, the tank body is 6 cubic meters, with stainless steel manhole cover, climbing ladder, walkway , tool box, stainless steel ball valve and pump, piping
Stainless steel refers to steel that is resistant to weak corrosive media such as air, steam, and water, and chemically corrosive media such as acid, alkali, and salt, also known as stainless acid-resistant steel.
Supply stainless steel sprinkler, stainless steel water tanker, stainless steel water supply truck, stainless steel water truck, -drinking water, spring water, hot water with thermal insulation stainless steel tanker
As the material of the water truck function, we can use ordinary 304 stainless steel and food grade 304-2B material according to customer requirements, and the outside of the tank can be polished or painted. If it is used to transport hot water, we can also carry out Insulation treatment, pumps, sprinkler cannons, rear platforms, etc. can also be selected. The stainless steel sprinkler, stainless steel water tanker, stainless steel water supply truck and stainless steel water truck produced by our company can ensure that the temperature of hot water drops to 5°C within 20 hours at room temperature within.
304 stainless steel is a universal stainless steel material, and its rust resistance is stronger than that of 200 series stainless steel materials. The high temperature resistance is also relatively good, and the general operating temperature limit is less than 650 °C. 304 stainless steel has excellent corrosion resistance and good resistance to intergranular corrosion. For oxidizing acids, it was found in experiments that 304 stainless steel has strong corrosion resistance in nitric acid with a concentration of ≤65% below the boiling temperature. It also has good corrosion resistance to alkaline solutions and most organic and inorganic acids.
Stainless steel thermal insulation water truck, also known as: thermal insulation water truck, stainless steel sprinkler truck, stainless steel water tanker, stainless steel water supply truck, stainless steel water truck, it is a special purpose multi-functional water transporter modified on the basis of the sprinkler truck car. Insulation water trucks are generally used to transport hot water to heating stations, or to transport hot water to bathing centers, artificial hot springs, bathhouses, hotels, etc., so they are also called: bath water trucks, bathhouse water trucks, bathhouse water trucks, hot water trucks, etc. Water distribution truck.
The biggest difference between stainless steel thermal insulation water trucks and ordinary sprinkler trucks is that an additional thermal insulation layer is added to the outside of the water tank. The insulation layer is made by welding another 10mm thick supporting frame outside the water tank, then filling the frame with insulation material, and finally covering the frame with a layer of skin.
The material of the thermal insulation water tanker produced by our company is generally made of high-quality carbon steel or stainless steel. Insulation materials generally include rock wool, polyurethane foam, etc. for users to choose, such as 1, rock wool, carbon steel; 2, rock wool, stainless steel; 3, polyurethane foam, carbon steel; 4, polyurethane foam, stainless steel.
In addition, the multi-functional stainless steel thermal insulation sprinkler is generally not equipped with a conventional sprinkler pump, and all electric hot water pumps are used, which have the characteristics of high temperature resistance and long range, and are in line with stainless steel sprinklers, stainless steel water tankers, stainless steel water supply vehicles, and stainless steel water transport vehicles. actual use. Special reminder: Before the construction of the tank insulation layer, the sprinkler must conduct an anti-leakage inspection on the tank to confirm that there is no leakage before construction.
Stainless steel sprinkler truck, stainless steel water tank truck, stainless steel water supply truck and stainless steel water truck are based on the sprinkler truck, and the tank body is treated with polyurethane foam to achieve the function of hot water thermal insulation transportation.
