The full name of a wrecker truck is a road recovery truck, also known as a trailer or road rescue vehicle. The tow truck with multiple functions such as lifting, towing, and lifting and towing is mainly used for road malfunction vehicles, urban violation vehicles, and emergency rescue. According to categories, the tow truck is divided into towing connected type, towing separated type, one towing one type, flat plate one towing two types, multifunctional wrecker vehicle, and hydraulic automatic clamping type
There are two common types of 30ton heavy duty tow truck: articulated and flat flatbed. Flat bed wrecker vehicles can be divided into two types: one trailer, two full floor, and half floor. Articulated 30ton heavy duty tow trucks can be divided into two types: trailer and suspension coupling and suspension separation. Regardless of the structural form, their functions are the same, and they are all used to clean up accidents and illegal vehicles. With the increase of transportation hubs, traffic accidents are gradually increasing, which has driven the development of cleaning vehicles. Generally, one trailer, two flatbed cleaning vehicles are small and medium-sized, and large cleaning vehicles generally choose trailer and suspension coupling. Below, we will introduce a large cleaning vehicle - Cheng Liwei brand 8X4 30ton heavy duty tow truck. Obstacle removal vehicle.
Chengli Special Automobile produces a 30ton heavy duty tow truck equipped with ChengliWei brand 8X4 chassis modification, National 3 emissions, Dongfeng Tianlong flat top cab, Weichai 310 horsepower engine, 12.00R20 steel tires, wheelbase 1950+4575+1400mm, 10 speed transmission, front axle 7.5 tons, rear axle 16 tons, 400L aluminum alloy fuel tank, ABS, air brake, with air conditioning, and driving recorder.

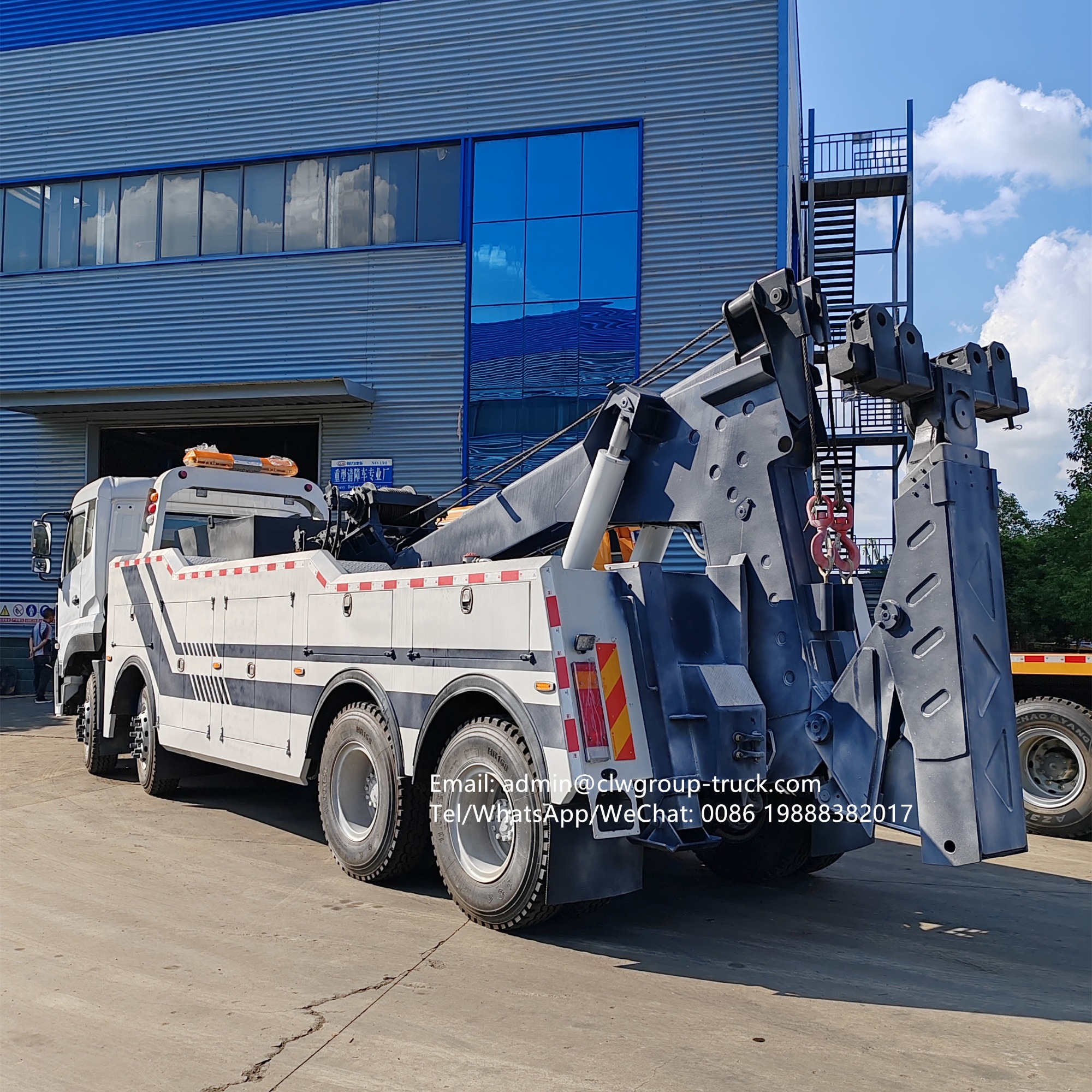

30ton heavy duty tow truck body configuration: 30T20D articulated top, two section hexagonal lifting arm, three supporting arms, split carriage, dual side linkage operation device, two ten ton hydraulic winches, 45 meter steel wire rope, equipped with four sets of steel forks, one set of towing fork sleeve, one set of steel plate lifting ear towing fork, one set of tire holding device, one long row engineering alarm light, one set of auxiliary air pipe assembly, and two binding chains. The lifting weight of the vehicle is 13020Kg (2 people) and 12955Kg (3 people). The dedicated device is a lifting and towing integrated obstacle removal device, with the lifting arm capable of lifting heavy objects and the towing arm capable of providing lifting and pulling functions
The lifting arm and lifting arm of the separated trailer30ton heavy duty tow truck are separate and not connected, and can be operated separately or simultaneously during operation.
The drag and lift system is a rigid connection between the lifting arm and the lifting arm, which means they are connected together. In other words, during lifting operations, the lifting arm will also be linked and cannot be operated separately.
Compared to flatbed wrecker vehicles, trailer mounted wrecker vehicles have the advantages of simple structure, large lifting capacity, good maneuverability and practicality, simple operation, convenient maintenance, and strong plasticity. This large obstacle removal vehicle is more suitable for towing large vehicles.
Advantages of Cheng Liwei brand 30ton heavy duty tow truck
1. It also has the characteristics of convenience, flexibility, and strong practicality compared to other ordinary obstacle clearing operations, and can use commonly used supports, chains, rigging, and auxiliary equipment for obstacle clearing operations.
2. Simple structure: This type of cleaning vehicle is a combined structure of support and suspension, and the production process is relatively simple, so the production cost is relatively reduced.
3. High lifting capacity: Its curb weight is lighter than other lifting separation types, reducing the load on the rear axle and increasing the lifting capacity of the entire vehicle.
