Vehicle mounted lifting and transportation vehicle with flatbed is a combination of flatbed transportation vehicle and vehicle mounted lifting function. Compared to ordinary cargo boxes, flatbed transportation has a larger usage area and can pull large mechanical equipment

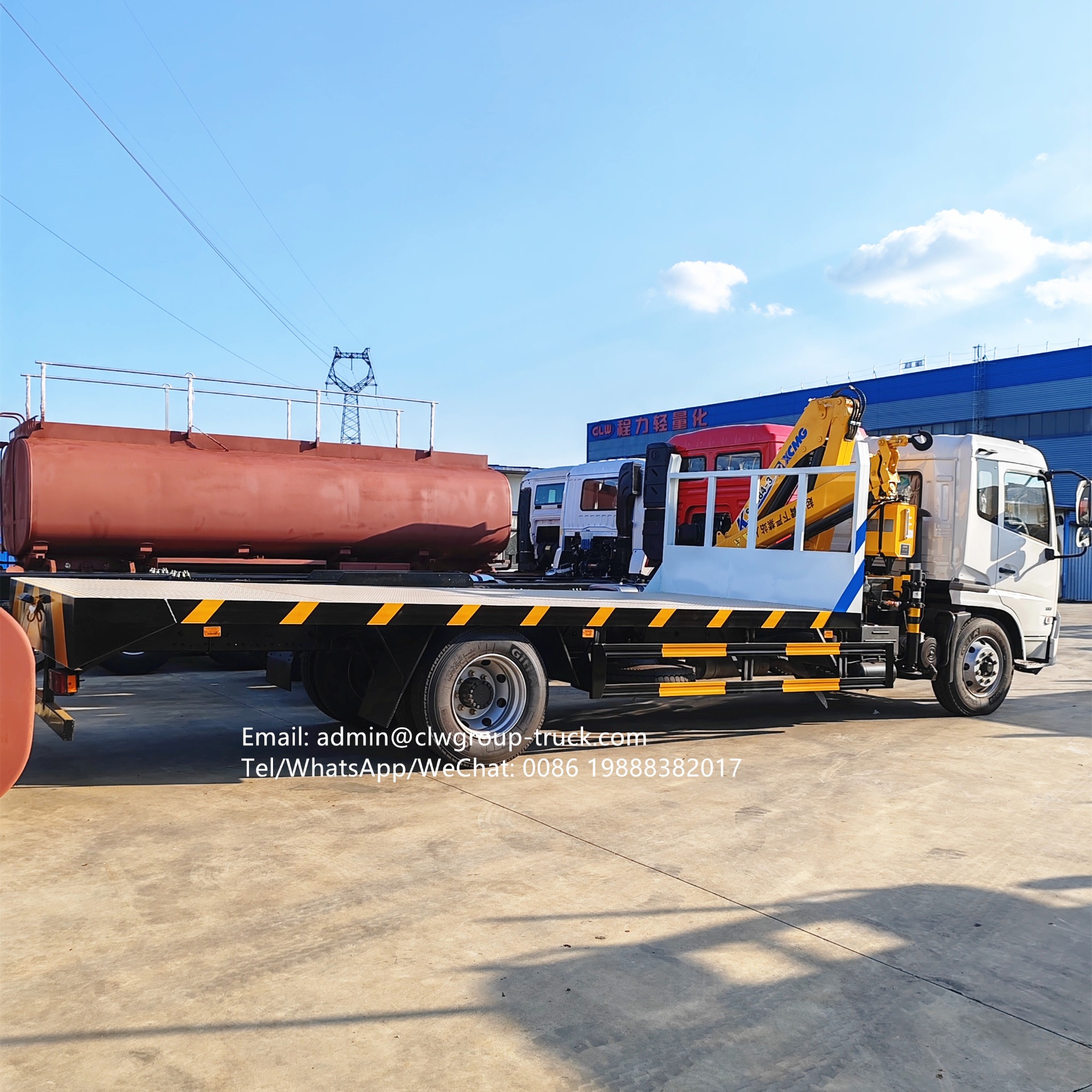

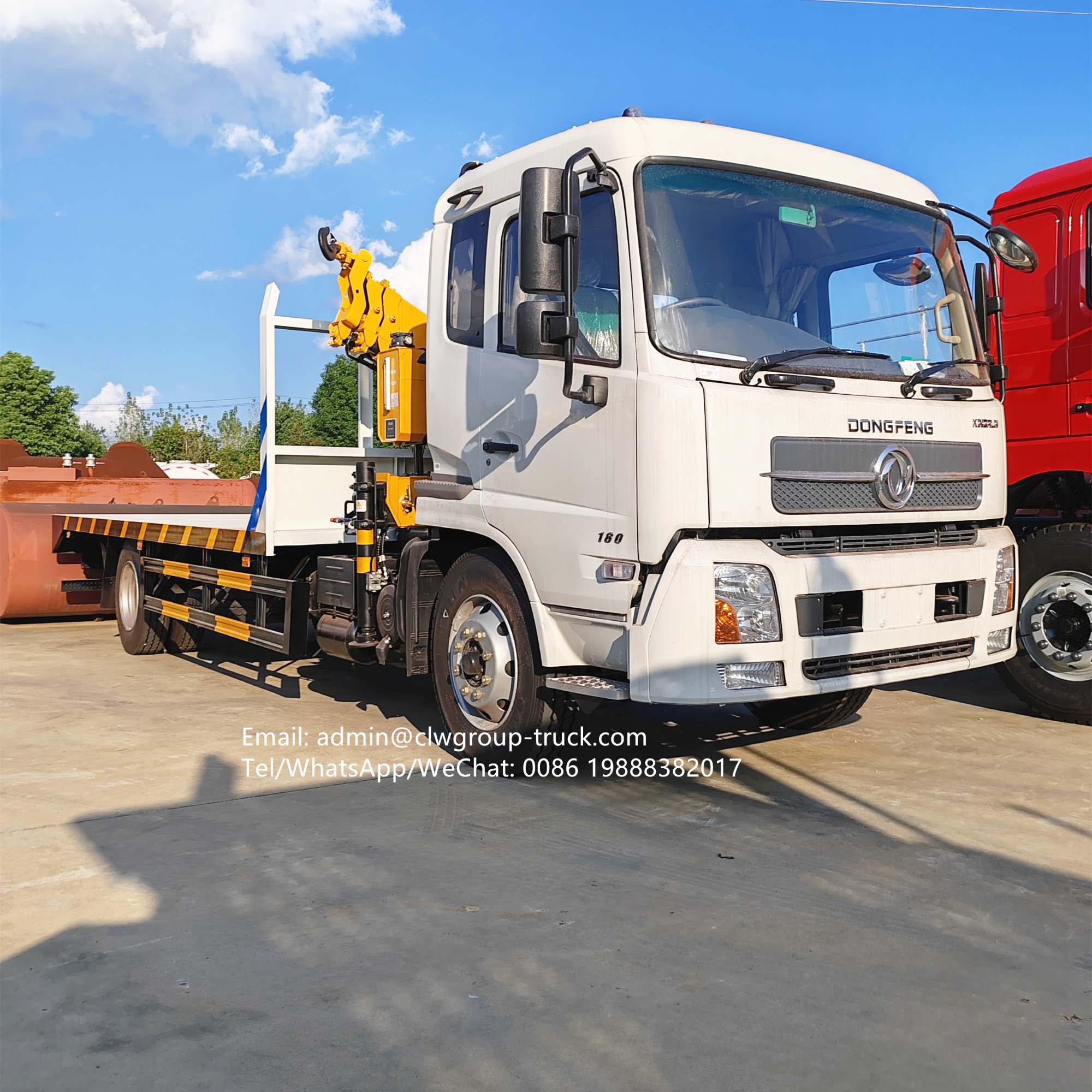

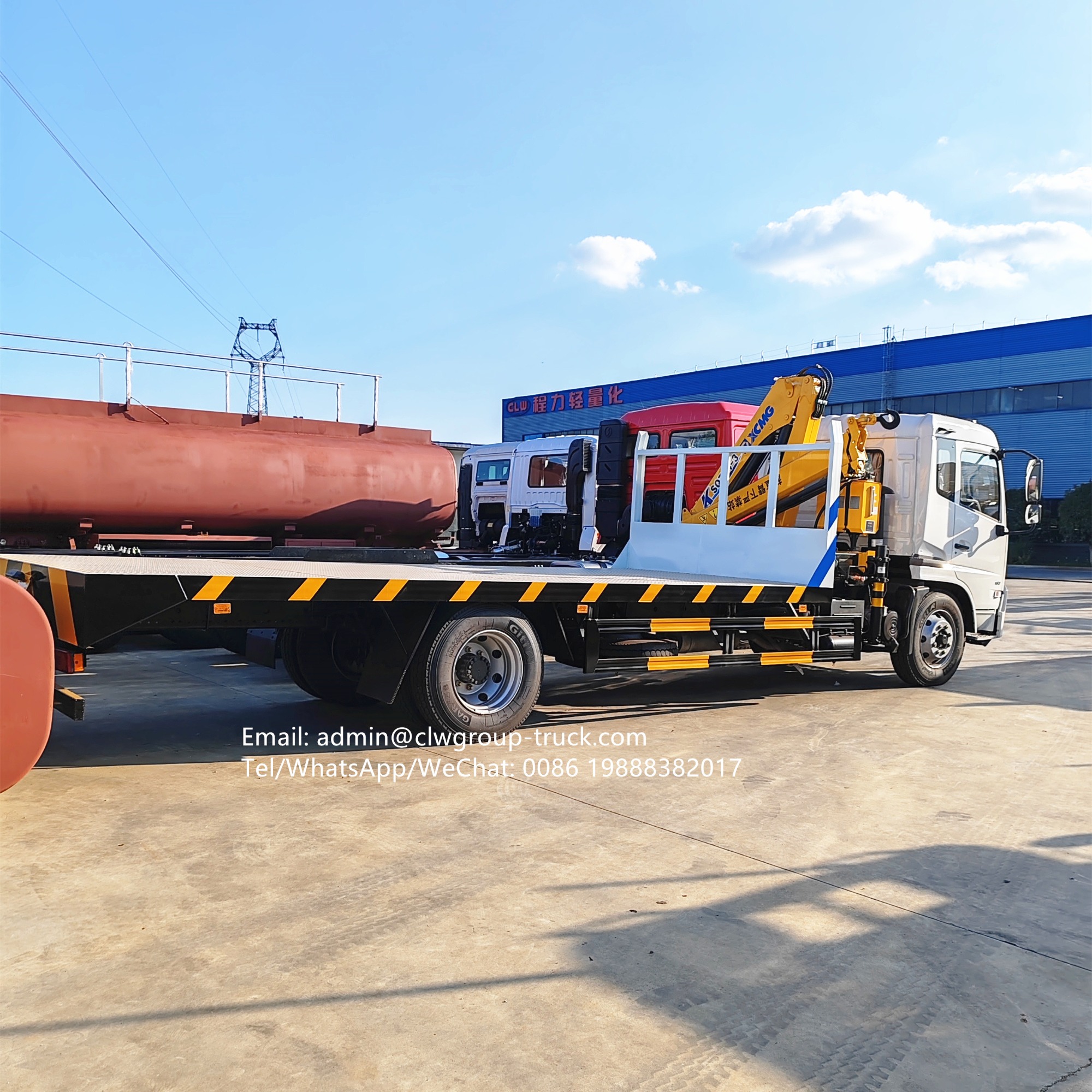

Dongfeng Tianjin is an advantageous product of the Dongfeng series chassis. Its simple cab shape and Cummins engine configuration are highly favored by customers. This Dongfeng Tianjin 180 horsepower flatbed transport vehicle with 3 4-ton XCMG folding arm cranes is a customized model for customers. The flatbed can carry 8-10 tons of cargo, and the maximum lifting weight of the crane is 4 tons. It can also be equipped with 5-ton, 6.3 ton, and 7-ton straight arm cranes or folding arm cranes.
Chassis parameter configuration of Dongfeng Tianjin flatbed truck mounted crane with a 4-ton knuckle arm crane:

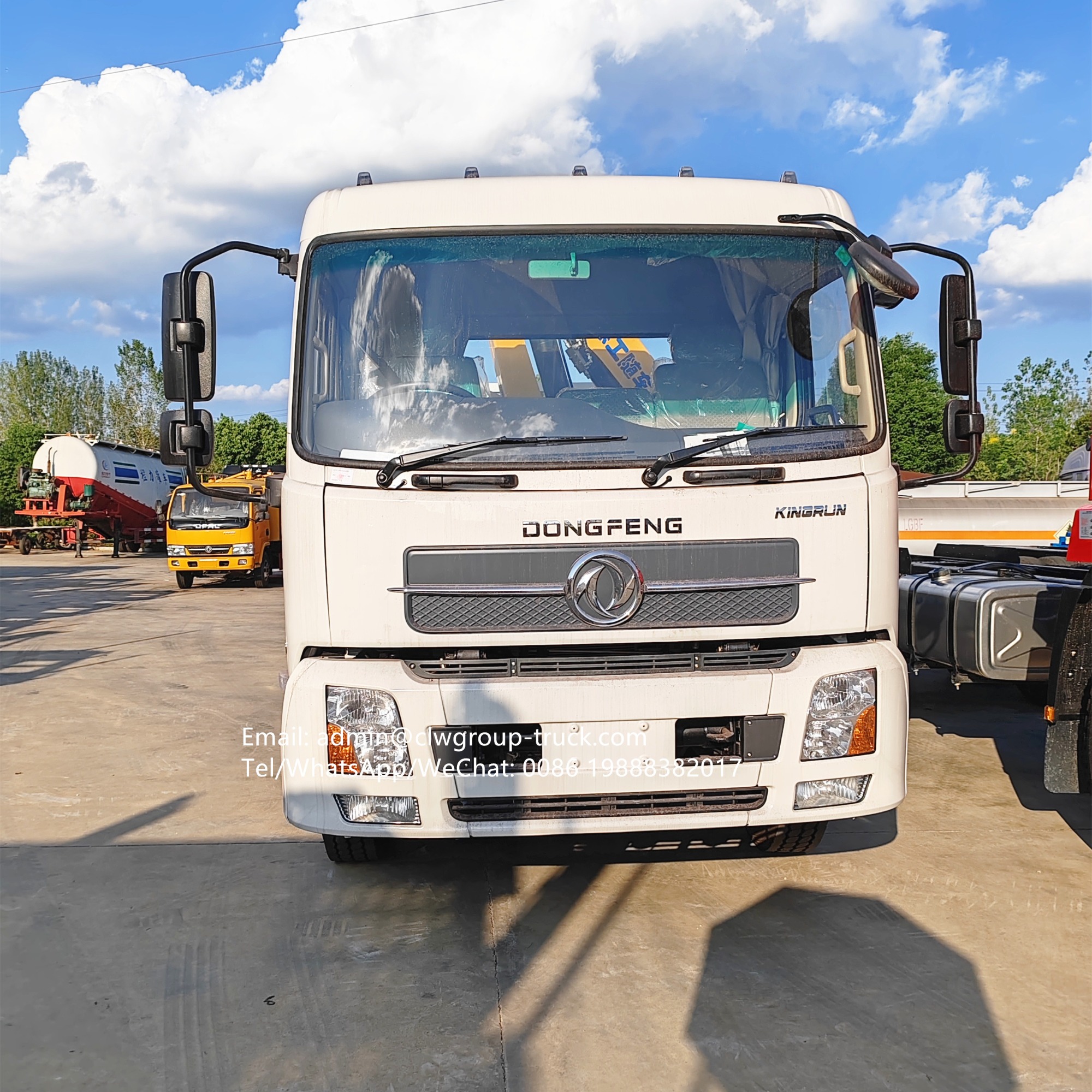

Dongfeng D530 standard top cab, engine Cummins 180 horsepower, ISDe180 30, maximum torque 650N. m, transmission model DF6S900, 6 forward gears and 1 reverse gear, front axle 4.5 tons, rear axle 9 tons, frame 250X80X7+4, wheelbase 4700mm, 200L iron fuel tank, tires 9.00R20
Dongfeng Tianjin flatbed truck mounted crane with 4-ton kNUCkle arm crane flatbed parameters

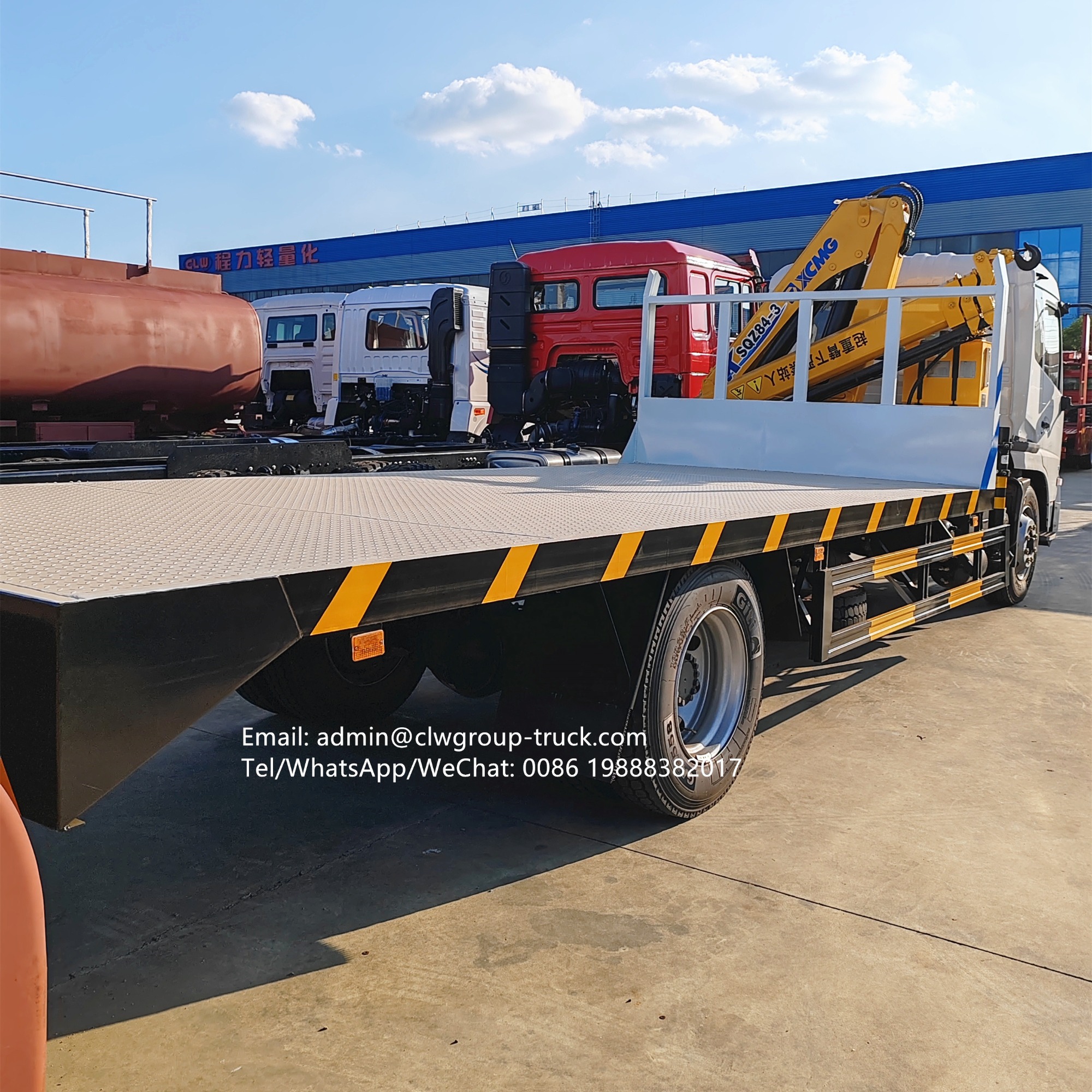

The flat plate size is 5000 * 2350mm, with a load capacity of 10 tons. The crossbeam is made of 100 * 100 * 4mm thick national standard square steel pipes, the gantry frame is made of 12 # channel steel, the side beam is made of 14 # channel steel, and the surrounding plate is made of 10 thick steel plates. The double spring ladder is made of 140 * 80 * 6 thick rectangular steel pipes
Dongfeng Tianjin flatbed truck mounted crane with 4-ton folding knuckle arm crane parameters:
The crane adopts XCMG's 4-ton three section folding arm type and is made of high-quality steel, which has the advantages of light weight and high strength. The maximum lifting height is 10.2 meters, and the maximum operating radius is 7.6 meters. The lower operation mode is selected and equipped with operation signs, which is simple and easy to understand.
Crane model: KSQZ84-3 maximum lifting torque; 84KN M
Maximum lifting weight: 4000KG Maximum hydraulic boom length: 7.3M Rotation angle: 360 degree
Leg span: 3554mm Maximum working pressure: 26Mpa Recommended flow rate: 25L/min
Fuel tank capacity: 60L, self weight: 1290kg
The hydraulic oil tank is installed next to the crane, and XCMG's small tonnage cranes are designed with this structure. This design allows for a more obvious view of the liquid level inside the hydraulic oil tank, avoiding forgetting to refuel the tank due to busyness
Chengli Special Vehicle Co., Ltd. is a manufacturer of on-board cranes. We can choose different chassis according to customer requirements and configure cranes with different tonnage of 3-25 tons. The carriages can be customized as ordinary carbon steel cargo boxes, self dumping cargo boxes, flat transportation, clearing flat plates, excavator transportation flat plates, etc
