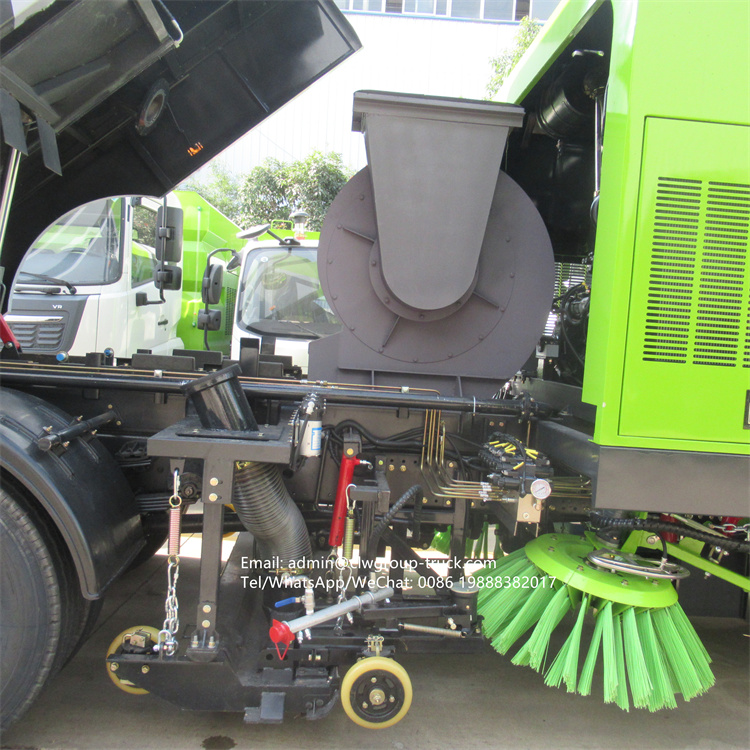

The Tianjin road washing and sweeping truck is mainly equipped with a special chassis of Dongfeng Tianjin sanitation with a wheelbase of 5000mm, and is equipped with an auxiliary engine and its transmission device, a fan, a high-pressure water cleaning system, a low-pressure washing system, a sweeping and dust-reducing system, a clean water tank, left and right cleaning devices, suction It is composed of nozzle, hydraulic system, pneumatic system, electric control system and other components.
The Tianjin road washing and sweeping truck is equipped with a Cummins 170-horsepower auxiliary engine, a high-power maintenance-free centrifugal fan on the northern slope of Luoyang, two sweeping discs in the middle, and an imported Pinfu high-pressure water pump or Borenia high-pressure water pump (front flush/side spray/middle Spray / rear spray / side car wash water gun / garbage bin self-cleaning device), high-pressure road edge cleaning nozzle, Weilong low-pressure pump (front flush), stainless steel garbage can, stainless steel high-pressure pipeline, German controller Siemens electric originals, Sanyo cycloid Motor and water tank are equipped with anti-overflow or low-pressure water level alarm device; tail LED arrow light, manual pump emergency system, in-cab monitor for reversing and cleaning status, 18m high-pressure washing reel; maximum cleaning width 3.2m, cleaning pressure 10Mpa, maximum The inhalation particle size is 50mm, the recommended cleaning speed is 6-25km/hour, and the cleaning area is 21000m2-88000m2 per hour.
Optional configuration
Users can choose to install sprinkler function, spray dust suppression function, aerial work platform, front snow shovel and other configurations according to personal needs.
Dongfeng Tianjin road washing and sweeping truck has the functions of road cleaning, road cleaning, curb cleaning, curb and curb stone facade washing, low-pressure flushing, spray dust removal, etc.; select the "full cleaning" mode to clean squares and roads, with high cleaning efficiency The effect is good, with a cleaning rate of more than 90%. Select the "left sweep" or "right sweep" mode to clean the road surface and curb, and wash the curb stone facade; when it is necessary to perform road cleaning or road cleaning operations, you can choose to sweep the road. mode; when spray dust removal is required, the spray device can be turned on to perform spray dust removal operations; it can also perform low-pressure flushing operations on the road like a sprinkler.

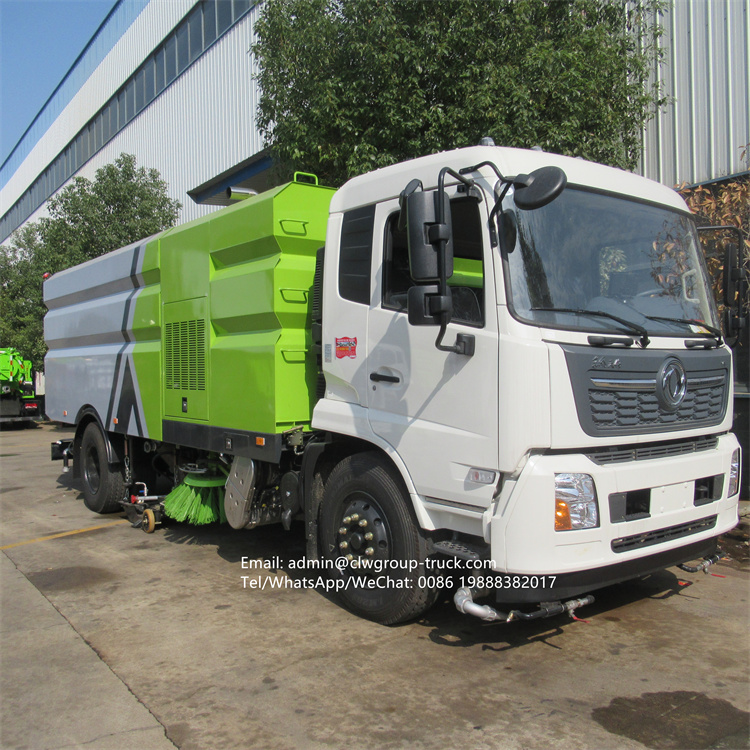

Chassis configuration: Dongfeng Tianjin road washing and sweeping truck adopts the Sino-Japanese joint venture Dongfeng Tianjin series sanitation vehicle special chassis, with a semi-luxury cab on the front row, the engine adopts the Sino-US joint venture Cummins series diesel engine, with Dongfeng 6-speed gearbox, Easy to get started. The 4.5-ton front axle, the 9-ton single-stage shock-absorbing rear axle, and the 9.00 steel tire greatly increase the load capacity. The original air conditioner, ABS, and air brake improve the driver's driving comfort and safety.
Dongfeng Tianjin road washing and sweeping truck is the main model in the large sweeper market. It has a stylish appearance, high-end configuration and reasonable price. It is the first model for users to choose a large sweeper.
Dongfeng Tianjin road washing and sweeping truck is suitable for mechanized cleaning, sweeping, spraying and dust reduction of urban roads, highways, factories, airports, docks, tunnels, bridges, partition walls, curbs and curb stone facades.
