Chengli Special Purpose Automobile Co., Ltd. is a large manufacturer specializing in the production of wrecker tow truck. We have a large number of wrecker tow truck in stock. Please feel free to contact us for inquiries.
The full name of a wrecker tow truck is a road recovery vehicle, which is suitable for clearing obstacles on highways and urban roads.
Common vehicle models include Dongfeng, FAW, JAC, Isuzu, Sinotruk howo, etc., one trailer two full floor wrecker tow truck one trailer two belt mounted crane, trailer connected, trailer separated (360 degree rotation) and other types of wrecker tow truck. There are also one trailer and one trailer type obstacle wrecker tow truck.

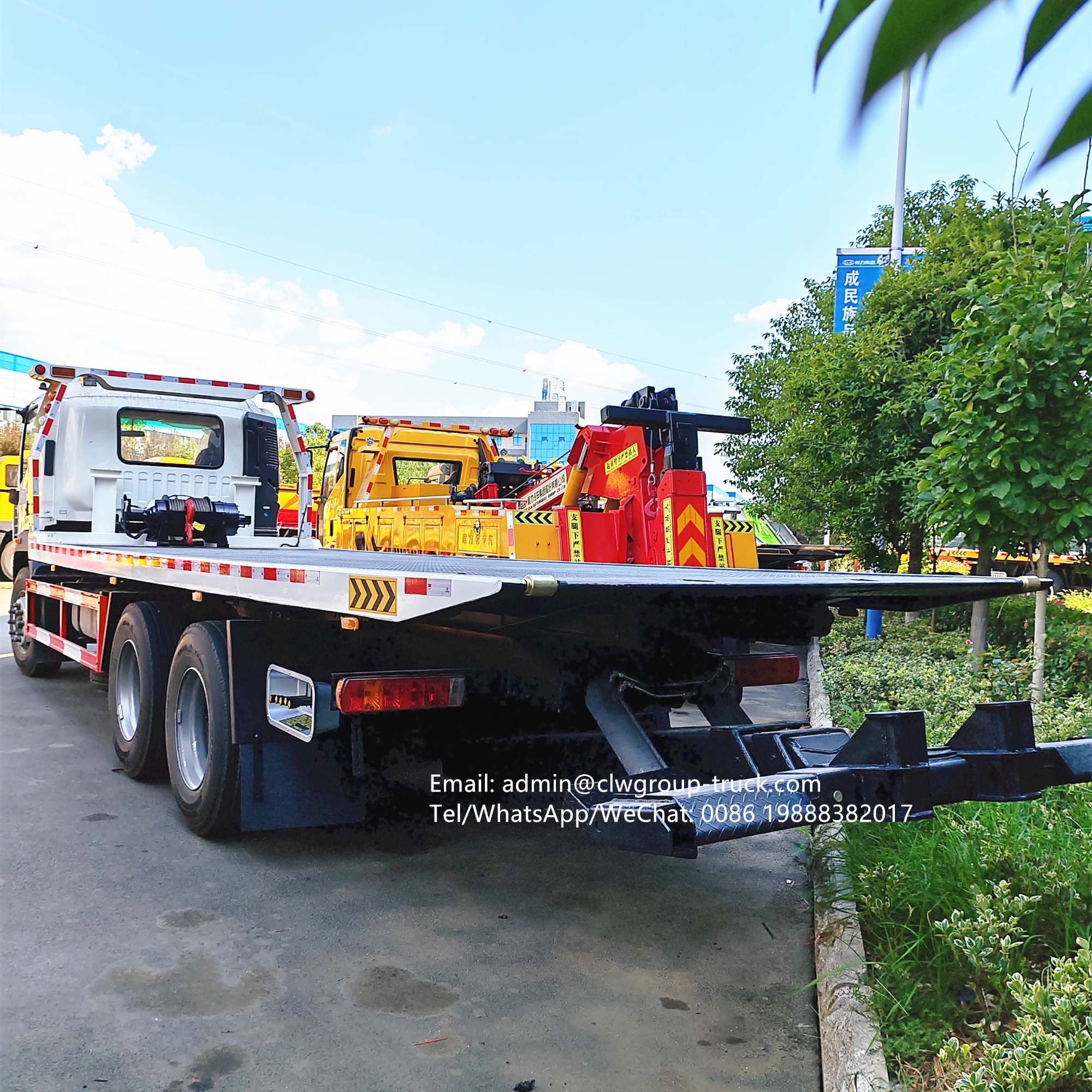

According to the different requirements of our customers, we can customize different wrecker tow truck . If you already have a ready-made chassis locally, just send us the layout diagram of the chassis and we can produce according to the requirements. If you want to purchase a complete obstacle wrecker tow truck, please let us know your preferred brand and tonnage, and we can recommend it to you. The following FOTON 6X4 10 wheel car carrier tow truck is a customized product for South American customers:
Foton 6X4 12 ton 10 wheel car carrier tow truck chassis configuration:

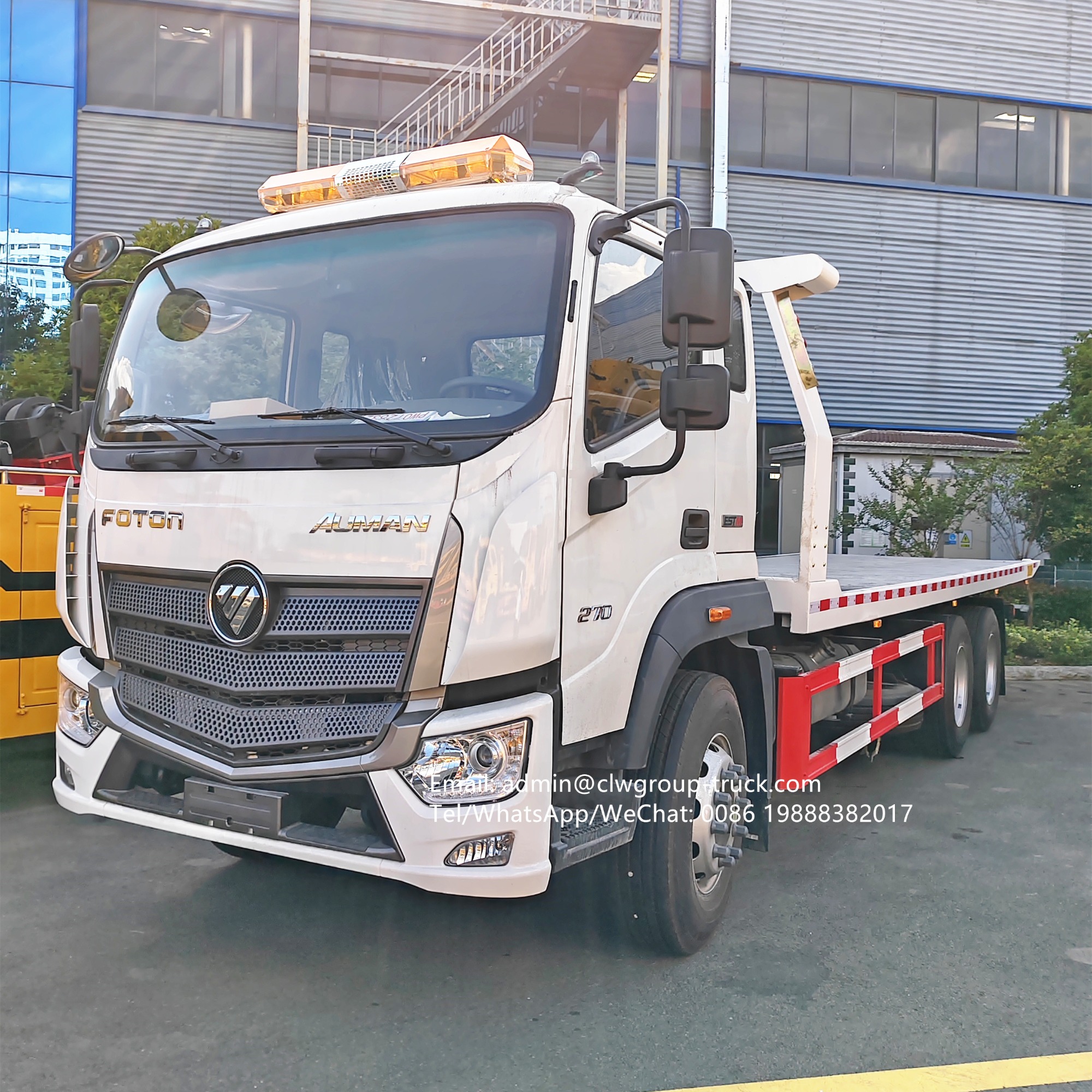

The Foton Ouman 6X4 is equipped with a Cummins Ou4 engine, with 270 horsepower, ISDe270 40, Faster 8-speed transmission, 8JS118TC-B, front 6.5 tons and rear 13 tons, with tubeless tires (metric) of 155R13260L aluminum alloy. The cab is equipped with a central lock, electric windows, and electric rearview mirrors,
Foton 6X4 12 ton 10 wheel car carrier tow truck body configuration;

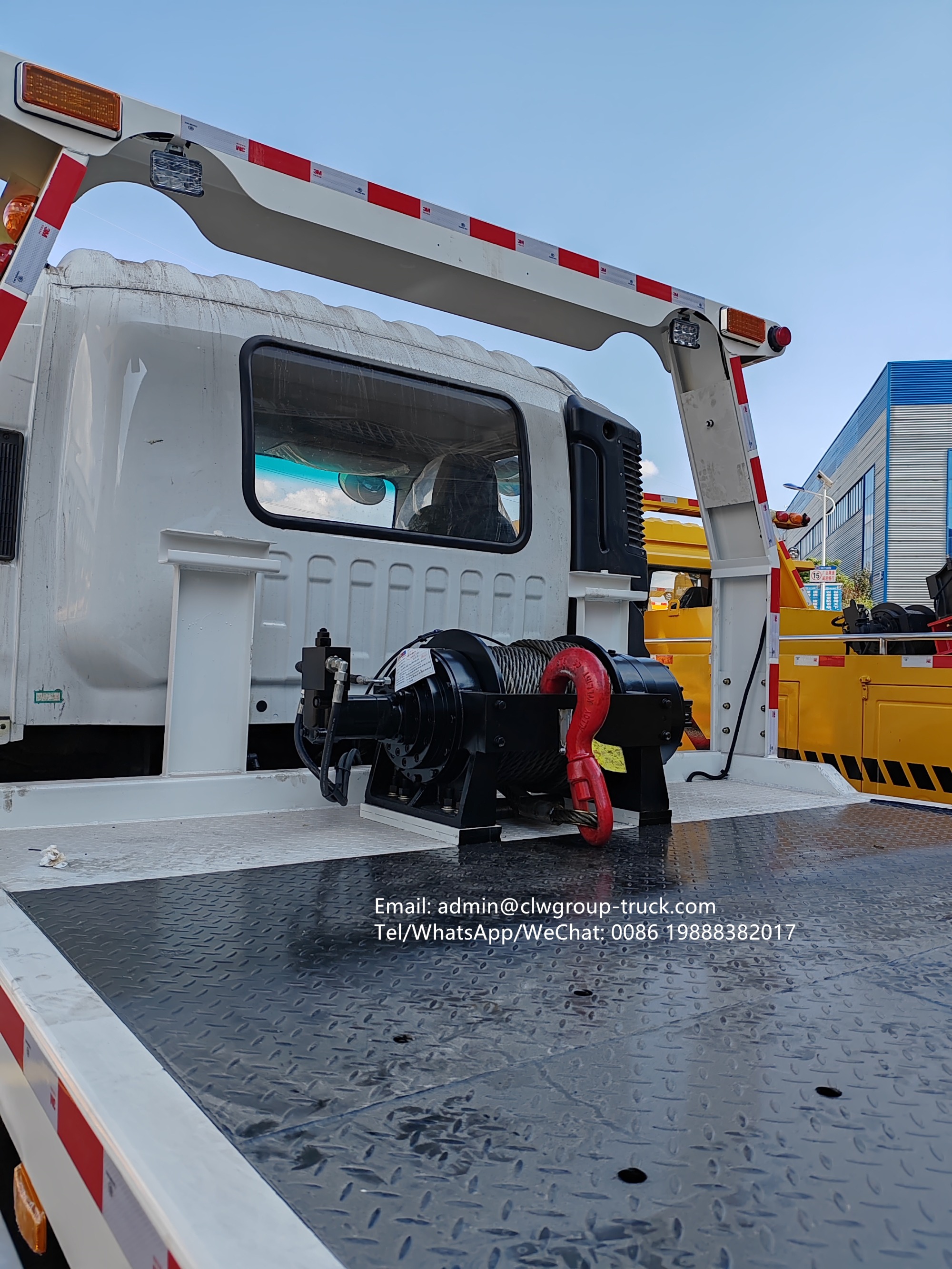

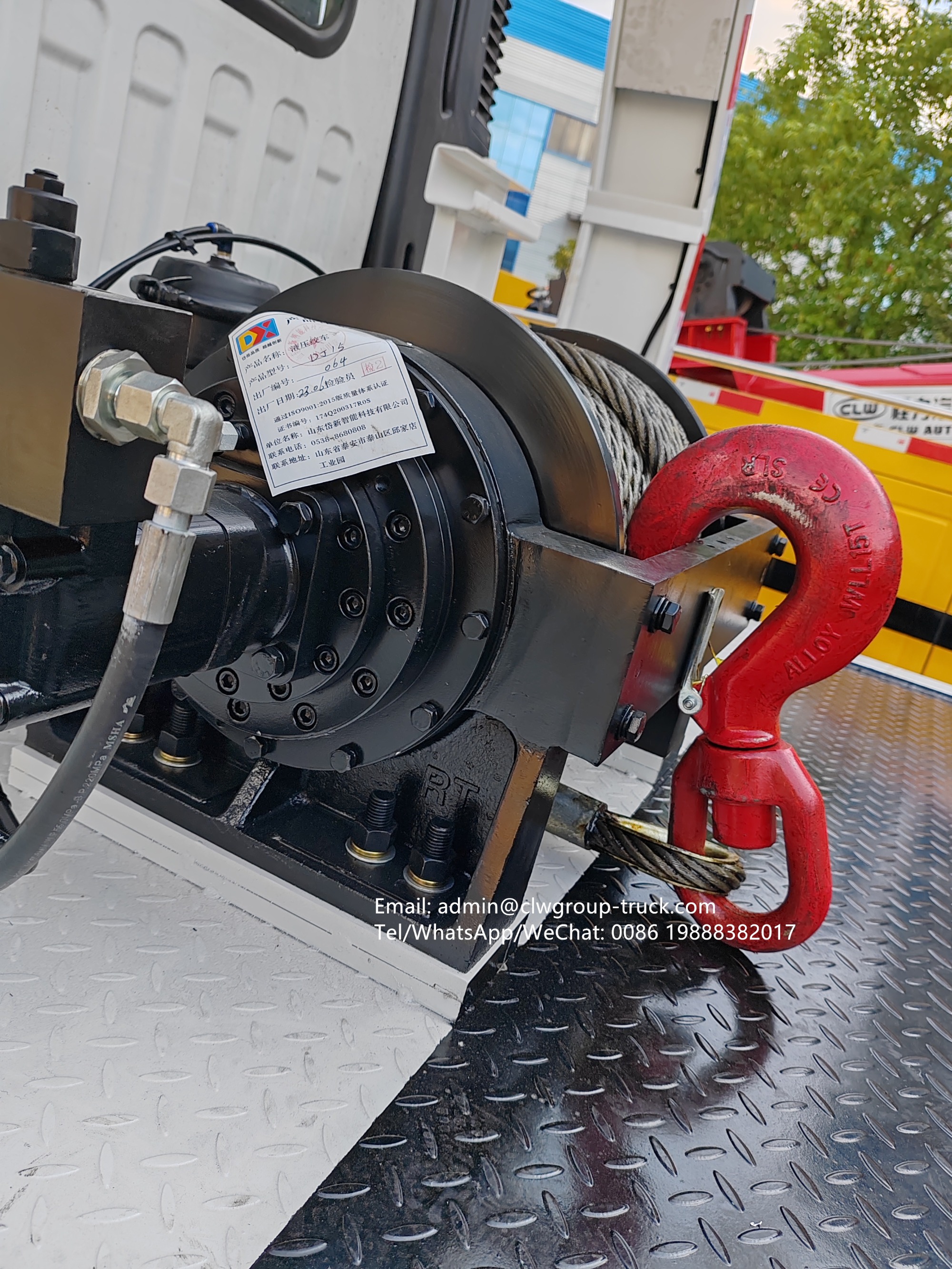

12 ton upper load, 10 ton winch, 6mm thick patterned plate, 12 ton three section rear support arm, flat plate sinking, hydraulic flipping tail plate at the tail, one pair of support sockets, two pairs of towing forks, one set of tire holding device, strap strap strap, auxiliary trolley, alarm light, hand washing water tank, double chain hook. Reinforcement of the tail of the main beam, binding of the main beam, imported hydraulic system, plate length of 9.6m, width of 2.55m, equipped with 2 sets of fixed forks, 1 set of support fork seat, 6 straps, installation of air pipe joints, alarm lights, etc
Advantages of Foton 6X4 12 ton 10 wheel car carrier tow truck :
Both sides of the dual side linkage operated valve can be operated flexibly
The safety alarm light on the top of the cab is activated during operation, making it convenient for night work
The 3 hydraulic cylinders are equipped with fully imported seals from Germany, galvanized ground buckle plates, and two 6-piece reinforcement for greater stability. The bottom of the flat plate is reinforced with 4 * 4 square steel, with an enlarged and extended toolbox and a protective chain for the oil pipe;
