Isuzu fire truck is one of many fire truck series. It refers to a type of fire truck model modified with Isuzu series chassis. Isuzu fire trucks cover a wide range, including Isuzu 100p fire truck, Isuzu 600P fire truck, 700p fire truck, etc., the tonnage also has: Isuzu 2 ton fire truck, Isuzu 3 ton fire truck, Isuzu 5-6 ton fire truck, Isuzu 7-8 ton fire truck and Isuzu 11-12 ton fire truck, etc. Isuzu fire truck appearance Beautiful appearance, superior performance and complete equipment. It integrates Isuzu water tank fire truck, Isuzu foam fire truck, Isuzu water tank foam fire truck, Isuzu fire propaganda vehicle, etc. It is suitable for fighting various fires.

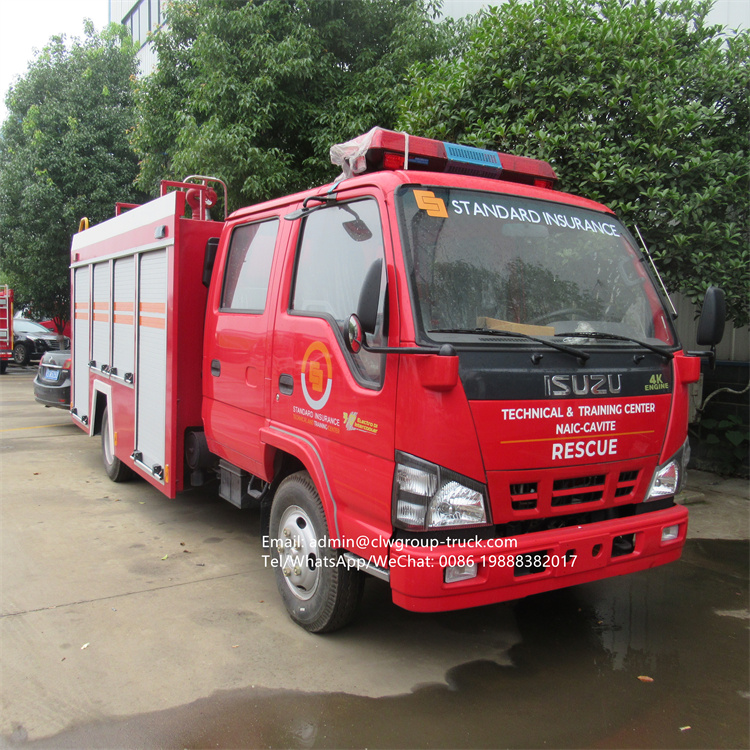

Isuzu 2.5 ton water tank fire truck, modified with Isuzu 600P chassis. The whole vehicle is composed of two parts: the fireman's cabin and the body. The cabin is an original double row, which can take 2+3 people. The vehicle is an inner storage tank structure. The front of the body is a water tank + equipment box, and the rear is a pump. House. The liquid carrier tank is made of high-quality carbon steel and is elastically connected to the chassis. The water carrying capacity is 2030kg. It is equipped with CB10/20-XZ fire pump produced by Shanghai Xiongzhen Fire Equipment Co., Ltd., with a rated flow of 20L/S. Chengdu Weiss is installed on the roof. PS20W vehicle fire monitor produced by Te Fire Machinery Co., Ltd. The biggest feature of the car is maneuverability, good handling and easy maintenance. It can be widely used in public security fire brigade, factories and mines, communities, docks and other places to fight general material fires.
1. General arrangement

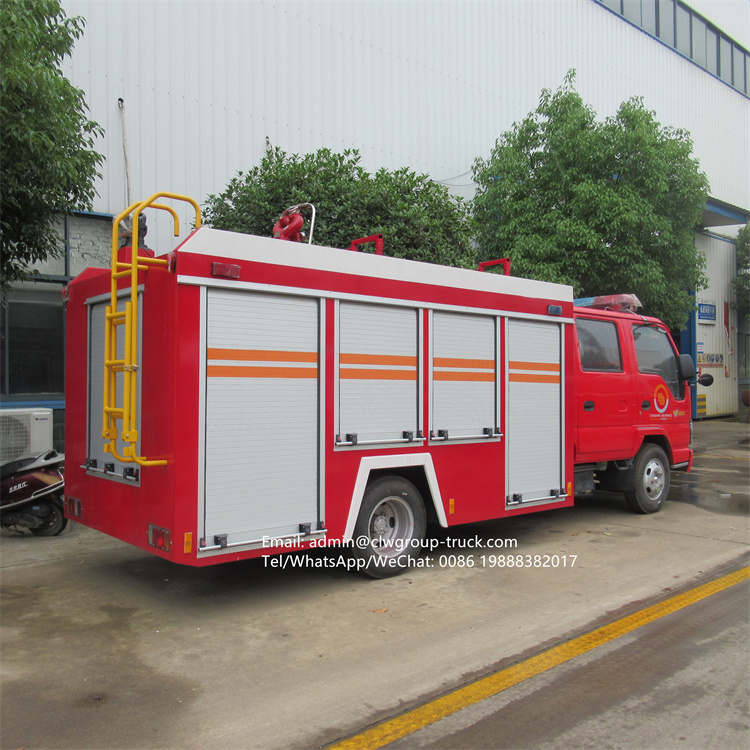

The whole vehicle is composed of two parts: the fireman's cabin and the body. The body layout adopts an integral frame structure, with a water tank inside, equipment boxes on both sides, and a water pump room at the rear.
2. Equipment box and pump room
Structure The main frame structure is welded with high-quality square tubes, and the outer decorative panels are welded with carbon steel plates. The roof is non-slip and can be walked. (Aluminum alloy square tube can be welded according to user needs)
Equipment box The equipment box is located at the rear of the crew compartment, with aluminum alloy rolling shutter doors on both sides and lighting inside. There are storage boxes in the equipment box room according to the needs.
Pump room The pump room is located at the rear of the vehicle, with aluminum alloy rolling shutters on both sides and the back, with lighting inside, and some common equipment can be placed on both sides of the pump room
Insulation location: install fuel heater (optional according to customer requirements)
3. Climbing the ladder and getting on the car handle
The rear climbing ladder is made of aluminum alloy two-section flip ladder. When used, the height should not exceed 350mm from the ground. The upper handle is made of a grooved anti-skid round steel pipe, and the surface is sprayed with plastic.
4. Water tank
Capacity 2030kg
Material: High-quality carbon steel with a thickness of 3mm (stainless steel and PP material can be used according to user needs)
Tank fixing Elastic connection with chassis frame
Tank setting Manhole: 1 DN460 manhole with quick locking/opening device
Overflow port: 1 DN65 overflow port
Residual water outlet: set up a DN40 water tank to discharge residual water, with ball valve
Water injection port: connect 1 DN65 port on the left and right sides of the water tank
Water inlet and outlet: set 1 water tank to the water inlet pipe of the water pump, DN100 valve, which can be controlled by pneumatic and manual, set 1 water pump to the water filling pipe of the water tank, DN40 valve, can be controlled by pneumatic and manual

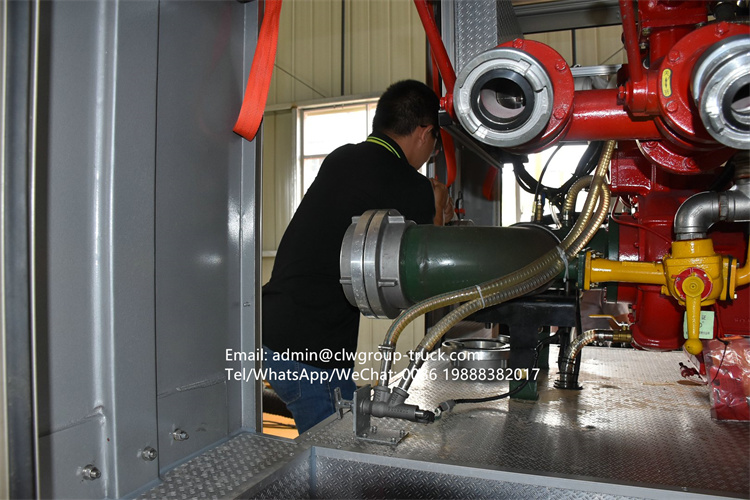

5. Water pump
Model CB10/20 low-pressure vehicle fire pump
Form Normal pressure centrifugal Rated flow 20L/s @1.0MPa
Outlet rated pressure 1.0MPa Maximum suction depth ≥7m
Water diversion device Self-contained sliding vane pump Water diversion time Maximum suction depth ≤35s
6. Piping system
Pipe material high quality seamless steel pipe
Suction pipeline There is a DN100 suction port on the back of the pump room
Water injection pipeline There is a DN65 water injection port on the left and right sides of the water tank, and a DN65 water pump is installed in the pump room to inject water into the tank
Water outlet pipeline There is one DN65 water outlet on the left and right sides of the pump room, with a stop valve and a cover. Cooling water pipeline Cooling water pipeline and control valve with cooling power take-off
7. Vehicle water cannon
Model PS20W
Manufacturer Chengdu West Fire Machinery Co., Ltd.
Rotation angle 360° horizontal rotation
Maximum elevation/depression angle Depression angle ≤-15°, elevation angle ≥+45° Flow rate 20L/S
Range ≥48m
8. Fire control system
The control panel mainly includes two parts: cab control and pump room control
In-cab control Water pump disengagement, warning light alarm, lighting and signal device control, etc.
Pump room control Bodywork main power switch, parameter display, status display
9. Electrical equipment
Additional electrical set up separate circuit
Auxiliary lighting The firefighter's room, the water pump room and the equipment box are respectively equipped with lighting lamps, and the operating instrument panel is equipped with lighting and indicator lights, etc.
Strobe lights Red and blue strobe lights are installed on both sides of the body
Warning device Long row full red warning lights, installed on the top of the cab
Siren with control box below driver front
Lighting: 1 35W fire searchlight installed at the rear of the body
10. Equipment layout
1 According to the actual needs of fire fighting, and according to the fire fighting operation procedures, pick and place them nearby.
2 Use special fixtures that are anti-corrosion, anti-vibration, anti-dropping, and anti-scratch.
3 Conspicuous signs, multi-person operation, non-interference.
