Chengli Special Purpose Vehicle Co., Ltd. is a manufacturer of various special purpose vehicles, mainly engaged in the production and sales of various special purpose vehicles. The main products of the business include eight series of over 100 types of vehicle models, including truck mounted cranes, truck cranes, aerial work vehicles, sprinkler trucks, oil tank trucks, garbage trucks, suction trucks, dump trucks, box trucks, semi-trailers, obstacle removal trucks, training trucks, bulk cement trucks, chemical trucks, fire trucks, automotive parts, water and mud mixer trucks, and tractor trucks.

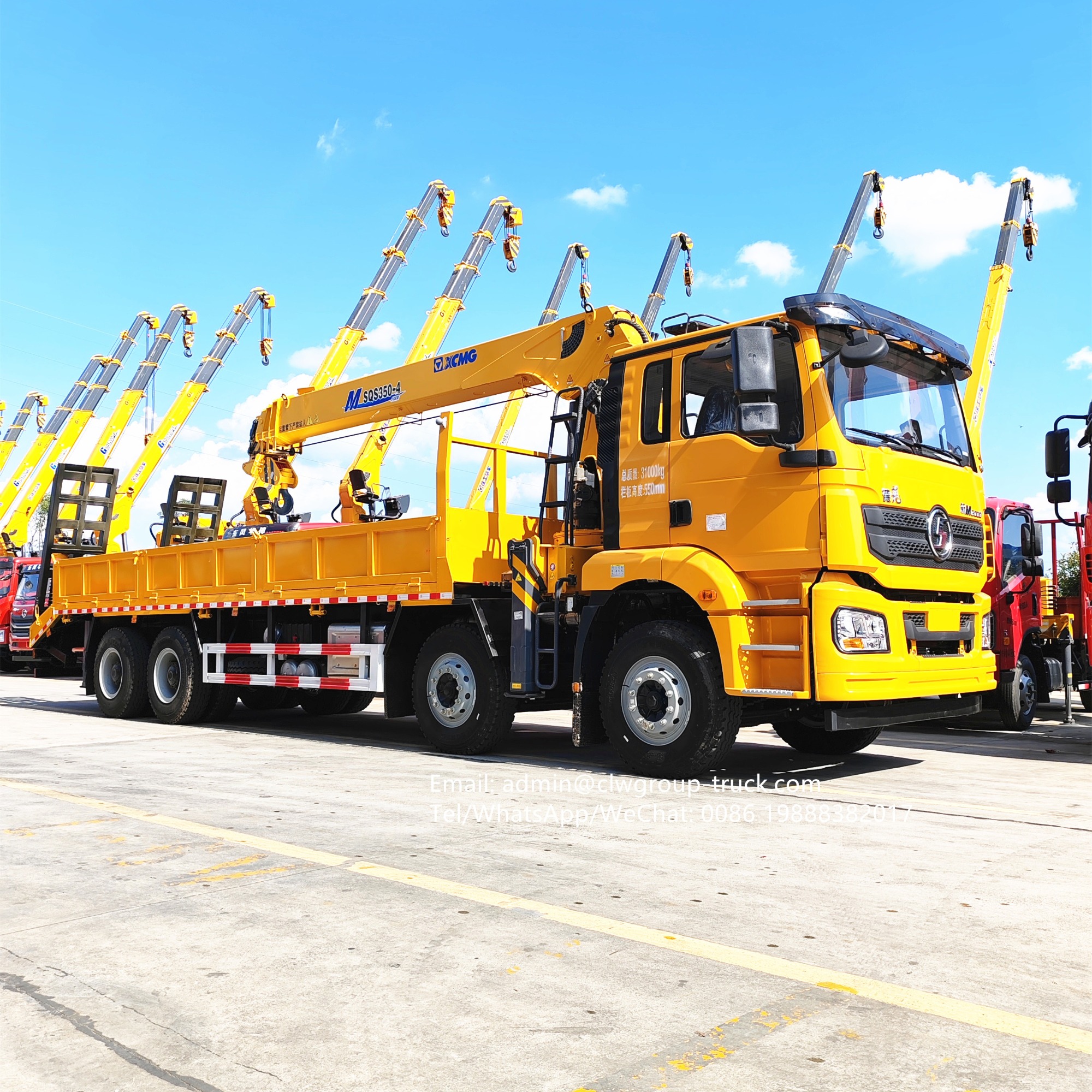

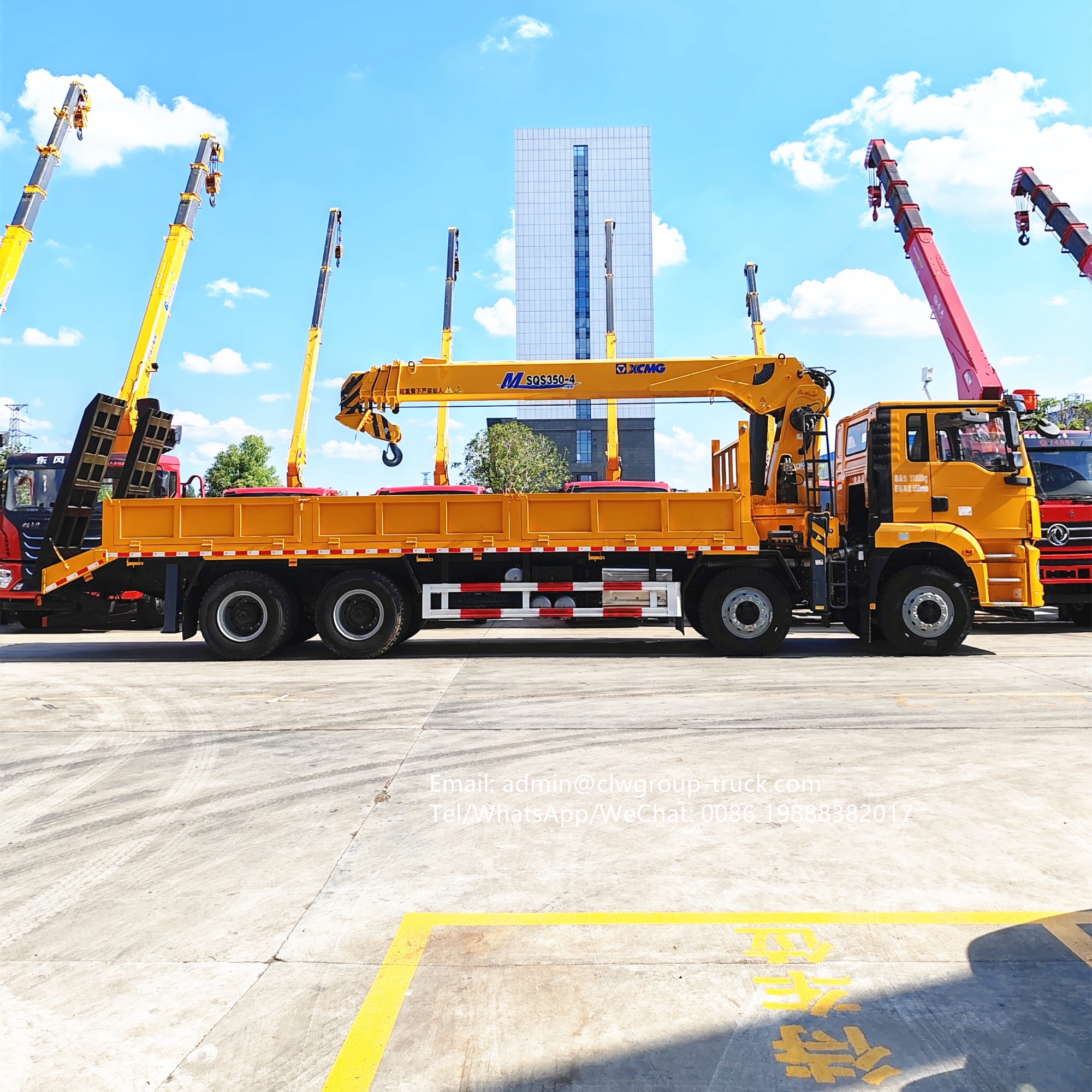

The Shacman 8X4 self loading low bed truck with crane is a multifunctional on-board crane. It has a structure with a flatbed and a ladder, which can be used to pull mechanical equipment or to lift heavier goods, achieving multiple uses for one vehicle.
Configuration of Shacman 8X4 low bed flatbed truck:

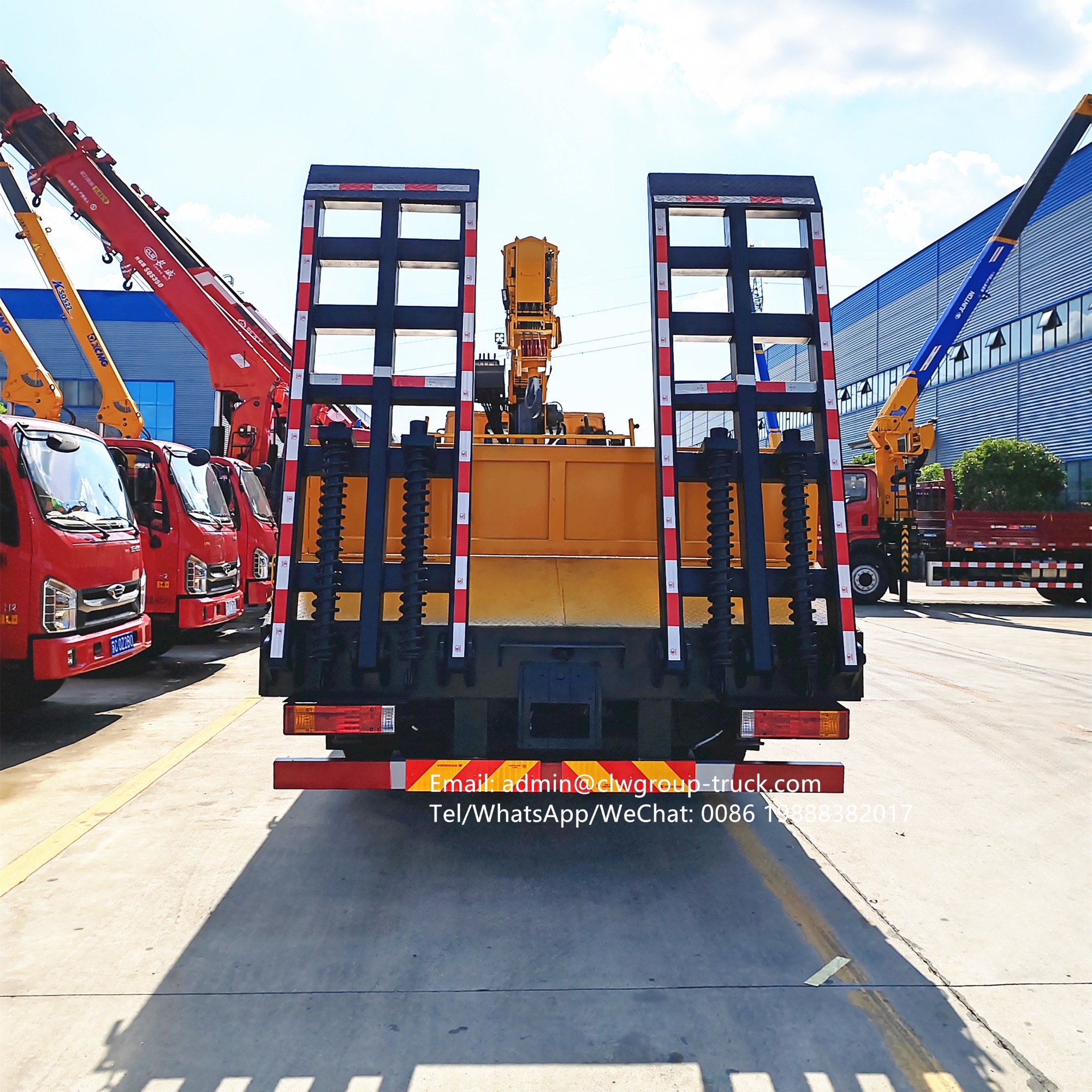

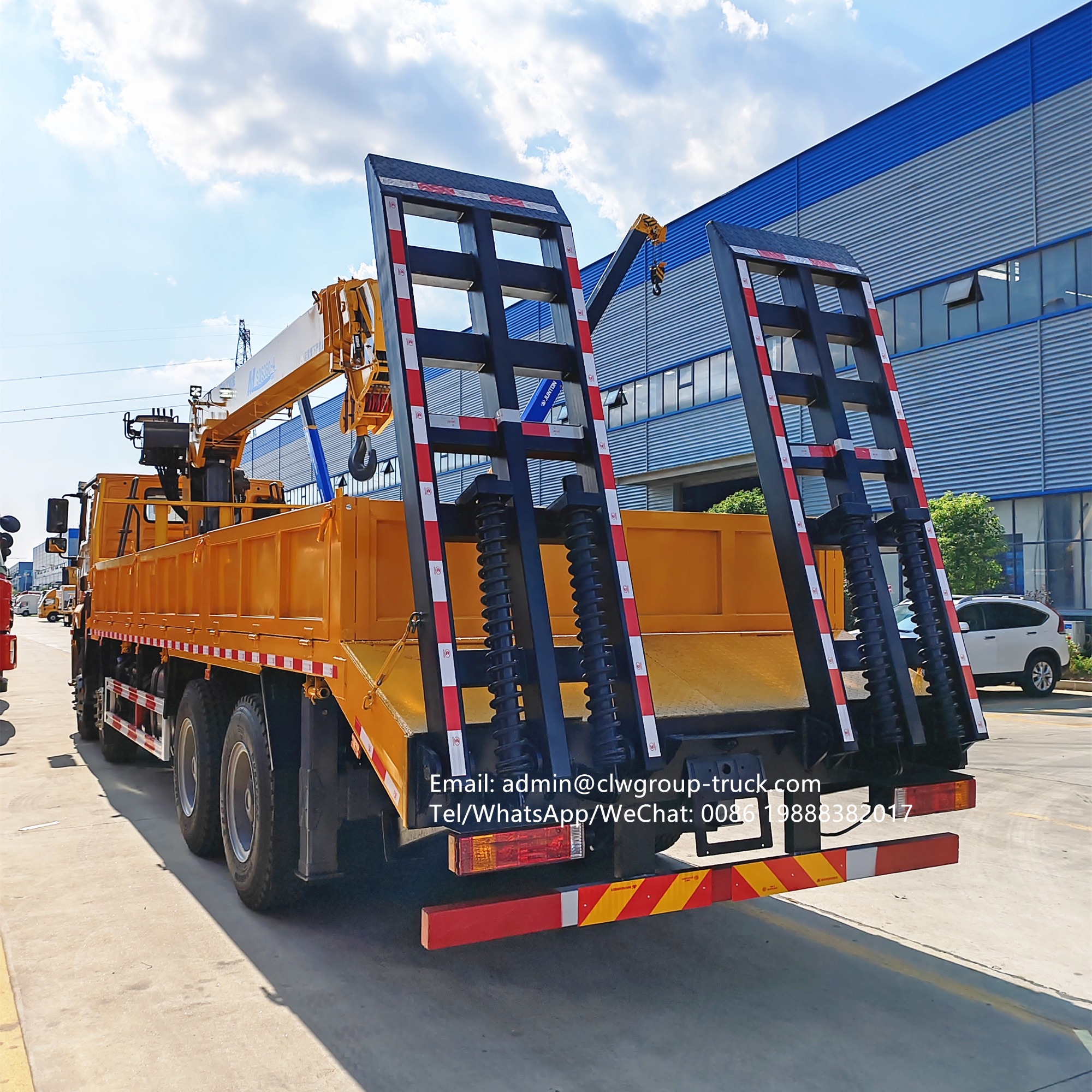

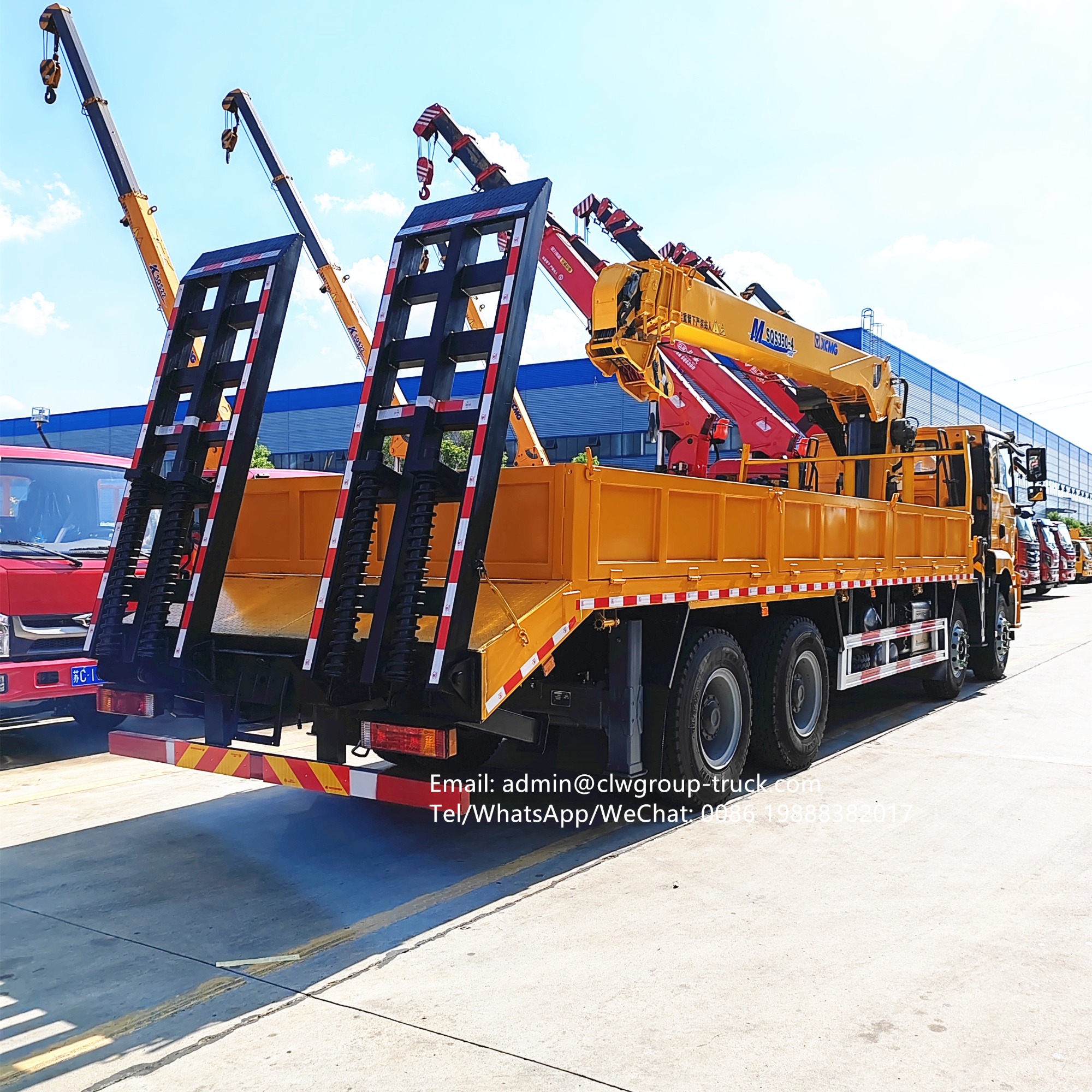

The flat plate has a net length of 8 meters and a width of 2.5 meters, and can be manually extended to a width of 3 meters. A 120X120 square steel is used below the flat plate, and a 10mm rear flat plate is used above the square steel. The 16 # manganese steel reinforced ladder is suitable for carrying 30-45 tons of large excavators
Shacman 8X4 Truck mounted Crane \ SQS400 XCMG 16 ton Truck mounted Crane Chassis configuration: Delong M3000 medium standard cab, with air conditioning, ABS, dash cam 400L aluminum alloy fuel tank, with three levels of main beam. Extended semi high roof cab (H), without air deflector, four point airbag suspension in the cab, air main seat, manual flipping, road bumper, sunshade, electric air conditioning, electric window lifter, central locking, domestic steering gear, domestic clutch. Weichai 300 horsepower National V engine, Fast 9-speed transmission, 11.5 ton rear axle, 1100R steel tire, wheelbase: 2100+4575+1400. Suitable for 12 ton, 14 ton, 16 ton, 18 ton, 20 ton, and 25 ton straight folding arm cranes.
What is the length of the SQS400 XCMG 16 ton truck mounted crane? The shacman 8X4 self loading low bed truck with crane is equipped with a XCMG 16 ton five section straight arm truck mounted crane (crane model SQS400). The XCMG SQS400 16 ton truck mounted crane has a lifting height of 20 meters, a working radius of 18.5 meters, and a leg span of 7.2 meters. The XCMG 16 ton truck mounted crane can be installed for high-altitude operations according to customer requirements, and can be equipped with single cavity hydraulic rear support legs or double cavity hydraulic rear support legs
