Nigeria is Africa's largest oil producer and the world's sixth largest oil exporter. It is also a member of the Organization of the Petroleum Exporting Countries (OPEC). The petroleum industry is the backbone of the national economy. In addition to oil, liquefied gas exploitation is also an important economic source.
Chengli Special Vehicle Co., Ltd. specializes in the production of oil trucks, refueling trucks, refueling trucks, skid-mounted stations, and LPG tanks. Every year, a large number of oil and gas vehicles are exported to Nigeria. Due to the excellent product quality and after-sales service Good has won wide acclaim from Nigerian customers

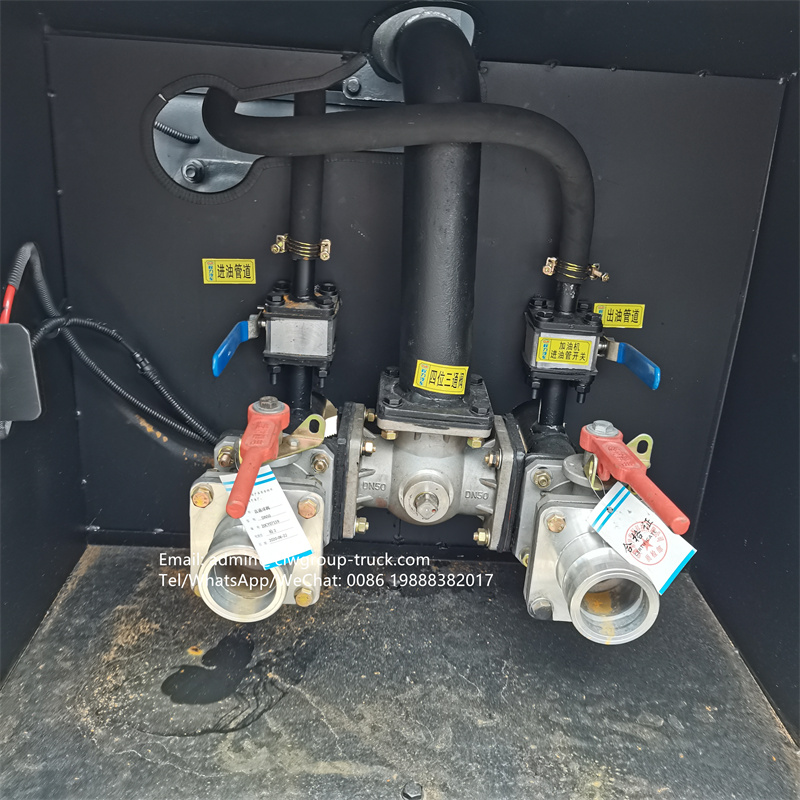

Standard configuration of mobile refueling truck: a set of European standard (European standard tank port, emergency shut-off valve, lower oil port, oil and gas recovery, anti-spill probe), large-flow refueling machine, electrostatic tape electrostatic reel, self-priming and self-draining Pump, others (tank roof enclosure, side guardrail, new rear bumper, tool box, rear ladder, discharge box, two long feeding pipes such as gun barrel and tank, fire extinguisher)
The thickness of the steel plate of the tank body of the refueling truck:
Usually, the fuel trucks with less than 8 cubic meters of oil are pressed by the national standard Q235 carbon steel plate, the fuel trucks with more than 8 cubic meters of oil are pressed by the national standard 5 mm Q235 carbon steel plate, and the fuel trucks with more than 30 cubic meters of oil are pressed by the national standard 6 mm Q235 carbon steel plate.

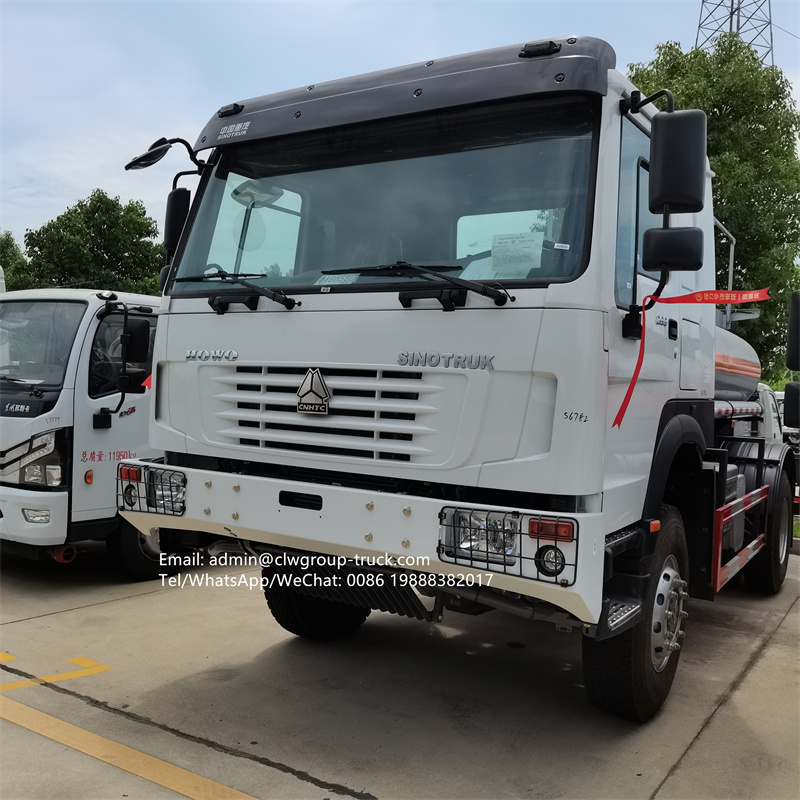

1. Refueling truck chassis:
The chassis of the refueling truck usually adopts the special chassis for refueling trucks of large automobile manufacturers such as Dongfeng, Faw, Foton, Shacman, Sinotruk, ISUZU, JMC, and JAC
Second, the tank part of the refueling truck:
The tank body is required to have sufficient strength. The tank body is provided with anti-shock plates, and the tank body accessories are provided with manholes, liquid outlet valves, etc. Some tanks also need to be insulated, equipped with flow meters, etc. The tank can be divided into warehouses.

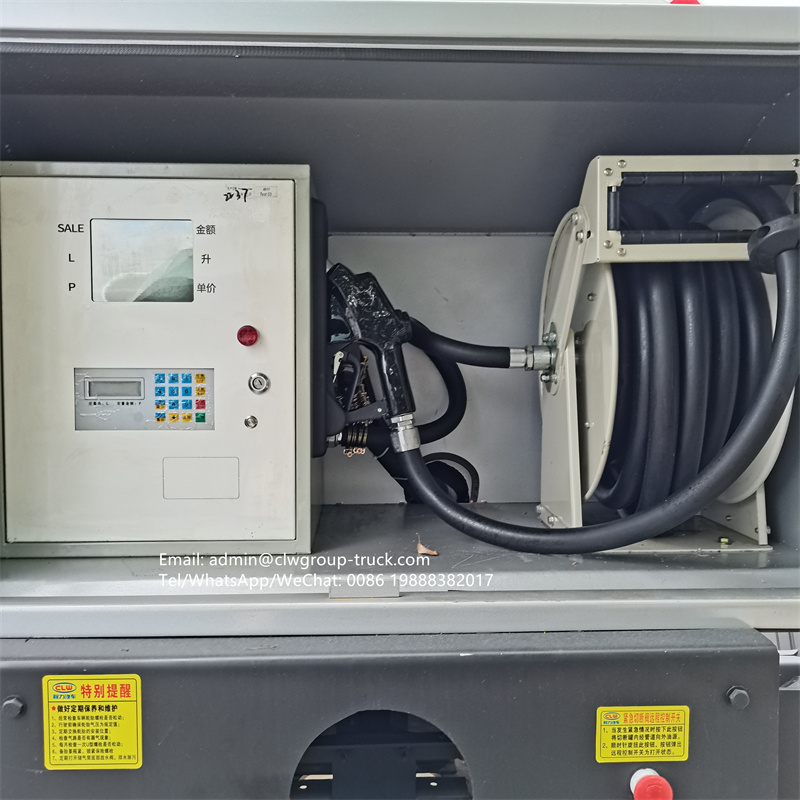

3. Refueling truck refueling machine:
The fuel dispenser is a fuel dispenser that uses the power of the car and can move with the car to meet the needs of urban or rural oil sales. It has the functions of ordinary fuel dispensers, and is suitable for the use of gasoline, diesel, and ethanol gasoline. It is safe and reliable, compact in structure, small in size, and easy to operate. Types and brands of tankers: Shanghai Seike tanker, Guangdong Hengshan tanker, Beijing Sanjin tanker, Beijing Jialijia tanker, Zhengzhou Zhengxing tanker, Zhuhai Bellin tanker, Shanghai Bole tanker.
4. Automatic return reel for refueling truck:
The automatic return reel is available in 10 meters, 15 meters, 18 meters and 20 meters.
5, refueling car oil pump:
The oil pump of the refueling truck is usually a self-priming pump, a gear pump, a chemical pump, a stainless steel pump, a centrifugal pump, and a heavy oil pump.
6. Refueling truck operating system:
The gearbox is driven by the engine, and the power take-off installed on the gearbox drives the oil pump, which generates power and pumps the liquid inside the tank in or out through the pipe network.
7. Fuel truck fire extinguisher:
Usually the refueling truck carries 2 sodium bicarbonate dry powder fire extinguishers.
8, refueling car breathing valve:
The breathing valve is a ventilation device fixed on the top of the tank to ensure the normal state of the pressure in the tank, prevent the tank from being damaged by overpressure or vacuum in the tank, and also reduce the volatilization loss of the liquid in the tank.
9, fuel truck fire cover:
Automobile fire shields are usually vortex valve type structures, which are directly connected to the tailpipe of the automobile exhaust pipe by a four-bar mechanism without any tools. There is no need to switch or connect fixing screws. The operation is simple and fast, and the installation and disassembly can be completed in a few seconds. In places where the ignition point of the flammable product is relatively low and the concentration is high, it can completely extinguish the sparks entrained in the exhaust gas of the automobile exhaust pipe.
10. Anti-static facilities for fuel trucks
The anti-static facilities on the refueling truck are mainly divided into two types: electrostatic wires and electrostatic grounding wires.
According to the tank material classification: according to different purposes, carbon steel, stainless steel, lined rotomolding, glass fiber reinforced plastic, plastic tanks (polyethylene, polypropylene), aluminum alloy and other materials can be used to make tanks. Tank shape of refueling truck: divided into oval tank, round tank and square tank.
