Asphalt distributors are divided into intelligent asphalt distributors and ordinary asphalt distributors. Because of their different configurations, the prices vary greatly, so you don’t know the difference when you buy them. This article will introduce them to you. The difference between the two configurations
1. Different control methods
Ordinary asphalt distributors are operated on the rear working platform, while intelligent asphalt distributors can be operated in the driver or on the rear working platform, which means that the intelligent asphalt distributor has two functions. One set of control system, one set of manual control system, and one set of German Xizi automatic control system. Below are pictures of the two control systems:
Rear operating platform of ordinary asphalt distributor

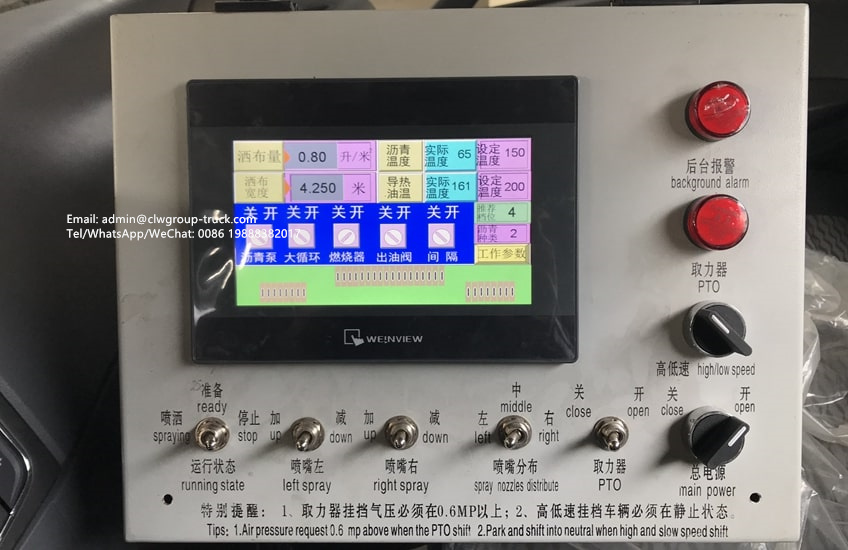

In-cab operation platform of intelligent asphalt distributor
2. The number of nozzles and the structure of nozzles are different
Taking the Dongfeng 6-ton asphalt distributor as an example, both of them have a spreading width of 4.5 meters, with 34 intelligent sprinklers and 16 ordinary sprinklers. The intelligent sprinkler head can precisely adjust the amount of spraying, while the ordinary type of asphalt sprinkler sprinkler cannot accurately adjust the amount of spraying. Therefore, the spraying amount of the ordinary asphalt sprayer is constant and cannot be adjusted, so it is more expensive. The intelligent asphalt distributor can be adjusted and more user-friendly. The specific difference between the two can be understood from the following two pictures:

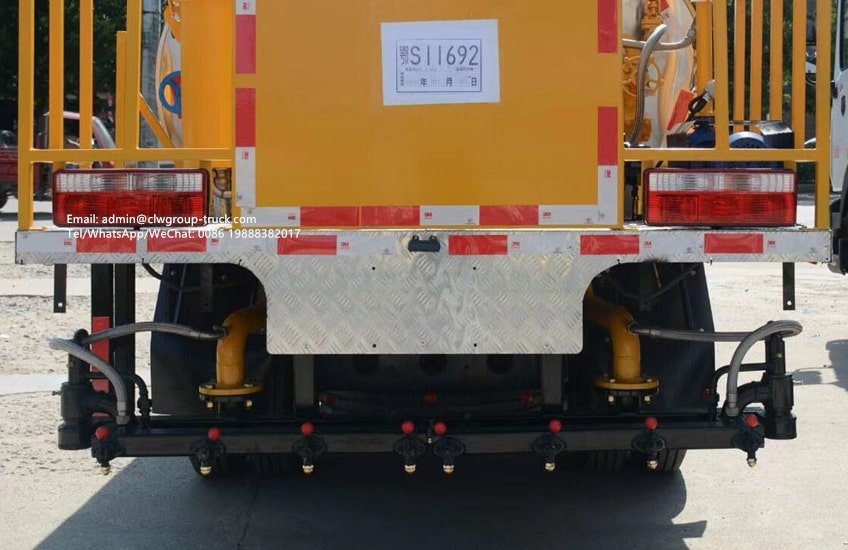

Ordinary asphalt distributor sprinkler

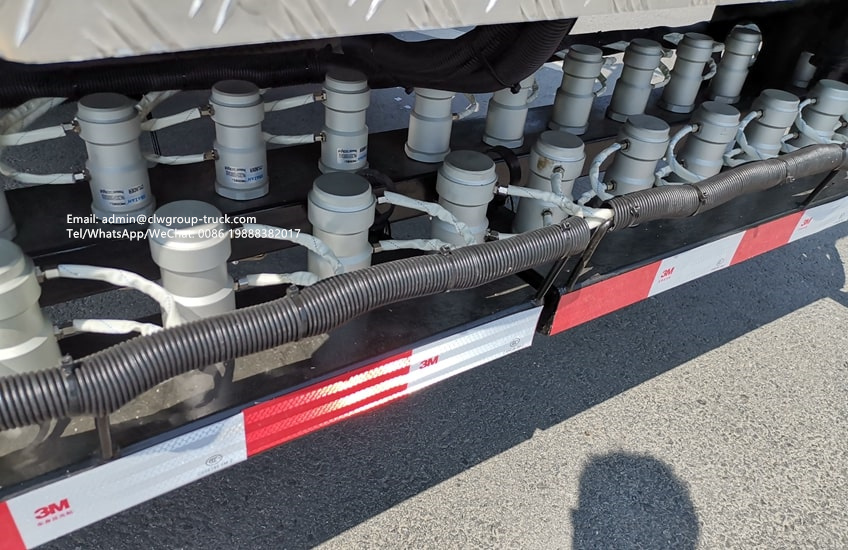

Intelligent Asphalt Distributor Sprinkler
3. Different models of asphalt pumps

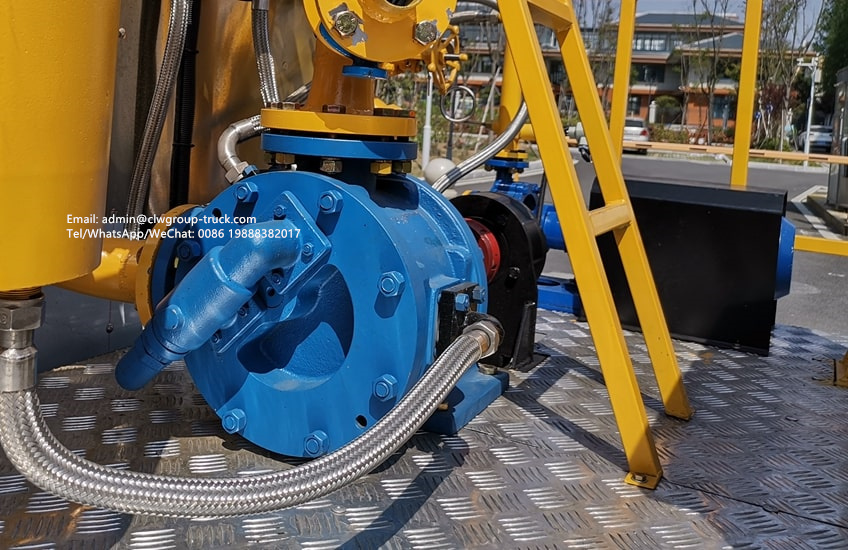

Asphalt Distributor Asphalt Pump
Taking a 4-ton asphalt distributor as an example, the model of the asphalt pump of the intelligent 4-ton asphalt distributor is QGB680 (high viscosity asphalt pump, 680 liters/min), and the model of the asphalt pump of the ordinary asphalt distributor is QGB450 (high viscosity asphalt pump). Viscosity asphalt pump, 450 l/min), the greater the flow, the greater the pressure transferred to the sprinkler head and the more uniform the spread.
4. Different heating methods

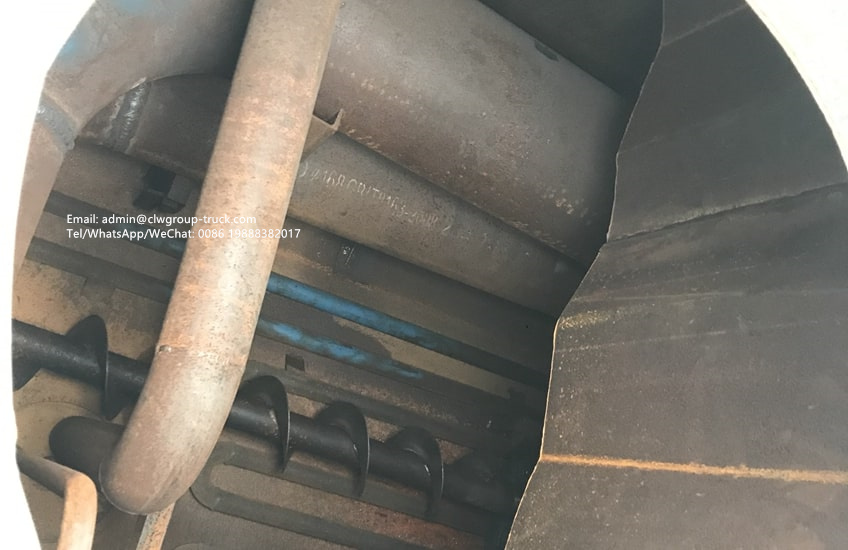

Intelligent asphalt distributor heating device
As shown in the figure above, the intelligent asphalt distributor is heated by the heat transfer oil pump to circulate the heat transfer oil and automatically heat up, which can ensure the uniform heating of the asphalt energy tank; while the ordinary asphalt distributor is heated by the direct burning mode of the burner. General effect.
Five, the spray medium is different
The ordinary asphalt distributor can only spray emulsified asphalt and ordinary hot asphalt, while the intelligent asphalt distributor can spray emulsified asphalt, hot asphalt, and modified asphalt, so the intelligent asphalt distributor has more powerful functions and a wider range of applications. .
Car buying advice: If you are considering whether to buy an ordinary asphalt distributor or an intelligent asphalt distributor, it is recommended that you take a look at your actual use. If your project volume is relatively small, or it is mainly used for local road repairs, it is recommended that you buy an ordinary asphalt distributor; if your project volume is relatively large and the frequency of vehicle use is relatively high, it is recommended that you purchase an intelligent asphalt distributor After all, the intelligent asphalt distributor saves labor and materials.
