The Dongfeng Tianlong 8X4 30m3 aluminum alloy fuel truck adopts the Tianlong semi high roof cab structure, equipped with Dongfeng commercial National VI engine, which has sufficient power and strong climbing ability. The upper tank body is made of aluminum alloy material, which has the advantages of light weight, strong corrosion resistance, and long service life.
Dimensions (length * width * height) 11900x2530x35003880 (mm)
Curb weight 1188511800 (Kg) kg
Wheelbase 1995+4500+1350mm Total mass 32000 (Kg)
Chassis configuration: Dongfeng Tianlong 8X4 aluminum alloy tanker manufacturer, Volvo technology 350 horsepower engine, 9-speed gearbox, 5.5-ton dual front axle, 10 ton rear axle, 1995+4500+1350mm wheelbase, full car steel rims, 295 tires, rear dual axle airbag suspension, standard load 19.87 tons, full load 25 tons
Aluminum alloy tank body configuration: The tank body is greater than or equal to 6mm, the head is 7mm, and the partition is 5mm. It is made of 5083 aluminum alloy material and has a Shandong 80-80 oil pump (pump in and pump out). Single warehouse European standard (European standard tank mouth, lower oil outlet, oil and gas recovery, anti overflow probe, electrostatic socket, submarine valve) pump inlet and outlet are installed on the driver's side, and the lower oil and gas recovery is installed on the passenger's side. Subsea valve alarm system, anti-skid mesh on top of the tank, folding guardrail, two oil pipelines, two fire extinguishers, a double door toolbox, and a fireproof cap. Other standard features: reflective strips, reflective tapes, safety notices.
Do you all know about fuel truck ? It is a type of dangerous goods transport vehicle, mainly transporting oil products, with gasoline and diesel being the most common media. In recent years, there have been significant changes in the production process and configuration of oil transport vehicles, such as airbag suspension, hazard warning, and the application of lightweight materials. Next, the editor will introduce a high-quality oil transport vehicle - Dongfeng Tianlong 8X4 National VI Aluminum Alloy Oil Transport Vehicle. The cab of this fuel truck has already been introduced. Today, let's take a look at its appearance together.

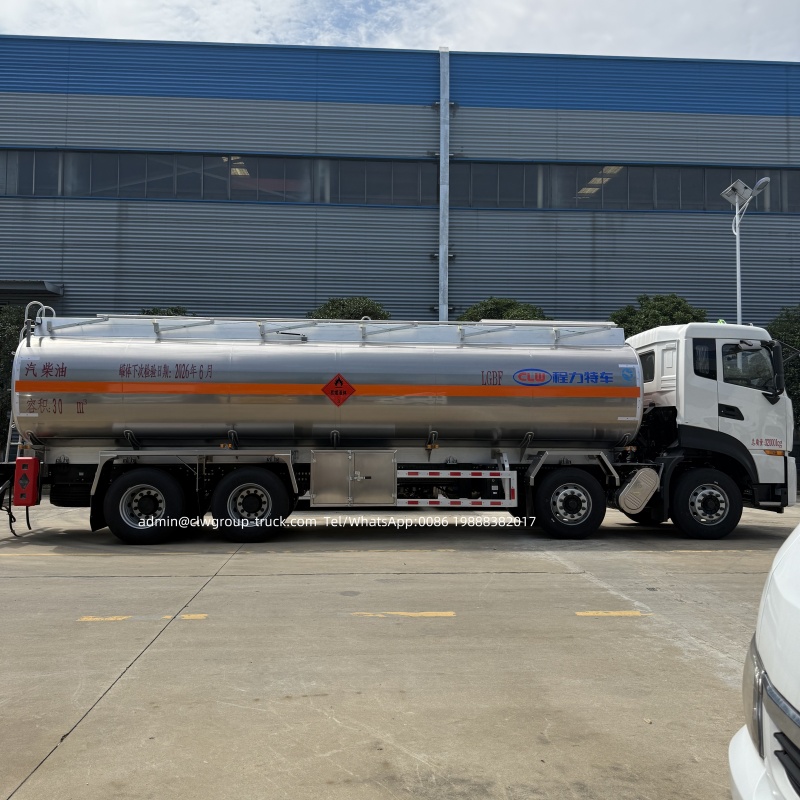

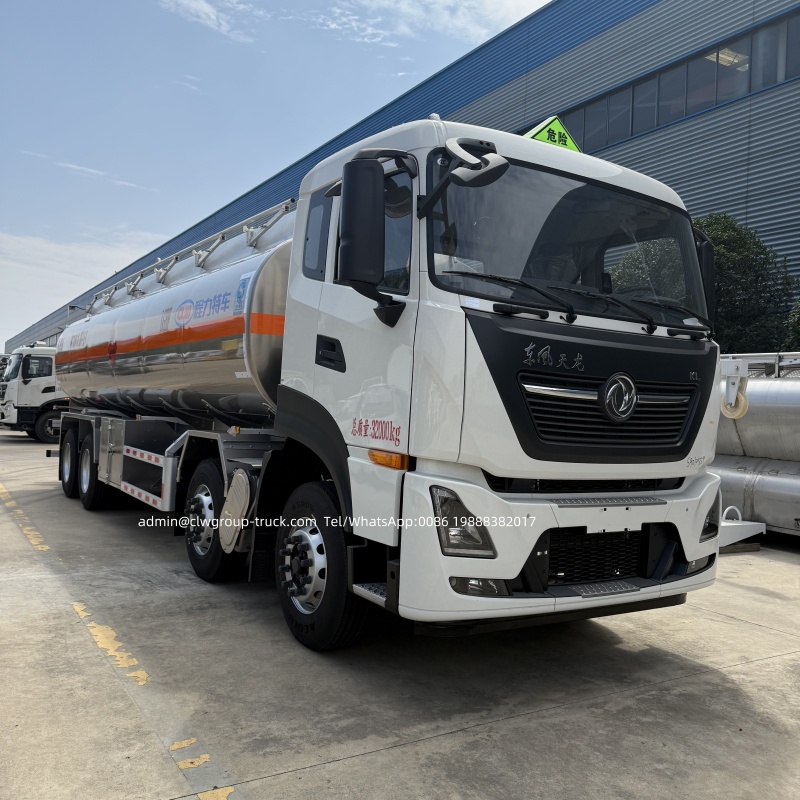

The overall appearance color of the vehicle is mainly light, with the Tianlong KL white cab paired with a silver white tank body, which is also the most classic color combination for fuel trucks.
The rearview mirror of the whole vehicle adopts an integrated structure, which is thick and reliable in appearance. The integrated structure can greatly reduce driving wind resistance. The lens is a combination structure, and the driving field of view is relatively wide.
The tire protection of this fuel truck is made of aluminum alloy material, which is part of the vehicle's lightweight design. The protective railing is also made of aluminum alloy material, which reduces the curb weight and greatly increases the load capacity

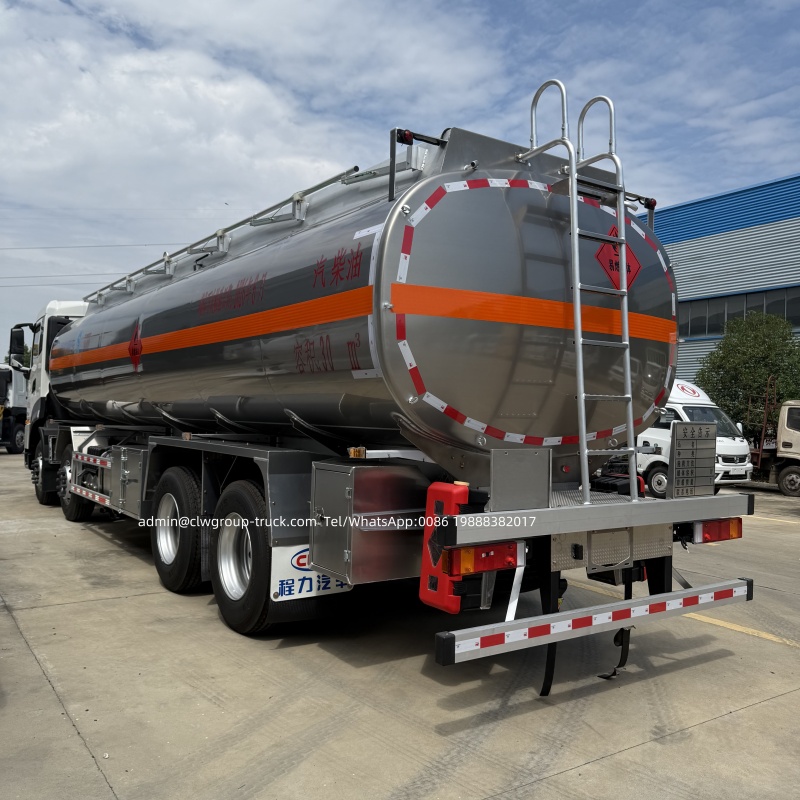

The rear protection of the vehicle is also made of aluminum alloy material. As can be seen from the picture, its workmanship is very exquisite, with black plastic protection at both ends and a beautiful appearance. The price of such rear protection is also relatively high.
Static electricity belts are standard equipment for dangerous goods transport vehicles. The rear of this vehicle is equipped with two black rubber static electricity belts, which can guide the static electricity of the vehicle into the ground during driving or loading and unloading of oil products, ensuring safety.

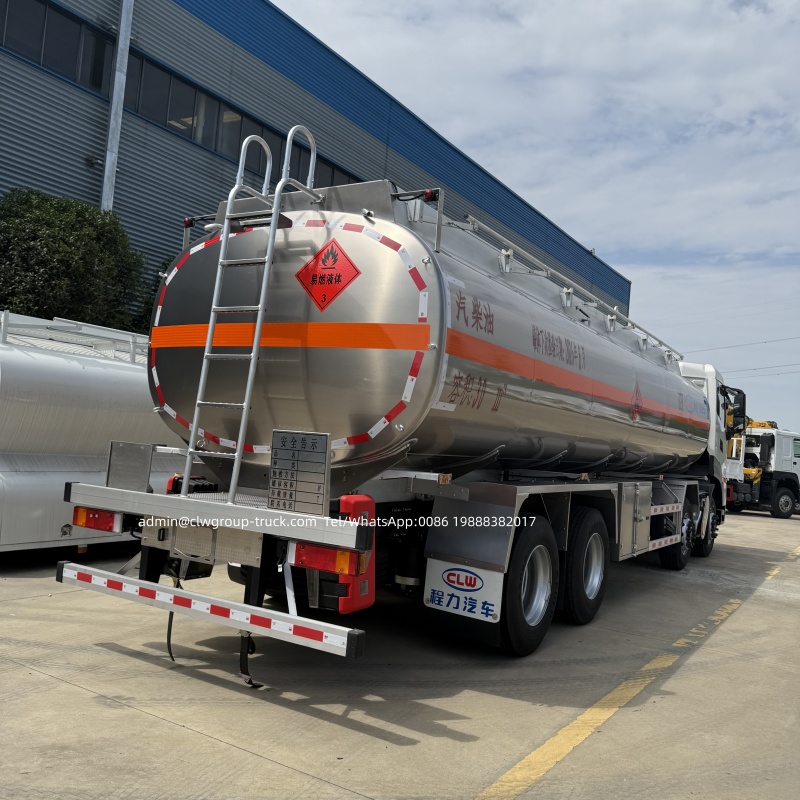

The upper tank body is made of aluminum alloy material, which is lighter in weight and more corrosion-resistant. A safety platform is installed on the top of the tank body, and safety guardrails are installed on both sides. There is a safety ladder at the tail of the tank body, making it relatively safe for operators to get on and off the tank body and operate on the top of the tank body.
Oil loading and unloading system, automatic loading and unloading, convenient and safe
The main components of the bottom canning system include exhaust gas recovery system, spill prevention system, subsea valve, European standard tank mouth, control head, SO2 socket, anti-static system, and bottom canning API connector. Reduce the volatilization of oil and gas, greatly reduce the loading and unloading time of oil products, achieve fully automatic loading and unloading, and avoid unnecessary safety accidents.
European standard can mouth, alloy material with dual-use function
Aluminum alloy European standard tank mouth, also known as manhole cover, is installed on the top of the oil tank and has built-in breathing and emergency exhaust functions. It can also be equipped with oil and gas recovery valves, oil measuring holes, anti overflow detection rods, etc. The anti overflow sensing system will automatically alarm when the liquid level reaches the detection position during the oil filling process, thereby stopping the oil filling.
Release overflow probe, electronic induction safety anti overflow
The anti overflow electronic sensor is widely used as a safety device for various types of containers and tanks to prevent liquid overflow and leakage when filled in a closed manner. It is installed on the top manhole cover of the container and tank. When the oil level reaches the warning limit, the sensor will automatically alarm and trip.
Oil and gas recovery, energy-saving, environmentally friendly, efficient and safe
Energy saving and environmentally friendly high-tech uses oil and gas recovery technology to recover the oil and gas emitted during the storage, transportation, loading and unloading of oil products, prevent air pollution caused by oil and gas volatilization, eliminate safety hazards, and improve energy utilization efficiency. The oil and gas recovery system consists of three parts: quick couplings and caps at the bottom of the tank, manual or pneumatic valves, elbows, and seamless steel pipes
Underwater valve, easy to operate, safe and environmentally friendly
Subsea valve, also known as emergency shut-off valve, is installed at the bottom of the tank and is used for refueling. It is easy to operate, time-saving, safe and environmentally friendly. The internal pressure of the valve is low, the flow rate is high, and there is a cut-off groove on the flange edge of the valve body. In the event of an accident in the oil tank, the vehicle body pipeline and the tank body will automatically disconnect, while the automatic centering plunger and durable spring will still remain sealed, and the medium inside the tank will not leak, thus ensuring the safety of the oil tank.
