Wrecker tow truck can be divided into four series according to their structure: rotator wrecker truck, wrecker towing truck , flat plate obstacle clearing vehicles, and ordinary vehicles. Do you know about these types of wrecker rotator truck? Let’s recommend sinotruk howo 8X4 heavy duty wrecker rotator truck :
Total weight 31000 (Kg)
Rated load capacity (Kg) curb weight 2610024300 (Kg)
Dimensions 11160011750 × 2500 × 329 (mm)

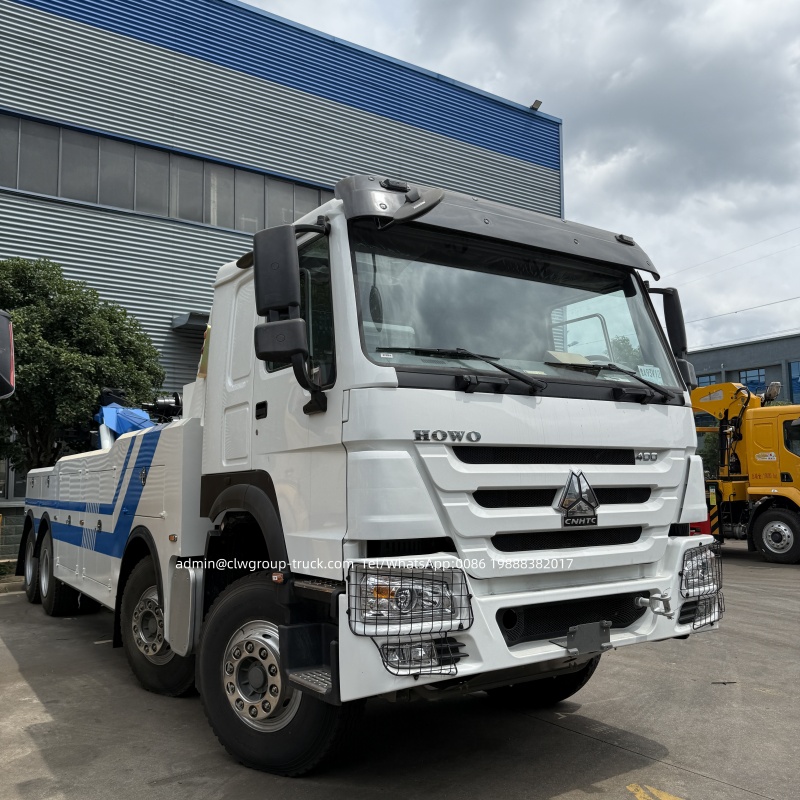

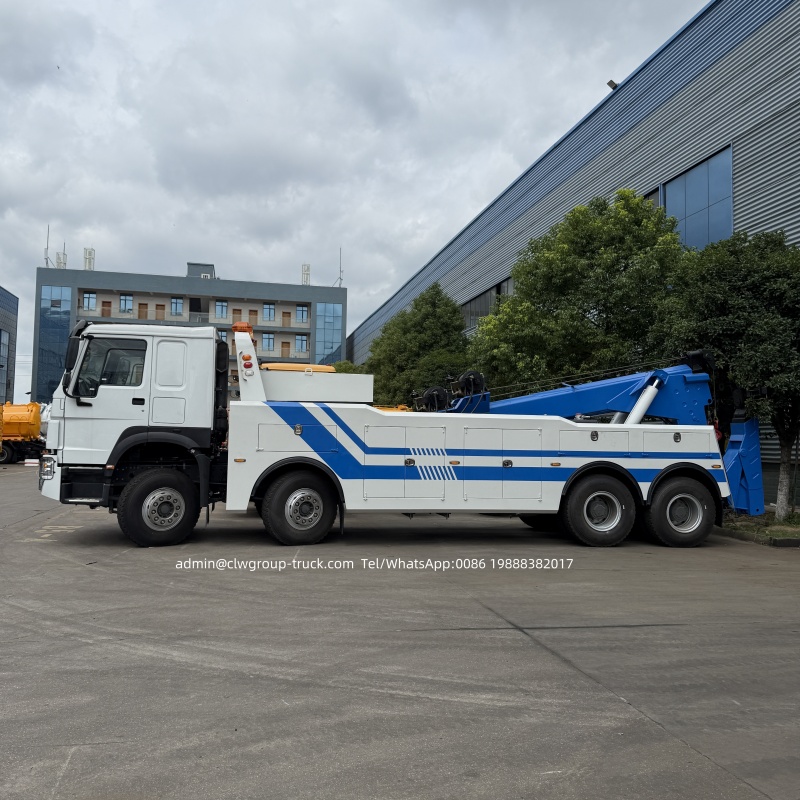

Chassis configuration of the Heavy Duty Truck HOWO 8X4 360 degree wrecker tow truck : using the Heavy Duty Truck HOWO chassis, half cab, original air conditioning, Heavy Duty Truck HOWO 380 horsepower engine, ten speed gearbox, displacement 9726ML, wheelbase 1800+4600+1350mm, 12.00R20 original steel wire tires, with directional assistance, clutch booster, air brake, original ABS

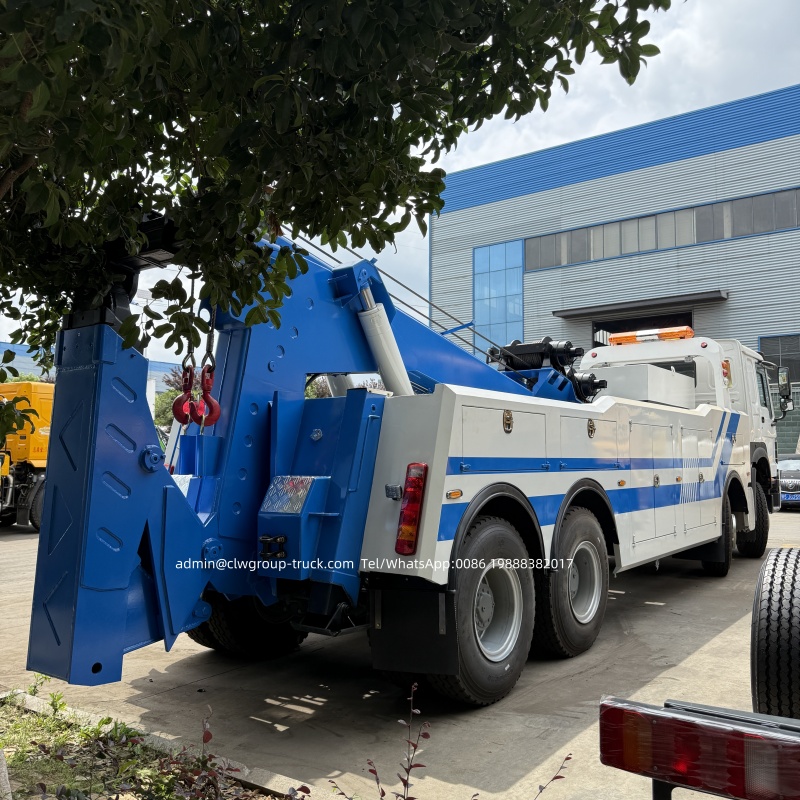

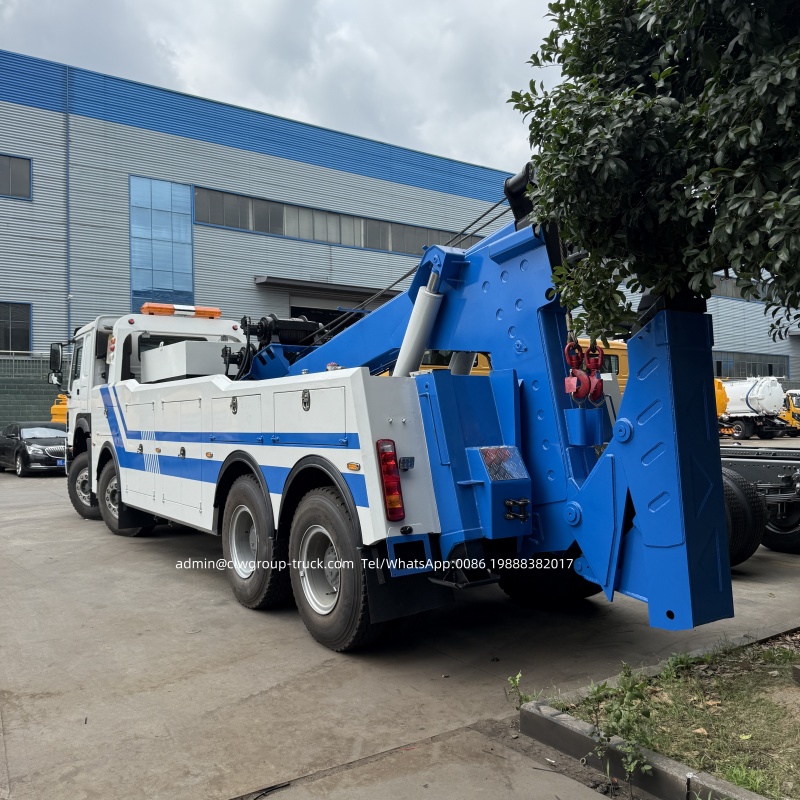

The installation configuration of the Heavy Truck HOWO 8X4 360 degree rotating wrecker tow truck includes a 25 ton joint body installation (which can be equipped with 30-50 ton installation), a three section hexagonal crane arm, three section support arm, a split type carriage, an imported hydraulic system, double-sided linkage operation, a set of remote control devices, and a counterweight on the front bumper, which has strong performance and endurance. Equipped with 2 sets of 15 ton electric hydraulic winches, 45 meter steel wire rope, diameter 18mm, 4 sets of steel forks, 1 set of steel plate lifting ear towing fork, 1 set of U-shaped tire holding device, 1 set of on-board tools, 1 set of auxiliary light assembly, 1 set of auxiliary air pipe assembly, and 1 yellow long row LED warning light. Our company's obstacle clearing vehicle adopts advanced and skilled foreign product technology and production processes, fully imported sealing components, reinforced crossbeam fixation, and enhanced load-bearing capacity.
Material of the wrecker tow truck : The support arm and lifting arm of the clearing vehicle are all made of high-strength steel plates, which are bent into shape. Carbon dioxide automatic protection welding allows only two welds, with few welds, small deformation, high precision and strength, and has undergone ultrasonic weld detection. All welding of the clearing vehicle adopts carbon dioxide shielded welding and argon arc welding, with a weld length greater than 300mm, using automatic welding, and making the weld surface smooth and beautiful.
Advantages of the Heavy Truck 8X4 wrecker rotator tow truck:
Firstly, like other clearing vehicles, it has the characteristics of easy operation, flexibility, and strong practicality. It can use commonly used tools, chains, locks, and auxiliary equipment for clearing operations.
Simple structure: The trailer joint type obstacle clearing vehicle has a relatively simple manufacturing process due to its trailer joint structure, so the production cost is also relatively low.
High lifting capacity: The curb weight of the trailer joint clearance vehicle is lighter compared to other trailer separation types, reducing the load on the rear axle and increasing the overall towing capacity of the vehicle. For example, for the same 8-ton vehicle model, the combined type has an increased carrying capacity of 500-1500KG compared to the separated type.
Good maneuverability and practicality: The trailer type obstacle clearing vehicle, due to its folding support arm and small rear suspension length, has a small turning radius, which improves the overall maneuverability of the vehicle, especially suitable for operation in narrow urban tunnels and traffic roads. Easy to operate: Due to the integration of the boom and support arm, the operation is simpler and clearer.
Easy maintenance: Compared to the trailer separated type clearing vehicle, due to its simple design structure, there is no need for a separate four-bar mechanism and sliding groove mechanism, making it easy to use and maintain, saving lubrication and maintenance work as well as material loss.
Plasticity: It can be easily modified to become a clearing vehicle with a tire support, thus achieving fully automated operation. This is the advantage of rotator wrecker tow truck , which is a very worthwhile choice among clearance vehicles.
How to choose a road wrecker? First of all, you need to have a clear understanding of what your wrecker tow truck is used for. You need to choose a clearing vehicle based on the actual usage environment. Different working environments determine the choice of clearing vehicle. For example, if you need to lift a malfunctioning vehicle that has overturned into a ditch during rescue, you will need a flatbed clearing vehicle with accompanying straps. When choosing a road clearing vehicle, the following two points should also be noted: selecting the type of clearing vehicle, one trailer one flatbed clearing vehicle, one trailer two flatbed clearing vehicle, trailer connected clearing vehicle, trailer separated clearing vehicle, multi-functional clearing vehicle, etc
Wrecker tow truck can be divided into two categories based on their usage characteristics: transport vehicles and lifting and towing vehicles. Transport category refers to towing damaged vehicles onto a transport vehicle for transportation; Lifting and towing type refers to the use of a lifting and towing device installed on a vehicle to lift (or hoist) one end of a damaged vehicle off the ground, while keeping the other end still on the ground, and then being towed away from the site by a lifting and towing type obstacle clearing vehicle. Obstacle clearing vehicles are basically modified from the second-class chassis of cargo trucks, and can be divided into towing, loading, lifting, and rescue (single arm and double arm) types according to their structural types.
Due to different customer requirements, product specifications, materials, and order quantities may vary, resulting in different product prices. For more details, please consult customer service, and we will wholeheartedly provide you with meticulous and thoughtful service and products!
Complete vehicle provided: chassis certificate, accompanying chassis tools, vehicle certificate, export customs declaration documents, other standard equipment according to the manufacturer, color options: white/engineering yellow. We can install and clear obstacles according to the customer's chassis design, and the logo can be customized.
Chengli Special Purpose Vehicle Co., Ltd. holds an important share in international truck exports, with products including various types of sprinkler trucks, garbage trucks, sewage suction trucks, sweeping trucks, oil tank trucks, chemical trucks, clearing trucks, aerial work vehicles, fire trucks, truck mounted cranes, refrigerated trucks, box trucks, pressure vessels, highway maintenance vehicles, flatbed transport vehicles, bulk grain trucks, dry mixed mortar trucks, beekeeping vehicles, stage trucks, propaganda vehicles, mobile vending vehicles, heavy-duty truck mounted cranes, cement pump trucks, transport vehicles, food transport vehicles, and more than 800 varieties in various series. It is a specialized automobile company in the domestic industry with a wide variety of products, complete production qualifications, complete production equipment, and complete testing methods
