Swing arm garbage truck is a type of garbage truck mainly used for transporting garbage bins.
The swing arm garbage truck is mainly composed of a chassis, swing arm cylinder, swing arm chain, swing arm support legs, swing arm bucket, multi way valve hydraulic system, etc. The garbage hopper body is divided into different forms of garbage hoppers configured according to swing arm type and pit ground dual-use type.
The formation of swing arm garbage bins can be divided into two types: boat shaped and square shaped. The load-bearing capacity of the boat shaped garbage hopper is limited, but it is easy to dump and does not leave residue easily. The square garbage hopper has a larger loading capacity than the boat shaped one, but it is relatively difficult to tilt and is prone to leaving garbage residue

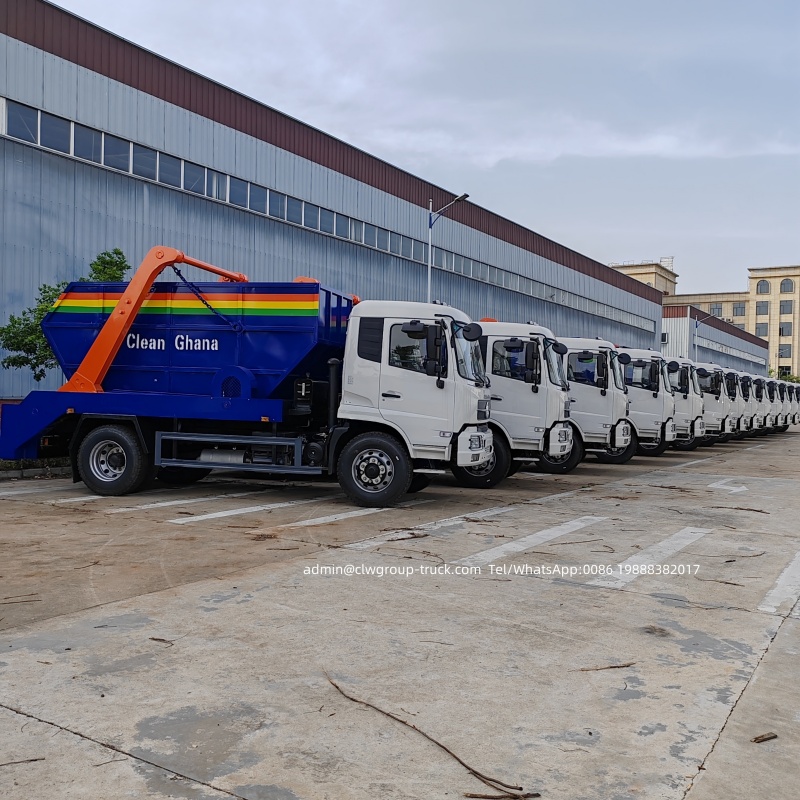

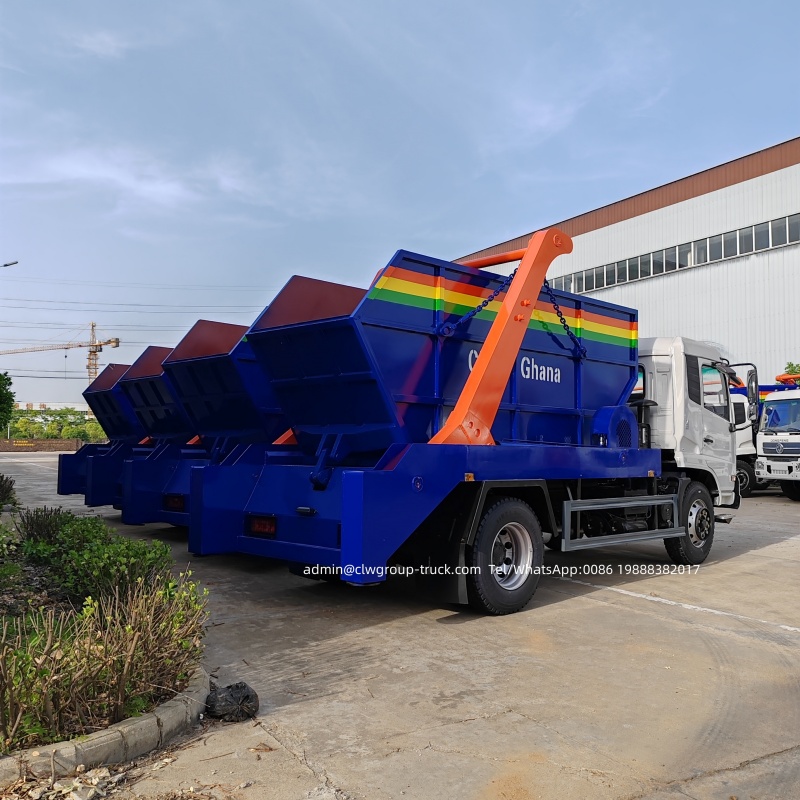

Chengli Special Purpose Vehicle Co., Ltd. is a manufacturer with over 20 years of experience in producing garbage trucks. It has participated in domestic and international exhibitions and bidding activities multiple times, accumulating a lot of production and sales experience in swing arm garbage trucks. Swing arm garbage trucks have received widespread attention and praise, especially in Ghana, a developing country with rich agricultural and tourism resources. With the gradual maturity of urban development in Accra, the capital of Ghana, the government needs to purchase a large number of garbage trucks to maintain safety and cleanliness. After multiple inspections and talks at the factory, 100 Dongfeng swing arm garbage trucks have been purchased
Chassis of swing arm garbage truck:
Dimensions: 7350 * 2500 * 3300mm
Total weight/curb weight: 16000/6600 kgs

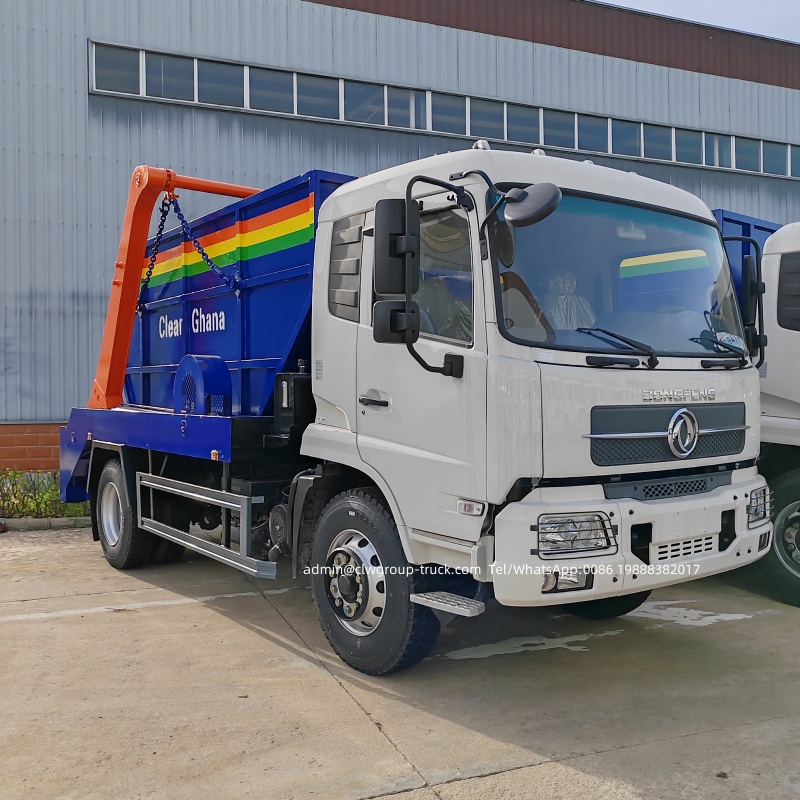

Adopting the cab of Dongfeng Tianjin, with a wheelbase of 4500mm, a front axle of 5 tons, a rear axle of 10 tons, an 8-speed gearbox, 10.00R20 steel wire tires, with directional assistance, air brake, exhaust brake, Cummins 190 horsepower engine (optional Cummins 210 horsepower, Yuchai 240 horsepower engine)

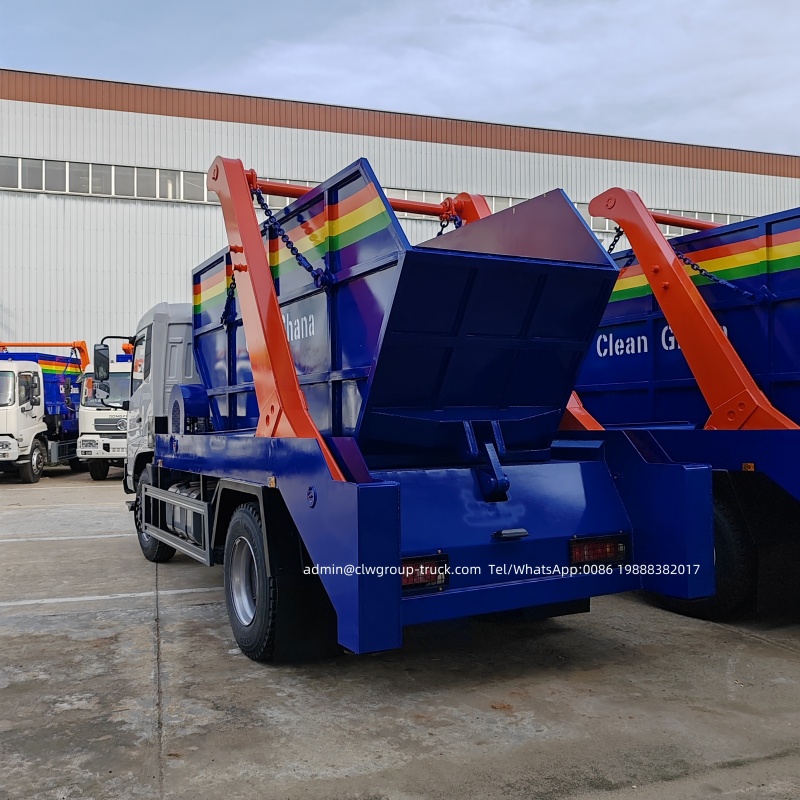

Upper body of the swing arm of the swing arm garbage truck:
A 10 cubic meter garbage bin, with a working time of less than or equal to 60 seconds for loading and unloading the garbage bin. The multi way valve group of the swing arm garbage truck adopts a well-known brand to control the rear support legs, which can keep the vehicle stable when lifting the garbage bin up and down. It has a large capacity hydraulic oil tank, dedicated dual oil cylinders, high-strength alloy steel chains, and hydraulic pumps.
In addition to the popular 10 cubic meter swing arm garbage truck, Chengli Special Purpose Vehicle Co., Ltd. also produces different volumes of 3 tons, 4 tons, 5 tons, 6 tons, 7 tons, 8 tons, and 12 tons. Customers are welcome to visit and purchase.
