Truck mounted cranes belong to the engineering category and play an important role in modern construction. They are often seen in construction sites, ports, factories and other places. Truck mounted cranes can be divided into two structural forms: straight arm and folding arm according to the lifting arm. The tonnage varies from small to large. When it comes to crane brands, XCMG can be said to be a well-known brand, which has been recognized by a large number of users in terms of quality and after-sales service. Today, we will introduce a high-quality truck mounted crane model - Dongfeng Huashen T5 6X4 10wheeler VI XCMG 12 ton straight arm truck mounted crane.
Dongfeng Huashen T5 6X4 10wheeler 12 ton Truck mounted Crane (Truck mounted Crane Transport Vehicle) Product Parameters:
The driver's cabin adopts the new design concept of T702 from Dongfeng Motor Corporation, with shock-absorbing seats, a four spoke steering wheel, electric windows, ergonomic seat pillows for the driver and passenger seats. The engine uses Yuchai Power YC6A270-50, with a wheelbase of 5850+1350, and the transmission uses Shaanxi Gear Fast 9JS119A gearbox. The reinforced front and rear axles are 5 tons and 10 tons respectively, with a 300 straight through three-layer beam, 11.00R20 steel wire tires, and metal paint on the body.

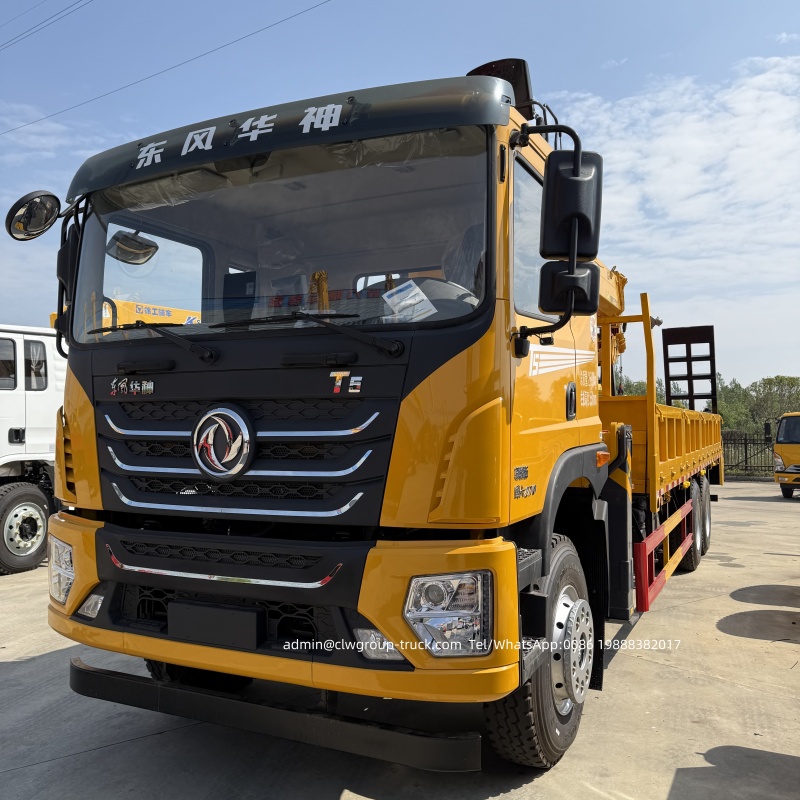

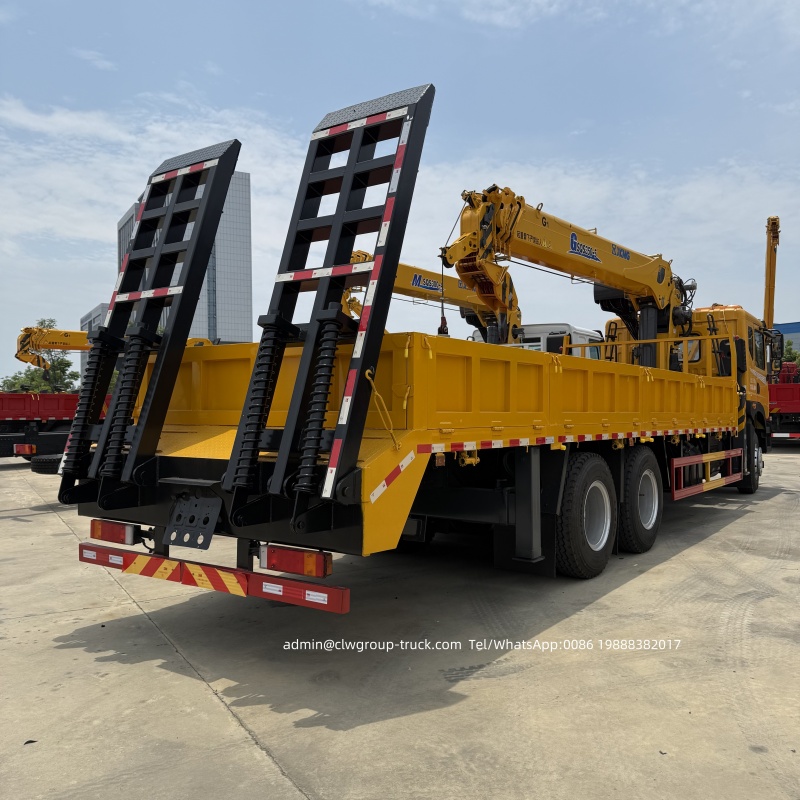

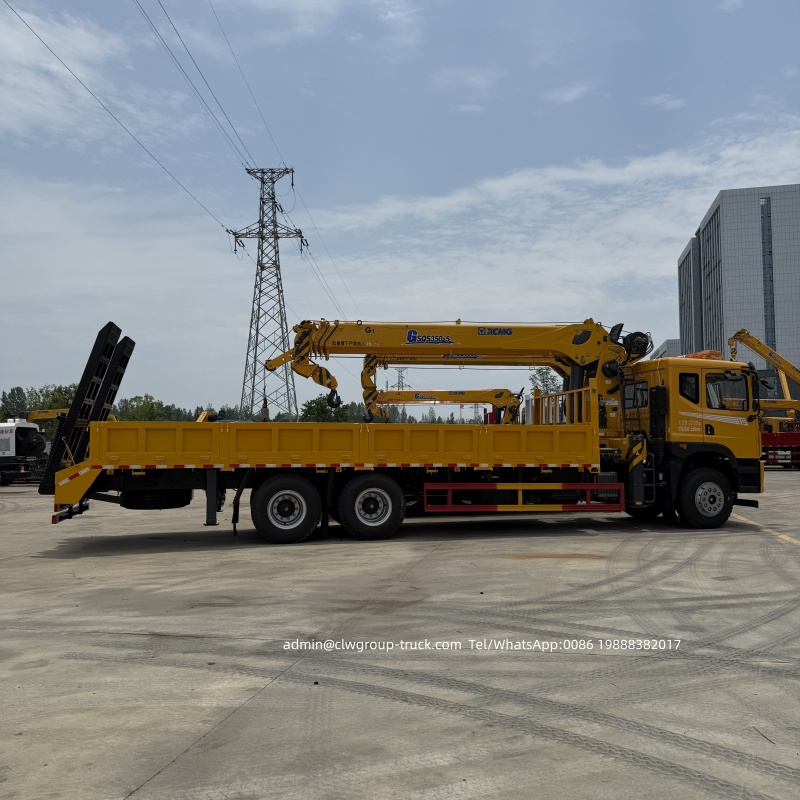

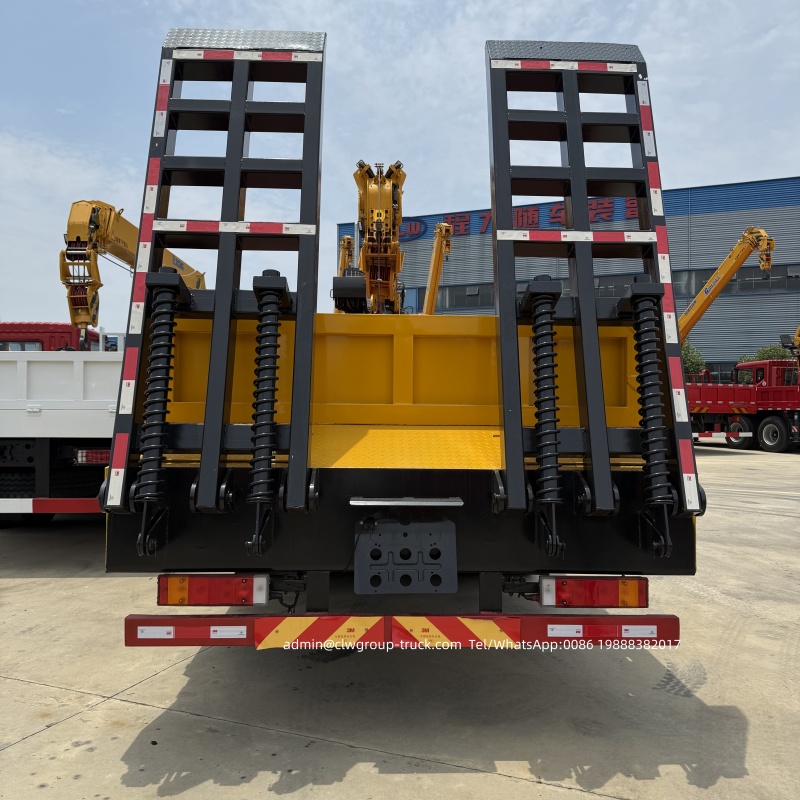

Dongfeng Huashen T5 6X4 XCMG 12 ton truck mounted crane
Crane parameters: XCMG 12 ton four section arm crane, M series SQS300-4, arm length 14.1 meters, lifting height 15.8 meters, dual pump system, supports multi action combination operation, high-altitude seat operation, supports remote throttle control, single chamber hydraulic rear leg.
Car size: 7200 × 2450 × 600, 8300 × 2400 × 550, 8400 × 2450 × 600. It can equip all domestic and foreign brands with cranes ranging from 8 tons to 14 tons.
Standard configuration: air conditioning, sunshade, airbag seats, remote control center console, four in one lock, electric doors and windows, driving recorder, cruise control, aluminum alloy fuel tank.
Optional: Multi functional steering wheel, multimedia, 360 ° reversing image, aluminum alloy air cylinder, eight shaped beam tail towing hook
Large tonnage cranes require support legs to ensure operational safety, and this vehicle is no exception. This crane is equipped with front and rear support legs, dual chamber hydraulic rear support legs, and a larger leg span, making crane operations more stable.
The driver's cab adopts the T702 luxury driver's cab developed by Dongfeng Corporation. The all-new T-series driver's cab is a new generation of Dongfeng commercial vehicle driver's cab carefully crafted by Dongfeng Corporation using a new design concept. This series of driver's cab covers three major series: T700, T702, and T709, with body widths of 1.9m, 2.1m, 2.3m, and 2.5m. The T-series cab comes standard with mechanical shock absorber seats, a four spoke steering wheel, integrated power windows, ergonomic headrests for both the driver and passenger seats, and optional four point suspension, driver airbag shock absorber seats, multifunctional digital players, etc., to meet your various needs.
The axle adopts reinforced front and rear axles, with a front axle of 5 tons and double rear axles of 10 tons each. The reinforced leaf springs are more stable and have stronger bearing capacity.
The frame adopts a 300 straight through three-layer frame, locally reinforced with four layers, and a "reinforced" balanced suspension, with high attendance and worry free heavy load; The crane landing and leg installation areas, as well as the inner side of the frame, have been reinforced for stable and reliable operation
Hanging chassis with the vehicle, horizontal air filter, reserved lifting position, and modification holes; The chassis air and oil circuits adopt modular design, with high consistency and good safety performance.
Vehicle characteristics: Tested on 6000 kilometers of bad roads, with a reliability index of 500000 kilometers.
At the automobile inspection center, we successfully passed 79 quality and performance tests under harsh working conditions and environments;
The front crossbeam adopts a rectangular cavity welding structure, which not only enhances the load-bearing capacity, but also enhances the torsional strength and stiffness of the vehicle body, effectively avoiding the risk of cracking;
Improving reliability can reduce failure rates, decrease maintenance time, and enhance operational efficiency.
Comfortable driving experience: sunshade, airbag seats, original air conditioning, remote control center console, four in one lock, driving recorder, daytime running lights, comfortable driving experience; Cruise control function, freeing feet and relieving driving fatigue; The gearbox is equipped with synchronizers, making gear shifting easy.
Strong load-bearing capacity: straight through three-layer frame, locally reinforced with four layers, "reinforced" double card steel plate balanced suspension, high attendance rate, worry free heavy load; The frame of the crane and its support legs at the installation site have been reinforced for stable and reliable use.
Integrated vehicle research and development design: Integrated vehicle design, seamless connection between chassis and upper assembly, without the need for secondary changes to the chassis; Strength analysis and reliability of key components; Consistent layout of coaxial distance vehicle models to improve product universality; High universality of components and convenient exchange of spare parts.
Application scenarios of Dongfeng crane truck:
The application of Dongfeng crane truck is mainly concentrated in industries such as power construction, municipal construction, infrastructure engineering, steel structure construction, equipment installation, forestry logging, and landscaping.
Classification of tonnage of cranes (optional 2-ton crane, 3.2-ton crane, 4-ton crane, 5-ton crane, 6.3-ton crane, 8-ton crane, 10 ton crane, 12 ton crane, 14 ton crane, 16 ton crane, 25 ton crane, 30 ton crane, etc.)
Precautions during the operation of the crane truck:
Understand the size of the lifted goods, find the distance from the center of the goods to the center of the crane column, and check the lifting capacity parameters of the crane based on the distance.
The lifting capacity (torque) of the crane is fixed, and the larger the working radius of the crane. The lighter the lifted goods and the smaller the working radius, the heavier the lifted goods. (The working radius refers to the horizontal distance from the center of torque to the hook.)
