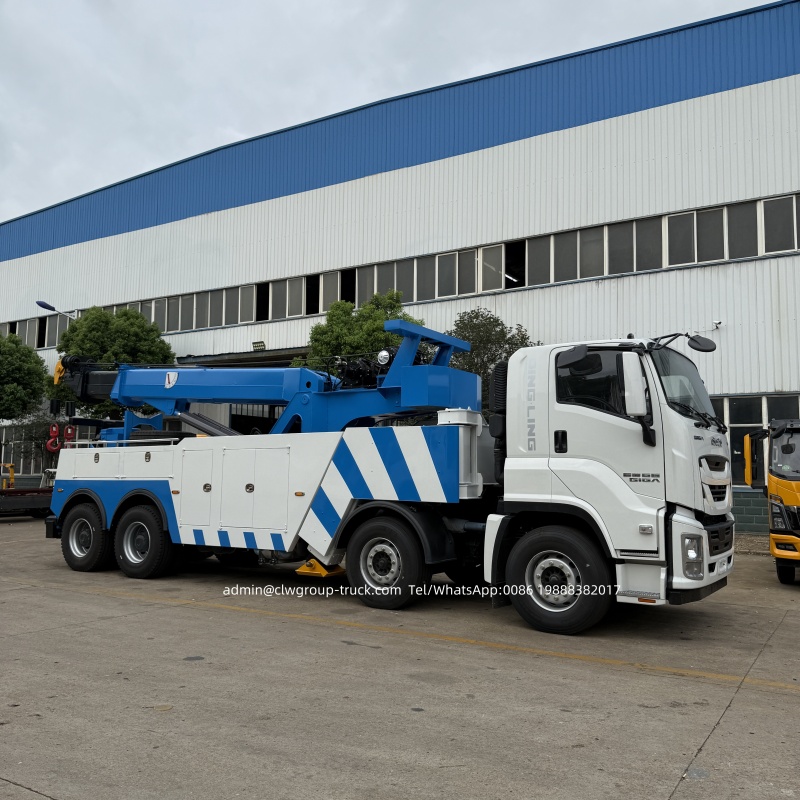

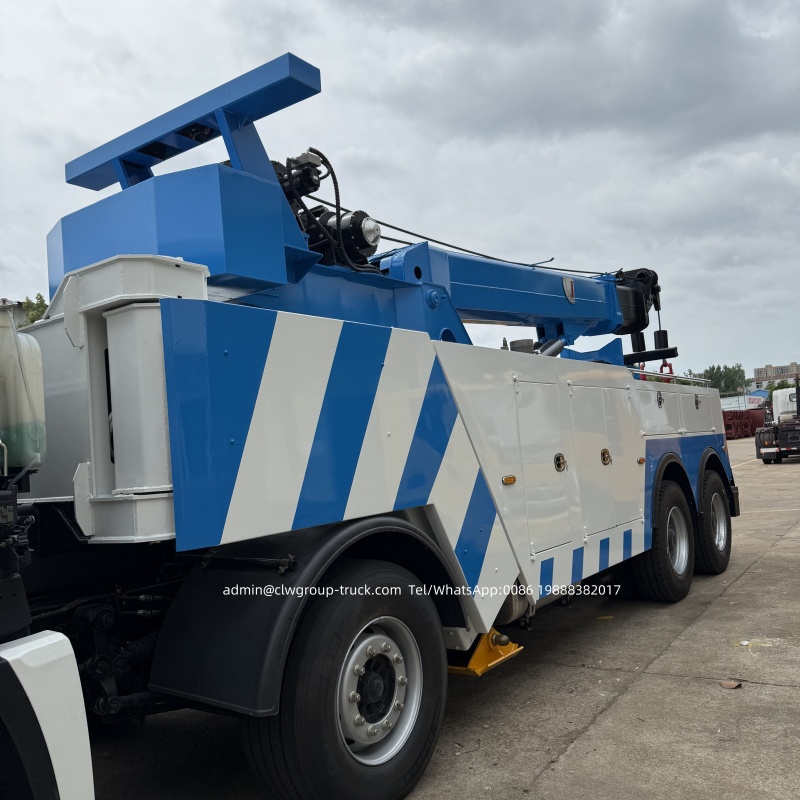

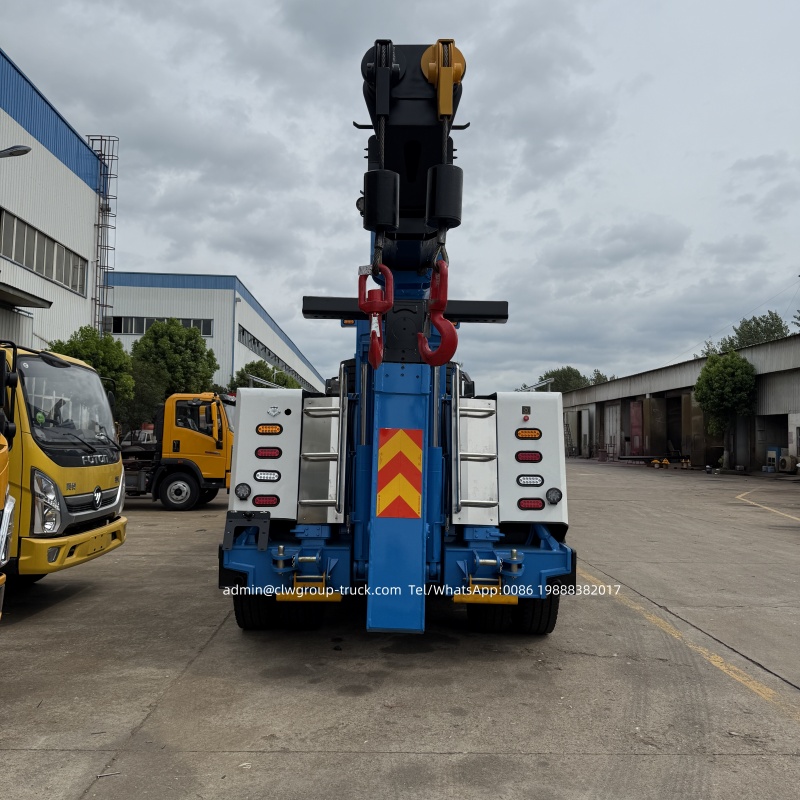

As one of the common export models, the Isuzu 8X4 rotator wrecker truck has a high cost performance ratio and absolutely reliable performance, which has been supported and loved by overseas customers. The driver's cabin of this car is comfortable, the interior is atmospheric, and the number of passengers allowed is 2-3. The appearance of the vehicle is very beautiful, and the overall advantages of the vehicle can be seen. Let's take a closer look below
The whole vehicle can generally transport multiple vehicles at the same time, which improves the transportation efficiency of the whole vehicle. The total weight of this model is 31000 (kg), and the curb weight is 2487027350 (kg)
Isuzu chassis configuration:
Isuzu 6UZ1-TC50 engine with 380 horsepower, displacement of 10L, National V emission, Fast 12 gears, multifunctional instrument panel, multifunctional steering wheel, 315/80R22.5 optional 12.00R20 steel tires, air conditioning, directional assist, central locking, electric windows, ABS, The front axle weighs 7-14 tons, while the rear axle weighs 13-26 tons.
rotator wrecker truck body optional: 30 tons/360 degree rotating crane 40 tons/360 degree rotating crane 60 tons/360 degree rotating crane

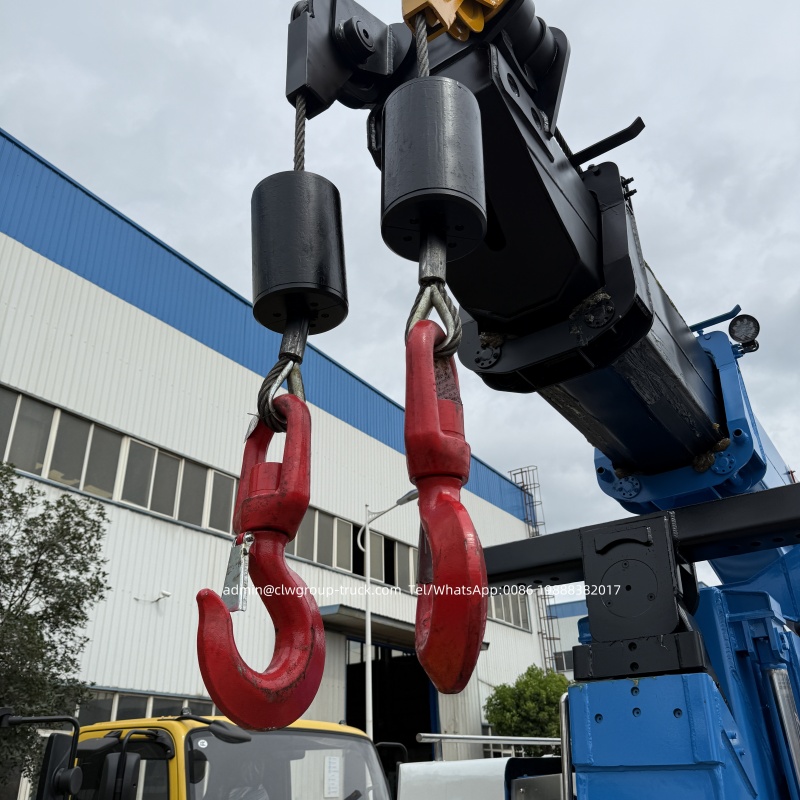

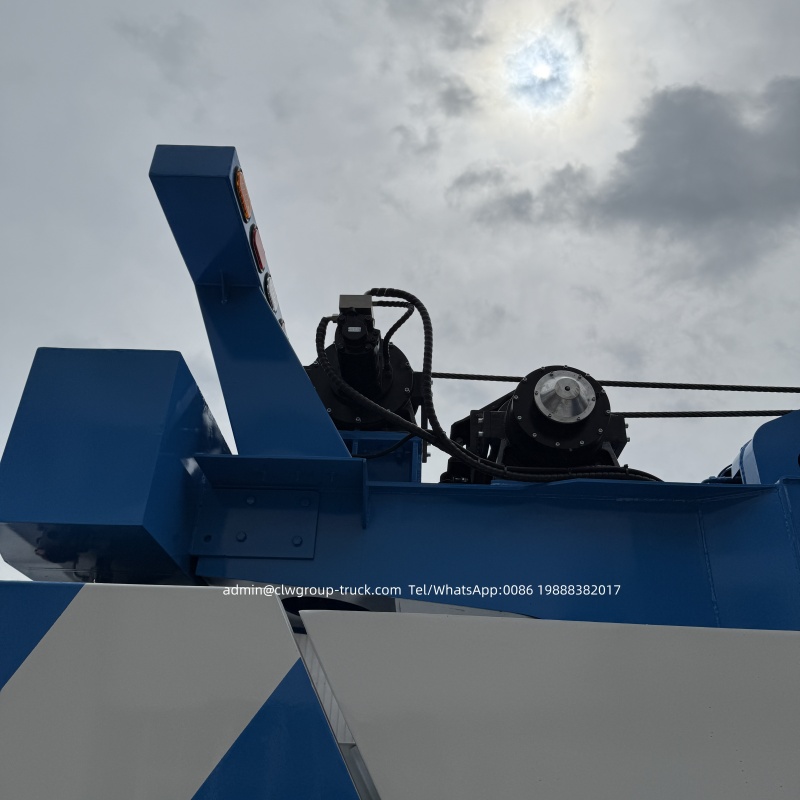

2.2 sets of 15 ton hydraulic winches, equipped with 55 meter steel wire ropes and 2 20 ton hooks. Remote control operation!
3.3 section extendable and lifting arm, capable of lifting 20 tons in place, fully extending 3 meters, and lifting 8 tons; Towing 60 tons, towing rod towing 80 tons. Four dual chamber hydraulic support legs (front leg folding). Remote control operation!
A rotator wrecker truck means that the boom and crane can be operated independently. In real life, rotator wrecker truck are not widely used, but may be used in certain specific environments. On high-grade highways, there must be large towing and obstacle clearing vehicles on standby at all times to respond promptly to various sudden traffic accidents for rescue. Because the speed of vehicles is very fast on advanced highways, once a traffic accident occurs, it is not a matter of one or two vehicles. If not handled in a timely manner, it will lead to and escalate into a large-scale traffic accident involving dozens of vehicles
The rotator wrecker truck is supported by two sets of hydraulic systems for the rear support arm and the lifting arm, which can work independently at the same time without being affected by each other. The boom has the characteristics of wide operating range, high lifting height, large lifting weight, and 360 degree three-dimensional space operation. This vehicle is an essential tool for clearing and rescuing large vehicles, as well as lifting, transporting, and assisting in the installation of large and medium-sized equipment. It can also be used for high-altitude operations and other purposes
The rotator wrecker truck is mainly modified on the chassis of Heavy Duty Truck Group and Shacman 8X4. Now we also have Hongyan Iveco 8X4 clearing vehicle, Isuzu 8X4 rotator wrecker truck, FAW 8X4 rotator wrecker truck, etc., which can be loaded with 30 tons or 50 tons
Rotator wrecker truck is a type of clearing vehicle, also known as a large heavy-duty road clearing vehicle. It is mainly used for rescue and cleaning of major vehicles involved in accidents or malfunctions on highways and other roads, as well as towing and other rescue work. Its purpose is to ensure smooth road traffic and to tow and remove faulty vehicles from the scene. means that the boom and crane can be operated independently. In real life, trailer separated obstacle clearing vehicles are not widely used, but may be used in certain specific environments. On high-grade highways, there must be large towing and obstacle clearing vehicles on standby at all times to respond promptly to various sudden traffic accidents for rescue. Because the speed of vehicles is very fast on advanced highways, once a traffic accident occurs, it is not a matter of one or two vehicles. If not handled in a timely manner, it will lead to and escalate into a large-scale traffic accident involving dozens of vehicles
The rotator wrecker truck is supported by two sets of hydraulic systems for the rear support arm and the lifting arm, which can work independently at the same time without being affected by each other. The boom has the characteristics of wide operating range, high lifting height, large lifting weight, and 360 degree three-dimensional space operation. This vehicle is an essential tool for clearing and rescuing large vehicles, as well as lifting, transporting, and assisting in the installation of large and medium-sized equipment. It can also be used for high-altitude operations and other purposes
The rotator wrecker truck is mainly modified on the chassis of Heavy Duty Truck Group and Shaanxi Automobile Group's 8X4. Now we also have Hongyan Iveco 8X4 clearing vehicle, Isuzu 8X4 clearing vehicle, FAW 8X4 clearing vehicle, etc., which can be loaded with 30 tons or 50 tons
Heavy duty wrecker towing truck is a type of clearing vehicle, also known as a large heavy-duty road clearing vehicle. It is mainly used for rescue and cleaning of major vehicles involved in accidents or malfunctions on highways and other roads, as well as towing and other rescue work. Its purpose is to ensure smooth road traffic and to tow and remove faulty vehicles from the scene.

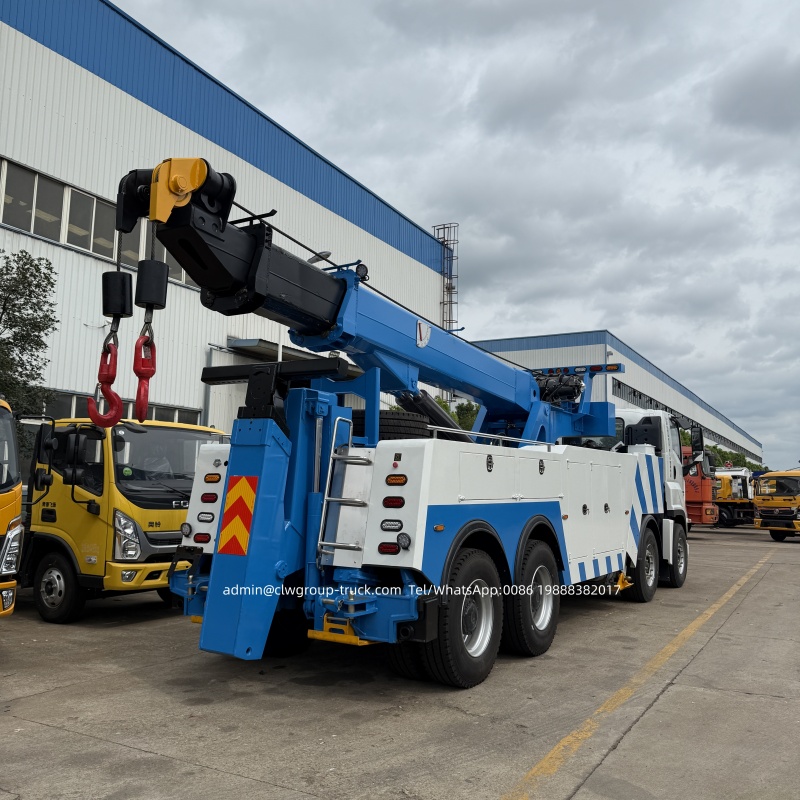

The heavy-duty rotator wrecker truck is equipped with a 360 degree rotating lifting arm (three section arm) on the upper part, with a large lifting height of up to 12 meters and a large working radius of up to 11.4 meters. It is a detachable heavy-duty clearing vehicle that can easily face various operational situations, and can provide excellent assistance in rescue situations such as overturning, sinking, or falling into an abyss of the rescued vehicle. Complete the later towing and rescue work
Road wrecker are classified according to their towing tonnage: 2 tons, 3 tons, 5 tons, 8 tons, 10 tons, 15 tons, 25 tons, 30 tons, 50 tons, and 60 tons. They are classified according to their operating capacity as light, medium heavy, and super heavy. The operation objects of light-duty clearing vehicles are light-duty trucks, mini buses, and sedans, while the operation objects of medium and heavy-duty clearing vehicles are medium and heavy-duty trucks, large and medium-sized buses, etc. The operation objects of ultra heavy clearing vehicles are heavy-duty trucks and series of overweight semi-trailer trucks, etc
Common knowledge for maintenance of road wrecker truck : If the thermostat is blindly removed due to high engine temperature, the coolant can only circulate greatly and the cooling intensity cannot be adjusted, making it difficult to ensure that the engine works at a suitable temperature. Instead, the engine often works at low temperatures, causing a decrease in engine power, accelerated wear, and increased fuel consumption. If the engine temperature remains high after troubleshooting or replacing the thermostat, other parts of the cooling system should be inspected and the thermostat should not be removed. Some people believe that the engine temperature should not be too high or too low when driving. In fact, the harm is also significant when the engine temperature is low. The normal temperature specified in the car user manual should be followed when driving to ensure the service life of the engine. The tighter the belt of the water pump fan, the better. Tightening the belt not only causes it to elongate or break, shortening its service life, but also leads to deformation and bending of the generator shaft, water pump shaft, and early damage to the bearings due to excessive tension. The tightness of the car engine fan belt should meet the technical requirements, and the recommended deflection for normal belt assembly is 10-15mm. When using idle temperature rise, due to the low speed, the oil pump cannot quickly inject lubricating oil into various lubrication surfaces, and the oil pressure is also low, causing the various moving parts of the engine to work in a dry friction or semi dry friction state; Poor low-temperature atomization of fuel causes unburned fuel to enter the crankcase, washing away the oil film on the cylinder wall and accelerating the wear of components. So, after the engine starts for a few seconds, apply fast idle to heat up and improve the lubrication conditions of the engine
Chengli Special Purpose Vehicle Co., Ltd. holds an important share in international truck exports, with products including various types of sprinkler trucks, garbage trucks, sewage suction trucks, sweeping trucks, oil tank trucks, chemical trucks, clearing trucks, aerial work vehicles, fire trucks, truck mounted cranes, refrigerated trucks, box trucks, pressure vessels, highway maintenance vehicles, flatbed transport vehicles, bulk grain trucks, dry mixed mortar trucks, beekeeping vehicles, stage trucks, propaganda vehicles, mobile vending vehicles, heavy-duty truck mounted cranes, cement pump trucks, transport vehicles, food transport vehicles, and more than 800 varieties in various series. It is a specialized automobile company in the domestic industry with a wide variety of products, complete production qualifications, complete production equipment, and complete testing methods
