Case Details
The Foton Auman 8X4 High Pressure Cleaning and Sewage Suction Truck excels in craftsmanship. The tank is constructed using fully automated welding technology, achieving single-sided welding with double-sided formation to ensure welding quality. The sandblasting and powder coating process effectively enhances the tank's corrosion, acid, and alkali resistance, extending the equipment's service life. The 10-meter suction pipe is robust and durable, while the hydraulic lifting function of the tank, combined with an openable rear cover, facilitates efficient waste discharge and improves operational productivity.
The Foton Auman 8X4 High-Pressure Cleaning and Vacuum Truck, with its robust functionality, hardcore configuration, and exquisite craftsmanship, delivers a groundbreaking solution for municipal cleaning and urban-rural environmental maintenance. Whether it's tackling complex sewer pipe clearance or handling daily liquid material transportation, it excels in every task, making it a truly revolutionary force in the field of municipal cleaning.

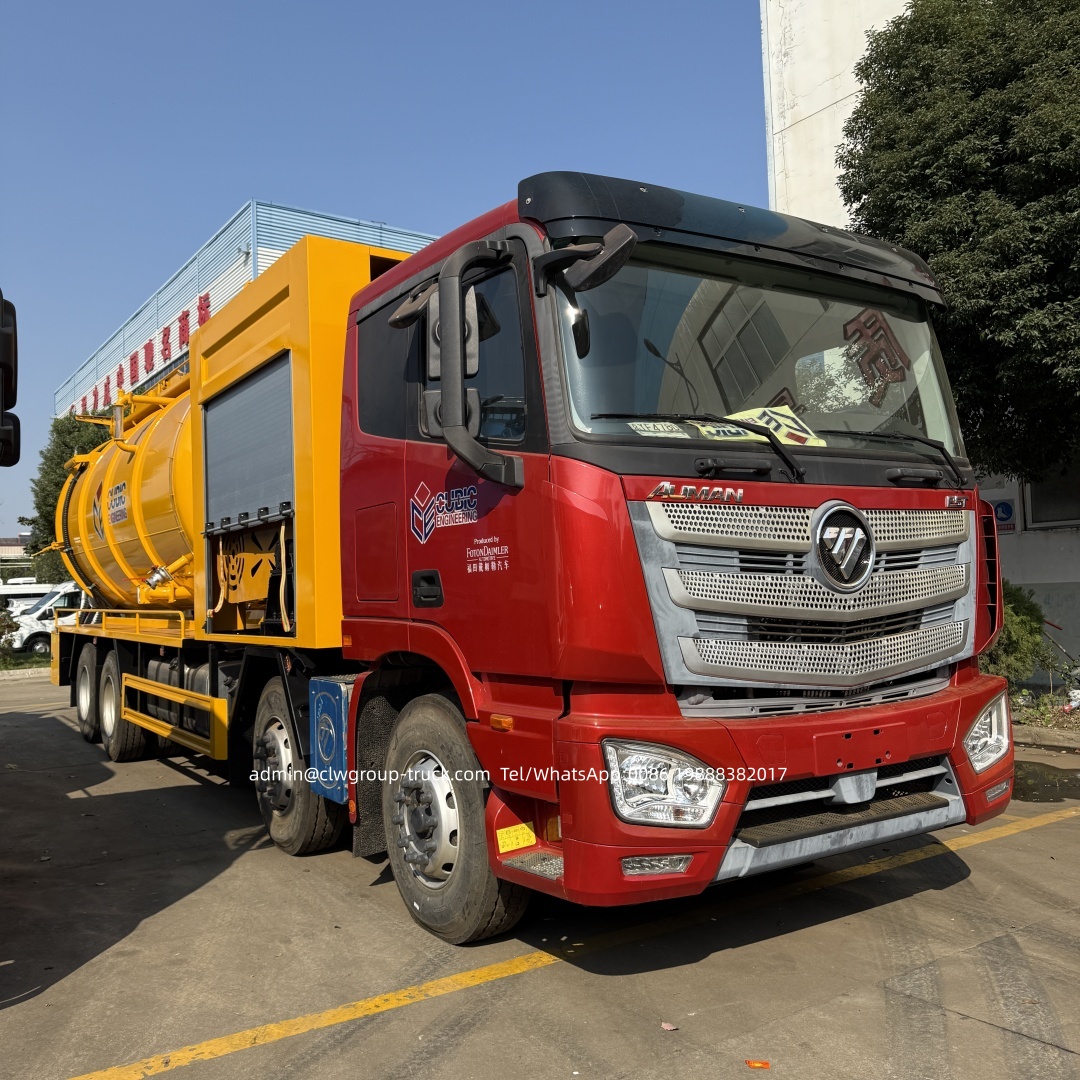

The Foton 8X4 30-cubic-meter cleaning and suction truck is a new multifunctional vehicle developed by Chengli Special Vehicle Co., Ltd. in response to the demands of the environmental sanitation market The vehicle is based on the Foton Oman 8x4 series chassis, equipped with modifications such as a high-pressure pump, high-pressure hose, automatic rewind reel, high-pressure plunger, vacuum sewage pump, pressure tank, hydraulic components, pipeline network system, vacuum pressure gauge, oil-water separator, inspection window, and handwashing device The sewage suction truck is a specialized sanitation vehicle designed by our factory, particularly suitable for tasks such as sludge extraction, dredging, loading, unloading, and pipeline cleaning in sewers. It can effectively remove sludge from urban septic tanks, sewer deposits, and pipeline sediments, as well as clear blockages in pipeline dead zones, clean industrial drainage pipelines, and wash pipeline walls. The cleaning and suction truck, also known as a combined dewatering truck, integrates high-pressure cleaning and suction functions into one vehicle. It can be used as both a high-pressure cleaning truck and a suction truck, offering versatile functionality with just one chassis to achieve the capabilities of two types of vehicles. Its features include practicality, high cost-effectiveness, and powerful functionality.
Introduction to the appearance and functions of Foton 8X4 30 cubic meter high pressure cleaning and suction truck

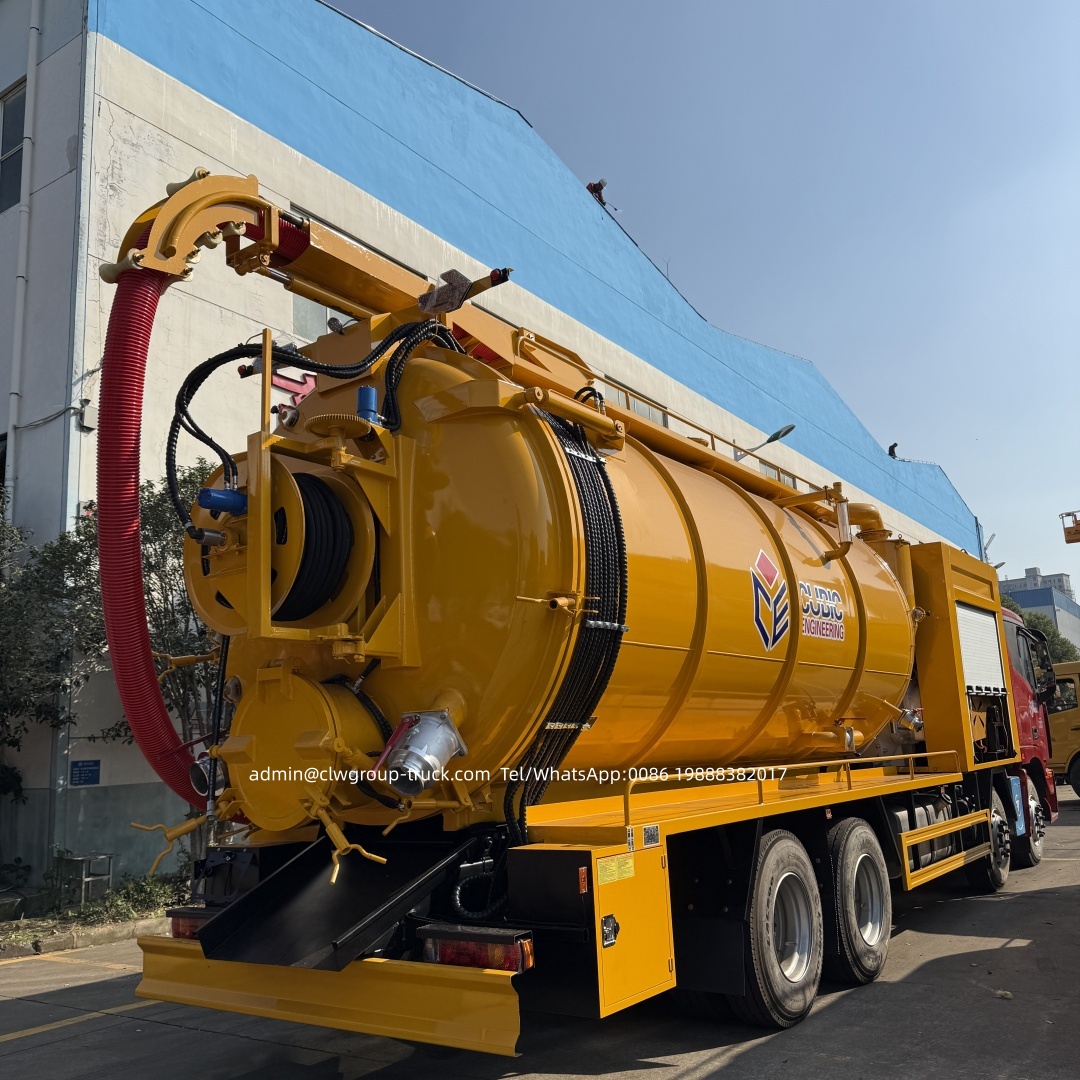

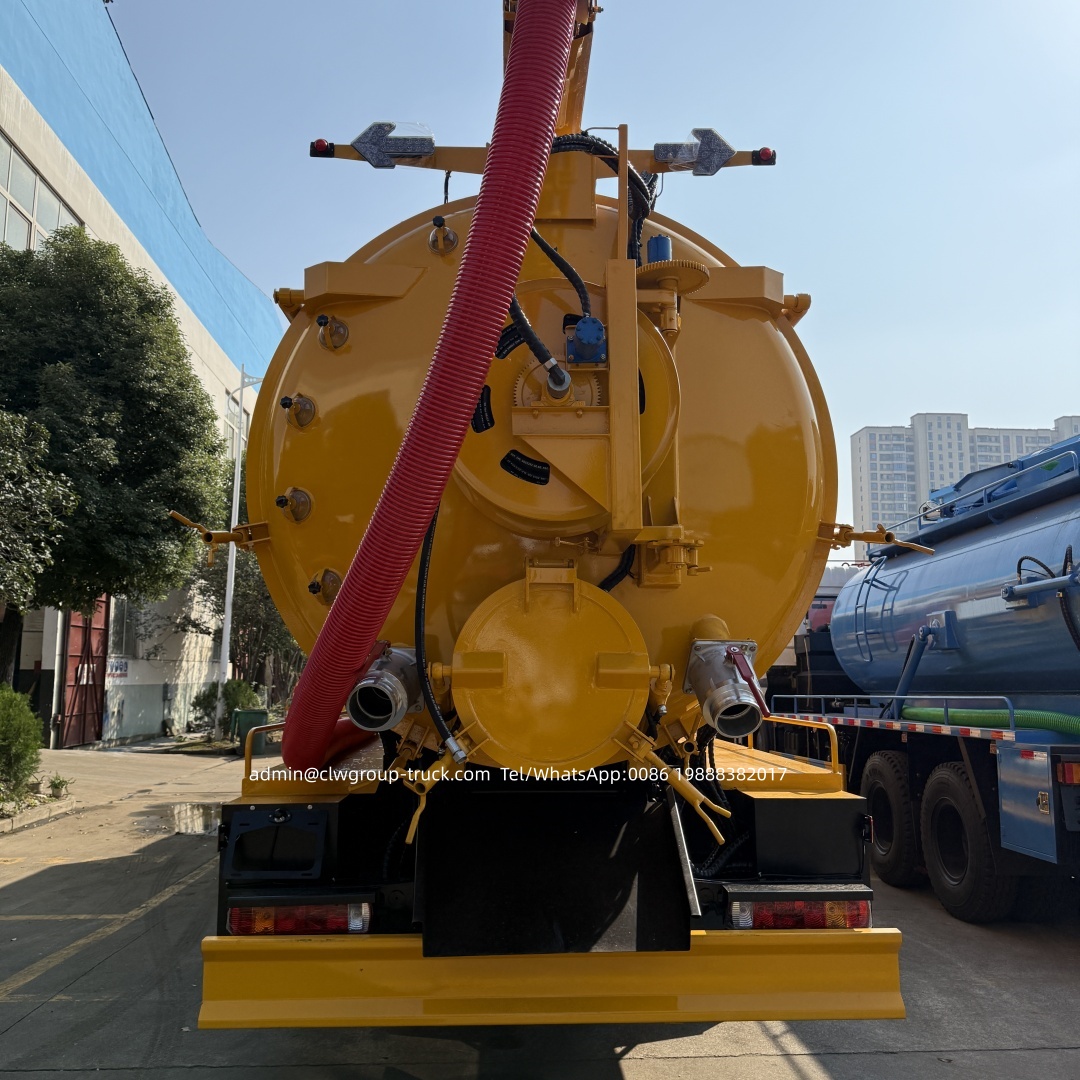

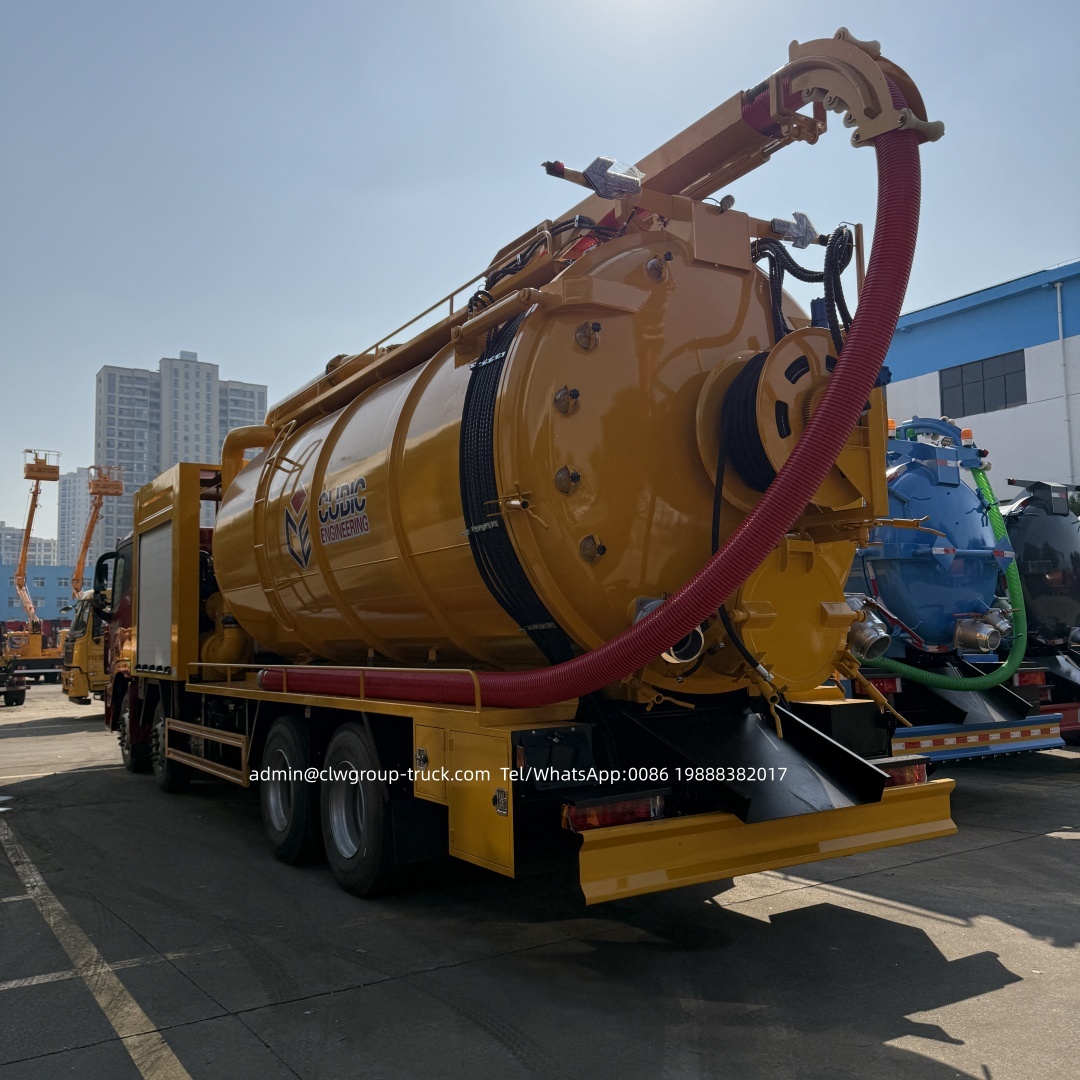

① The cleaning and suction truck is mainly composed of two parts: the chassis and the upper part. The chassis of the cleaning and suction truck is equipped with a power take-off, transmission system, vacuum pump, high-pressure pump, vacuum pipeline system, oil and gas separator, water and gas separator, vacuum pressure gauge, protective fence, operation console, hydraulic system, etc. ② The upper tank body consists of a cylindrical suction tank and a water tank. The suction tank is equipped with heads at both ends, and the rear head can be opened. The top of the suction tank body is equipped with a vacuum anti overflow valve. There are lifting oil cylinders and hydraulic automatic opening oil cylinders on both sides of the suction tank body. The tail is equipped with a self flow valve and comes standard with a 60 meter long inner diameter 19mm high-pressure pipe, an automatic return reel, and 10 conventional nozzles. Optional options include a tail sight glass and an on-board suction hose. ③ Cleaning suction trucks are mainly used to clean sediment in urban sewers and pipelines, as well as industrial drainage pipelines, walls, etc., and to clean roads and square floors. The use of vacuum technology for suction operations can clean and quickly transport feces and domestic sewage from public toilets, residential buildings, and other septic tanks to manure storage points or sewage treatment plants. The cleaning and suction truck is suitable for use when the absorbed substance is above 0 ℃.
Working principle and characteristics description of Foton 8X4 high pressure cleaning and suction truck with a capacity of 30 cubic meters
① The vehicle is equipped with an anti overflow valve to effectively prevent liquid overflow, and an optional full liquid alarm device can be installed. ② The tank is self dumping, and the suction tank adopts dual oil cylinder self dumping, making it more convenient and efficient to dump sewage without being blocked by large pollutants. ③ Tail self flowing port, large diameter, fast self flowing, standard with manual ball valve switch, optional hydraulic opening, easy to tilt. ④ Rear door opening function, the rear door can be hydraulically opened, and with the lifting function of the tank oil cylinder, it is more convenient and efficient to dump sewage and dirt. ⑤ The tank is rigidly connected and installed on the frame, with a buffer pad in between to reduce damage to the tank caused by vehicle vibration. ⑥ The suction pump adopts a water circulation pump with a simple structure and stronger suction force. It is not afraid of pump body heating and can work continuously. It can be equipped with Yifeng pump or Weilong oil pump. ⑦ Adopting imported well-known high-pressure cleaning pump, the pressure can reach 16Mpa. Domestic high-pressure pumps with a pressure of up to 24Mpa can also be used for thorough cleaning under high pressure. Mainly used for cleaning sediment and dredging dead corners of urban sewers and pipelines, it can also be used for cleaning industrial drainage pipelines, walls, etc., and cleaning roads and square floors.
Process characteristics of Foton 8X4 30 cubic meter high pressure cleaning and suction truck
① The suction tank body is made of high-quality carbon steel sheet with a thickness of 6mm according to the national standard of Wuhan Iron and Steel. It is formed in one go using advanced rotational molding technology, with high strength and corrosion resistance. The tank body is circular with a reasonable design, and the head is made of high-quality steel with stronger compression resistance. Install float level controller with electronic alarm device; Install an imported anti overflow device to prevent sewage from being filled and poured back into the vacuum pump system. The suction truck has a hydraulic lifting and self dumping function, which facilitates the dumping of various types of sludge. The rear tank door can be automatically opened by hydraulic pressure, making it easy to clean the sediment inside the tank. This vehicle can be self-priming and self draining, clean and convenient, and can be operated by one person, saving manpower.
② Adopting domestically advanced technology for sewage suction pumps, with high suction power and long suction range, it is particularly suitable for the suction, transportation, and discharge of sediment in sewers, especially for larger objects such as mud, silt, stones, bricks, etc. with low water content. Filling time for sewage (manure) tank: ≤ 5 minutes, suction stroke ≥ 10m. Self suction and self discharge, long service life, fast working speed, convenient transportation. There are two types of discharge methods for suction trucks: pressurized discharge and self flow discharge. The back cover can be opened to dump impurities from the tank.
③ Waterway system: including water tank, high-pressure water pump (imported from Italy), inlet pipe, drain shut-off valve, water filter, water level gauge, inlet shut-off valve, water pressure gauge, pressure gauge switch, high-pressure nozzle, high-pressure three-way valve, and drum.
④ Hydraulic system: including oil level gauge, oil tank, filter, gate valve, oil pump, relief valve, throttle valve, oil pressure gauge, one-way valve, oil motor, reversing valve, one-way valve, switch.
