Introduction of Refrigerated cooling van refrigeration box truck
1. Refrigerator box truck also called refrigerator cooling van, refrigerator van truck, freezer truck, refrigeration truck,freezer van,freezer box truck, food truck refrigerator freezer,reefer van,etc
2. It composed of truck chassis,refrigeration unit,cooling van,etc. It used to transport ice cream,milk, leben, frozen food,etc,The refrigerator van equipped with hook for meat on the inner roof and air trunking at box bottom of the truck
3. The freezer truck usually adopted USA brand THERMO KING, CARRIER,and China brand Dongin,Hua Tai,Han Xue,etc
The temperature of refrigeration units range from 0 degree to -18 degree
You also can install heating refrigerator to make the temperature above zero in bitter winter
4. The refrigerated van material can be color plate,fiberglass,stainless steel,aluminium alloy,etc.LOGO can be painted or pasted
As a professional reefer box truck manufacturer,our refrigerator truck have the charactr of light weight, good insulation ability, waterproof,corrosion resistance,smooth surface and clean easily,etc
Refrigerator truck Chassis option
DONGFENG,,FAW,SINOTRUCK,HOWO,BEIBEN,SHACMAN,JAC,JMC,ISUZU,etc

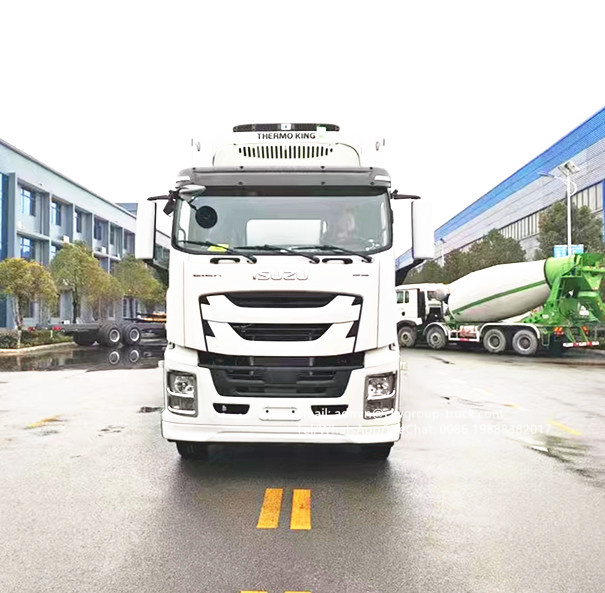

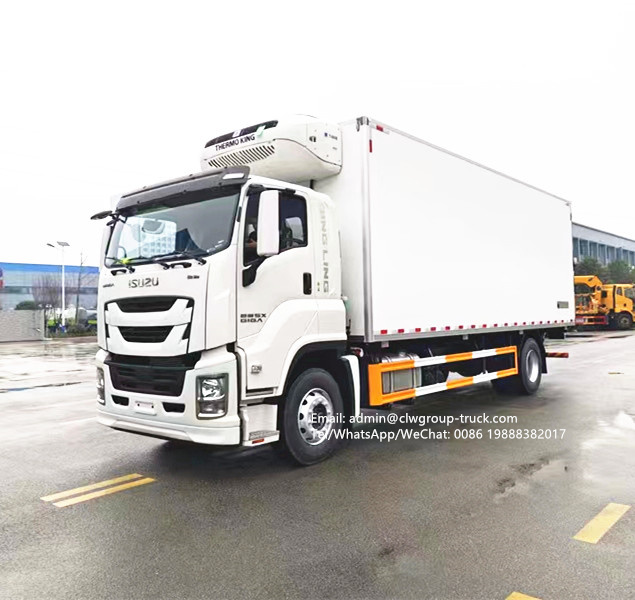

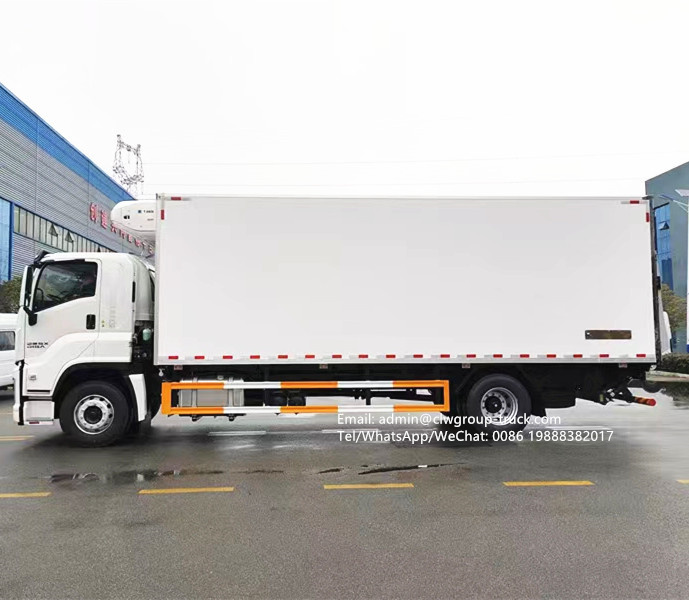

Isuzu 4X2 Juka refrigerated truck
Vehicle size: 10000 * 2600 * 3980 (mm)
Box size: 7600 * 2440 * 2500 (mm)
Power/horsepower: 151KW/205 horsepower 5193 displacement
Isuzu 205 horsepower (4HK1-TCG60)

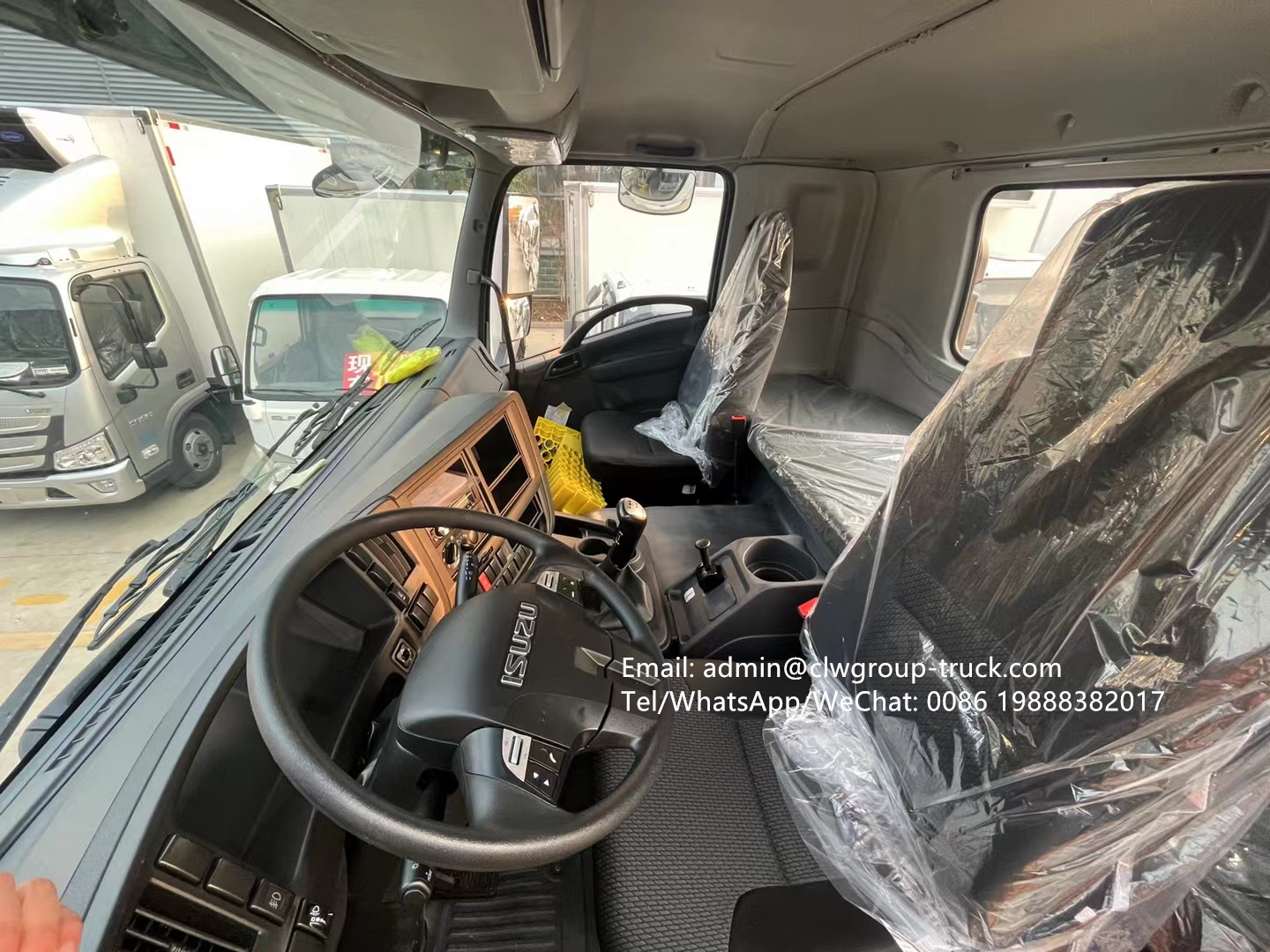

The new Isuzu Juka driver's cab, Isuzu MLD six speed transmission, air conditioning, steering assistance, central locking with remote key, electric doors and windows, multifunctional steering wheel, multifunctional LCD instrument panel, equipped with ABS, and air brake. The front axle weighs 6.3 tons and the rear axle weighs 13 tons. Standard 295/80R22.5 16PR tires
Wheelbase: 5550mm

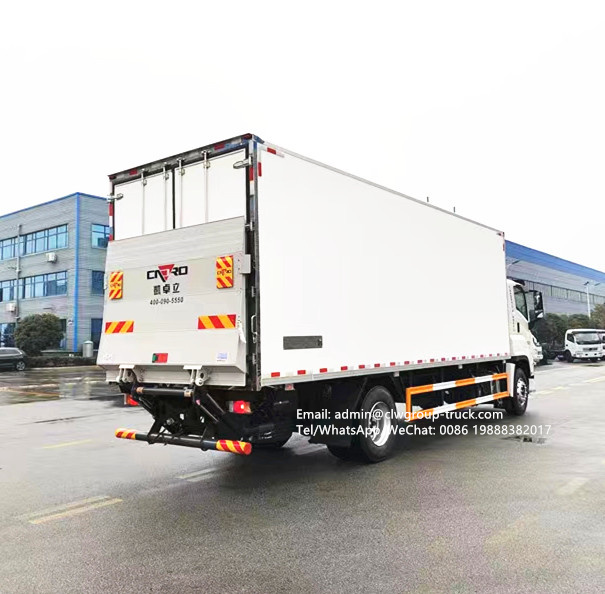

The refrigerated van body adopts advanced and latest wooden craftsmanship, bridge insulation technology, high-strength fiberglass inside and outside the box, deeply embedded bolts, and seamless synthesis using large negative pressure equipment. It is formed in one go, with fast cooling speed, slow temperature dissipation, and good insulation effect. The middle is filled with 8cm advanced insulation board, and the bottom plate is made of 10cm thick durable and seismic insulation thickened plate. The car body is surrounded by right angle aluminum profiles, and the rear door is equipped with stainless steel locks.
Optional refrigeration units from different brands
Optional installation of 5-row inline meat hook guide rail or docking meat hook guide rail, and optional ventilation slot
