Garbage compactor (also called waste compactor truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,
rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.
Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down
bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing repollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.
Technical requirements for Shacman Delong 8X4 compactor garbage truck

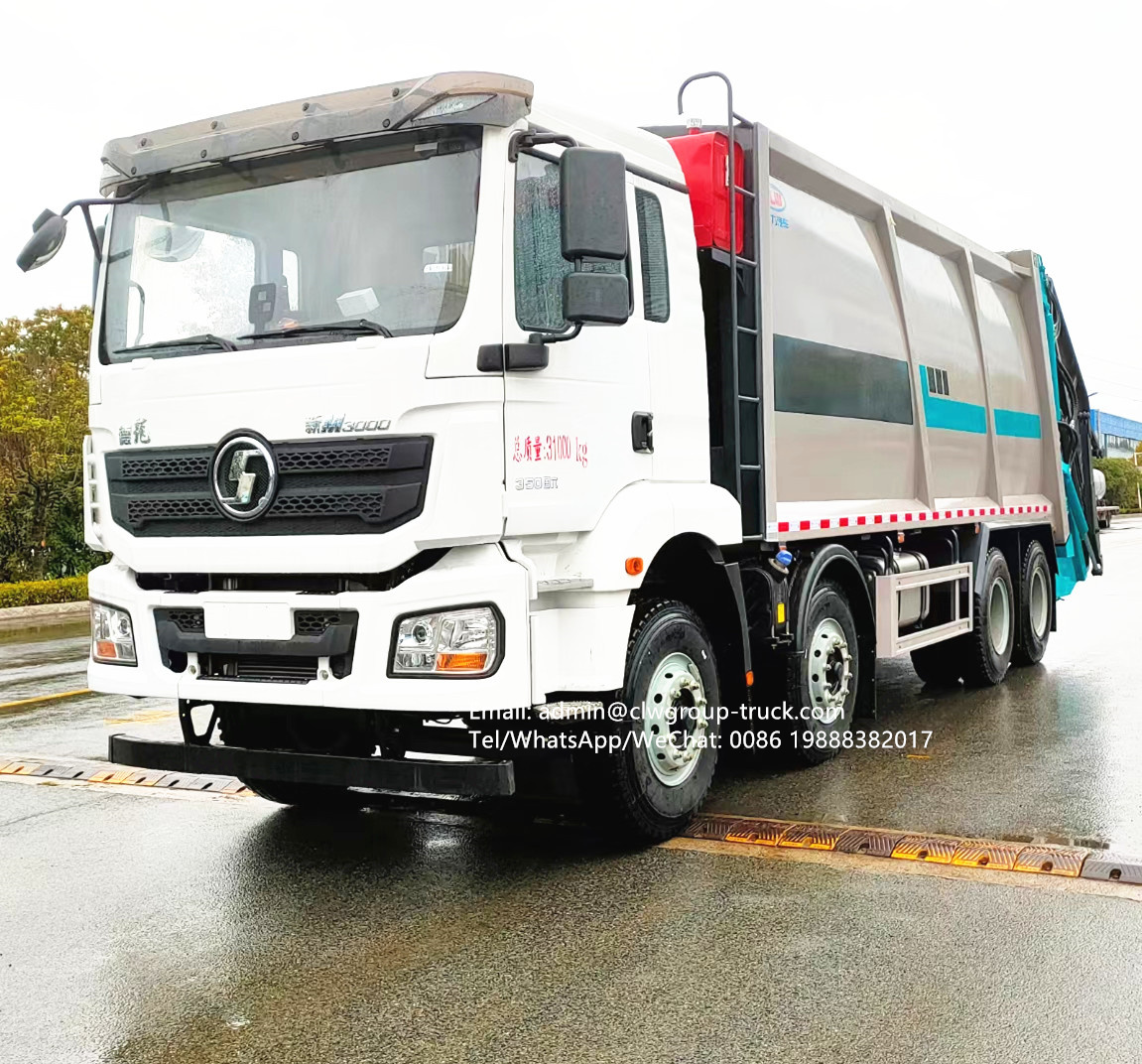

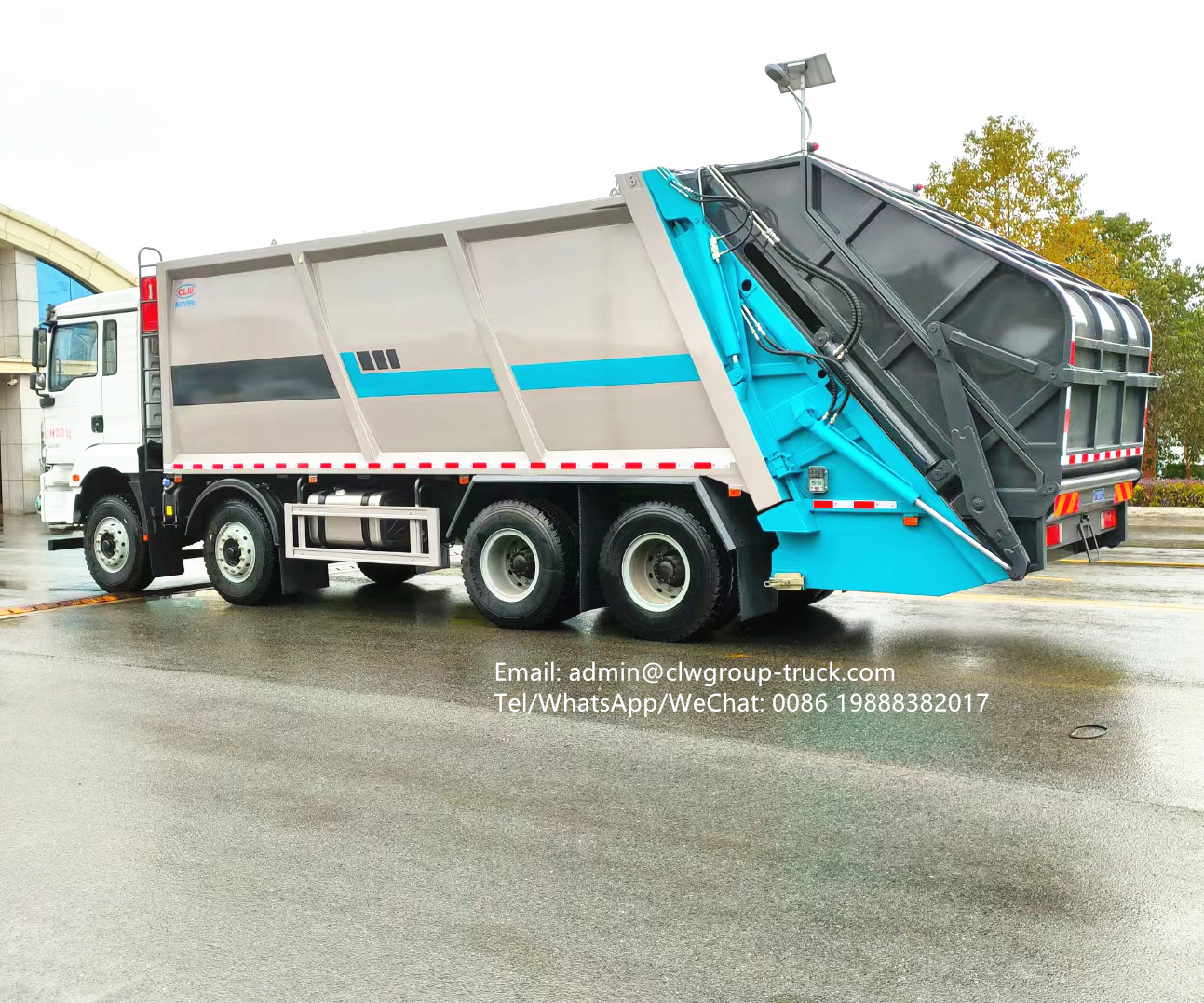

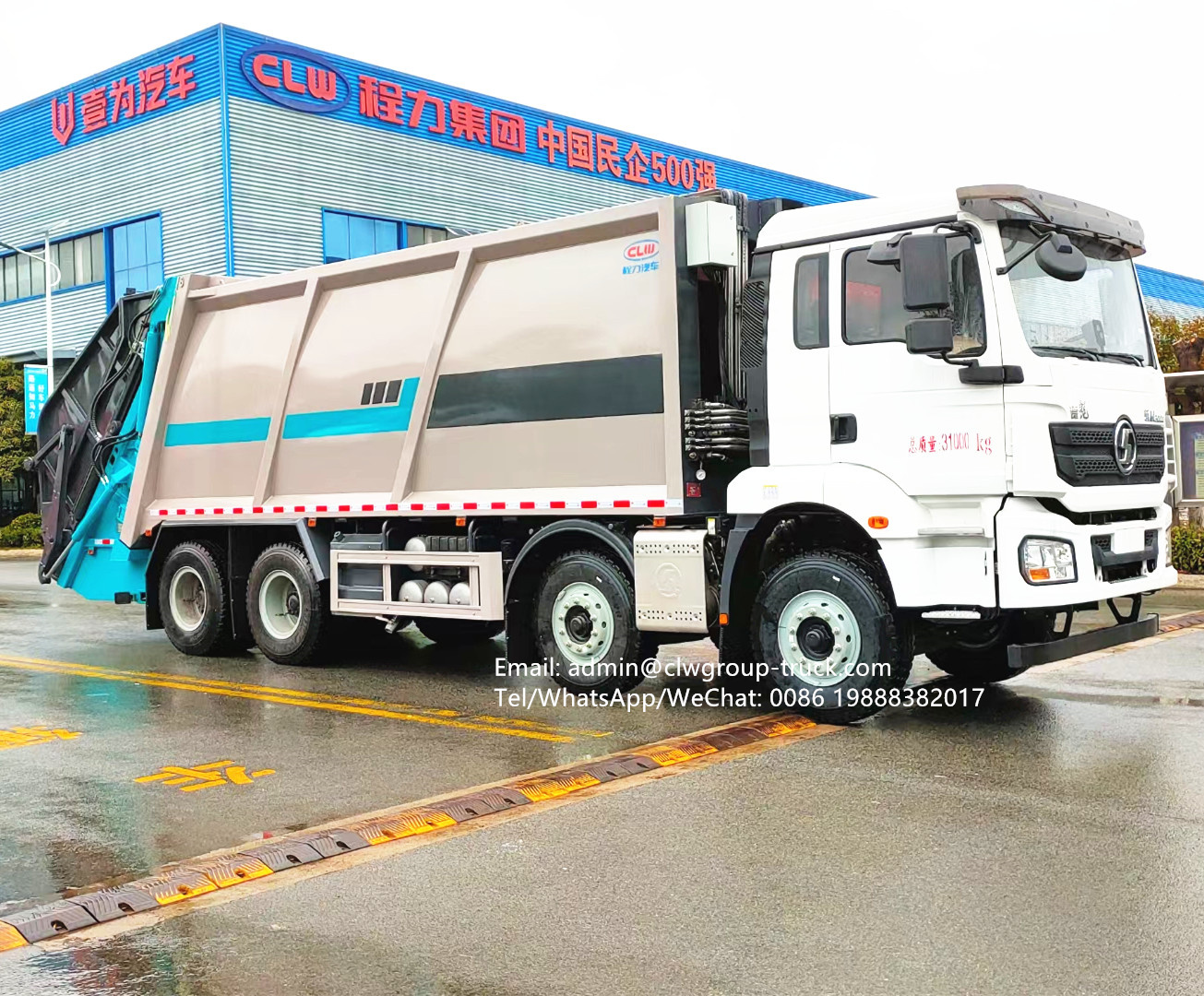

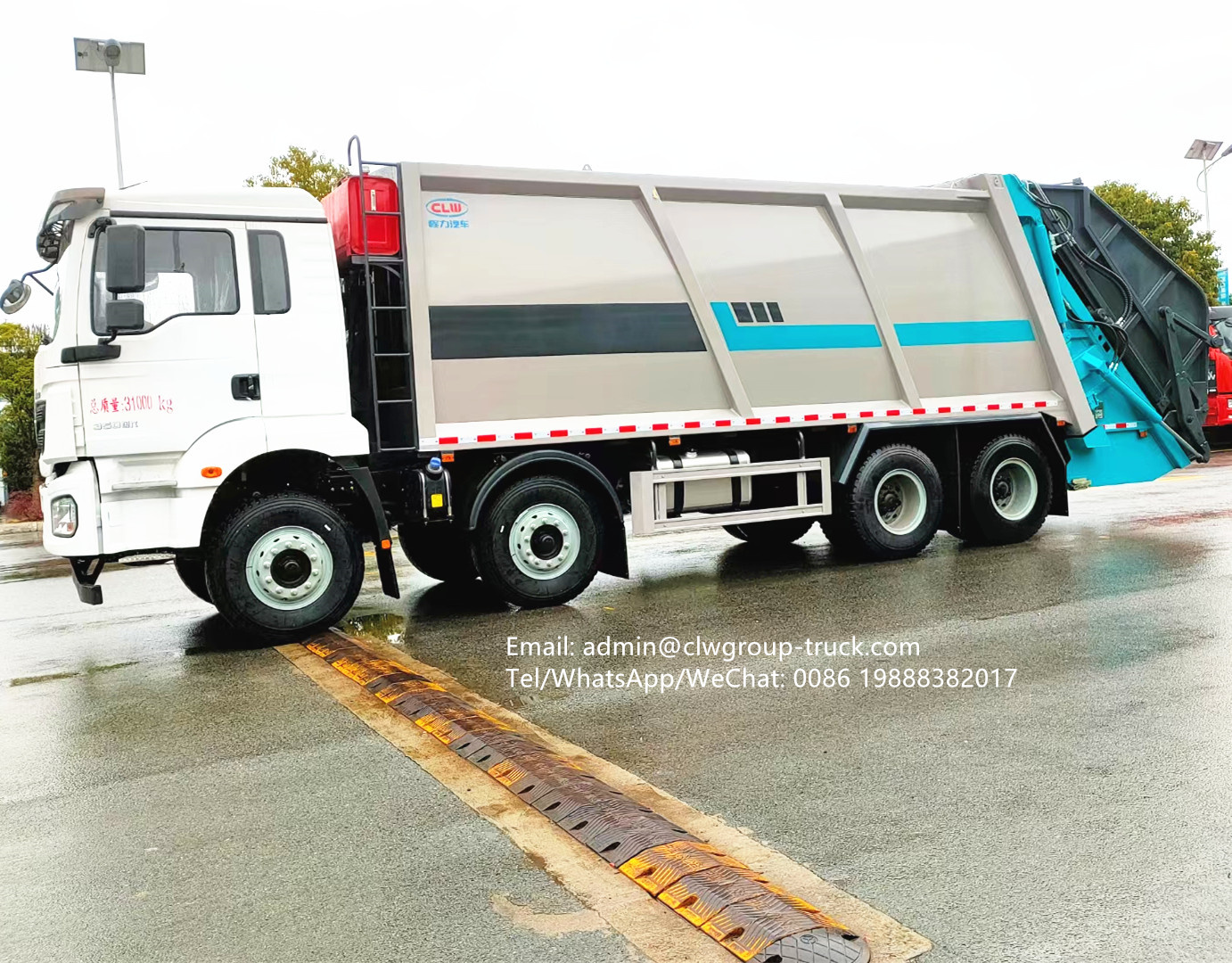

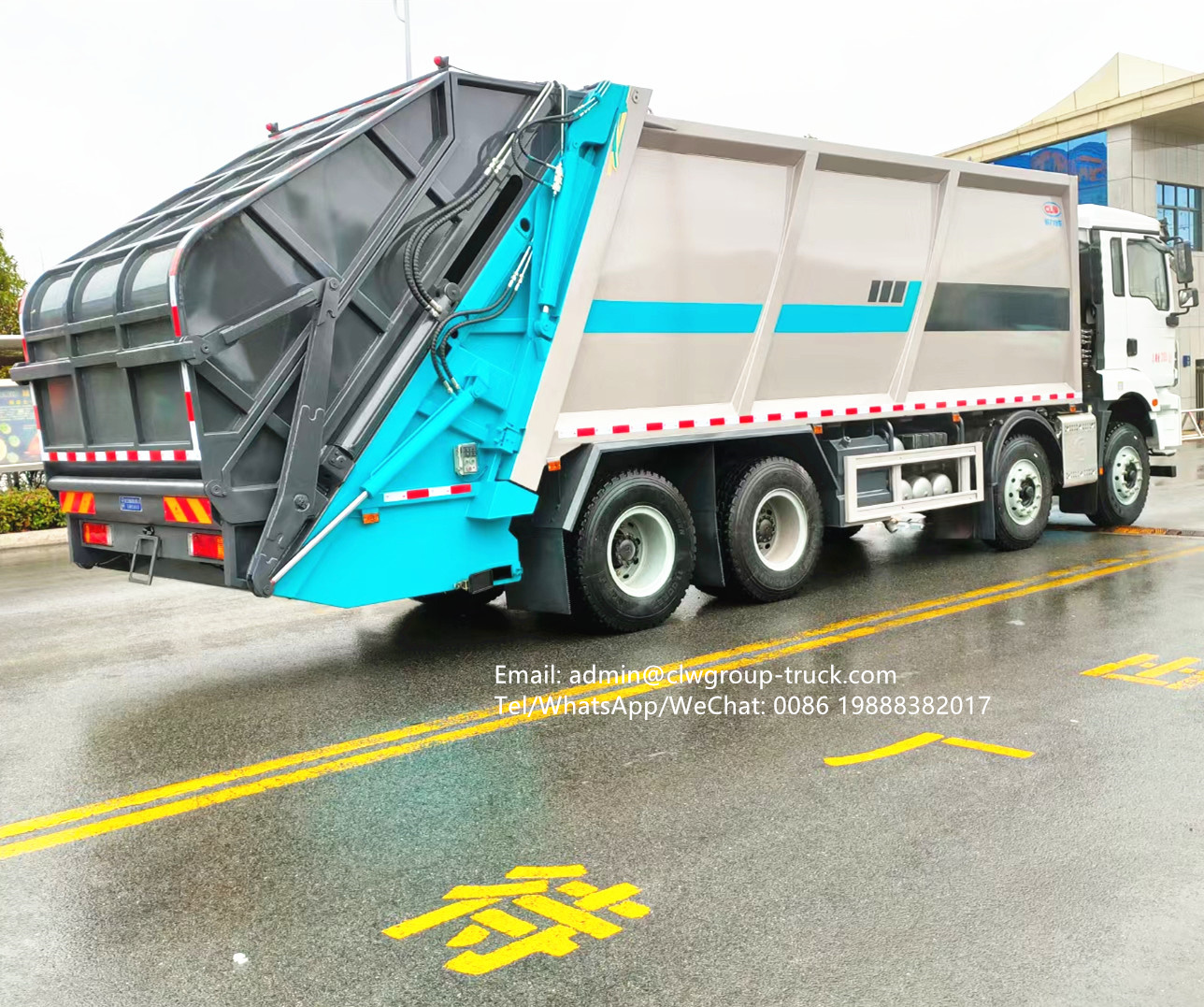

Cheng Li Shacman 8X4 compactor garbage truck, Weichai 350 engine, Shaanxi gear nine speed box, wheelbase 1950+3425+14001100 steel wire tires, box volume 30 cubic meters.
The Shacman Delong M3000 National VI Compactor Garbage Truck produced by the company has a beautiful overall appearance, high cost-effectiveness, safety, reliability, and convenient operation. This series of garbage trucks is a mature product of our company. The upper part consists of a sealed garbage bin, a filler, a push shovel, a hydraulic transmission system, and an electrical control system. The whole vehicle is a fully enclosed type, adopting integrated electrical and hydraulic technology. With the help of a mechanical, electrical, and hydraulic joint automatic control system, specialized devices such as garbage bins, fillers, and shovels are used to pour, crush, flatten, and forcefully load garbage, squeezing it into the carriage and compacting and unloading it. All the sewage during the compression process enters the sewage tank, solving the problem of secondary pollution during garbage transportation.
1. Product Structure Introduction
A. The garbage bin adopts a sturdy frame structure welded with reinforced beams and high-strength steel plates, and the side is made of a whole plate without longitudinal welding technology. The upper and lower reinforced beams and side plates of the side plate are formed as a whole, using special equipment for cold bending and large R angle forming, improving rigidity. The side plate has no longitudinal welds, effectively avoiding defects such as weld fatigue failure caused by long-term use of traditional welding technology. The top surface is a curved arc, The bottom plate and side plate of the box body adopt advanced welding technology, avoiding the phenomenon of water leakage caused by long-term use of traditional welding technology. A large capacity sewage collection box is installed in the front and lower part of the box body, improving the vehicle's sewage storage capacity. The overall appearance of the box body is beautiful, lightweight, well stressed, and not easily deformed.
B. The push shovel assembly consists of a rectangular steel pipe frame and a bent plate welded together. Adjustable sealing strips are installed on both sides and top of the push shovel to ensure the gap between the push shovel and the box. This not only makes the structure lightweight, but also allows for even distribution of garbage and clean and thorough unloading.
C. The filler assembly is mainly composed of components such as the filler housing, skateboard, scraper, etc. The filler slide is formed by cold bending of high-strength wear-resistant materials, and the lower curved plate is made of high-strength wear-resistant materials. The curved plate is processed with a leakage port to facilitate the internal sewage of the filler to flow into the lower sewage storage box, avoiding sewage leakage during transportation. A large capacity sewage storage box is set at the lower part of the filler, Two sewage tanks with large diameter sewage discharge outlets; The skateboard is equipped with integral nylon sliders on both sides, which have self-lubricating properties, high stability, and better wear resistance; The force bearing part of the scraper adopts local reinforcement treatment, with a firm structure and light weight.
D. The flipping mechanism is made of bent materials and welded profiles, with a sturdy structure and beautiful appearance.
E. The load-bearing parts such as the oil cylinder support, garbage bin lifting parts, card bucket guide plate, and connecting rod support are integrally cast into shape using cast steel parts, with a sturdy structure and not easily broken.
2. Introduction to Hydraulic Transmission System
A. The hydraulic cylinder adopts Xiamen Yinhua/Yantai Future Oil Cylinder, and all sealing components of the cylinder adopt the HALLITE brand imported from the UK to ensure the service life of the cylinder.
B. The hydraulic oil pump adopts aluminum alloy gear pumps produced by Hefei Changyuan/Hefei Wanye, with stable performance and high reliability.
C. The multi way directional valve adopts an Italian valve core multi way valve, with stable performance.
D. The hydraulic pipeline adopts domestic brands
Shacman 8x4 Compactor Garbage Truck Box Effective Volume: 20-28m3
Box shape: Solitary box material, with side 4 mm and 5mm floor
Compression ratio: ≥ 2.5, effective volume of filler ≥ 1.9m3
Loading cycle time ≤ 25s, garbage unloading time ≤ 45s
Control mode: automatic, manual hydraulic system pressure: 18Mpa
Multi way directional valve: Special multi way valve with Italian imported valve core
Hydraulic oil pump: Hefei Changyuan/Anhui Liquid
Control system: CAN bus integrated control
Oil pipe: Guangdong Tianhe hose, Xuzhou steel pipe
Other: Integrated skateboard slider
