Isuzu refrigerated van truck are high-end models in the refrigerated vehicle category, known for their robust chassis and reliable quality. With Isuzu parts available worldwide, they are the top choice for those in the cold chain industry. Let’s recommend a few best-selling refrigerated truck models popular overseas

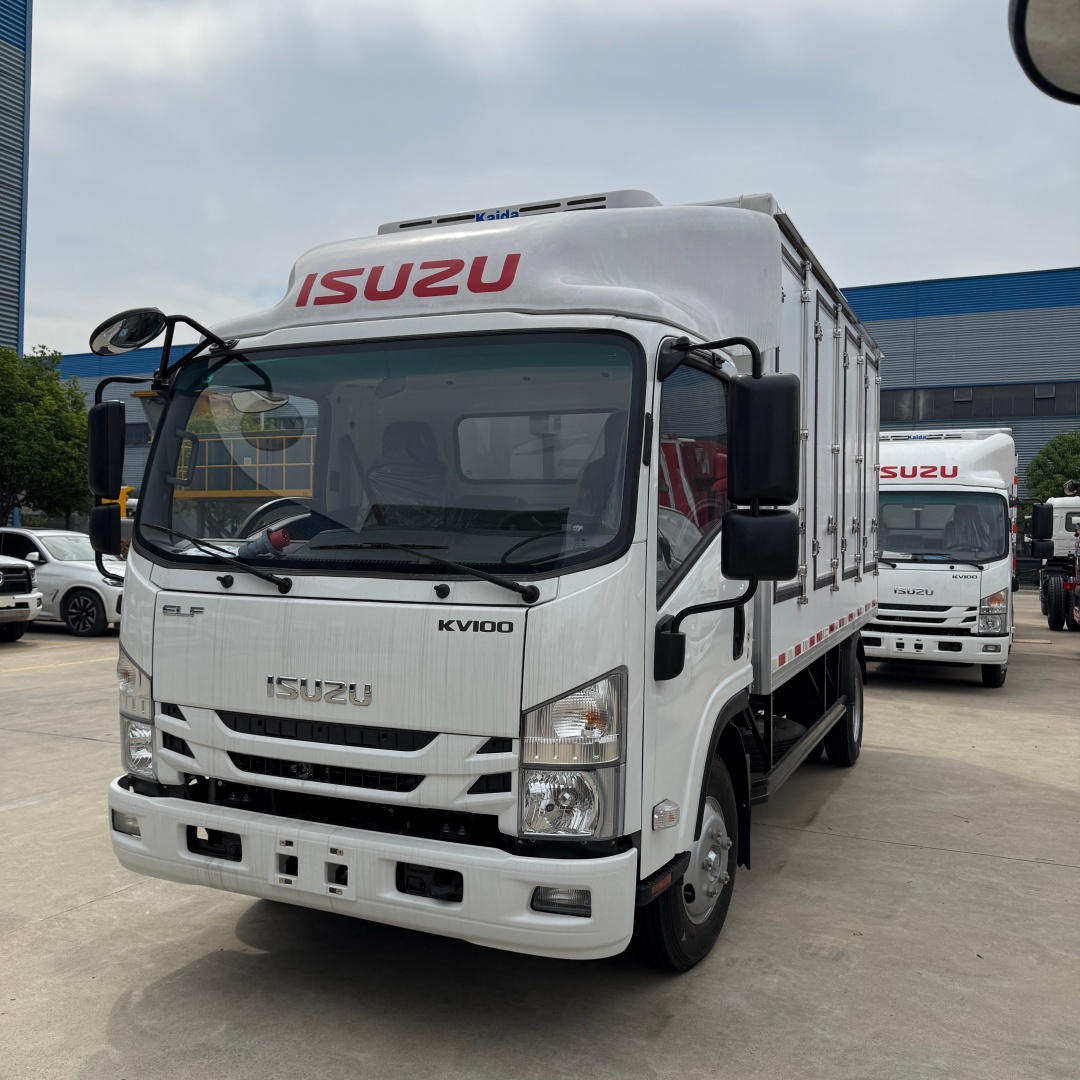

The Isuzu KV100 refrigerated van truck, a 3-6-ton light-duty model, delivers high timeliness and precise temperature control, better meeting the needs of urban internal cold chain product distribution. Equipped with Isuzu's new 4KB1 engine, the KV100 refrigerated truck features 132 horsepower, 360 Nm torque, a 5-speed transmission, and a 2.5L displacement, ensuring energy efficiency and reduced consumption. With a front axle load of 2.5 tons and a rear axle load of 4.8 tons, it is fitted with 7.00R16 tires, a climate control system, and power steering. The overall dimensions are 5995*2260*3230 mm, while the cargo compartment measures 4080*2100*2100 mm
The compartment panels are seamlessly integrated into a single unit, with cold bridge technology employed at the door joints to enhance insulation performance. The tailgate is equipped with sealing strips for superior sealing and insulation. The vehicle is fitted with a domestically renowned brand of refrigeration unit, ensuring precise temperature control and insulation. The chassis utilizes Isuzu's specialized design, combined with high-quality factory-made compartments and branded refrigeration technology, delivering significant advantages. With a one-time order and one-time delivery process, customized services are provided to fully meet the requirements of cold chain cargo transportation, supporting the development of the cold chain industry.

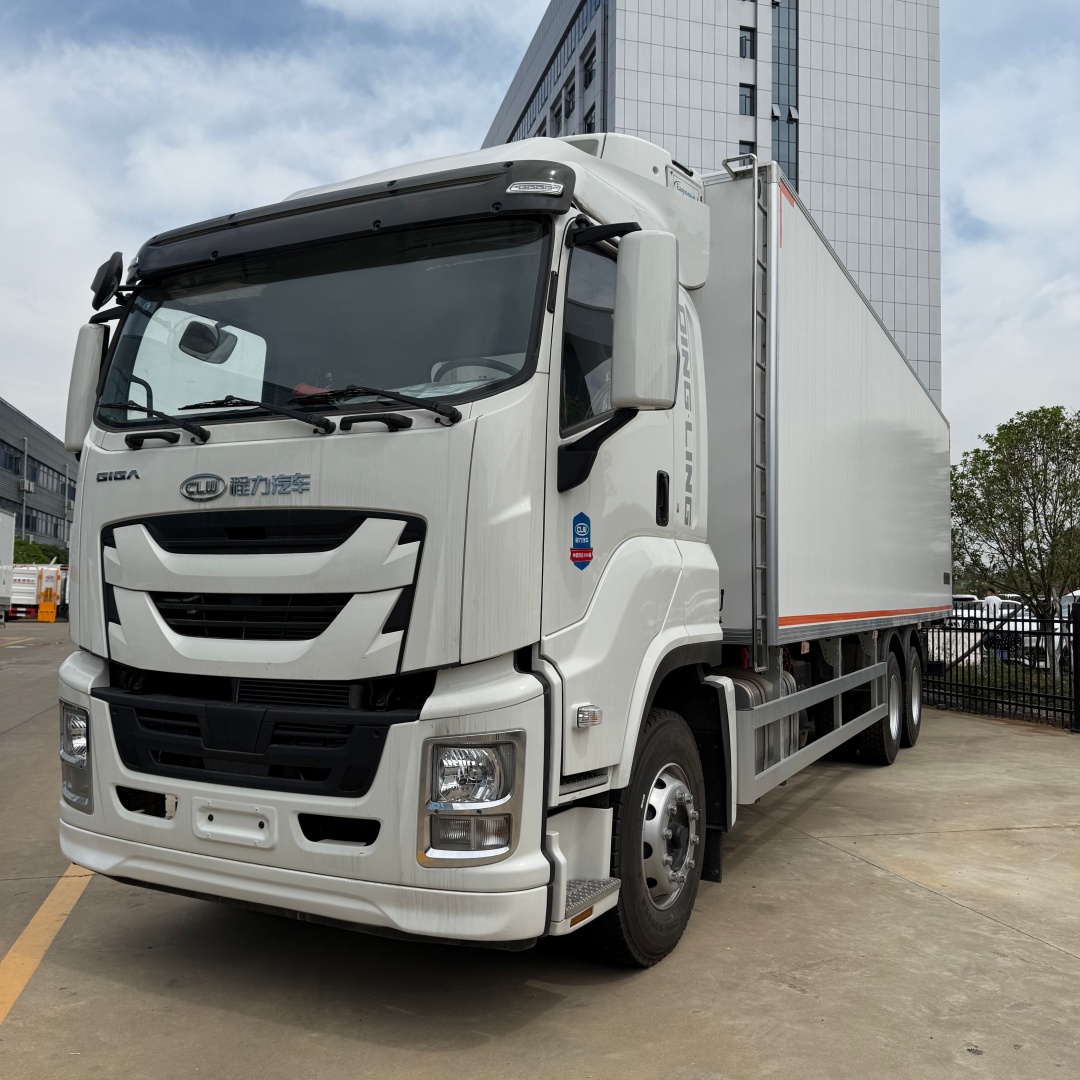

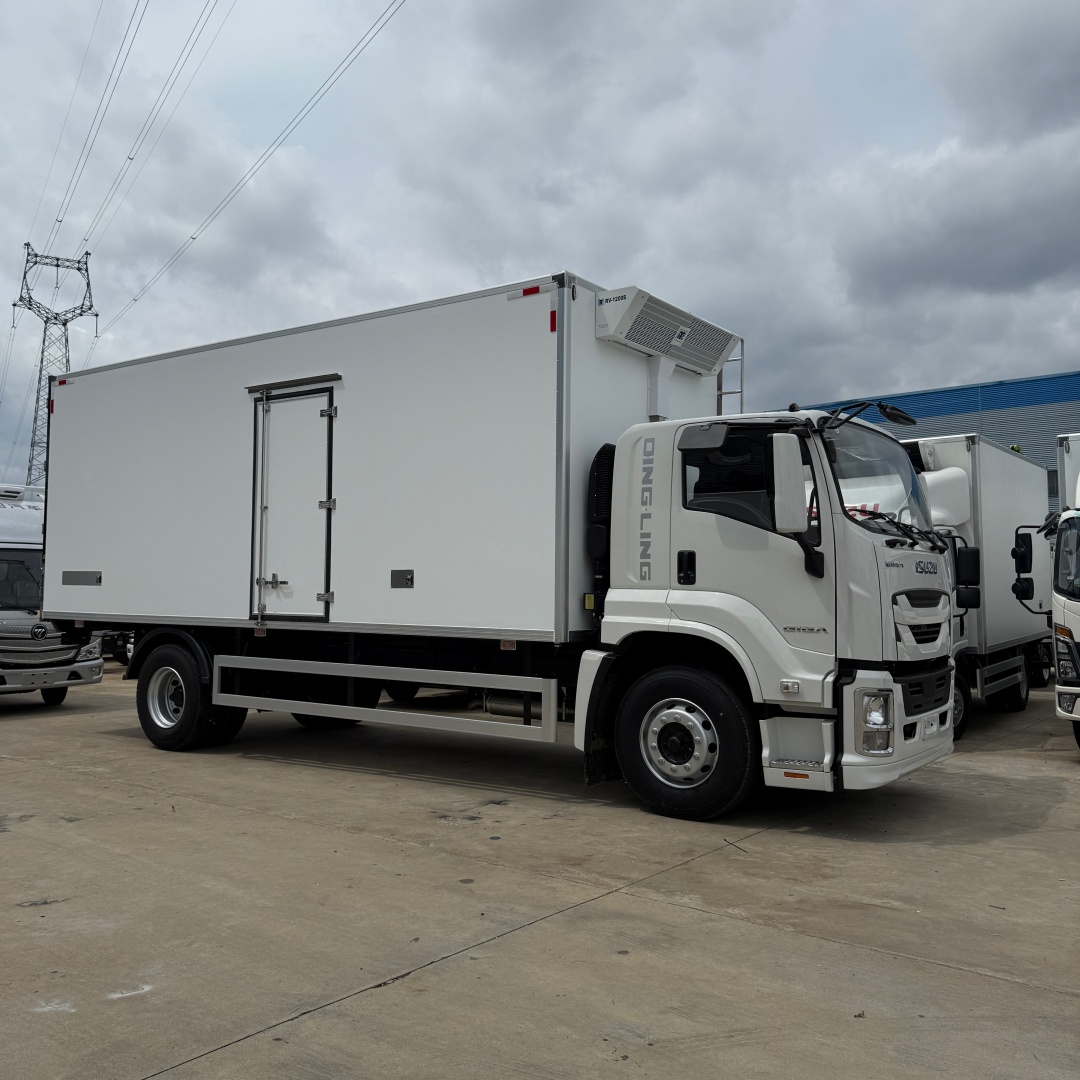

The Isuzu GIGA 10-15-ton refrigerated van truck features an Isuzu heavy-duty chassis, delivering robust power and low fuel consumption, making it ideal for long-distance cold chain product transportation. The sealed polyurethane body is equipped with a branded refrigeration unit, ensuring exceptional freshness preservation
Isuzu 10-15 Ton refrigerated van truck Chassis Configuration:
Engine model 6HK1-TCG61, 240 horsepower, maximum gross weight 18,000 kg, chassis curb weight 6,370 kg, cargo box dimensions 7,100*2,350*2,500 mm. The cargo box is optionally equipped with meat hooks for transporting refrigerated meat. The body color is white. A 7.1-meter cargo box is used for pork refrigerated trucks, with a load capacity of 10 tons. It includes a Carrier non-independent refrigeration unit capable of reaching a minimum temperature of -18°C. There are two 6.8-meter sliding doors and three 6-meter sliding doors. The cargo box is made of XPS extruded board, with fiberglass both inside and outside. The side and floor panels use composite boards + aluminum alloy patterned plates, along with aluminum alloy corner guards. A slot is installed on each side panel, featuring one side door and a stainless steel door chain with a white steel frame. Mudguards and aluminum alloy railings are included
The Isuzu 20-ton refrigerated van truck features a chassis from the Isuzu FVZ and VC series 5X6*4 export models, with a 300-horsepower 6HK1-TCG60 engine and a 9-speed transmission, or a 350-horsepower 6UZ1-TCG60 engine with a 12-speed transmission. The front axle has a capacity of 10 tons, and the rear axle 13 tons. The tires are 385/60R22.5, with overall dimensions of 10,315×2,600×3,990 (mm) and cargo box dimensions of 7,850×2,420×2,370 (mm)

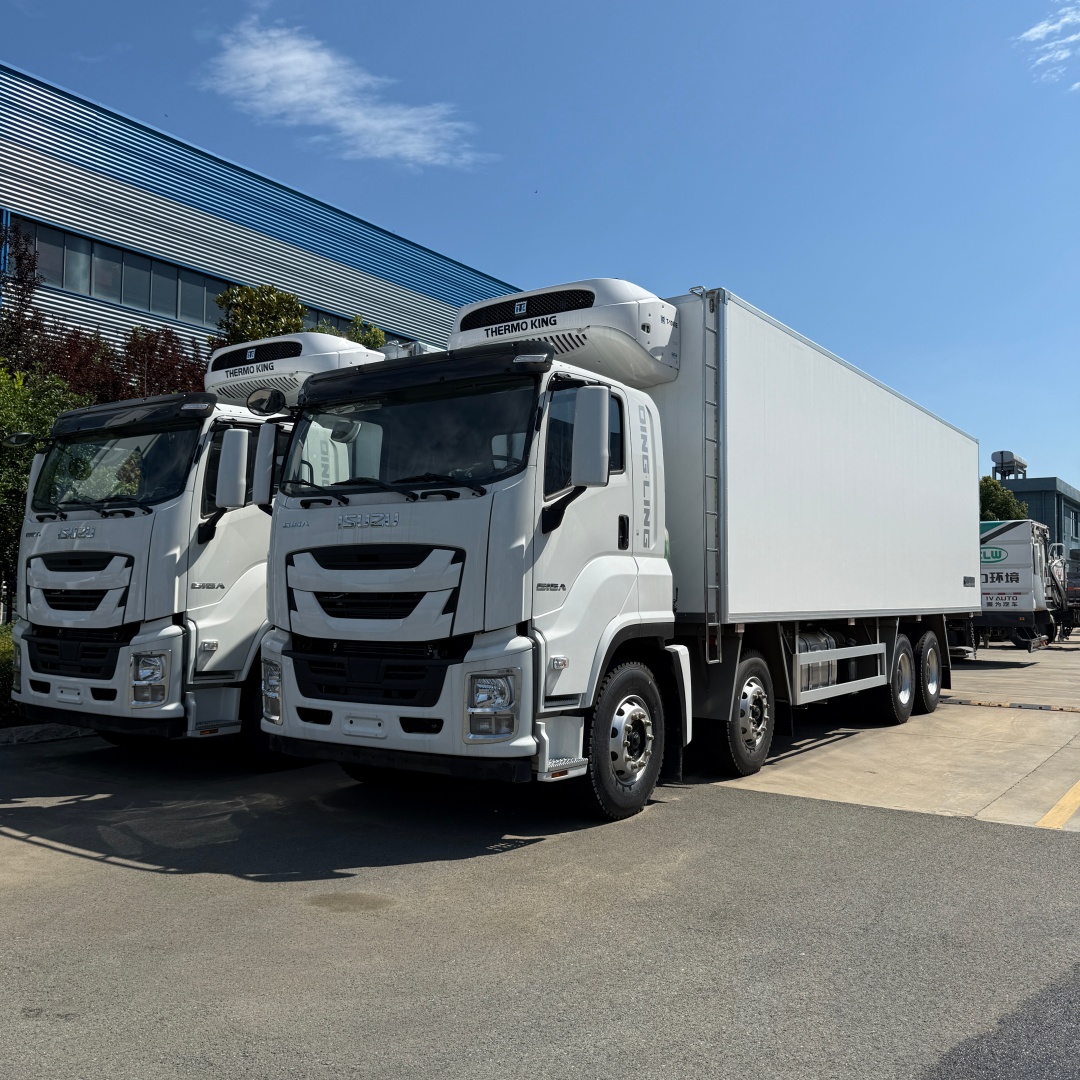

The 8X4 Isuzu 30-35-ton refrigerated van truck is equipped with a 300-horsepower 6HK1-TCG60 engine paired with Fast-12's 9-speed transmission, a 350-horsepower version corresponding to the Isuzu 6UZ1-TCG60 engine with Fast-12's 12-speed transmission, a 380-horsepower version matching the Isuzu 6UZ1-TCG61 engine with Fast-12's 12-speed transmission, and a 420-horsepower version featuring the 6WG1-TCG60 engine with Fast-12's 12-speed transmission. It includes a Class 5 cab, air conditioning, power steering, central locking, power windows, ABS, a multifunction steering wheel, and a digital instrument panel
External dimensions: 12,000 × 2,600 × 3,990 (mm), Cargo box dimensions: 9,550 × 2,420 × 2,370 (mm)
Isuzu refrigerated van truck Product Technical Advantages:
The Isuzu refrigerated van truck features a body constructed with internationally recognized sandwich panel technology, filled with insulating materials such as polyurethane foam, achieving an insulation thickness of up to 8cm for excellent thermal performance and stable interior temperature retention. The interior and exterior linings primarily utilize fiberglass-reinforced plastic, offering light non-absorption, superior heat insulation, high hardness, and oxidation resistance, ensuring both the body's longevity and aesthetic quality. The robust body structure employs a galvanized pipe framework with eco-friendly waterproof plywood for one-piece molding, while the outer frame incorporates stainless steel and thickened aluminum profiles for enhanced sealing and strength.
Isuzu refrigerated van truck can be customized according to customer requirements, with optional refrigeration units from various brands such as domestic Kaida, Kaixue, and imported Cold King, Carrier, etc. They can maintain the interior temperature to meet Class F refrigerated truck standards, meaning the average internal temperature typically remains at or below -20°C when the ambient temperature is 30°C, fulfilling transportation needs for frozen meat, aquatic products, frozen food, and other goods. For inquiries, please contact TEL/WhatsApp: 0086 19888382017

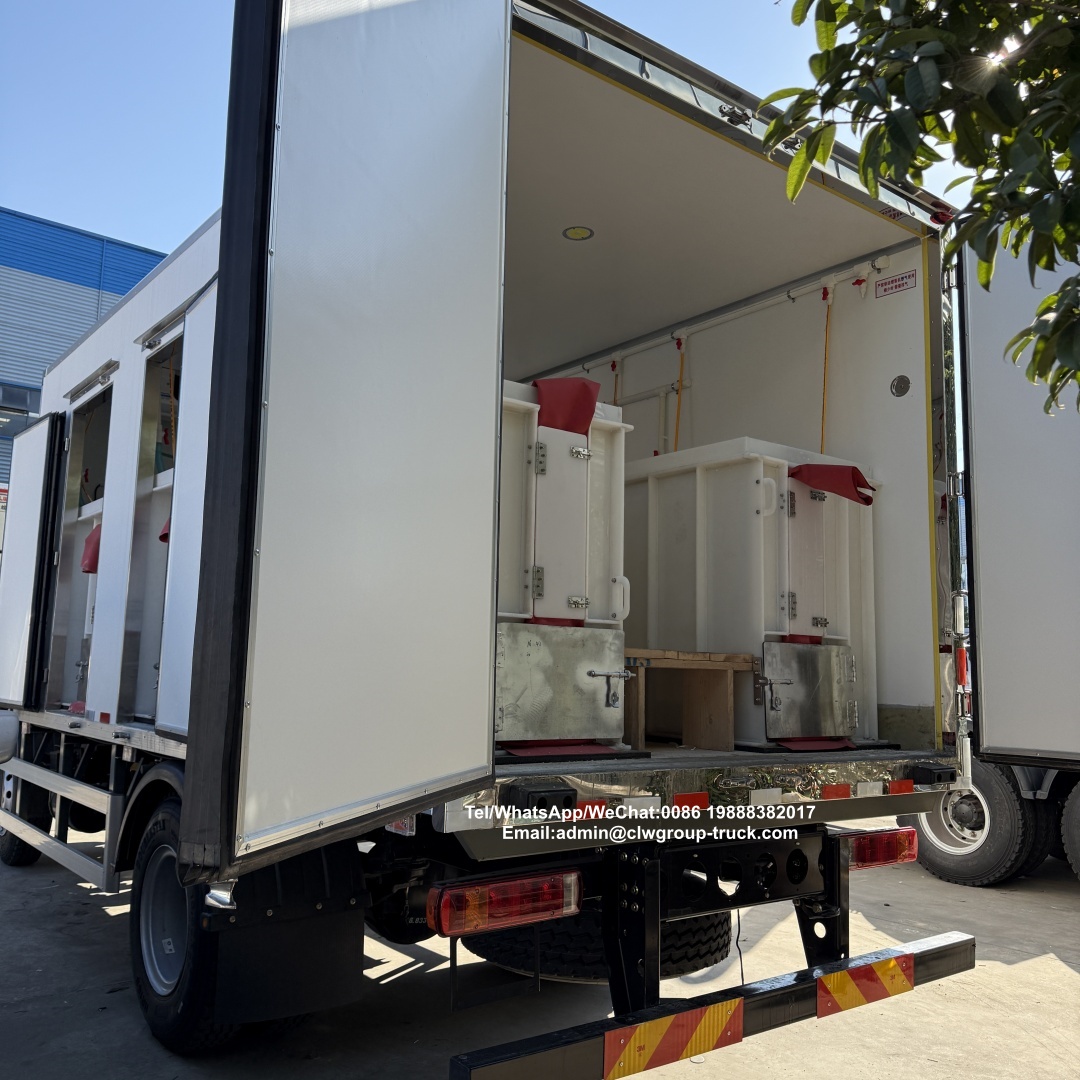

Factory price direct sales of Isuzu refrigerated van truck can provide comprehensive and high-quality customized modification solutions. For frozen beverages, frozen foods, catering, fast food raw materials, food that needs to be refrigerated, and grilled and braised foods, aluminum alloy air ducts, cross shaped air ducts, stainless steel plate edge wrapping, open air vents, installation of oxygen concentrators, integrated cooling and heating machines, all stainless steel inner tanks, installation of electric traction equipment, and installation of ultraviolet sterilization lamps on both sides can be used; For scenarios such as meat processing, seafood, and livestock meat, optional meat hooks and anti freezing door curtains can be installed; For transportation scenarios such as drugs, vaccines, medical equipment, pharmaceuticals, and blood, monitoring and backup power systems can be optionally installed
How to choose a suitable Isuzu refrigerated van truck? Please contact our Sales Director TEL/WhatsApp: 0086 198 8838 2017. Customers can consider the following aspects:
Vehicle selection: Isuzu has a variety of refrigerated trucks to choose from, such as Isuzu 5.2-meter refrigerated truck, Qingling Isuzu 100P4.2-meter refrigerated truck, Qingling Isuzu KV6004.2-meter refrigerated truck, Isuzu 6.8-meter refrigerated truck, Isuzu 9.5-meter refrigerated truck, etc. Different car models have differences in performance, configuration, and application scenarios, and the appropriate car model should be selected according to actual needs
Box configuration: The insulation material, sealing, and internal layout of the box are all important considerations. Isuzu refrigerated trucks adopt advanced technology, with insulation reaching the national A-level standard. The cabin is made of seamless polyurethane foam insulation material, made entirely of stainless steel, and the rear door is designed with fully sealed stainless steel double doors
Cold machine optional: Choose the appropriate refrigeration temperature and brand according to the needs of transporting goods. Isuzu refrigerated trucks can be equipped with refrigerators of different cooling temperatures, including imported brands such as Carrier and CoolKing, as well as domestic brands such as Jinda K and Kaixue
Price factor: The specific price of Isuzu refrigerated trucks may vary depending on the choice of chassis and modification configuration. Appropriate configuration should be selected based on the budget
Application scenarios: Consider whether the vehicle will be used for different scenarios such as food, medicine, or e-commerce logistics, and choose the most suitable model and configuration
In summary, when choosing an Isuzu refrigerated van truck, factors such as vehicle model, performance, cabin configuration, refrigeration options, price, and application scenarios should be comprehensively considered to ensure the selection of the most suitable refrigerated van truck.
