ISUZU 6X4 18tons flatbed wrecker recovery truck with crane knuckle boom

Isuzu 6X4 recovery truck with crane, 18 ton upper loading, 8-ton folding arm knuckle boom crane, 15 ton winch, 18 ton rear support arm, 6mm thick patterned board, board length 8.5 meters, width 2.5 meters, maximum load capacity on board 20-30 tons.

Isuzu recovery truck with crane knuckle boom 8 tons Chassis Configuration Parameters:

Isuzu FVZ FVR National VI chassis (25 tons total weight 300 horsepower 6 * 4 chassis with Isuzu 5X level VC61 cab) Isuzu National VI single axle 240 horsepower FVR chassis corresponds to 6HK1-TCG61 engine, matched with Fast 8-speed transmission, Isuzu National VI 300 horsepower FVZ chassis corresponds to 6HK1-TCG60 engine, matched with Fast 9-speed transmission, equipped with a new Isuzu 5X level VC61 cab, air conditioning, directional assistance, central locking, electric doors and windows, multifunctional steering wheel, multifunctional LCD instrument panel, with ABS, air brake, front axle 7 tons, rear axle 10+10 tons, tires 295/80R22.5

Isuzu recovery truck with crane knuckle boom 8 tons body Parameters:

`18 ton loading, 15 ton winch, 6mm thick patterned plate, imported hydraulic system, obstacle clearing flat plate length of 8.5 meters, width of 2.5 meters, equipped with two sets of fixed forks, one set of drag fork seat, 6 straps, equipped with air pipe joints, alarm lights, etc

Isuzu recovery truck with crane 8-tons knuckle boom Parameters

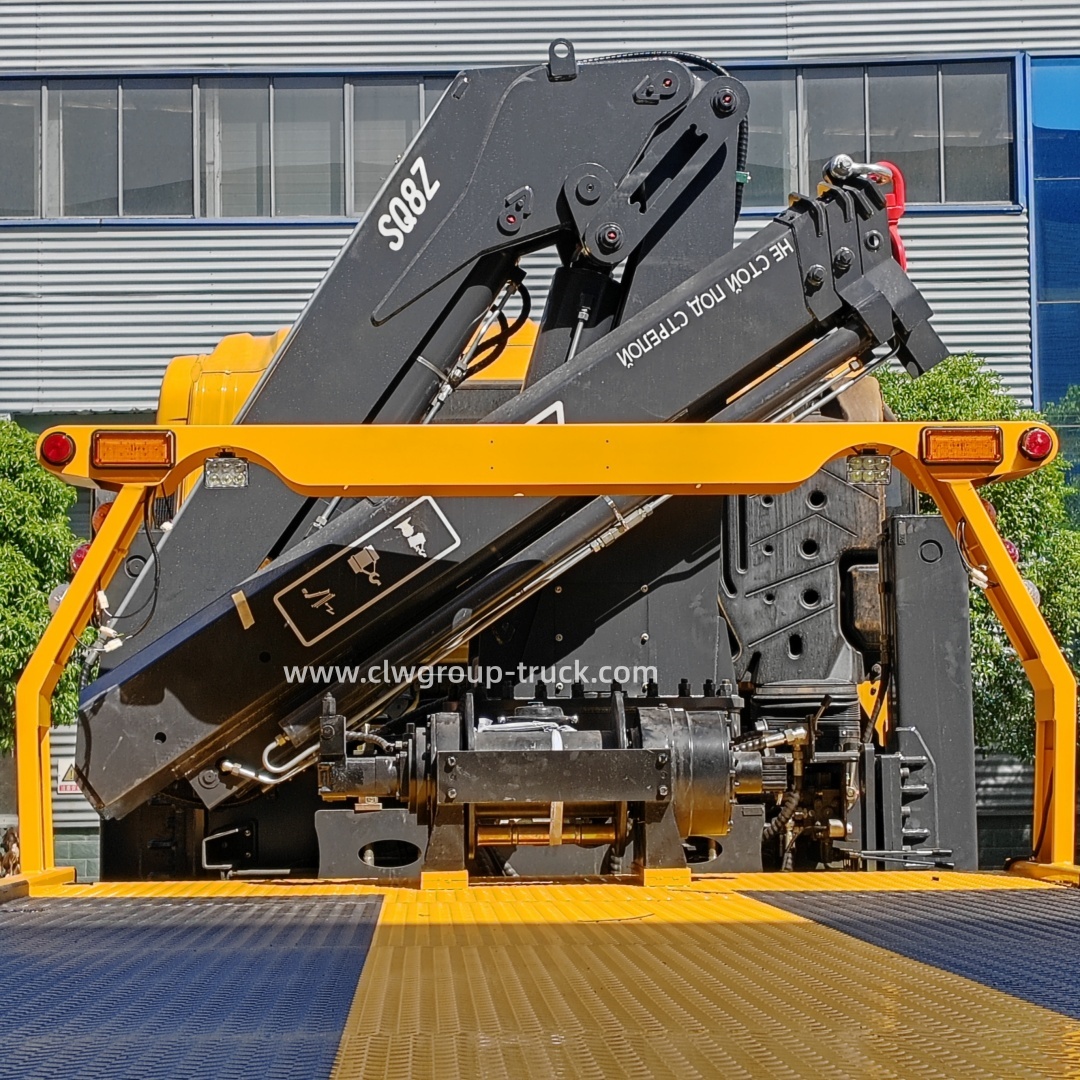

The crane adopts Chengli's independent brand folding arm crane, with a maximum lifting torque of 168KN. m, maximum lifting mass of 8000kgs, maximum lifting arm length of 12.4 meters, maximum lifting height of 14.4 meters, hydraulic system rated flow rate of 63L/min, oil tank capacity of 160L, hydraulic system rated pressure of 28Mpa, recommended power of 30KW, installation space of 850mm, rotation angle of 360 degrees, and crane self weight of 2960kg

The Isuzu recovery truck with crane  knuckle boom arm crane is a customized model for customers. In addition to installing folding arm cranes, we can also install straight arm cranes according to customer requirements. The tonnage can be installed according to customer requirements, ranging from 5-16 tons. Various accessories such as grippers and brick tools can also be added. Paint and logos can be customized. If you have any needs, please contact Tel/WhatsApp: 0086 198 8838 2017

The recovery truck with crane is a hydraulic principle that combines three special operation functions: flatbed loading, lifting, and hoisting. It can meet the rescue tasks of urban roads, general national highways, and highways, and has more efficient rescue and solution capabilities for various difficulties. It is one of the ideal car models chosen by relevant departments such as transportation, highways, professional rescue companies, auto repair shops, etc. to ensure smooth road traffic.

Isuzu recovery truck with crane 8tons knuckle boom highlights:

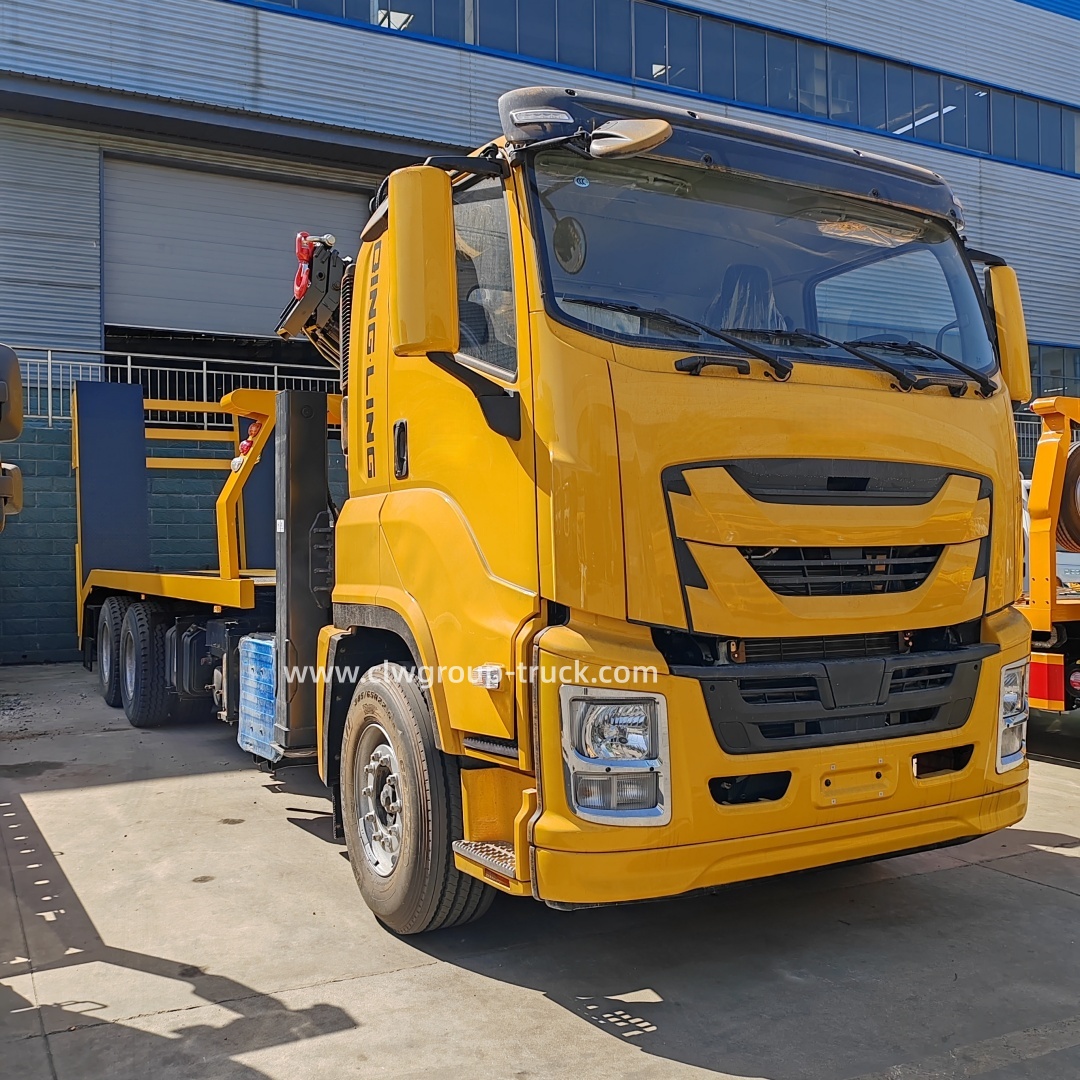

1. The chassis adopts Isuzu 6X4 heavy-duty chassis, Isuzu 5X VC61 driver's cab, equipped with Isuzu 300 horsepower engine, Faust nine speed gearbox, original air conditioning, central locking, electric doors and windows, multifunctional steering wheel, multifunctional LCD instrument panel, with ABS and air brake cut-off

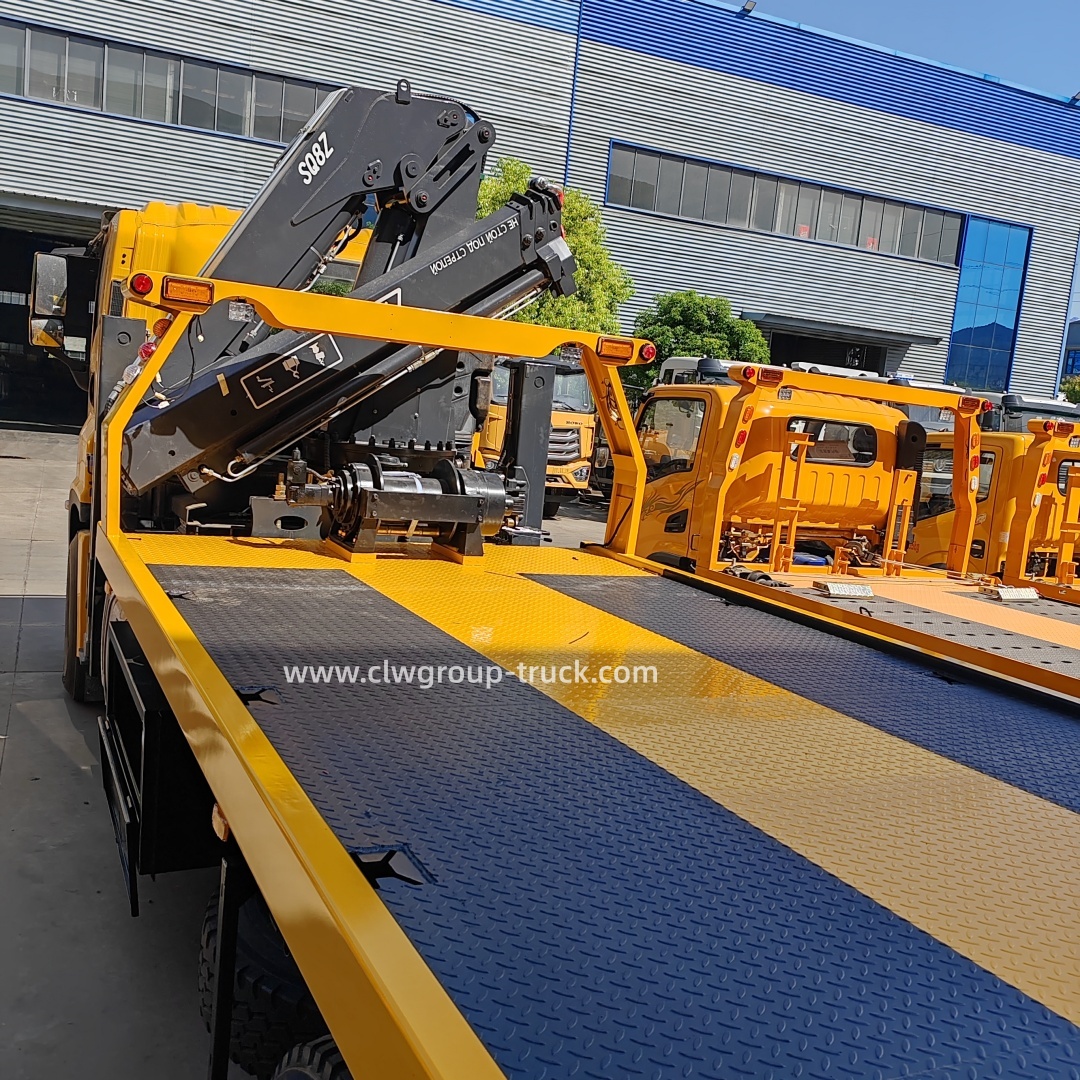

2. The total length of the tablet is 8.5 meters, the width is 2.5 meters, and the height above the ground is 1.3 meters. It can be welded with four corrugated stamping plates or directly assembled with patterned plates and other assembly methods;
3. The tablet can choose not to slide or slide, the rear support arm can be optionally installed, the auxiliary tool is anti-theft, and there are multiple configuration options;

4. The crane adopts Chengli original folding arm crane, with a maximum working range of 14.4 meters. It can be operated by wireless remote control, which is more stable, safe and fast, and better solves the problem of rescue in difficult situations;
5. Provide professional obstacle removal lifting equipment and slings according to customer requirements, which can be folded and transported with the vehicle, flexible and convenient for different working conditions in the rescue industry, without causing secondary damage to the accident vehicle;
6. The whole vehicle is equipped with HG70 high-strength board, which is treated with shot blasting, electrophoresis, and baking paint, and can withstand acid and alkali for more than 800 hours;
7. This vehicle is suitable for handling accidents caused by overturned roadbeds in areas where large equipment cannot enter, such as mountainous areas, national highways, elevated bridges, tunnels, etc. It is more suitable for industries such as landscaping, electricity, and construction.
8.

Advantages of the production process of Isuzu recovery truck with crane:

The wrecker tablet has two functions: "back" and "support", which can handle two accident vehicles at once with high clearing efficiency

2. Modular design for installation, various chassis can be selected according to user requirements.

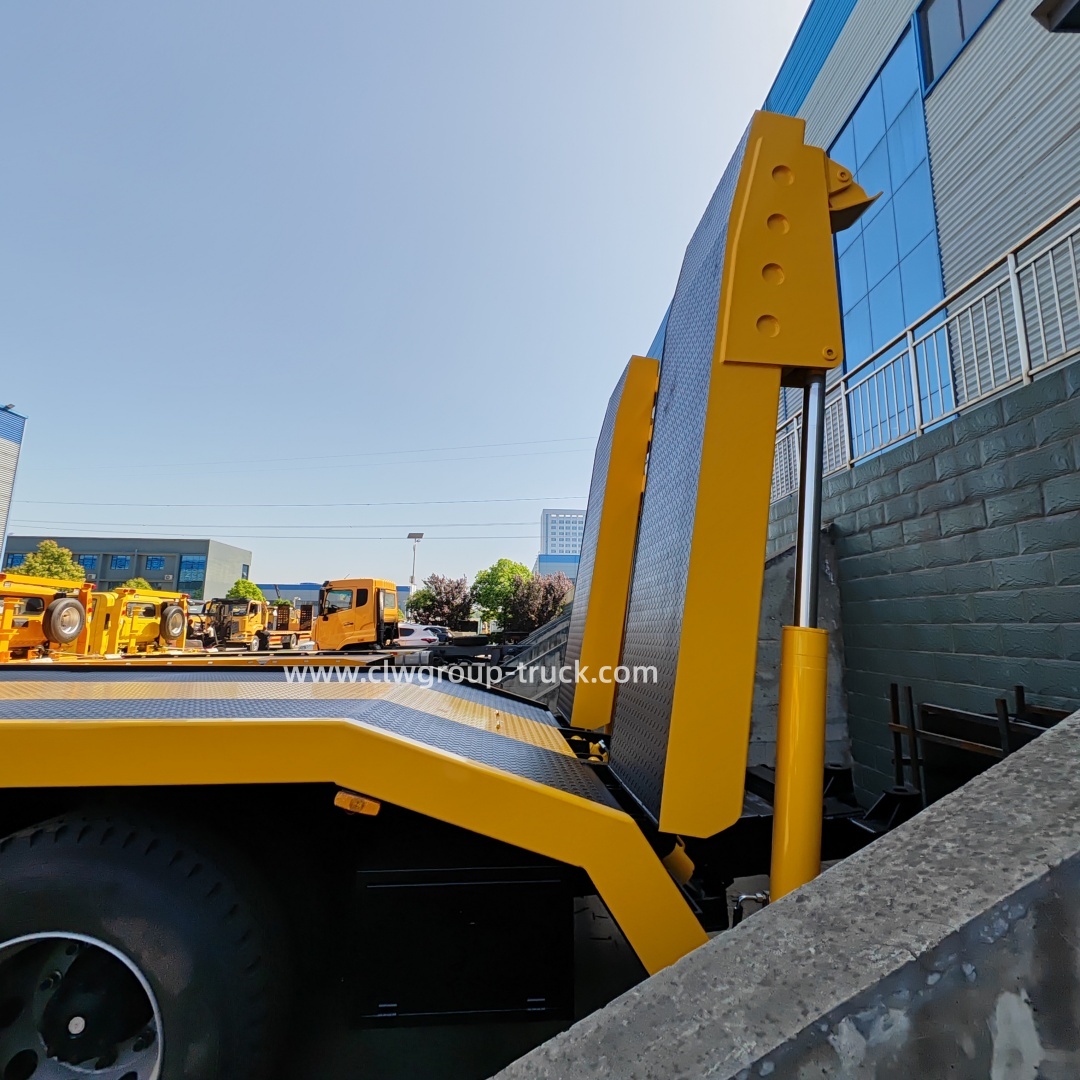

The tablet is a foldable tablet with a minimum tilt angle of 8 °, which has a wide range of applications and can handle accident vehicles with lower front bumpers.

4. Humanized design, winch side mounted, easy to operate, equipped with three wire rope pulley seats that can adjust the wire rope traction position up and down, left and right to adapt to different working conditions. Auxiliary wheels and front tire blocks can be selected, and the enlarged toolbox is convenient for storing work aids.

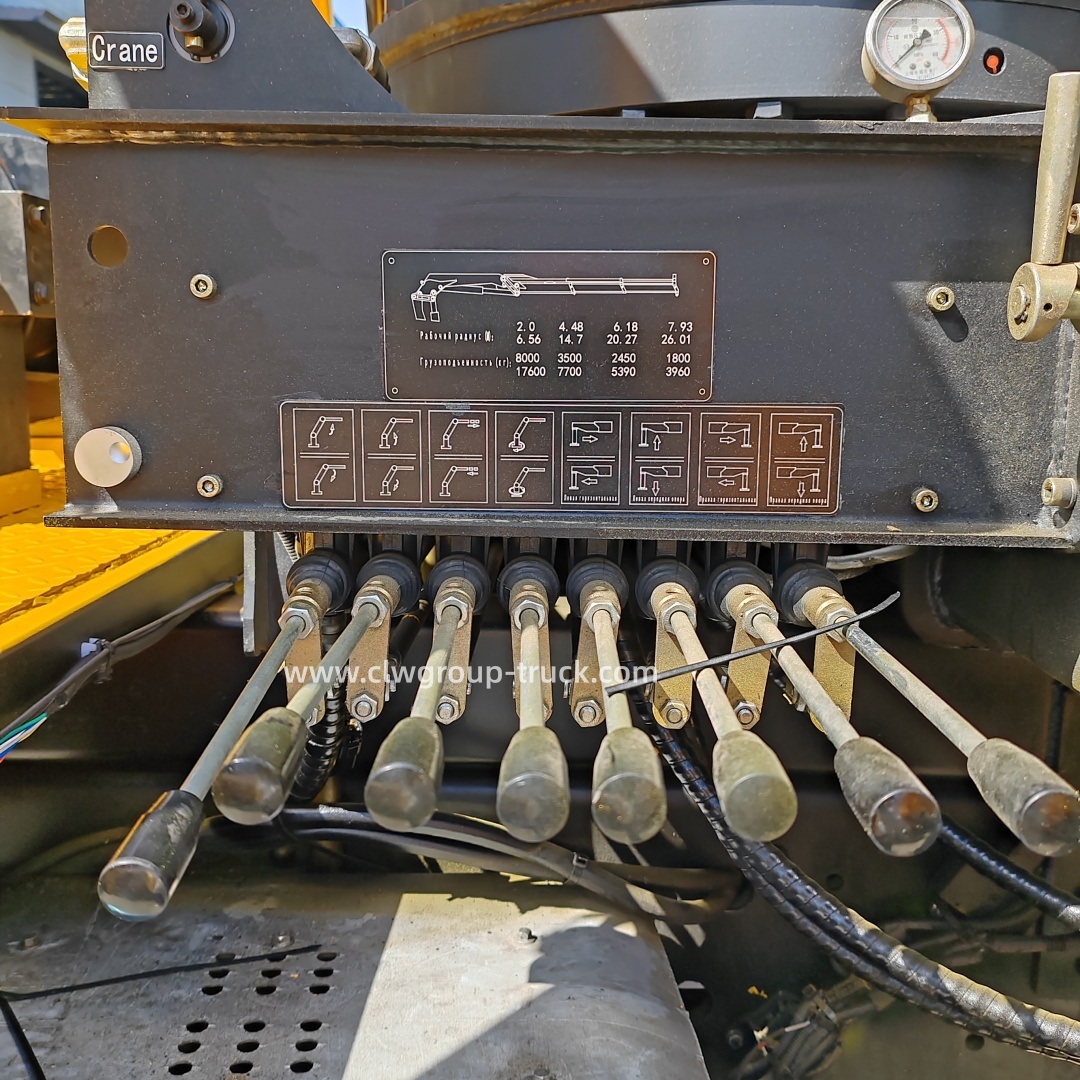

The control mechanism is bidirectional and distributed at the rear of the vehicle, with a wide field of view and flexible operation.

The upper design adopts finite element analysis calculation and optimization design. The main component materials are made of high-strength steel plates, which are lightweight and can ensure the strength of the components.

7 key structural components are treated with acid pickling and phosphating, and the upper assembly is coated with electrophoretic paint

Our company's recovery truck with crane adopts advanced and skilled foreign product technology and production processes, fully imported sealing components, reinforced crossbeam fixation, and enhanced load-bearing capacity. (Optional imported multi way valve, fork, fork seat, chain hook, vacuum tire, hand washing box, LED long row alarm light, etc.). ）In addition to vehicle production, we can also produce wrecker towing truck body according to the customer's chassis. If you have customization needs, please contact Tel/WhatsApp: 0086 198 8838 2017
