asphalt emulsion sprayer truck accessories are generally not available in the market, because the specifications and models of asphalt emulsion sprayer truck of each asphalt distributor manufacturer are different, and the sizes of accessories vary, so when purchasing asphalt emulsion sprayer truck accessories Be sure to measure the size well, otherwise the maintenance time will be delayed. The parts of asphalt emulsion sprayer truck generally include asphalt distributor burner, asphalt distributor nozzle, asphalt distributor cylinder, asphalt distributor pump.
1. asphalt emulsion sprayer truck burner
Models are available in 100,000 kcal and 200,000 kcal
2. Nozzle for asphalt emulsion sprayer truck
This nozzle is a fan-shaped nozzle, made of brass, and has a variety of specifications, which can be selected according to the spraying. Fan nozzle is a very widely used nozzle. The liquid sprayed by this nozzle has high energy, which is especially suitable for surface cleaning and other applications that require a certain impact force and uniform liquid distribution.
3.asphalt emulsion sprayer truck cylinder
Weld-free cylinder nozzle, durable product, spray evenly
4. Asphalt distributor pump
Introduction to the control outside the cab of the asphalt emulsion sprayer truck

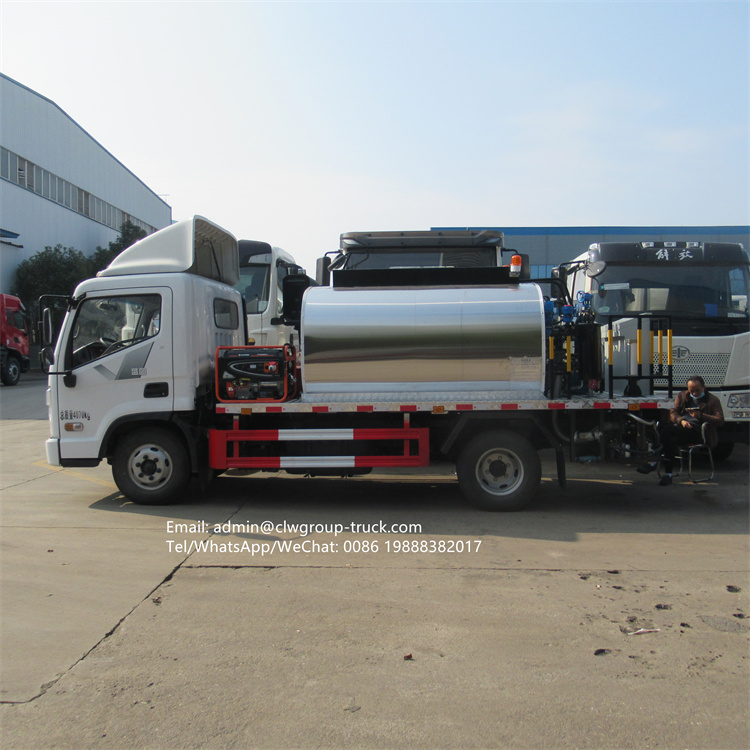

Ordinaryasphalt emulsion sprayer truck This product can be used for the construction of the upper and lower sealing layers of the pavement, the penetration layer, the asphalt surface treatment, the asphalt filling pavement, the fog sealing layer and other projects, and can also be used for the transportation of liquid asphalt or other heavy oil. It is composed of automobile chassis, thermal insulation tank, asphalt pump, burner, hydraulic system and rear spray rod. One is manually controlled and one is opened manually.
Since this type of asphalt emulsion sprayer truck does not carry heat-conducting oil at the rear of the sprayer, it can only spray asphalt with relatively low viscosity, such as emulsified asphalt.

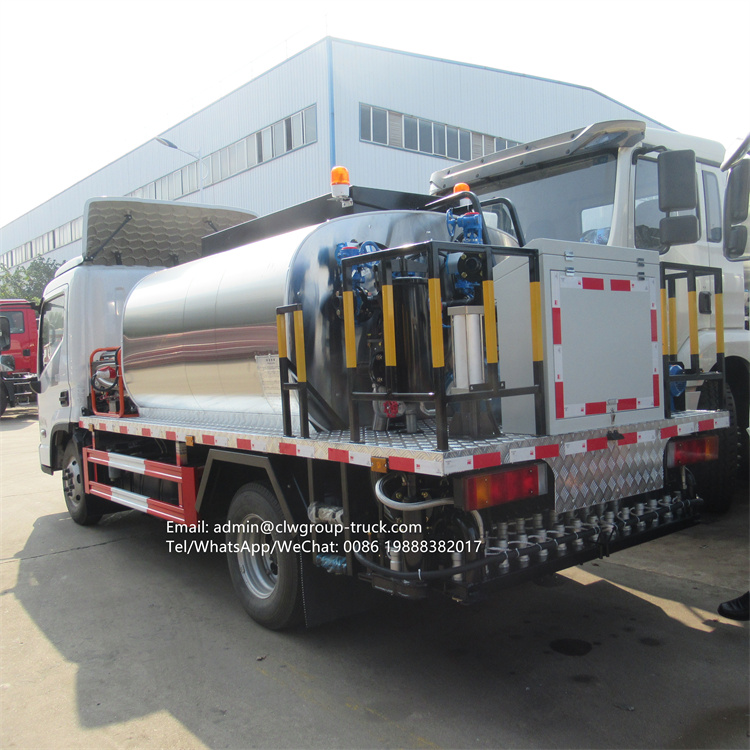

The standard asphalt distributor is also called semi-intelligent asphalt distributor. The construction worker controls the asphalt spraying through the control box on the rear working platform. A switch on the control box controls the two nozzles (one group). Start and stop, so that you can roughly control the spread width. The nozzles are fan-shaped copper nozzles, with three layers of overlapping spraying, evenly spraying, and can be used for the construction of high-grade highways.
It can be sprayed with emulsified asphalt, hot asphalt (bitumen with high viscosity and high temperature requirements), and sprayable modified asphalt of more than 6 tons.
Introduction of Control System in Cab of asphalt emulsion sprayer truck
The cab of the intelligent asphalt distributor is equipped with a touch screen control. Input the required spraying amount and spraying width on the operation screen. The equipment can spray by itself, which is easier to operate. The start and stop of any nozzle can be controlled, and the spreading width can be controlled more precisely. It is widely used in highway construction and highway maintenance projects, and can be used for the construction of upper and lower sealing layers, permeable layers, waterproof layers, adhesive layers, asphalt surface treatment, asphalt poured pavements, fog sealing layers and other projects of highway pavements of different grades. , and can also be used for the transportation of liquid asphalt or other heavy oils.
Emulsified asphalt, hot asphalt (bitumen with high viscosity and high temperature requirements), and sprayable modified asphalt of more than 6 tons can be sprayed.
It can be seen from the above control system that both the ordinary asphalt distributor and the standard asphalt distributor are controlled at the rear, and only the intelligent asphalt distributor is controlled in the cab.
