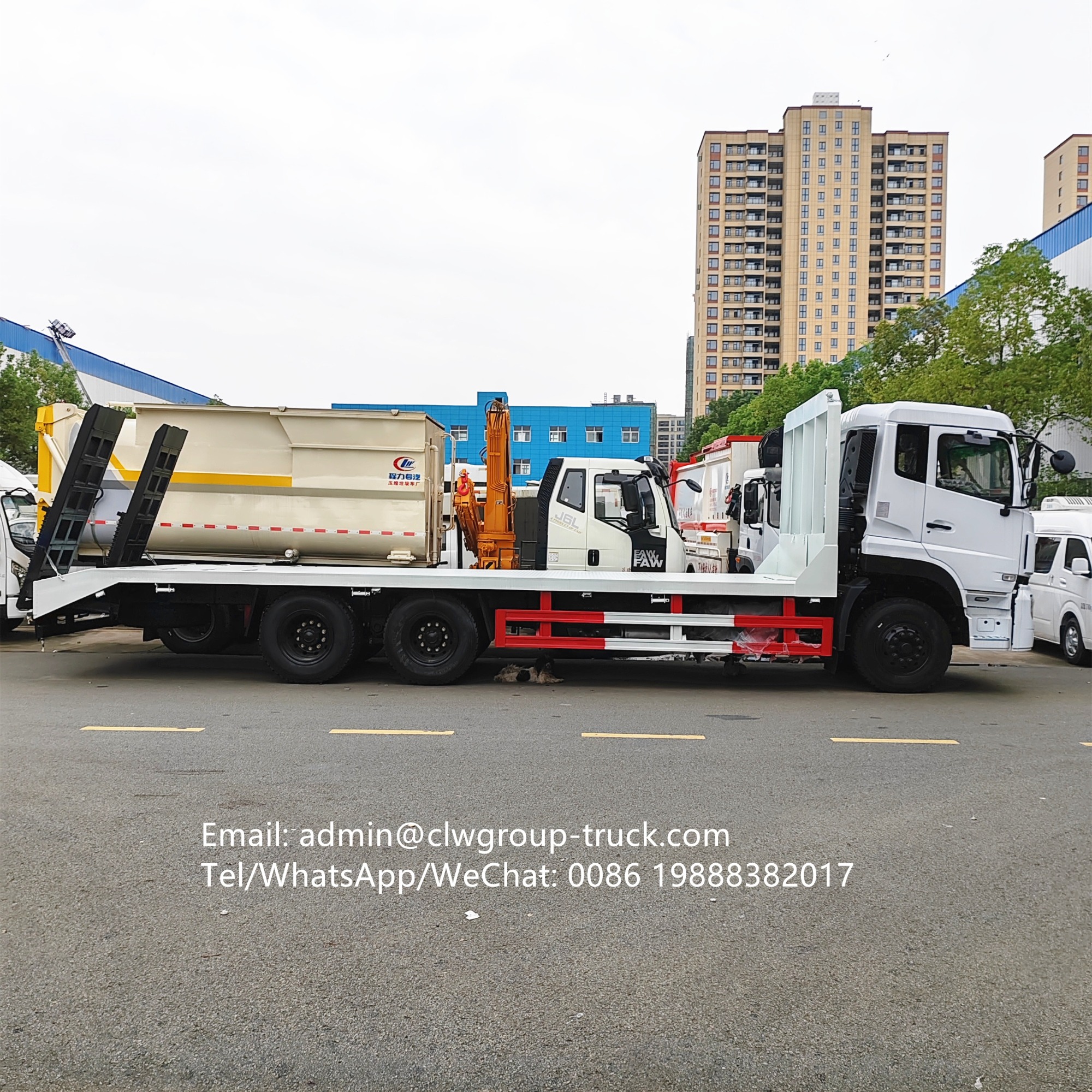

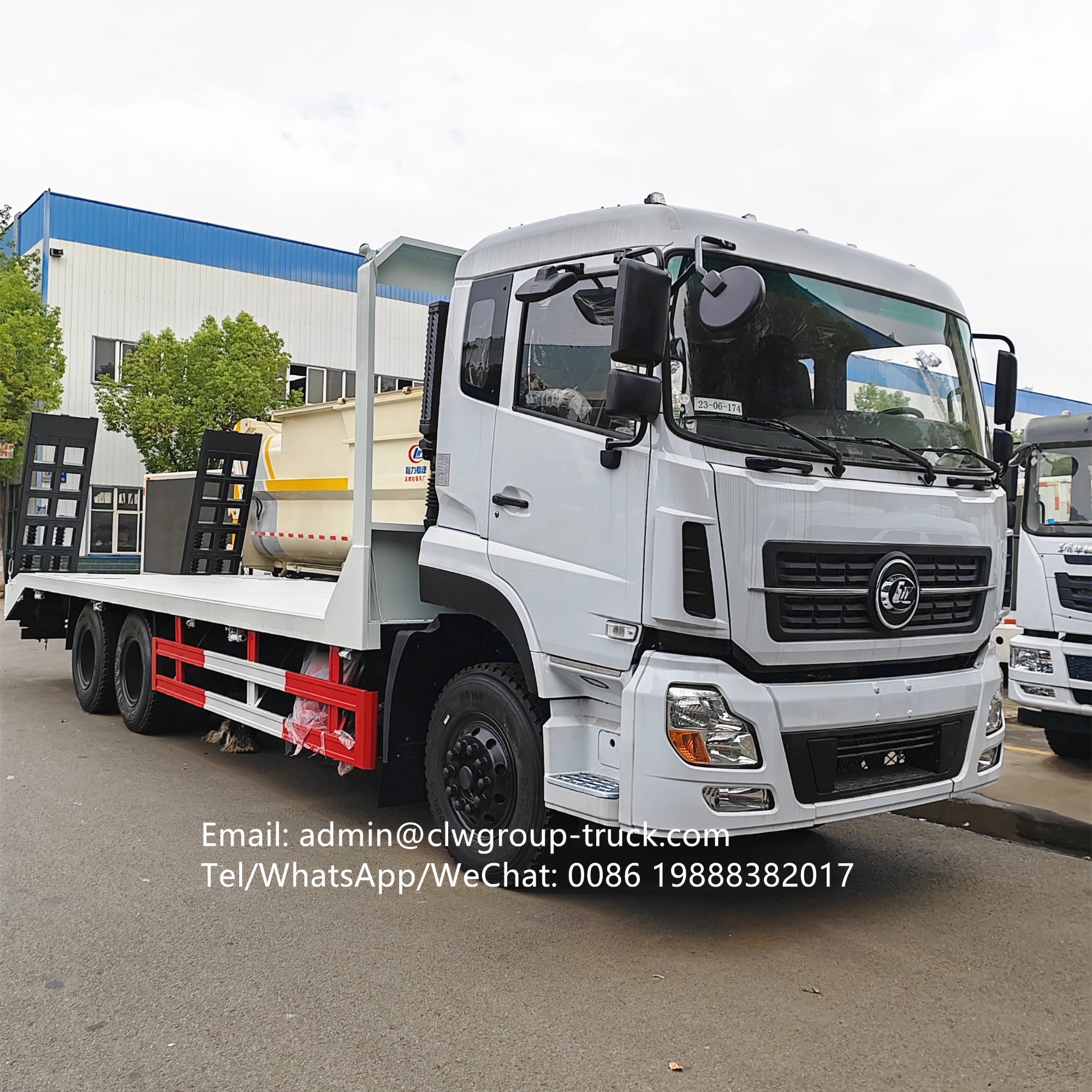

Cheng Liwei brand 6X4 excavator transport flatbed truck 20 ton
Flatbed trucks, also known as flatbed transport vehicles, excavator flatbed trucks, flatbed trailers, excavator flatbed transport vehicles, excavator flatbed trailers, excavator flatbed trucks, etc., are mainly used to transport non removable objects such as excavators, loaders, and harvesters
Cheng Liwei brand 6X4 excavator transport vehicle can transport 20-30 tons of large excavators
Chassis configuration:
Engine; Yuchai 240/270 horsepower, gearbox: Fast 8-10 gears
Rear axle: 10 tons/13 tons rear axle
External dimensions: 9890/10800 * 2500 * 3250mm
Tablet size: The length of the tablet with a slope is 7.2 meters/8.2 meters, and the width is 2.5 meters. The tablet is extendable and extends 3 meters wide
Total mass: 25000 kgs
Rated load capacity: 12305kgs
Wheelbase: 4350+1300/4750+1300mm
Tire specification: 10.00R20
Configuration instructions for the modification of ChengLiwei brand 6X4 excavator transport flatbed truck 20 ton:
The flatbed of the transport vehicle can be selected as standard or heavy-duty
Standard type upper mounted crossbeam made of 12 * 12 specification 6mm thick square steel, and cargo box flat plate made of 8mm thick patterned plate
Heavy duty upper mounted crossbeam made of 14 * 14 specification 8mm thick square steel, and cargo box flat plate made of 8mm or 10mm thick patterned plate

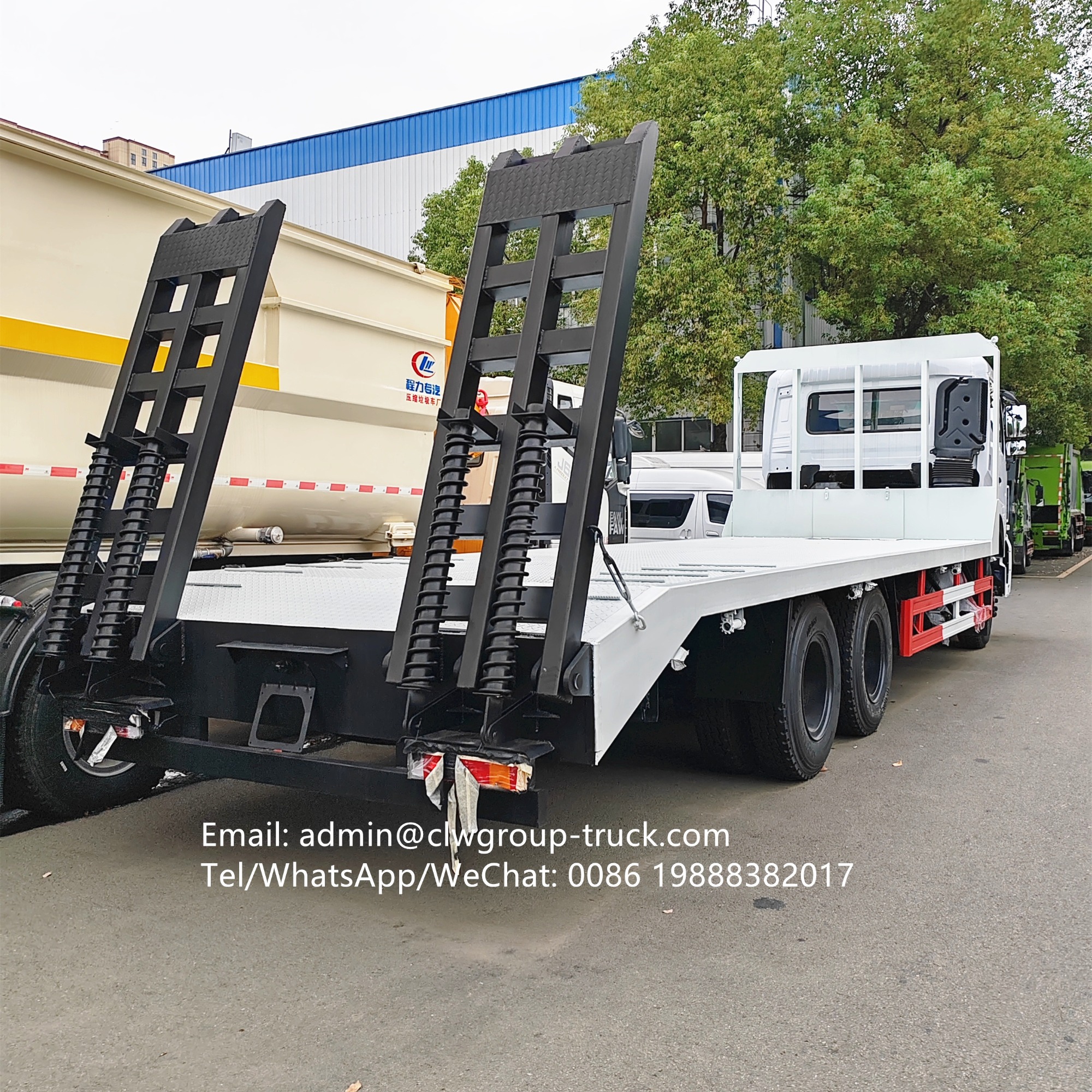

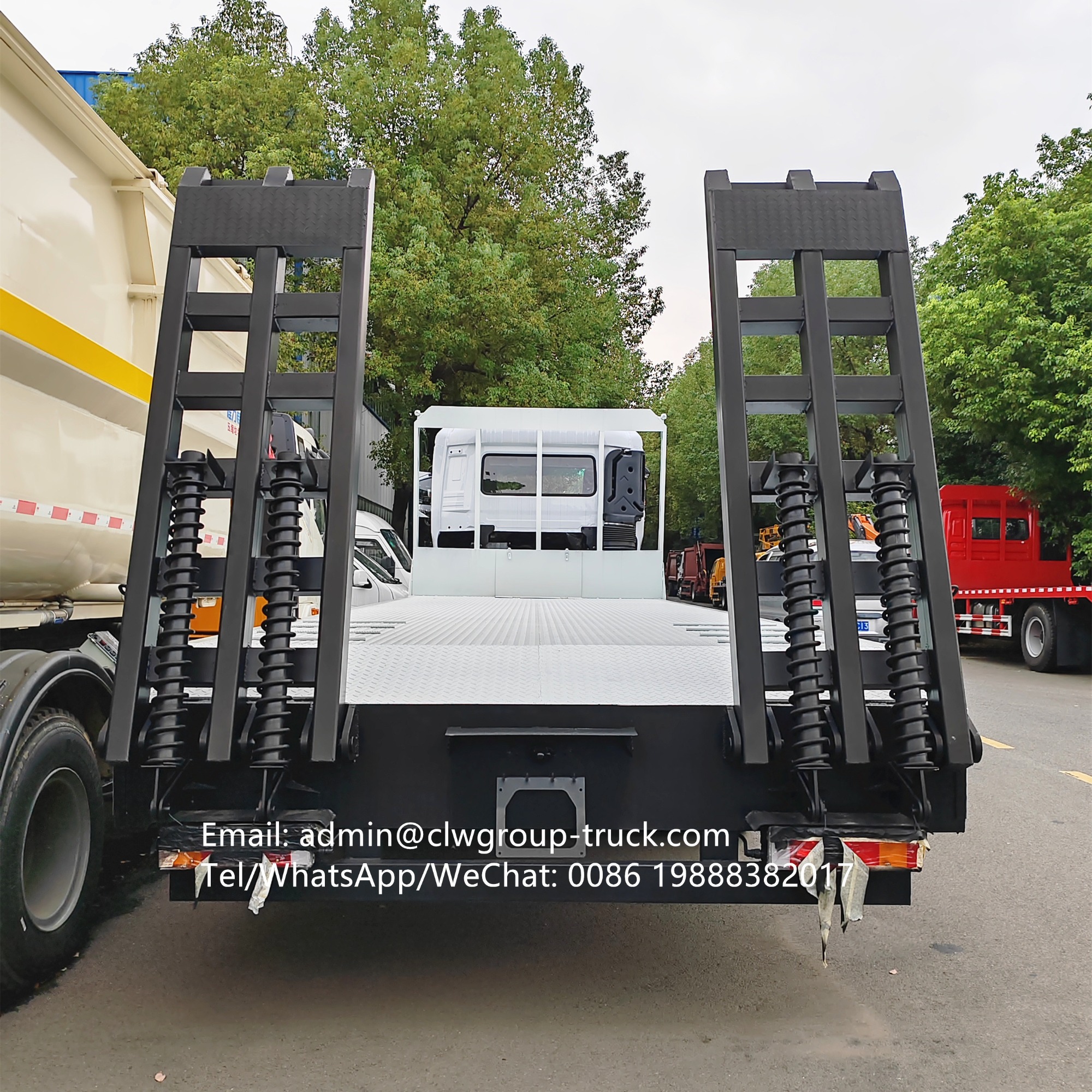

The ladder adopts a reinforced design and is reinforced with three double springs. A hydraulic ladder structure can be selected, with rear support legs and inclined support on the flat plate. The cargo box flat plate can be extended and extended 3 meters wide, and can transport construction machinery such as 20-30 tons of large excavators.
How to choose a flatbed transport vehicle
A small tonnage construction machinery, which is less than 15 tons, is suitable for a 4X2 flatbed transport vehicle, and the plate length of this type of vehicle is generally less than 7 meters
For construction machinery weighing between 15 tons and 25 tons, a 6X4 flatbed transport truck can be used, with a plate length of approximately 8 meters for this type of vehicle
For construction machinery weighing between 25 and 35 tons, 8X4 large flatbed transport vehicles are used, and the plate length of such models is generally around 9.5 meters
For vehicles weighing over 35 tons, we use semi-trailer trailers, which have different configurations and prices
