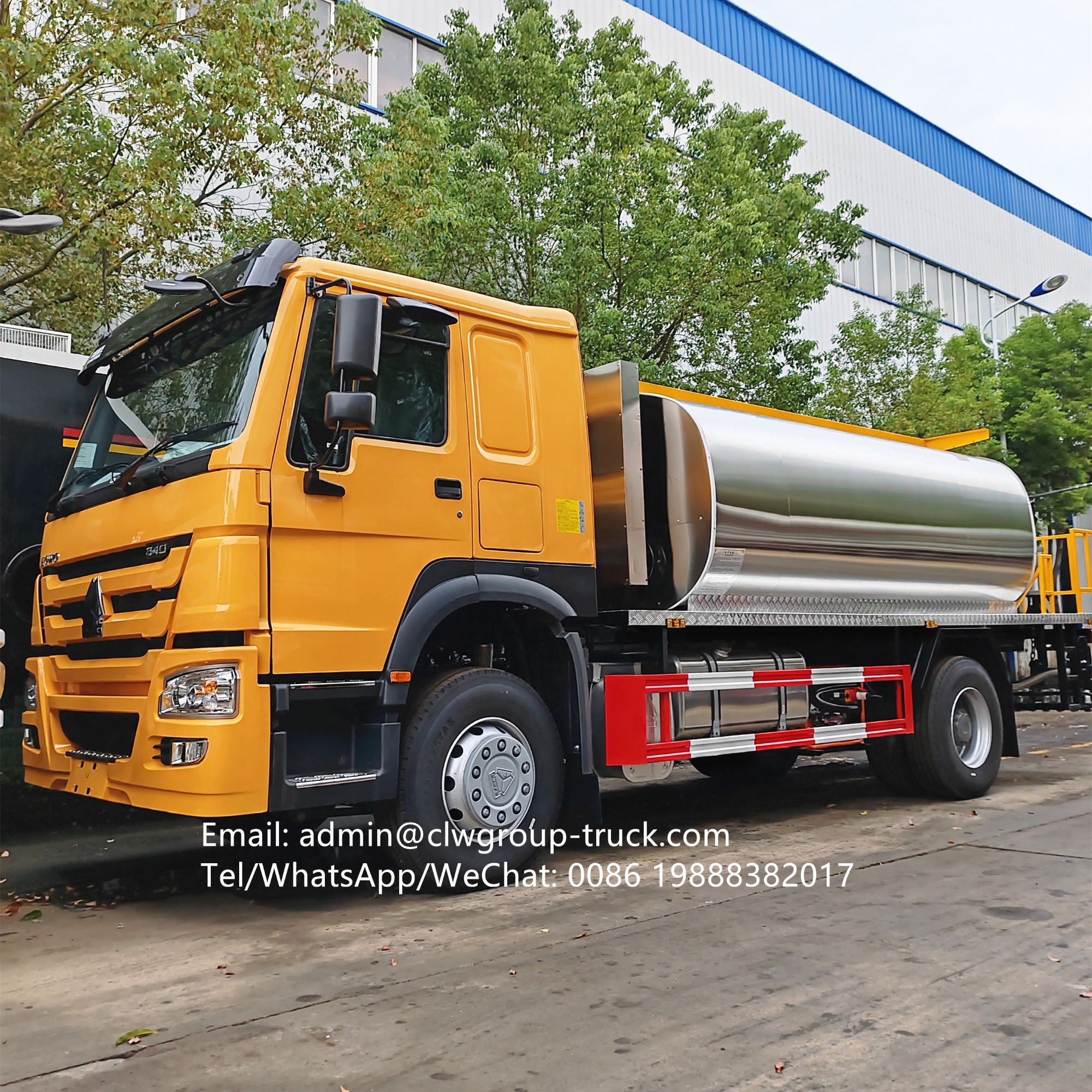

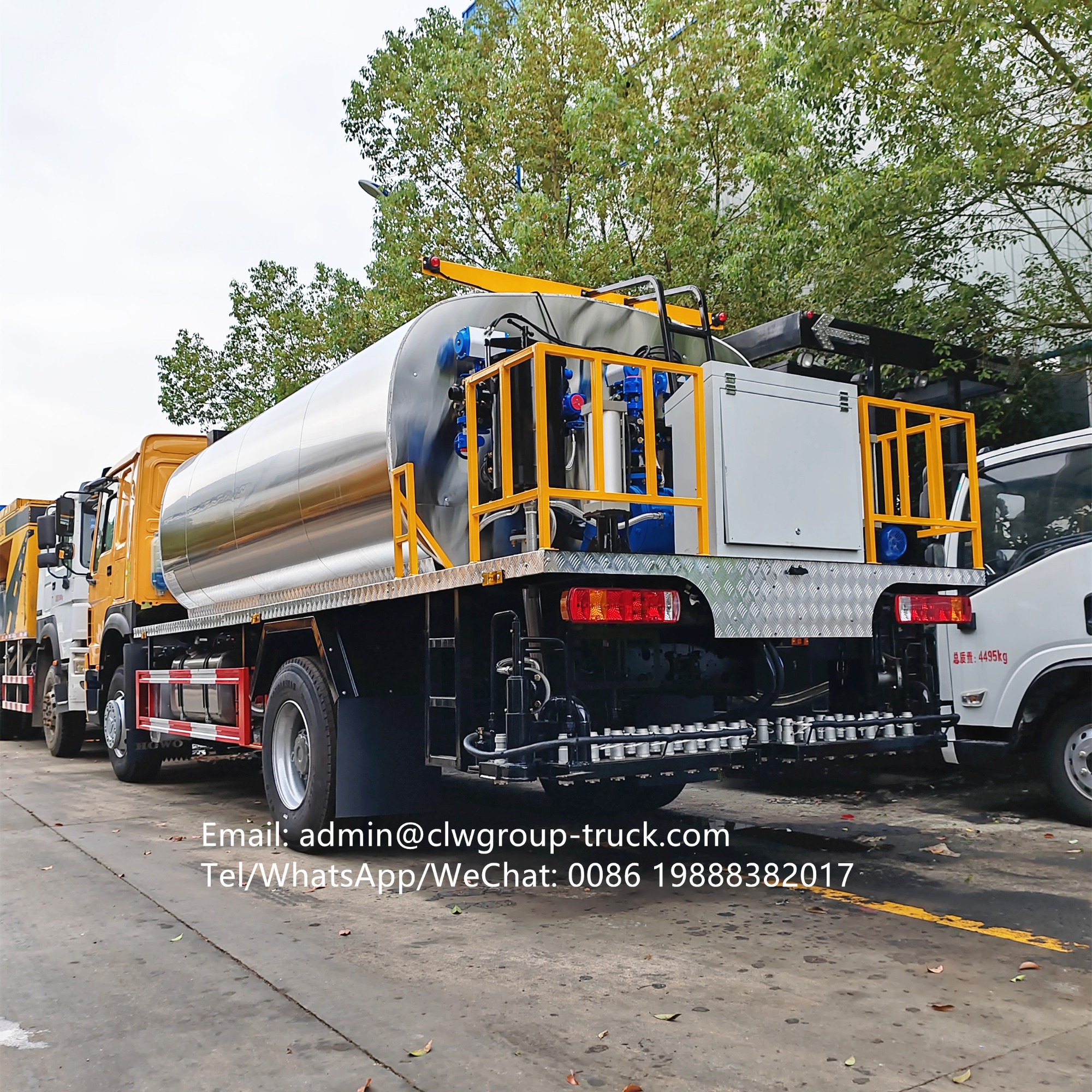

Sinotruk HOWO 10 ton bitumen sprayer truck
Bitumen sprayer truck is a type of black road construction machinery, which is the main equipment for the construction of highways, urban roads, airports, and port terminals. The intelligent asphalt distributor is used for spreading the primer oil, waterproof layer, and bonding layer on the bottom layer of asphalt pavement in the construction of high-grade highways. Can distribute high viscosity modified asphalt, heavy-duty asphalt, modified emulsified asphalt, emulsified asphalt, etc. It can also be used for the construction of county and township level highways with layered paving technology. The distributor truck consists of a car chassis, asphalt tank body, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, and operating platform.
|
Whole vehicle asphalt distributor specification |
|||
|
Product name |
Sinotruk howo bitumen sprayer truck |
Whole vehicle model |
CLW5180GLQD6 |
|
Gross weight (kg) |
18000 |
Overall dimension(mm) |
9900×2500×3100 |
|
Kerb weight (kg) |
9552 |
Loading weight (kg) |
8318,8253 |
|
Passengers in cabin |
2,3 |
Max speed (km/h) |
89 |
|
Sinotruk howo chassis specification |
|||
|
Chassis model |
ZZ1167 |
Chassis brand |
Sinotruk howo |
|
Number of axle |
2 |
Fuel type |
Diesel |
|
Number of tire |
6 |
Tire |
10.00R20 |
|
Emission standard |
Euro 2 |
Engine |
WD615.62 |
|
Displacement |
5L |
Wheelbase(mm) |
4600,5000 |
|
Transmission |
HW15710 |
Axle eight |
Front axle 7.5tons rear axle 16tons |
|
Asphalt tanker body |
|
|
Asphalt tanker |

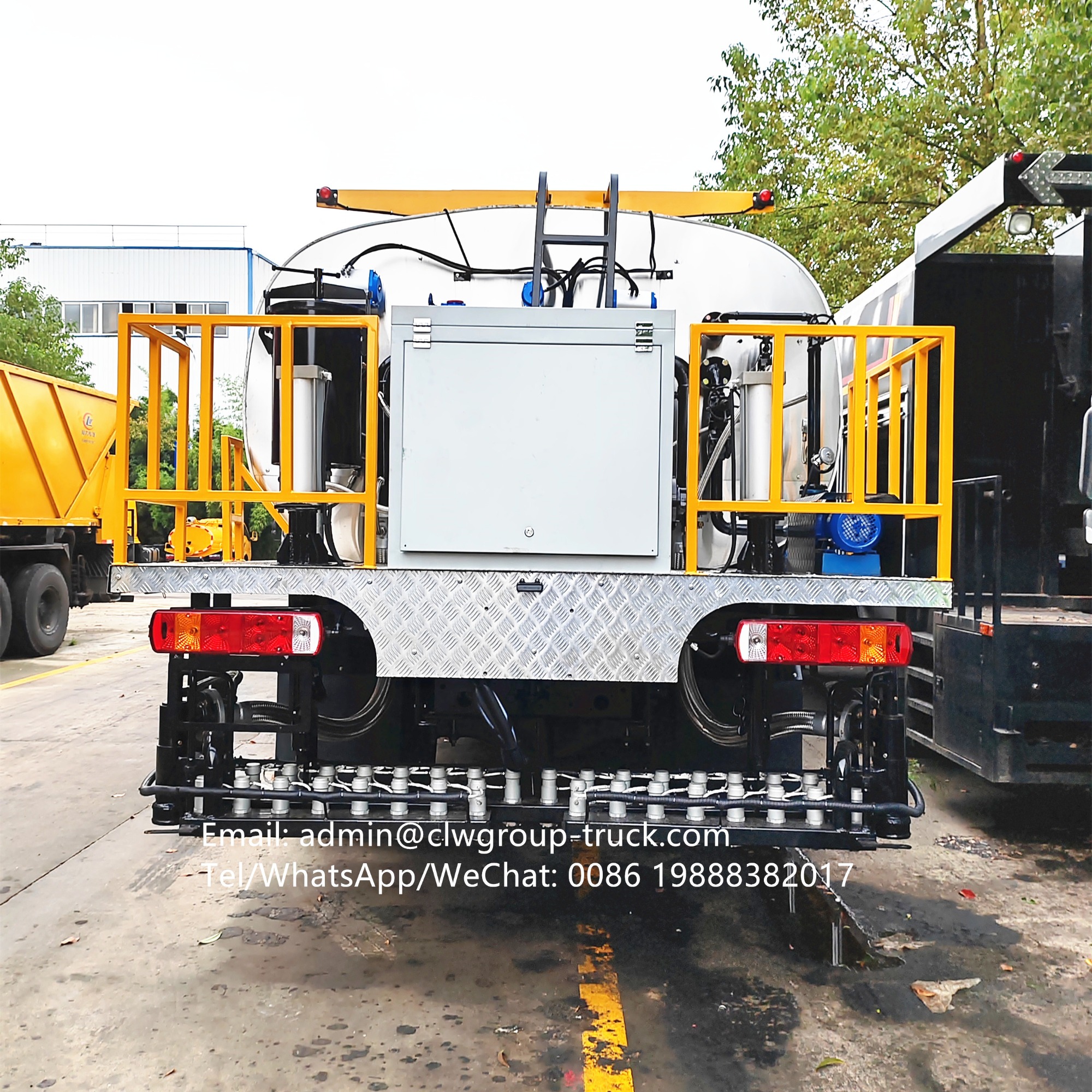

1. The asphalt pump adopts QGB950 (high viscosity asphalt pump); 2. Hydraulic system: proportional valve (Taiwan EFBG-03-160-HF), automatic directional valve and relief valve, radiator using Nissan brand, asphalt pump hydraulic drive motor model 05-110-BD31, hydraulic pump: CBQ550-L or engine rear power take-off GPC4-50R; 3. Control method: Intelligent control by touch screen computer in the cab, control system (Siemens, Germany); 36 intelligent asphalt nozzles (one control one); 4. Heating method: automatic heating of thermal oil+burner G20 (imported from Italy); 5. Gasoline generator: 6 kW; 6. Spray width of 4.5 meters, spray volume: 0.25-3.5L/m2; 7. Spraying media: emulsified asphalt, hot asphalt, modified asphalt, etc |
