Aerial work vehicles include folding arm aerial work vehicles (also called articulating arm aerial work vehicles),
Retractable arm aerial work vehicle (also called straight arm aerial work vehicle) and hydraulic lift platform type aerial work vehicle (also called vehicle-mounted scissor type aerial work platform) are available with a working height of 10-26 meters, and the chassis can be selected from Dongfeng series, Foton series, Isuzu, JAC, Shacman and Sinotruk and FAW series.
5. Work bucket: limit load 200kg
The use of aerial work truck is also known as: street light installation vehicles, street light repair vehicles, street light maintenance vehicles, street light maintenance vehicles, street light maintenance lift trucks, street light maintenance vehicles, and street light installation vehicles. Its extension names are: electric power repair vehicle, line maintenance vehicle
As a professional manufacturer of aerial work truck, we export a large number of aerial work vehicles to Africa, South America, Asia, and Oceania every year. Due to the high quality and favorable prices of the aerial work truck produced by Chengli, they are favored by domestic and foreign customers.

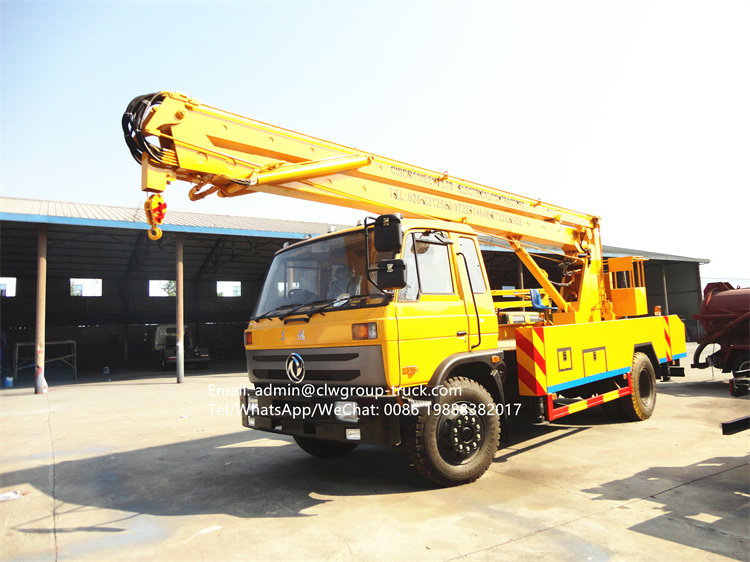

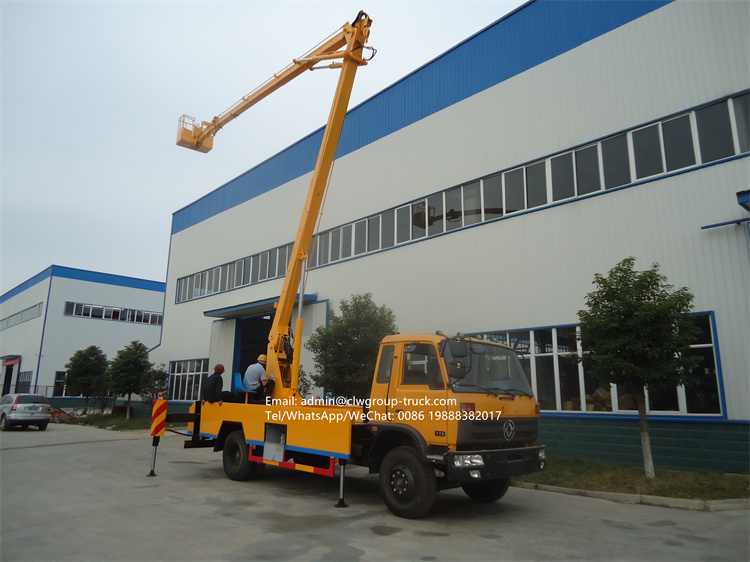

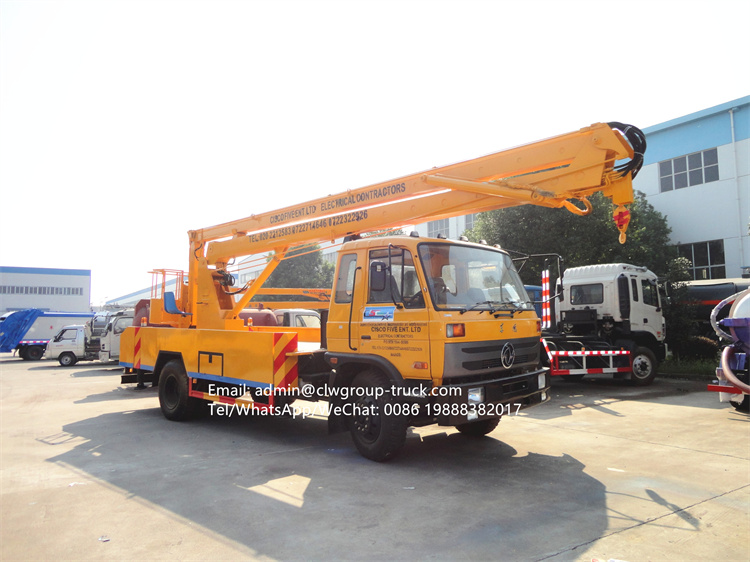

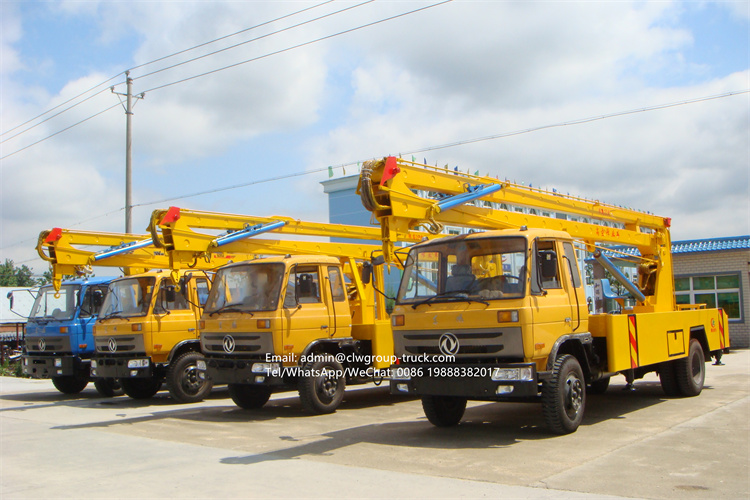

Dongfeng 22m 20m aerial work truck adopts Dongfeng right hand drive , Cummins 190 horsepower, tires 10.00-20, front axle 5 tons and rear axle 10 tons. It is an ideal vehicle for street lamp maintenance.
The Dongfeng 20m street light installation truck produced by Chengli Automobile has the following advantages:
1. The working height of the 20-meter Dongfeng aerial work truck can be 20 meters, 22 meters, three-section crank arm, 360° full-rotation folding arm hydraulic control, can be operated up and down, with a 1-ton crane.
2. The 20-meter Dongfeng aerial work truck adopts the original chassis of Dongfeng Tianjin, with beautiful appearance and comfortable interior. The number of passengers allowed is 3 people.
3. The 20-meter Dongfeng aerial work truck is equipped with imported electro-hydraulic proportional reversing valve, which is stable in reversing, flexible and convenient to operate, and the outrigger and working arm are interlocked to prevent misoperation.
4. The 20-meter aerial work vehicle is equipped with an overflow valve, which keeps the pressure of the hydraulic system at the rated value and plays the role of overflow and voltage stabilization.
6. The 20-meter Dongfeng aerial work truck is equipped with H-type outriggers, which can be operated independently and linked together, which can realize the leveling of the whole vehicle on the flat road, and some key parts are made of high-strength steel plates.
7. The hydraulic and electrical control systems of the 20-meter aerial work vehicle are equipped with various limit devices and emergency engine shutdown devices. It can automatically cut off the power supply or stop the engine in an emergency when the operator makes mistakes in operation and fails, and stops dangerous actions in time to ensure safety and reliability.
8. The electric operating system of the 20-meter high-altitude operation vehicle adopts waterproof switches, which avoids the problems of easy water entry, corrosion and leakage of the switch. The working bucket adopts a tubular working bucket, which has a beautiful appearance. The working bucket and the turntable are operated at two positions, which is easy to use. , easy maintenance, safe and reliable.
Aerial work truck are widely used in electric power, street lamps, municipal administration, gardens, communications, airports, shipbuilding (repair), transportation, advertising, photography, power plants, mines and other fields of aerial work.
The color of the aerial work vehicle: the color of engineering yellow is the main color, whether it is day or night, the yellow is more eye-catching. Various options are also available.
Working height of aerial work vehicle: 8 meters, 10 meters, 12 meters, 13.5 meters, 14 meters, 15 meters, 16 meters, 18 meters, 20 meters, 22 meters, 24 meters
