Chengli factory aerial work vehicle products can be divided into 10 meters, 12 meters, 14 meters, 16 meters, 18 meters, 20 meters, 22 meters, 24 meters, 26 meters, 28 meters, 32 meters, 35 meters and other different specifications. The operation form is divided into two control forms, hydraulic and electronic control. Among them, the working arm structure is 10-12 meters for two-section folding arms, 14-22 meters for three-section folding arms, and 24-35 meters for telescopic arms.

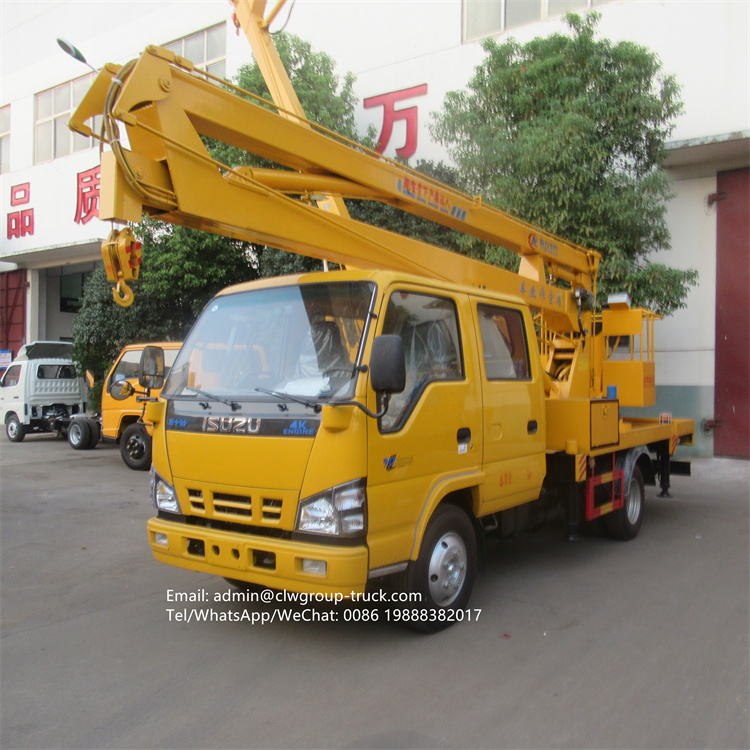

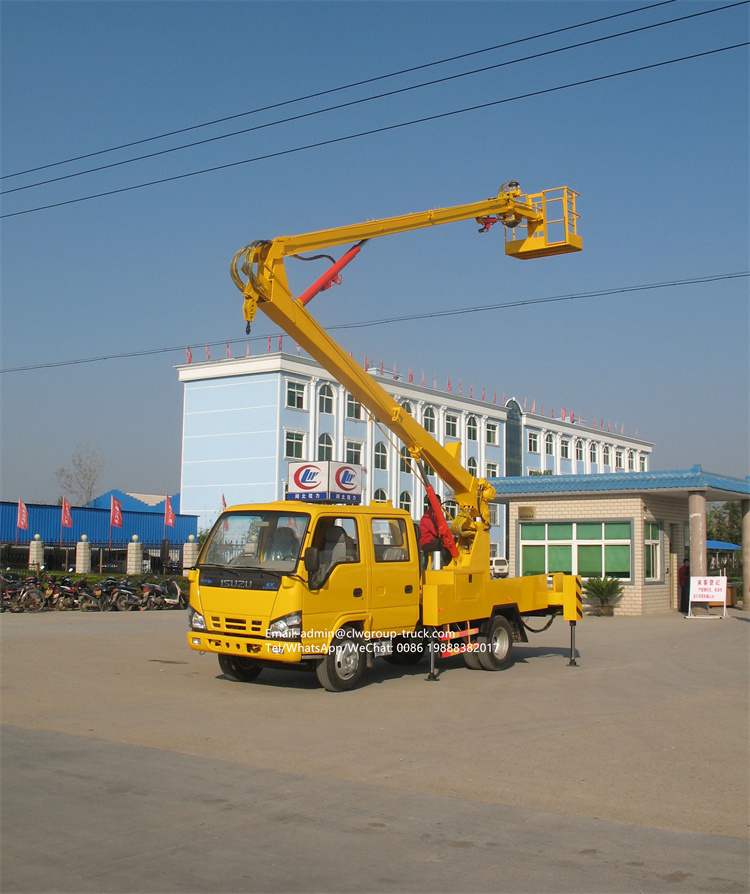

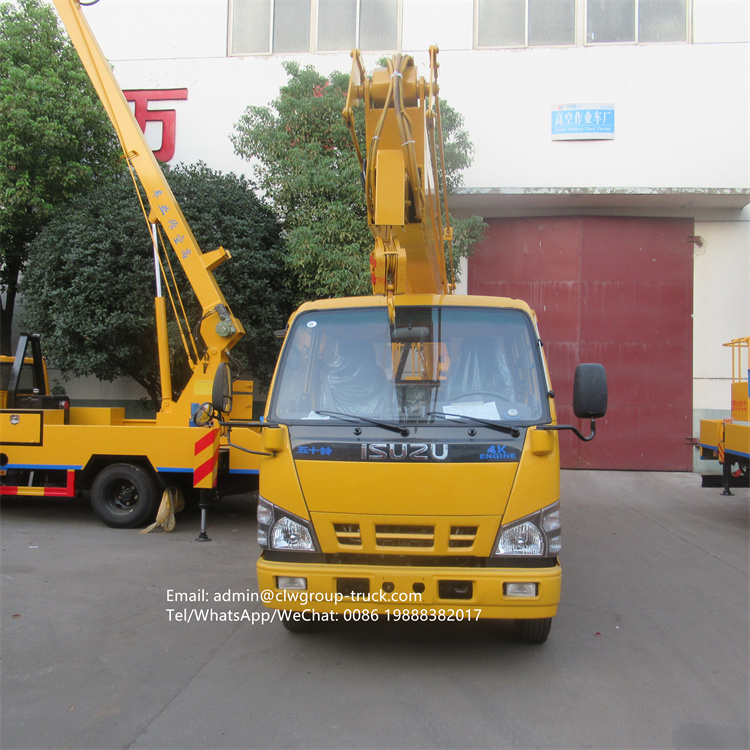

Main features of Isuzu 18m folding arm aerial work truck:
1. Both the boom and the outrigger are made of 5-8mm high-strength steel HG60 for bending and forming, and are welded by an automatic welding machine.
2. Each rotating coupling shaft sleeve of the boom and the turntable adopts special tooling for positioning, and is processed by a gantry machining center after welding to ensure the matching accuracy;
3. The design of the boom head and side protection structure of the boom is updated, the boom can be retracted, the operation is convenient, and the appearance is more beautiful;
4. The connection of the upper and lower arms adopts a four-link structure, which is stable and reliable in connection, and is lighter and labor-saving to operate;
5. Self-lubricating bearings are added to each rotating connection part, which makes the action more flexible, the matching accuracy is higher, and the maintenance and replacement of bearings are more convenient;
6. The cutting parts are cut by laser, with beautiful appearance and high precision;
7. Lightweight design of structural parts and supporting parts, reducing weight and saving fuel;
8. The H-type outriggers have good stability, the outriggers can be operated at the same time or individually, and the operation is flexible and can adapt to various working conditions;
9. The outriggers are equipped with protective covers to make the support more stable;
10. The turntable rotates 360° continuously in both directions, and adopts an advanced planetary gear reduction mechanism (with self-lubricating and self-locking functions), which is also convenient for later maintenance;
11. The boarding operation adopts the integrated electric control valve block mode, with beautiful layout, stable operation and convenient maintenance;
12. Getting off and getting on are interlocked, the operation is safe and reliable;
13. Manual stepless speed regulation is realized through the throttle valve when getting on the car;
14. The working platform is mechanically leveled with pull rods, which is more stable and reliable;
15. The turntable and the hanging basket are equipped with start and stop switches, which are easy to operate and save fuel;
16. All operating directions are updated to the right side of the vehicle to ensure the safety of operators;
17. The exterior painting design is updated, and the color matching is more beautiful;
