The combined high pressure jetting vacuum tanker suction dredging truck is also called a sewer dredging vehicle, combined sewer cleaning truck. This truck is a new type of sanitation special vehicle that combines the functions of a high-pressure cleaning truck and a vacuum sewage suction truck. The highlight function of the truck is a sewer blockage area that cannot be reached by manpower, so it is called a joint dredging vehicle. Other functions of the truck are floor washing, sewage and sewage, landscaping and so on.
1. Optional Chassis: The jcombined high pressure jetting vacuum tanker suction dredging truck uses Dongfeng, Isuzu ,JAC, JMC, HOWO and Shacman second-class special vehicle chassis. T
2. Tank body: The combined high pressure jetting vacuum tanker suction dredging truck water tank of the tank is welded by 4-6MM carbon steel plate. The tank body is 6-10MM carbon steel, and the tank head is made of 10-12MM. Anti-corrosion treatment is required.
3. Special power unit: high pressure water pump, vacuum pump, sewage dumping and dumping device.
4. Piping system: It consists of pipeline, water inlet, self-flow port, sewage outlet, high-pressure flushing pipeline, suction pipeline and hydraulic control pipeline.
5. Operating system: The high-pressure water pump, vacuum pump and hydraulic pump are driven by the special vehicle chassis through the power take-off. The hydraulic control pipe of the hydraulic pump is used to realize the system control of the high-pressure water pump vacuum pump winch.
Brief configuration of Dongfeng 18cbm high pressure sewer jetting truck:
1. Chassis: Dongfeng Tianlong 6x4 LHD wheel, DFL1250A13
2. Engine: Euro V Dongeng Cummins 245HP diesel engine
3. Tank: 8000L clean water tank and 10000L sewage tank
4. With Weichai 375hp auxiliary engine and SK-30 water circulation pump

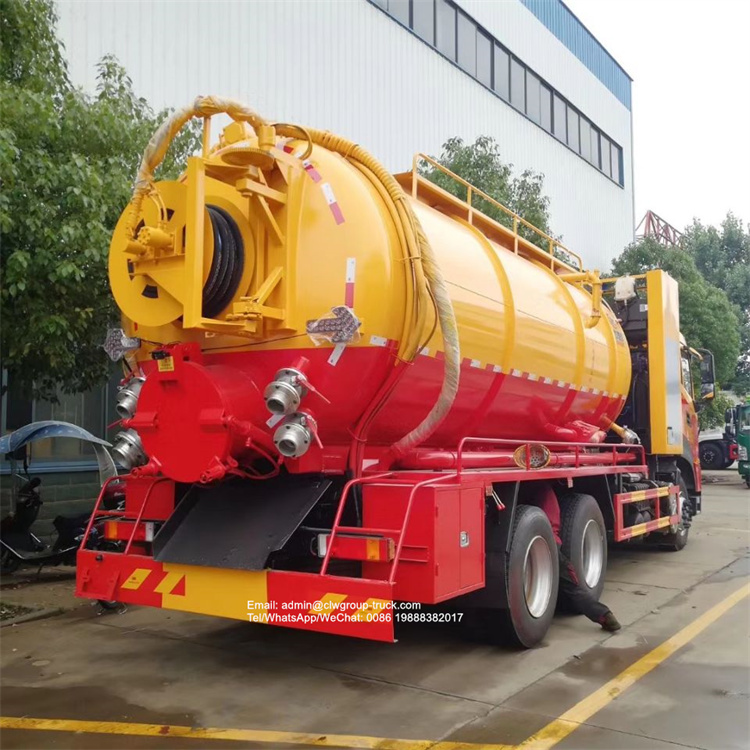

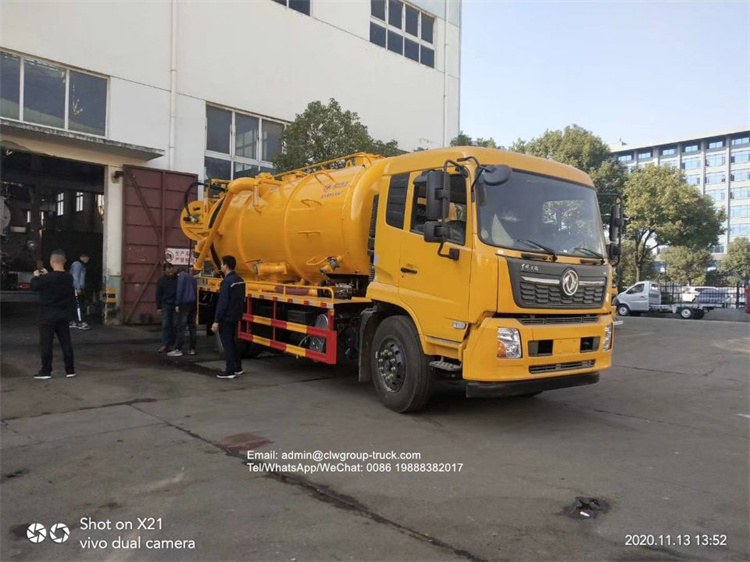

Dongfeng Tianjin cleaning sewage suction truck, the tank volume is 20 cubic meters. Sewage tanks and clean water tanks are allocated as needed, and water and sewage are communicated. The whole tank adopts national standard 8mm thick carbon steel plate, equipped with powerful sewage suction pump and imported high pressure pump. This vehicle can not only dredge and clean sewers, but also pump sewage tanks and septic tanks. It is a dual-purpose vehicle with high work efficiency. It is a good helper for cleaning municipal pipe networks and river dredging.
Chassis part:
It adopts the original luxury Dongfeng Tianlong chassis, and it has China VI emission and can be equipped with a variety of engines. Equipped with Datong 7-speed or Shaanxi 9-speed gearbox. 4350+1350mm wheelbase, 5.5 ton front axle and double 10 ton rear axle. Single row reversible cab. With ABS, adjustable headlights, original air conditioner, airbag seat, driving record, etc.
Upper body part:
1. The tank body is made of high-quality carbon steel plate of Wuhan Iron and Steel National Standard, which is formed by advanced rotational molding process at one time, and has high strength and corrosion resistance. Tank size (mm): 5400×2150. The tank body can be lifted, the back cover can be opened, and the back cover can be opened with a 600mm quick opening. Add wave board inside the tank, add stirrups outside the tank, add guardrails and ladders on the top of the tank.
2. The clean water tank and the sewage suction tank are integrated, separate compartments, and lift together with the sewage suction tank. With a fire water connection port, a ladder is installed in the tank.
3. The sewage suction system is equipped with SK-42 water ring pump, equipped with Weichai 420 horsepower engine to provide power specially, with strong suction.
4. The high-pressure cleaning adopts a 22 MPa 215 flow cleaning pump, which has high pressure and good cleaning and dredging effect. The vehicle is equipped with 10 special-shaped gun heads and a 60-meter high-pressure tube. With automatic reel.
