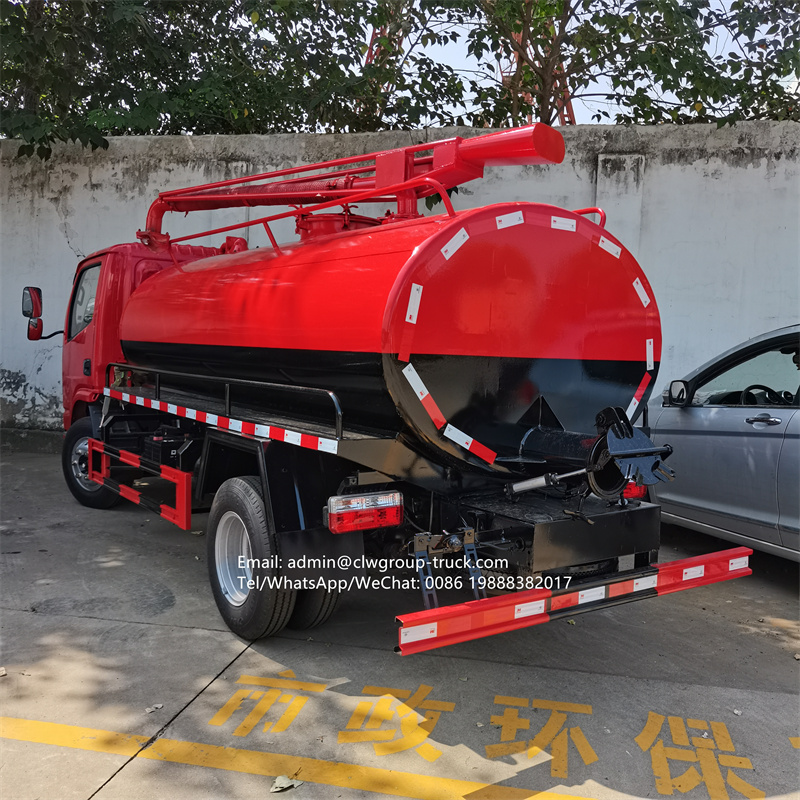

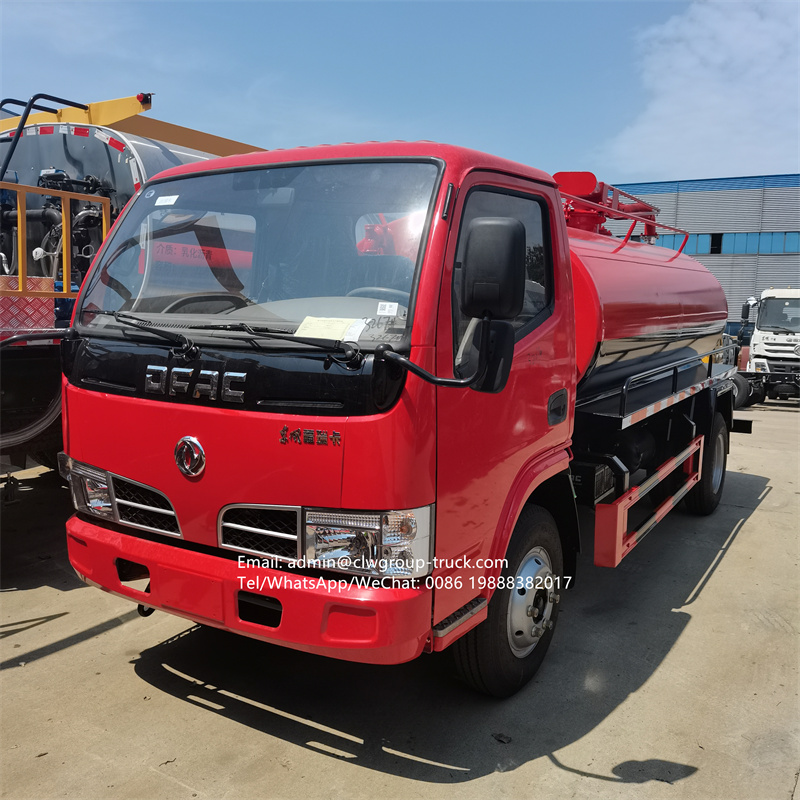

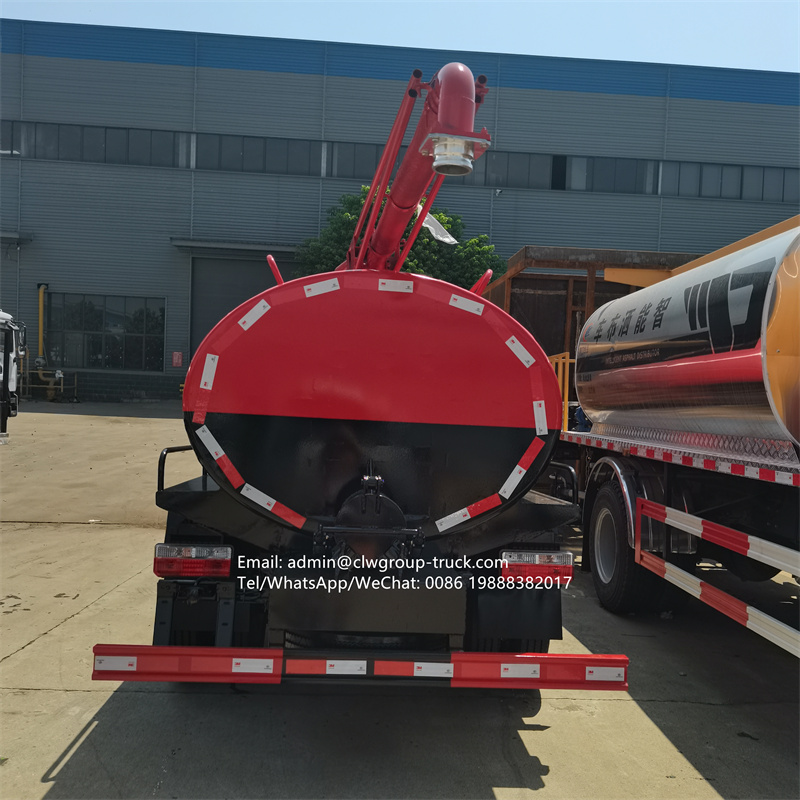

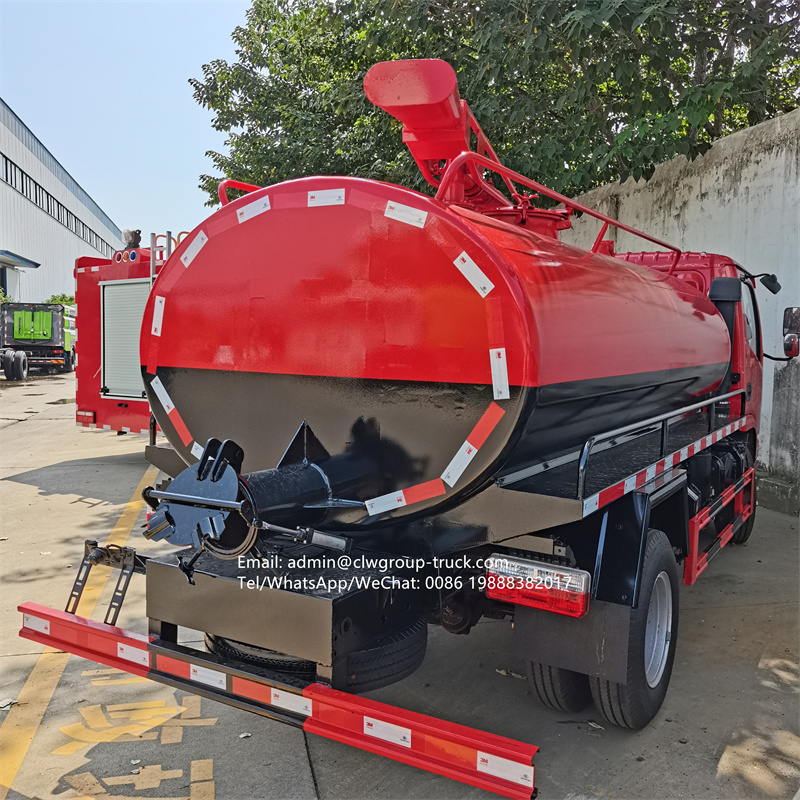

Dongfeng Furika fecal suction truck, rural environment continuous improvement sanitation suction truck, biogas slurry suction truck, 5 cubic vacuum fecal suction truck can be self-priming and self-discharging, easy to suction, with high vacuum degree and long suction distance , which can be used by different users in different environments. Dongfeng fecal suction trucks are equipped with imported anti-overflow devices to prevent feces and sewage from being sucked back into the vacuum pump system. Turtle-back design of the tank body, permanent deformation, and the fecal suction catheter can be rotated 360 degrees. Discharge adopts self-discharge and pressure discharge. Install float level controller with electronic alarm
Chengli Dongfeng Furika 5 cubic meter fecal suction truck tank body process: the automatic assembly line tank body production process is divided into: blanking, automatic welding of panels, head spinning forming, one-time rolling forming of the tank body and other domestic advanced production Process. The tank material is produced with high-quality carbon steel plate!
Chengli Dongfeng Furika 5 cubic meter fecal suction truck exclusive configuration: power take-off, drive shaft, vacuum sewage pump, high pressure forming tank, water and gas separator, oil and gas separation, multi-way reversing valve, boom, manure discharge Valve, suction gun, pipe network system, and equipped with vacuum pressure gauge, pollution window (tube), hand washing device.
Chengli Dongfeng Furika 5 cubic meter fecal suction truck optional configuration: hand washing device, liquid level sight tube, rear window, stainless steel tank material, optional vehicle spraying color, hydraulic alarm device, sewage suction belt Sprinkler function, with high pressure cleaning function.
Chengli Dongfeng Furika 5 cubic meter fecal suction truck configuration description: It adopts Dongfeng Furika 3300 wheelbase chassis, Chaochai engine 95 horsepower, front axle 1.8 tons, rear axle 3.5 tons, 5 gear boxes, tires 7.00R15 steel wire tires , air brake, with original ABS, power steering, air conditioning
It adopts domestic famous brand Yifeng pump and Weilong pump, with sight window and pressure gauge, which can be self-priming and self-discharging. The special part of the manure suction truck consists of a power take-off, a transmission shaft, a vacuum suction pump, a water-gas separator, an oil-gas separator, a multi-way reversing valve, a boom (rotation 360°), a manure tank, and a manure discharge valve (using Pneumatic strut opening), manure suction pipe, clean water tank, sight manure window, vacuum pressure gauge, pipe network system, etc.
With viewing window, 1 self-flow port (gate valve), hand washing device, 6 meters of fecal suction pipe, with boom seat, Yifeng vacuum single pump.
Chengli Dongfeng Furika 5 cubic meter fecal suction truck is optional: with liquid full alarm device, with sprinkler, optional double pump, optional Weilong vacuum pump, optional imported single scraper pump, thickened tank material.
Chengli Dongfeng 5 cubic meter fecal suction truck performance characteristics: The manure suction guide tube can be rotated 360 degrees, and there are two ways of discharge: pressurized discharge and self-flow discharge. The time for the fecal suction truck to pump the full sewage (feces) tank is ≤5min, and the suction stroke: ≥7m. The vacuum manure suction truck is self-priming and self-discharging, with fast working speed, large capacity, and convenient transportation.
