LED advertising vehicles, LED mobile advertising vehicles, mobile advertising vehicles can be used for product promotion, brand promotion, talent show, sales on-site display, sports events, concerts, concerts, etc. On-site display, communication and interaction with target consumers in prosperous commercial areas, residential areas, squares, parks and other areas with their own power, with a wide range of publicity, can enable customers to obtain the greatest advertising effect.
The structure of LED advertising vehicles generally consists of five parts. Including large screen system, power supply system, hydraulic system (some without parts), operating system, traction system. Power supply generally adopts industrial 380V power, or its own generator power supply
Vehicle size (length × width × height): 5995 × 2180 × 3200 (mm)
LED advertising vehicle chassis configuration:
The chassis adopts Isuzu 100P Euro 5 light truck:
Engine: Isuzu 4KH1CN5LS 98 hp
Transmission: Isuzu MSB 5th gear
Front and rear axles: front axle 2 tons, rear axle 4-4.8 tons
Tire: 7.00R16
With A/C, Steering Assist, ABS
LED advertising car body configuration:
Side screen size (W×H): P6/P3: 3840×1728(mm)=6.62m²
P4/P5: 3840×1760(mm)=6.75m²

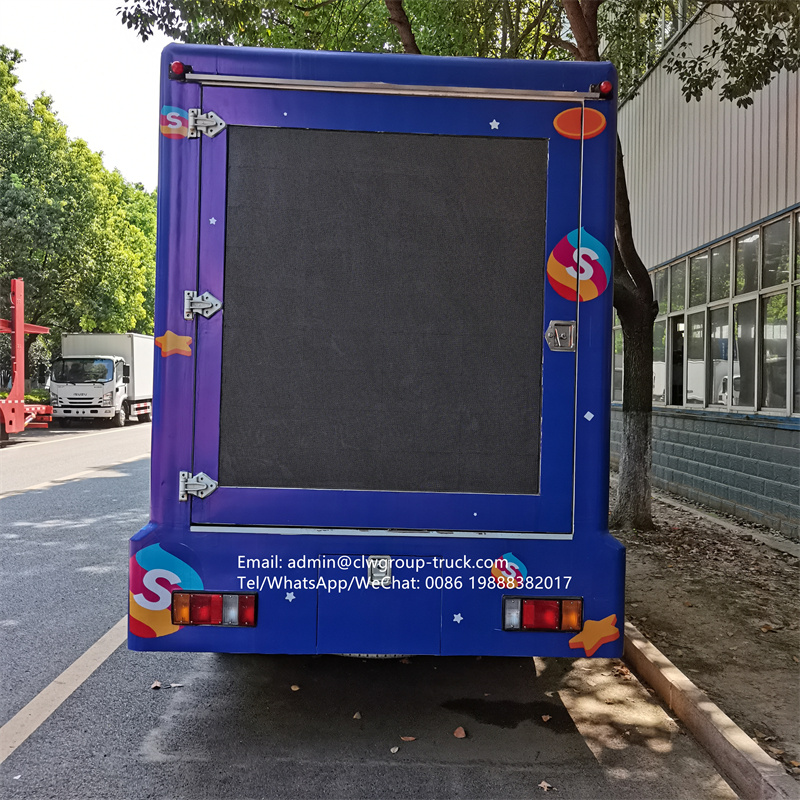

Tailgate screen size (width×height): single red subtitle screen 1280×1440(mm)=1.84m²
Power supply system: 8KW/15KW Omar silent diesel generator set
Standard configuration: one side is high-definition LED display, the other side is roller advertising light box, tailgate single red subtitle screen; equipped with 1 industrial control computer, 4 waterproof sound columns, 1 power amplifier, 1 console, external 220V city electrical system. It adopts composite steel frame car body, top ventilation skylight, aluminum pattern floor, mechatronics control, circulating ventilation and cooling system, and intelligent internal and external power distribution switching.
Optional configuration of LED advertising vehicle: (1) Double-sided or three-sided LED full-color display; (2) The screen is hydraulically lifted by 1.5 meters; (3) 9.6 square meters of hydraulic automatic folding stage board (manual stage can be added); ( 4) The alternator is replaced to supply power to the battery pack.
Can the LED advertising car be washed with water?
In addition to the display screen, our LED advertising car is an electronic product, and there are generators and computers inside, which are also electronic products. However, our advertising vehicles all need to work outdoors, and it is inevitable to encounter rainy weather sometimes. Customers and friends may be worried when purchasing, which will affect the use of our advertising vehicles. In fact, don't worry, although the display screens of our advertising vehicles are electronic products, they are all outdoor display screens, which are all waterproof and dustproof, and can be washed directly with water.
Does the LED advertising car have to use a generator to generate electricity?
When our car leaves the factory, it is equipped with an external power cord. The power cord can be directly connected to an external power supply, which can supply power to our LED display. But there is also a problem, that is, our external power cord is generally configured to be 15 meters, so our advertising vehicle must be parked near the power supply, and cannot be transmitted in a flow, but can only be transmitted at a fixed point.
Another option is to use batteries, which are cheaper than generators. However, you should also pay attention to the selection, and choose the corresponding battery type and quantity according to the area and quantity of the LED display. And equipped with a suitable inverter, it can generally supply power for several hours. Therefore, when choosing, you must choose the most suitable generator or battery according to your actual needs.
