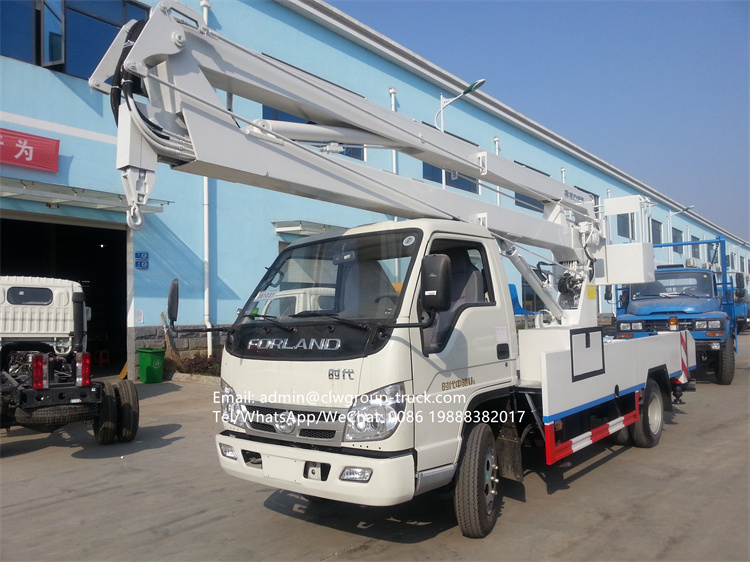

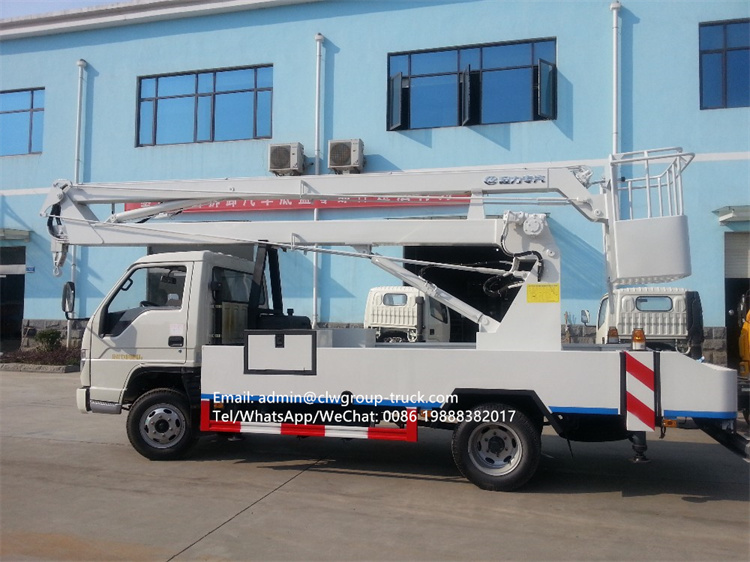

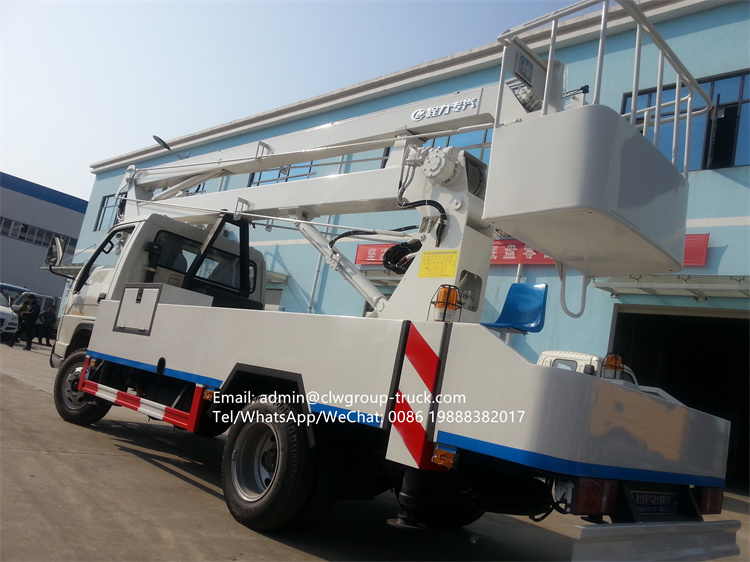

Aerial work vehicles refer to special vehicles that transport staff and use equipment to the site and perform aerial work. Foton folding arm aerial work truck adopts Foton light truck chassis, Foton Isuzu engine 108 horsepower, single row cab, 5 forwards , 6.50R16 steel wire tire, power steering with directional power steering, wheelbase 3360, with exhaust brake, ABS, The working height is 13.5 meters, the working bucket is limited to 200kg, the hydraulic 360-degree full rotation, the three-section folding arm, the single hydraulic lifting cylinder, the two-way balance valve, the electronically controlled lifting arm, the 1-ton telescopic hook can be telescopic 1 meter, four A hydraulic cylinder can adjust the outrigger, with a two-way hydraulic lock.
Three-section folding arm, maximum working radius: 5.8m, maximum working height: 13.5m. 360° rotation. The maximum lifting mass is 1000㎏, and the maximum lifting height is 6.4m. Outrigger span: vertical X horizontal (mm): 2430X2780. The rated load of the bucket is less than or equal to 200kg. Bucket size: 1080X620X1100, mechanical leveling with external pull rod, with oil cylinder locking function, dual operation of turntable platfrom and bucket . Electronically controlled hydraulic operation, all four outriggers extend horizontally, and all balance rods are solid.
Foton articulated boom aerial work vehicle can overhang work, cross certain obstacles or carry out multi-point work in one place; the platform has a large load capacity, which can be used by two or more people to work at the same time and can carry certain equipment; mobile platform It has good mobility and can be rotated 360 degrees, making it easy to transfer the site; it has a beautiful appearance and is suitable for indoor and outdoor operations and storage. It is suitable for large-scale high-altitude operations such as stations, docks, shopping malls, gymnasiums, residential properties, factories and mines.
