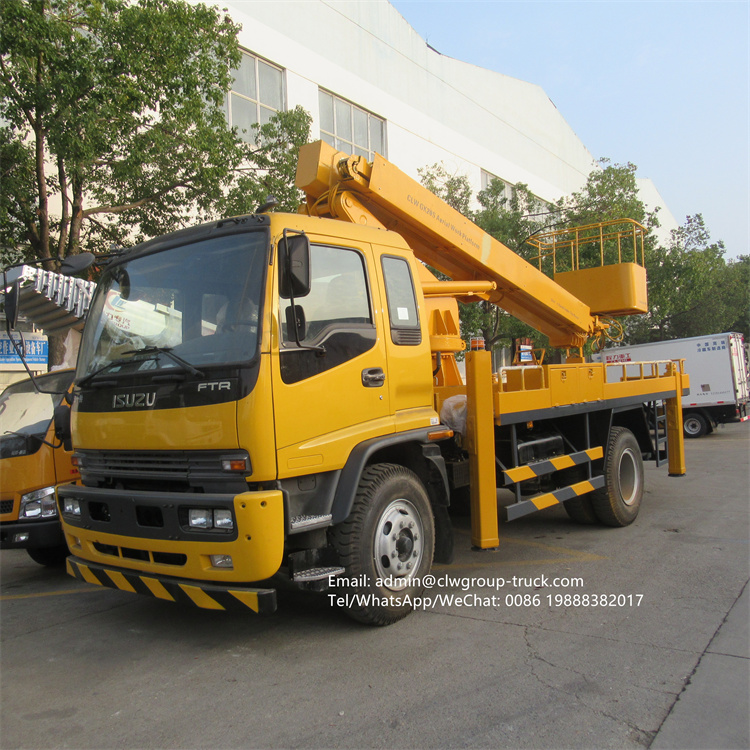

Isuzu 21m telescopic boom aerial work vehicle chassis configuration, using Isuzu FTR series chassis, engine Euro V 4HK1-TC50 205 horsepower, Isuzu MLD six-speed gearbox, air conditioning, steering assist, central control lock, electric doors and windows, front axle 6.3 tons rear Bridge 13 tons, with ABS, tires 10.00R20

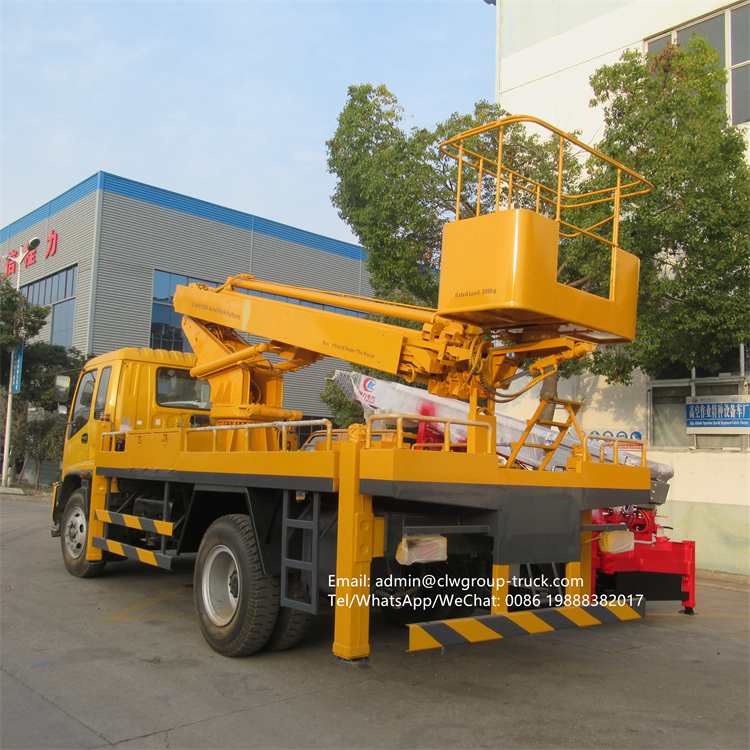

Isuzu 21-meter telescopic boom aerial work truck body configuration: four-section telescopic boom, the maximum working range is 11.5 meters in the rear area of the cab, the cab area is 4 meters, the maximum working height is 20 meters, and the working radius at the maximum working height is 2.9 meters, With 360° swivel, the maximum lifting weight is 1100kg, the rated load of the basket is less than or equal to 200KG, the size of the basket: 1100*700*1150mm, H-type outriggers, the lateral span of the front legs: 1050, the longitudinal span of the rear legs is 4000, and the lateral span is 4000mm ,Hydraulic leveling, with cylinder lock function, two-position operation of turntable and basket, with emergency power unit
Main performance characteristics and advantages of Isuzu 21-meter straight boom aerial work truck: display the detection arm length, elevation angle, platform height, working height, etc.;
★The boom adopts the domestic leading 3-section full-chain telescopic structure with built-in chain breakage protector, which makes the work safer and more stable;
★The front V and rear H-shaped outriggers have good stability and are equipped with "soft legs" protection function, which can be operated simultaneously or individually to adapt to various working conditions.

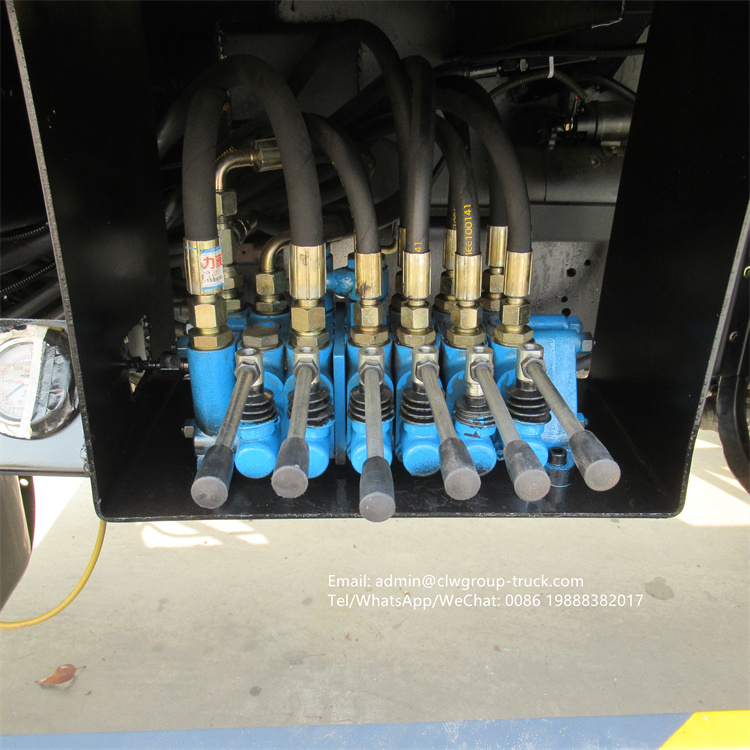

★Main supporting hydraulic and electrical components: Imported load-sensitive proportional valve, balance valve, CAN bus control system, etc. are all produced by well-known manufacturers at home and abroad.
★The chassis adopts Isuzu chassis, equipped with air conditioner, and the steering wheel adopts hydraulic power assist. The hanging basket is made of high-strength aluminum alloy, and the hanging basket is not easy to be damaged, rusted, and light-weight structure design has a larger carrying capacity.
★Pentagon working arm, synchronous telescopic, compact structure, high working efficiency and large working range. Built-in telescopic oil cylinder and double chain telescopic mechanism make it easier to observe fault points and facilitate maintenance.
The 21-meter Isuzu straight arm aerial work vehicle adopts CAN bus control system for the whole vehicle electrical appliances, and the lines are neat and simple. The whole vehicle has two operations: wireless remote control operation, (optional) can also be operated in the hanging basket, which is safe and reliable, and has high work efficiency.
★The working platform is matched with the 220V mains interface, which can use daily power tools and is not affected by the power consumption of the working conditions.
★Widely used for installation, maintenance and climbing operations in municipal, electric power, street lamps, advertising, communications, photography, gardening, shipbuilding, transportation, wharfs, airports, ports, emergency rescue, large industrial and mining enterprises and other industries
