Isuzu 700P 190hp 4 set car carrier Tow Truck Transporter export to Russian

The Isuzu car carrier vehicle transport truck, as a crucial tool for urban vehicle transportation, is increasingly favored by customers today. This model, especially for Central Asia and Russia, has been exported in large quantities. Depending on the number of cars it can transport, it can be categorized into two-board, four-board, six-board, or eight-board car carriers. Additionally, semi-trailers with 10-board or 12-board capacities for car transport can also be produced according to customer requirements

Now we would like to recommend a frequently ordered 4 car carrier Isuzu 700P vehicle transport truck. Let's take a look at the vehicle's configuration parameters:

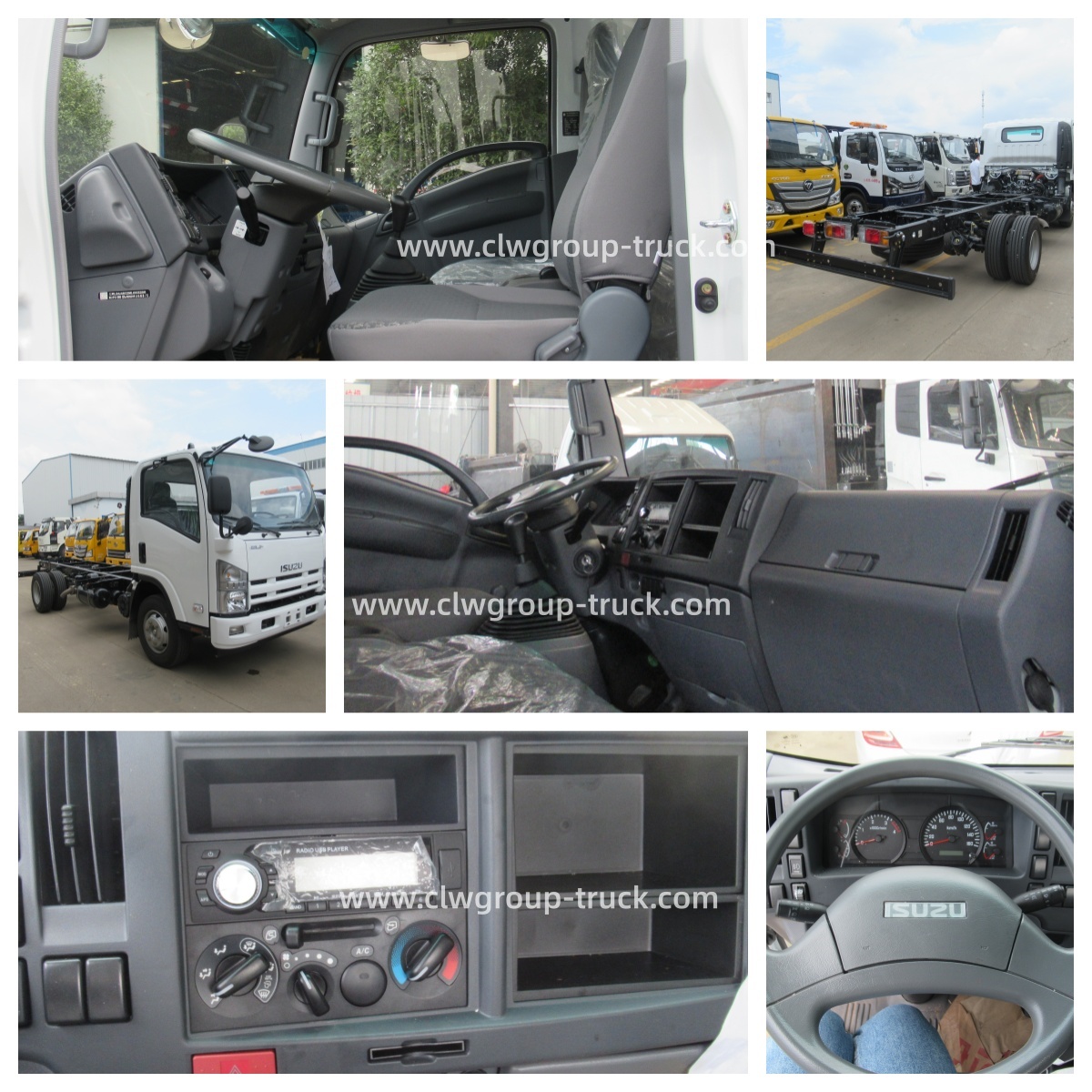

Isuzu Medium Chassis Model 700P Specifications: Isuzu 700P Export Version (China VI standard, gross weight 11 tons, 190-205 horsepower, 3X cab, 4*2 chassis. Its price is equivalent to China IV and V standards, but the China VI export version features higher configurations and better cost performance). Isuzu 3X-class 700P cab, wheelbase 3360-5200mm, standard Isuzu 4HK1-TCG60 engine (China V emission, 190 horsepower; optional 205 horsepower Isuzu 4HK1-TCG61 engine). Standard Isuzu MLD 6-speed transmission, air conditioning, power steering, front axle 4 tons, rear axle 7 tons, equipped with ABS, air brake, tiltable, standard 235/75R17.5 tires, optional 825R20 tires, optional one-row-and-a-half cab.

Isuzu 4 cars carrier Vehicle Transport Truck Configuration:

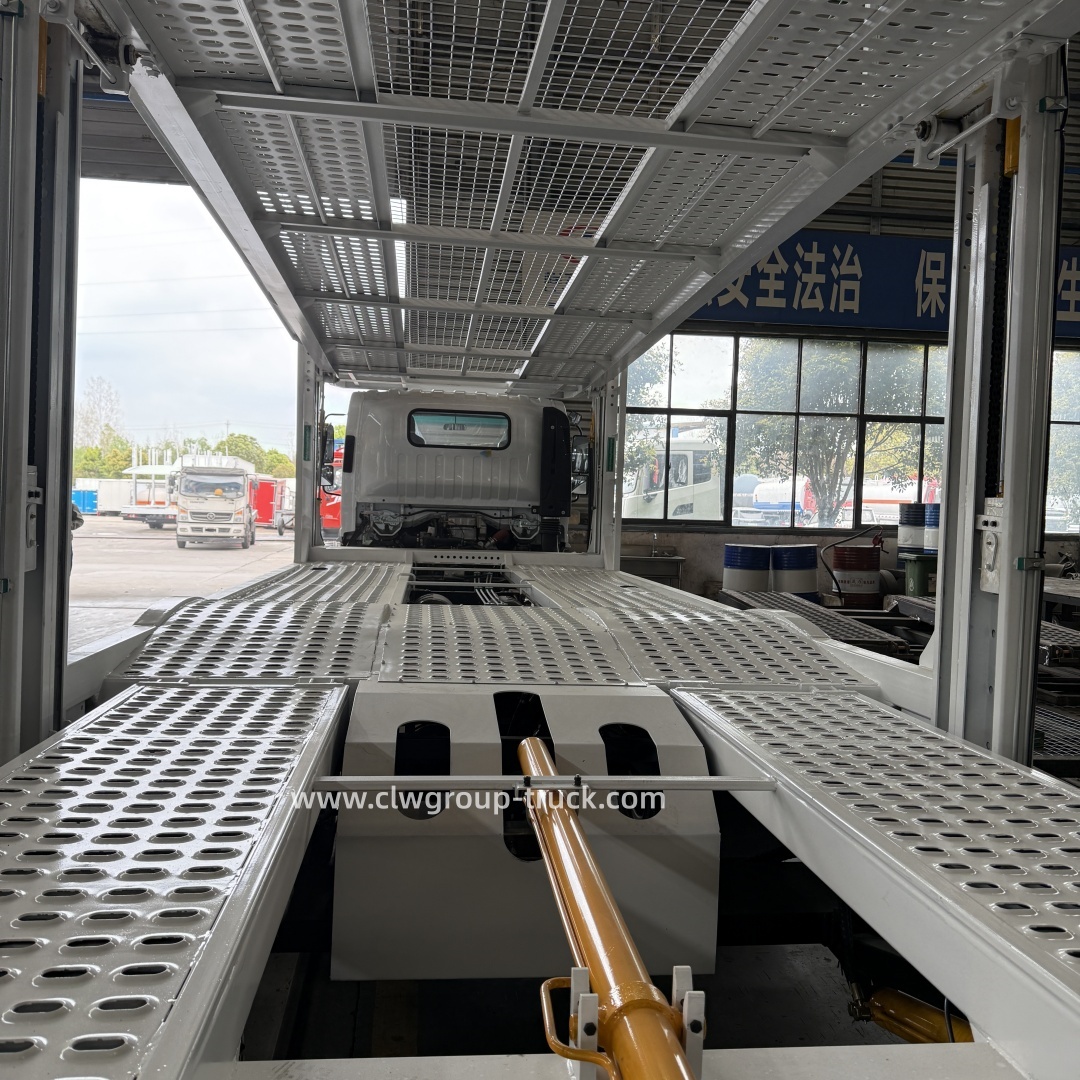

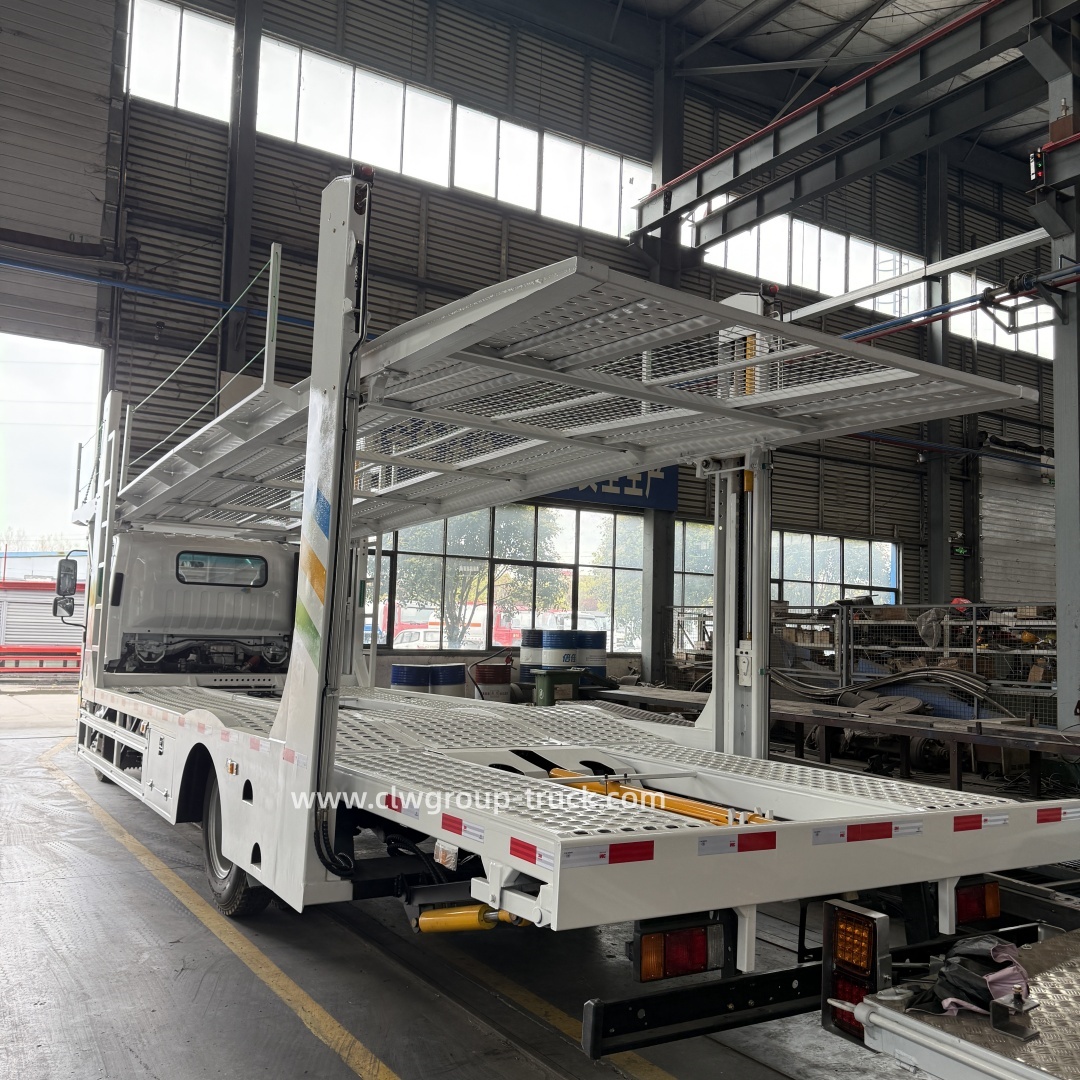

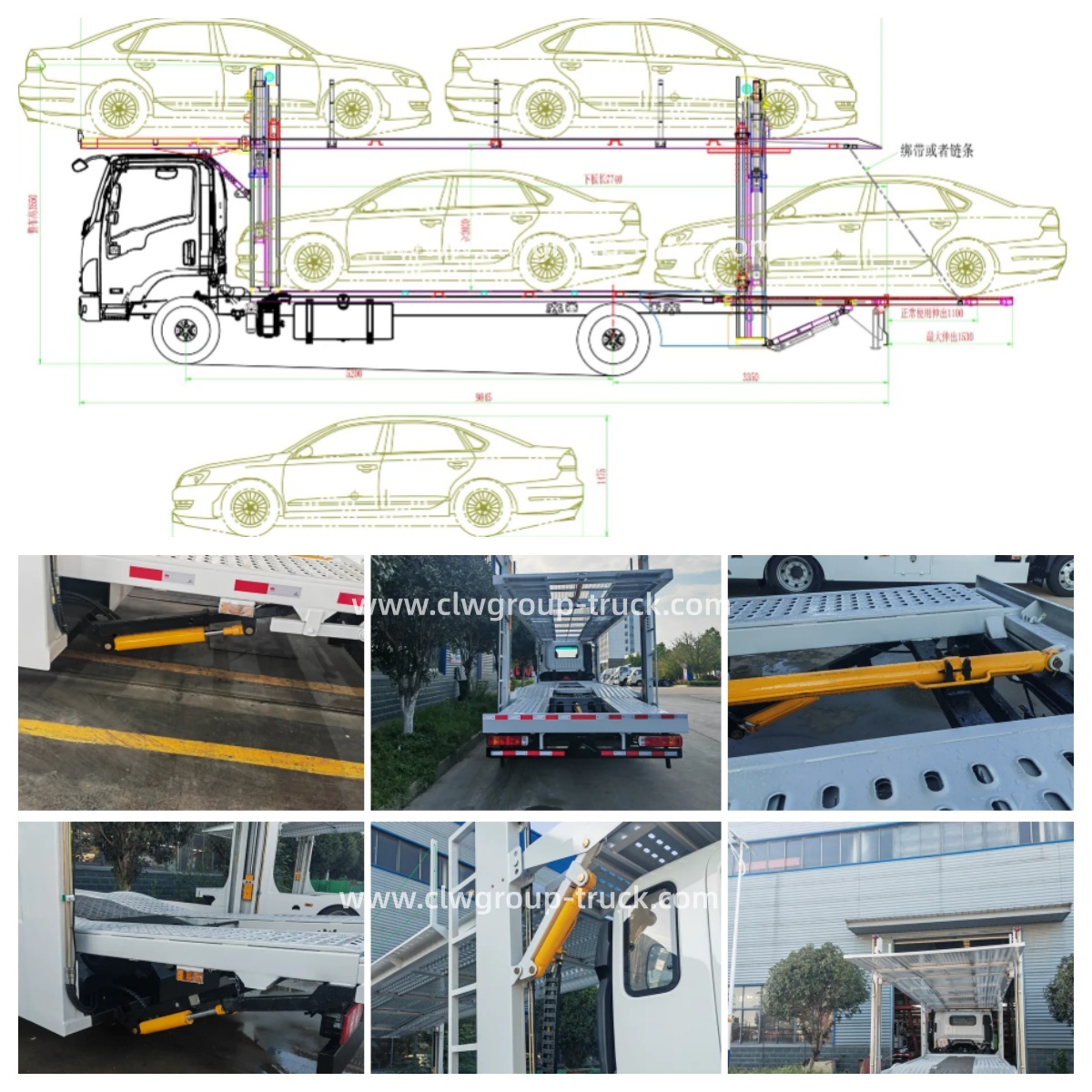

The lower plate of the transport vehicle is designed with a sunken structure, maintaining a height of 90 cm from the ground. The rear section features hydraulic telescopic functionality. The entire vehicle is constructed from high-strength plates, with optional hydraulic winches and rear support arms. Equipped with front and rear chains, the upper plate measures 9,650 mm in length, while the lower plate is 7,775 mm long. The upper plate can fully extend onto the lower plate, utilizing a three-stage hydraulic telescopic mechanism. The vehicle incorporates nine brand-name hydraulic cylinders, imported oil seals, renowned brand operation valves, and high-pressure oil pipes. The perforated plate is made of 3 mm thick Q235 steel plate, with four upright columns and the three-stage telescopic structure composed of HG70 low-alloy high-strength material.

A Isuzu cars carrier Vehicle Transport Truck Configuration:

The lower plate of the transport vehicle is designed with a sunken structure, maintaining a height of 90 cm from the ground. The rear section features hydraulic telescopic functionality. The entire vehicle is constructed from high-strength plates, with optional hydraulic winches and rear support arms. Equipped with front and rear chains, the upper plate measures 9,650 mm in length, while the lower plate is 7,775 mm long. The upper plate can fully extend onto the lower plate, utilizing a three-stage hydraulic telescopic mechanism. The vehicle incorporates nine brand-name hydraulic cylinders, imported oil seals, renowned brand operation valves, and high-pressure oil pipes. The perforated plate is made of 3 mm thick Q235 steel plate, with four upright columns and the three-stage telescopic structure composed of HG70 low-alloy high-strength material.



A cars carrier Vehicle Transport Truck is a specialized vehicle designed for transporting automobiles, typically featuring a lower chassis, upper chassis, side panels, front panel, rear doors, roof panels, accessories, hydraulic system, suspension system, air brake system, and electrical system. The car transporter adopts a double-layer loading platform structure, where the upper loading platform can be raised or lowered via a lifting device to facilitate loading.

How to choose an Isuzu car carrier Vehicle Transport Truck that suits your needs?

First, the vehicle type. How many cars do you need to transport at once? Four or five-car carriers are common choices, with dimensions typically not exceeding 12 meters in length, 2.55 meters in width, and 4.2 meters in height when loaded, allowing for the transport of five standard cars. If you need to transport more than eight cars at once, we can also opt for a semi-trailer car carrier

Next is the chassis selection. Isuzu chassis engines range from 98 horsepower to 420 horsepower. For vehicles in poor condition, we opt for higher-horsepower chassis when producing car transporters, such as the common Isuzu medium-sized 700P with 190 horsepower or the Isuzu large 4*2 chassis is a specialized vehicle designed for transporting automobiles, typically featuring a lower chassis, upper chassis, side panels, front panel, rear doors, roof panels, accessories, hydraulic system, suspension system, air brake system, and electrical system. [9] The car transporter adopts a double-layer loading platform structure, where the upper loading platform can be raised or lowered via a lifting device to facilitate loading.

The advantages of Isuzu car carrier vehicle transport truck

1 The structure is lightweight, and the overall weight of the frame is light. It uses high-quality low-alloy steel and has strong corrosion resistance.

2. Capable of independent loading and unloading, suitable for railway or short distance road transportation, convenient and flexible
3. Equipped with well-known multi way valves and oil cylinders, the vehicle is of high quality and easy to operate.

As a specialized vehicle, the maintenance of Isuzu sedans is crucial to ensure their operational efficiency and extend their service life. Here are some basic maintenance measures:

1. Regular inspection: Regularly inspect all components of the car, including the suspension system, tires, braking system, etc., to ensure that they are in good working condition.
2. Cleaning and maintenance: Keep the exterior and interior of the vehicle clean, regularly clean the vehicle, especially the chassis and tires, to prevent corrosion and accumulation of dirt.
3. Lubrication system: Regularly replace the engine oil and filter to ensure the normal operation of the engine lubrication system and reduce wear.
4. Check the electrical system: Check the vehicle's electrical system, including the battery, wiring, and lights, to ensure that they are working properly and there are no signs of short circuits or damage.
5. Tire maintenance: Regularly check the tire pressure and wear condition, and replace severely worn tires in a timely manner to ensure driving safety.
6. Braking system: Check the wear of brake pads, replace them in a timely manner, and ensure the effectiveness of the braking system.
7. Cooling system: Regularly check the coolant level and quality, and replace it if necessary to keep the engine working at a suitable temperature.
8. Regular maintenance: Follow the maintenance cycle recommended by the vehicle manufacturer, including replacing various filters and fluids.

Through these maintenance measures, it is possible to effectively maintain the good performance and extend the service life of Isuzu car carrier vehicle transport truck

The production process of Isuzu car carrier vehicle transport truck: The production process of sedan is rigorous and scientific. Firstly, it is the preparation of raw materials, using high-quality steel and other materials to ensure the basic quality of the vehicle. Continuing into the design and planning phase, professionals will accurately design the structure, dimensions, and other aspects of the vehicle based on market demand and usage scenarios.

In the production process, the layout of the production line is reasonable and the process flow is orderly. Steel is cut into the desired shape and size, laying the foundation for subsequent forming. The molding process adopts advanced technology to ensure that each component meets the design requirements. Then proceed with assembly, precisely installing different components together to ensure the overall integrity of the vehicle. The welding process is crucial, and high-quality welding techniques are used to ensure the firmness of component connections.

Quality and inspection are integrated throughout the production process. Every step has strict testing standards, from raw material inspection to comprehensive testing of finished products. By using various testing methods such as visual inspection and performance testing, we ensure that vehicles meet high-quality standards and provide users with safe and reliable transportation tools.
