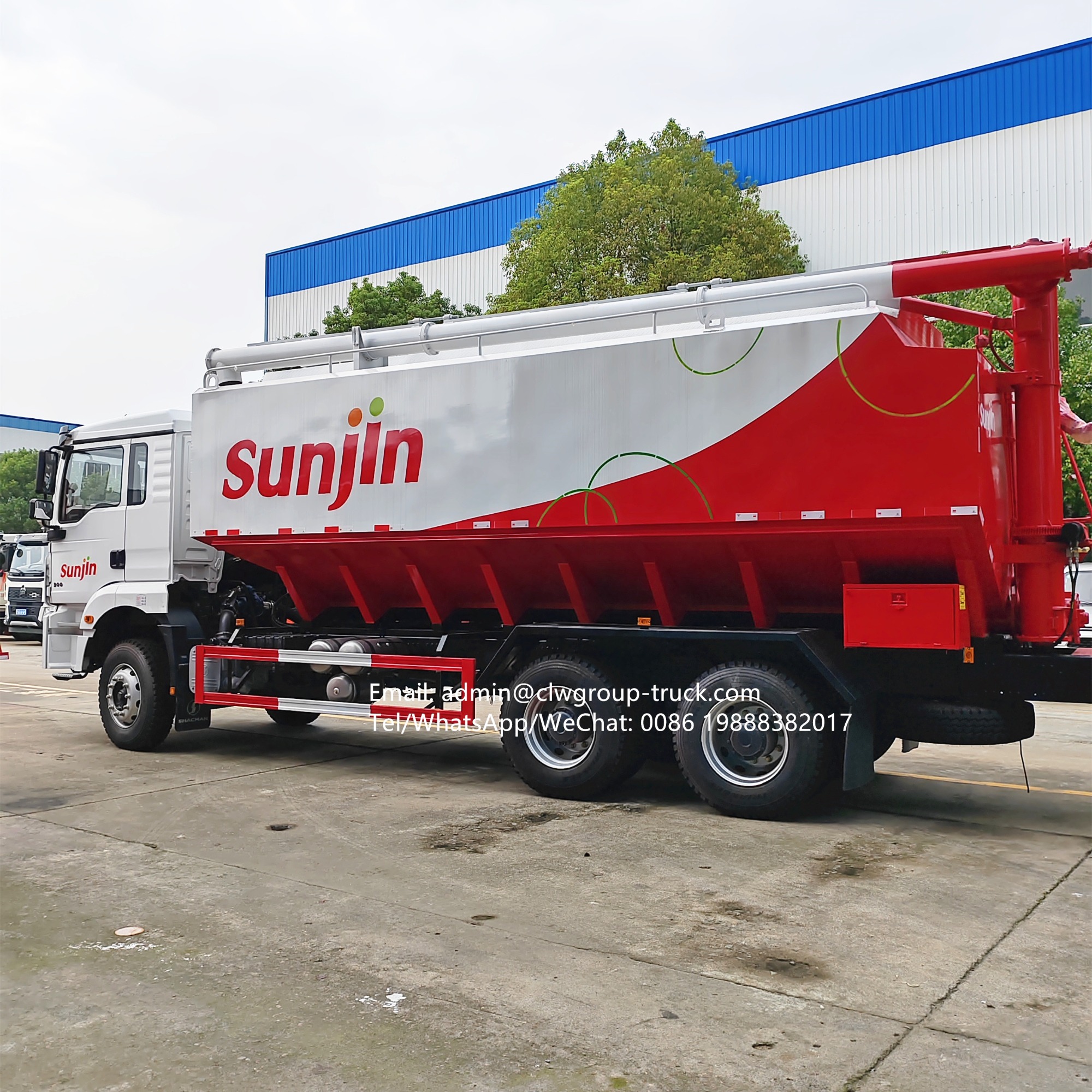

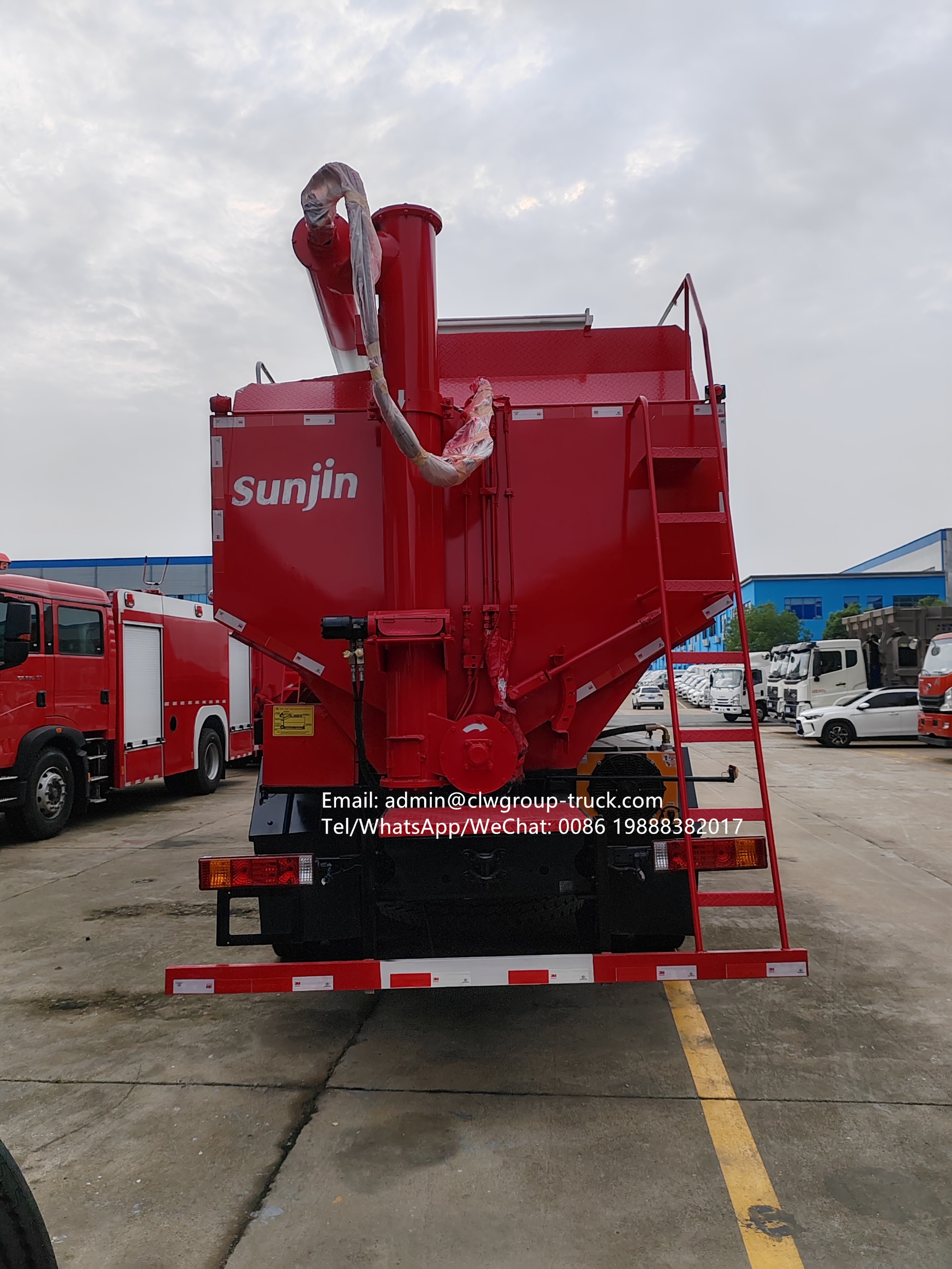

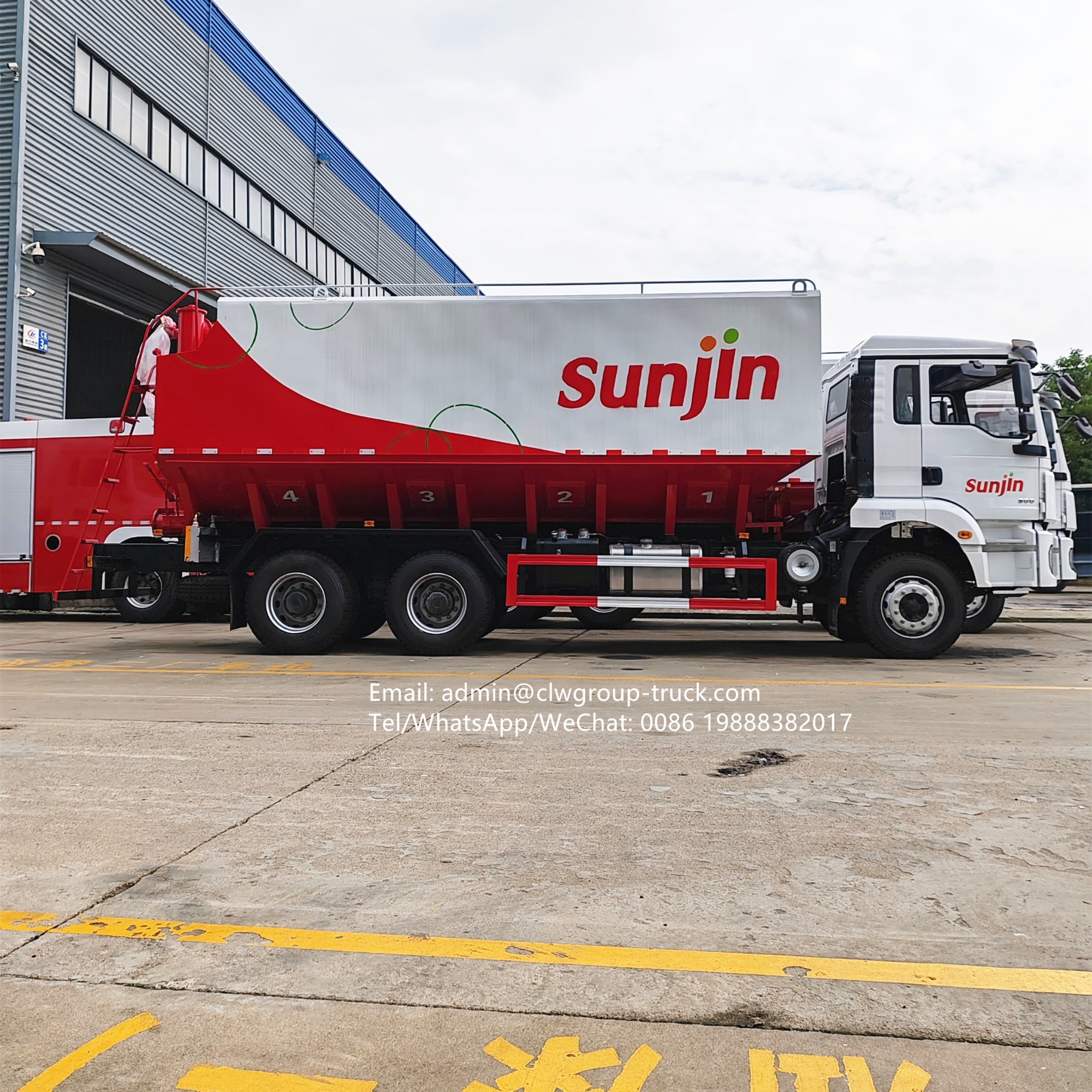

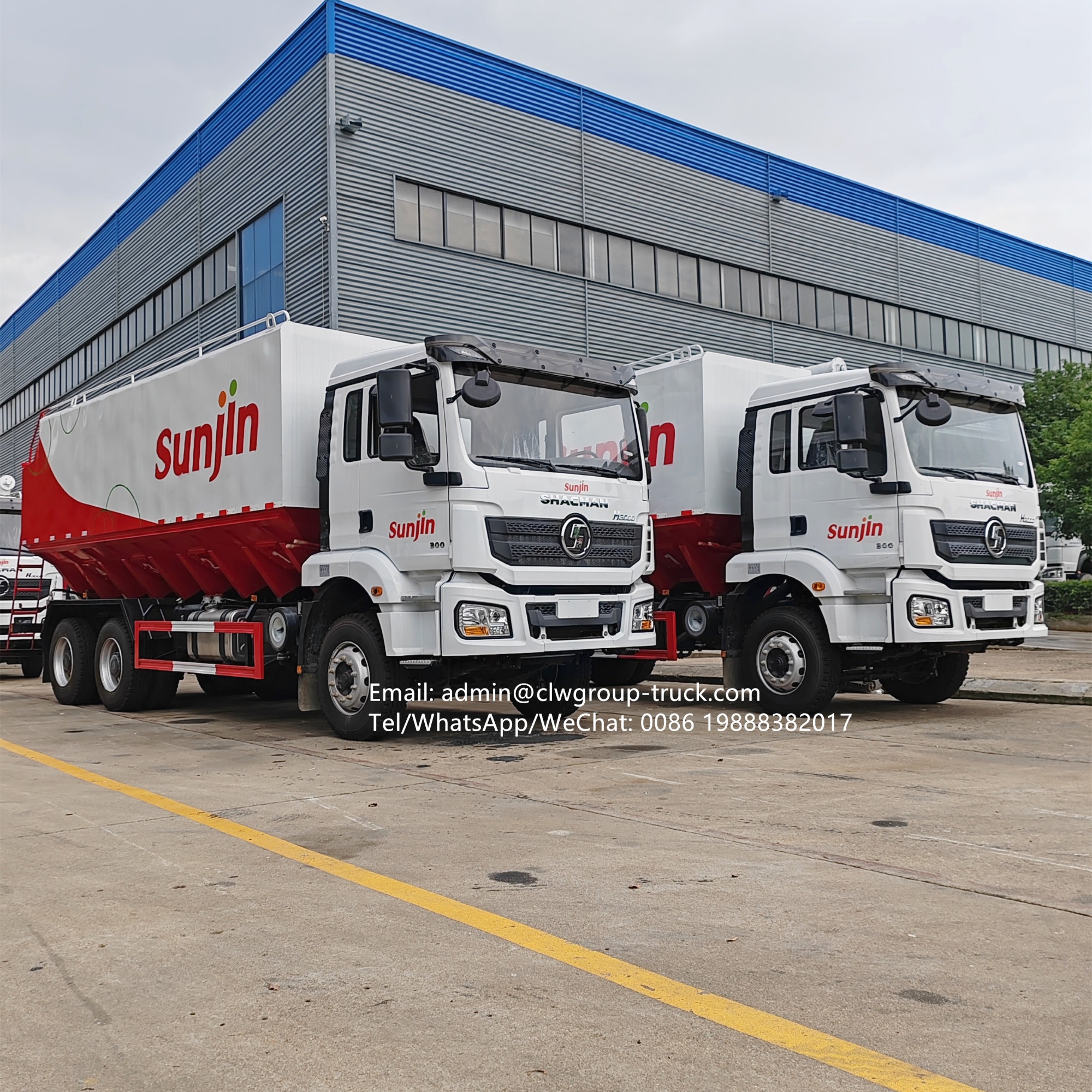

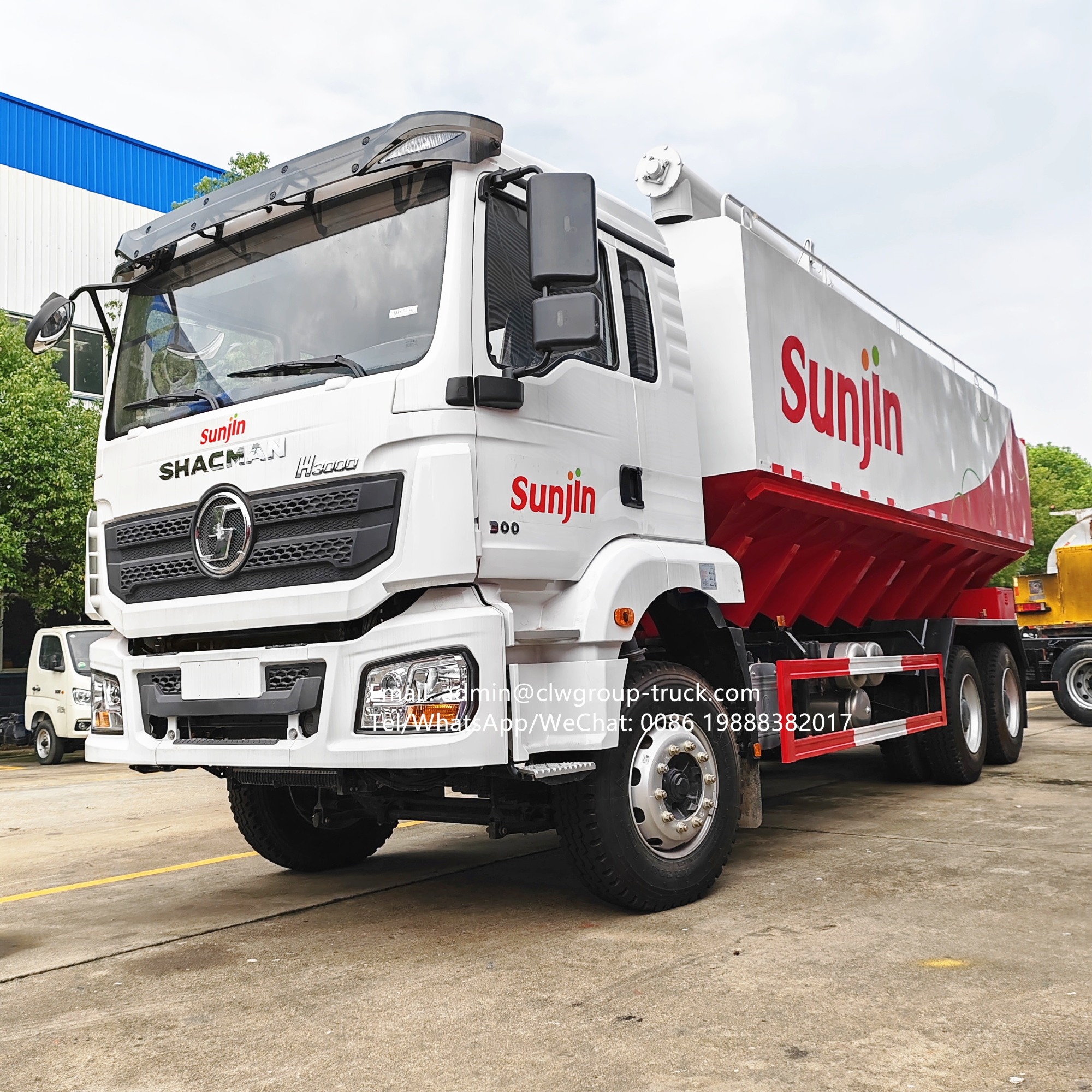

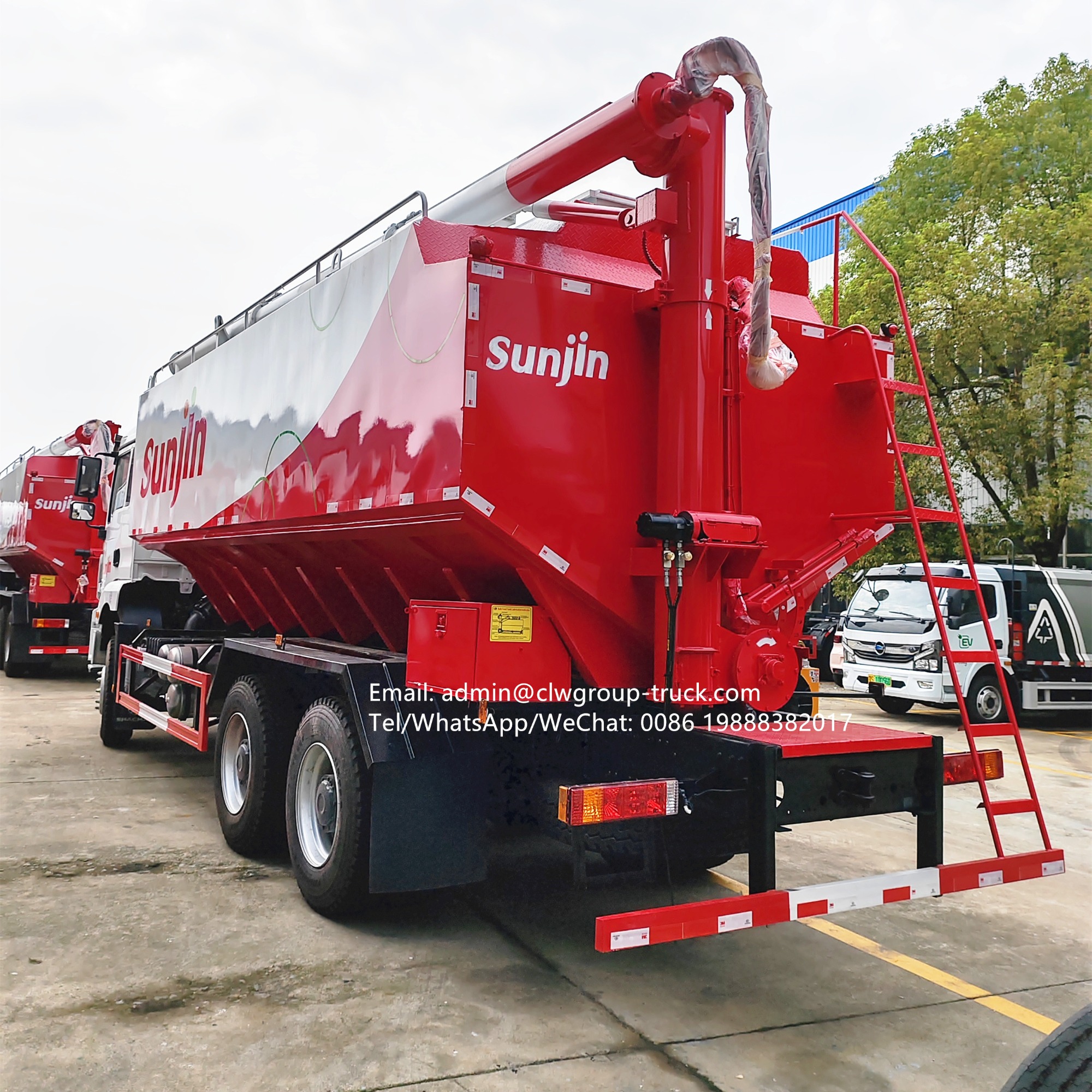

Shacman 6X4 15 ton bulk poultry feed trucks exported to Central Asia
Chengli Special Vehicle Co., Ltd. focuses on the production, sales, and service of bulk feed transport vehicles. The company mainly produces bulk feed transport vehicles, bulk feed tanks, and on-site feed transport vehicles; The bulk feed transport vehicle (tank) we have developed includes 6 ton bulk feed transport vehicles, 12 ton bulk feed transport vehicles, 15 ton bulk feed transport vehicles, 11 meter semi trailer 30 ton bulk feed transport vehicles, and 13 meter 35 ton bulk feed transport vehicles
At present, the widely used 10 ton bulk feed trucks and 15 ton bulk feed trucks in the market can transport between 10-15 tons. Therefore, the type of vehicle to be used is determined based on the transportation volume of bulk feed trucks required by the customer. For different models of bulk feed trucks, the main differences are the differences in the models and configurations of bulk feed trucks. In addition, the supporting discharge system, loading medium feed and control system, and other accessories form a bulk feed truck.
Chassis configuration of Shacman 6X4 bulk poultry feed trucks:
Emissions: Euro II, engine: WP10.340E22
Transmission: 10JSD180+QH50, axle speed ratio: 16T MAN two-stage cast axle -5.262
Frame (mm): 850 x 300 (8+5), wheelbase (mm): 4375+1400, rear suspension (mm): 2400
Driver's cab: medium length flat roof, front axle: MAN 7.5T Suspension: front and rear multi leaf springs, fuel tank: 360L aluminum alloy fuel tank
Tire: 12.00R20
F3000 medium length flat top cab without top air deflector, hydraulic main seat, four point hydraulic suspension, ordinary rearview mirror, electrically controlled automatic constant temperature air conditioning, electric window shaking machine, manual flipping, metal bumper, three-level boarding pedal, ordinary air filter, ordinary exhaust, 165Ah maintenance free battery storage, HACMAN logo, all Portuguese logo, iron air reservoir, transmission telescopic shaft control
Shacman 6X4 bulk poultry feed trucks Tank Configuration: The entire vehicle has 3 twisting dragons, with hydraulic unloading. The top twisting dragons (commonly known as unloading twisting dragons) can rotate and lift freely, with an elevation angle of up to 80 degrees, a length of 6.8 meters (can be extended), and a feeding height of over 8.5 meters. The hydraulic unloading uses Eaton motors from the United States, domestic branded hydraulic pumps, Taiwan made multi way valves, high-pressure hydraulic oil pipes, etc; Electric unloading, with a twisting dragon voltage of 380 volts and three motors with a power of 5.5 kW each, equipped with a 15 meter cable. The top twisting dragon is controlled by a remote control, and the tank can be equipped with a pneumatic sliding cover or a diesel engine to drive unloading
Shacman 6X4 30 cubic meter bulk poultry feed trucks
The tank has a volume of 30 cubic meters and is made of high-quality Q235 carbon steel material. The standard configuration includes a branded high-quality motor, Delixi electric control system, manganese steel material for the hinge, and special bearing hinges
Optional branded motor, remote control operation, onboard generator, hydraulic screw conveyor unloading
The bulk poultry feed trucks produced by our factory is mainly used to transport bulk feed products or feed production raw materials from the feed factory to livestock farms, poultry farms, and feed processing users. At the same time, it can also be used to transport certain non corrosive granular raw materials. This car has the following characteristics:
Transporting feed in bulk not only saves labor but also has lower costs compared to packaging it into bags.
Loose feed is sealed and transported inside the tank to reduce losses, ensure quality, and avoid human contamination.
Fully automatic loading and unloading, capable of continuous operation, greatly improving production efficiency.
The tank can be equipped with separate compartments, which can transport various types of feed or puffing media simultaneously.
Standardized production of components, convenient maintenance and upkeep
