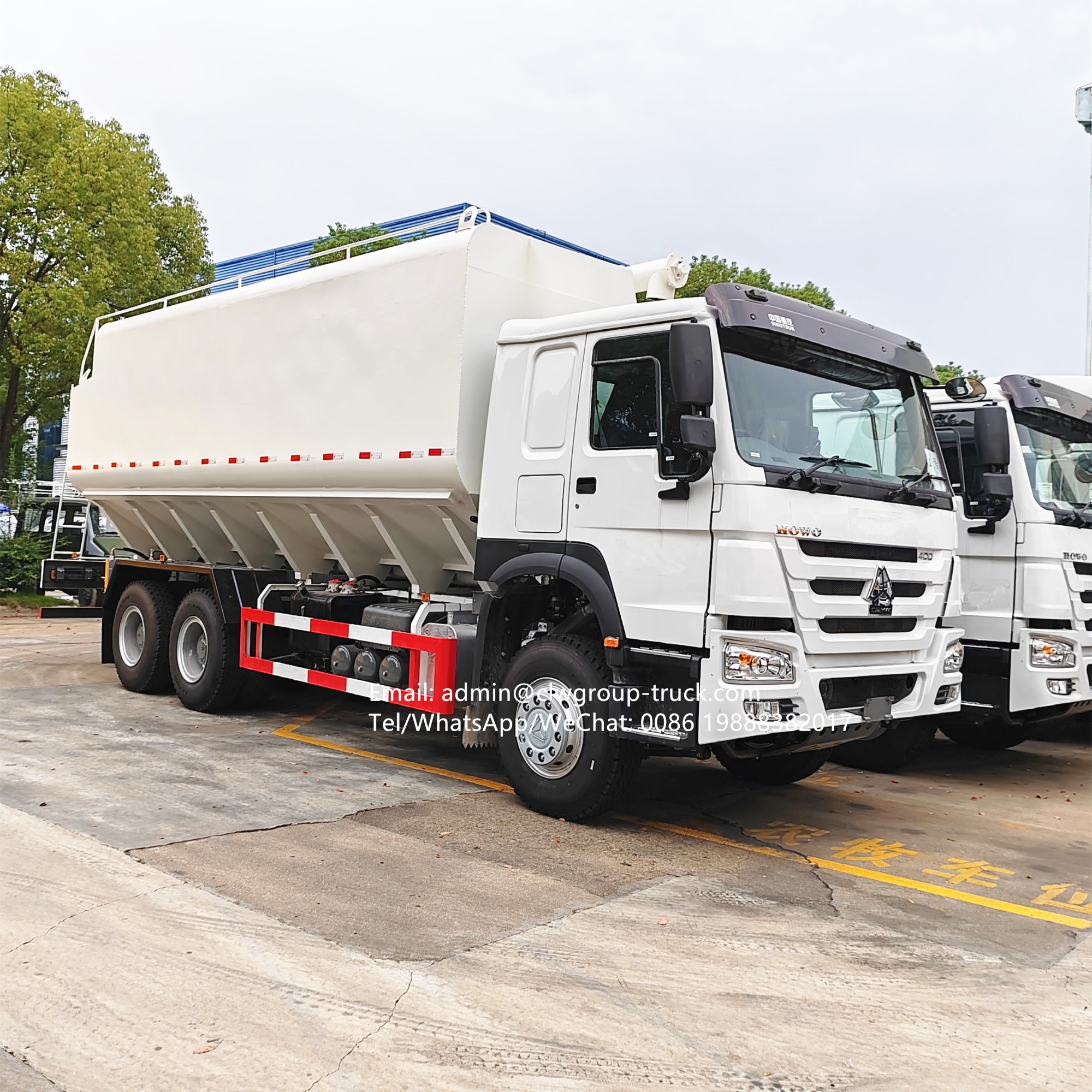

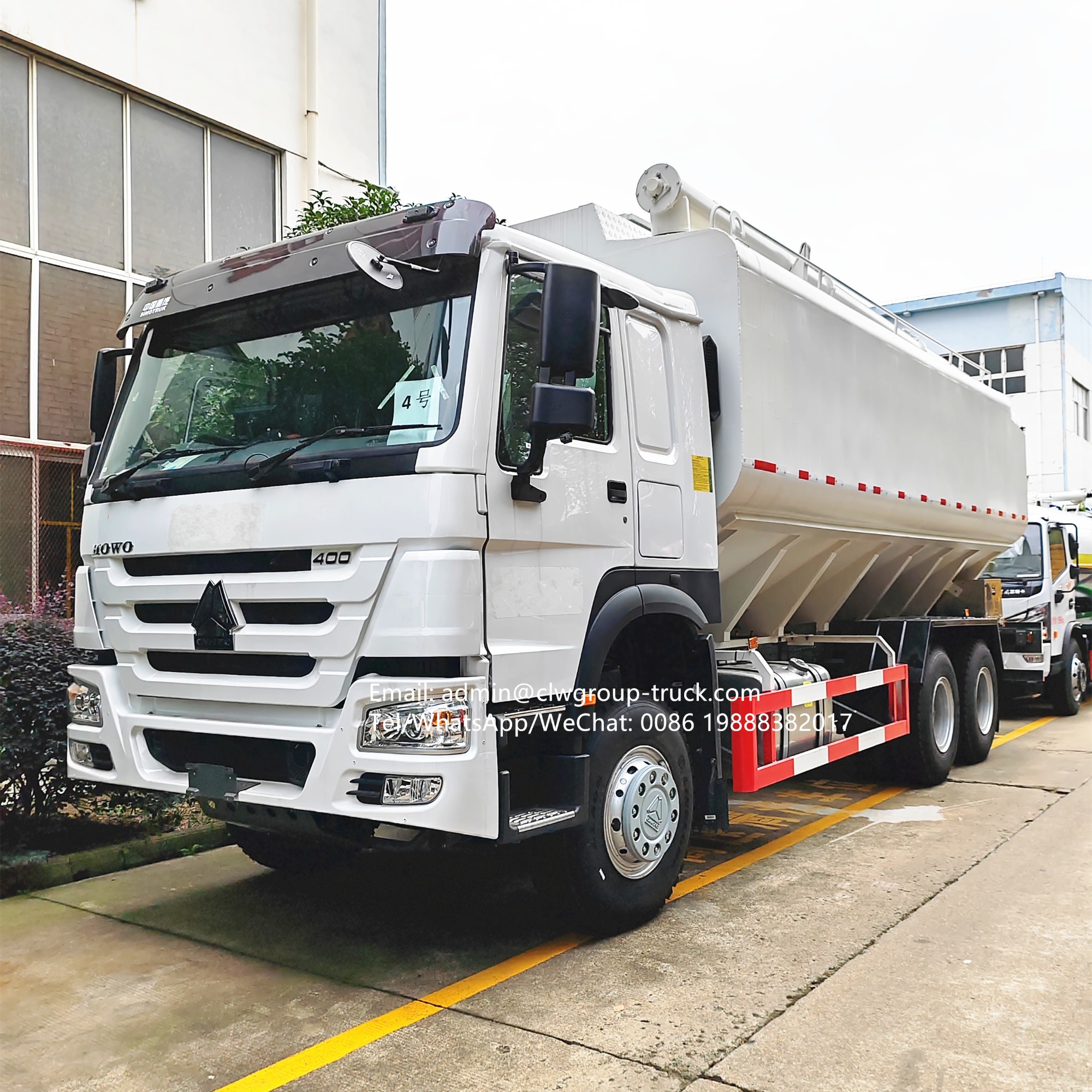

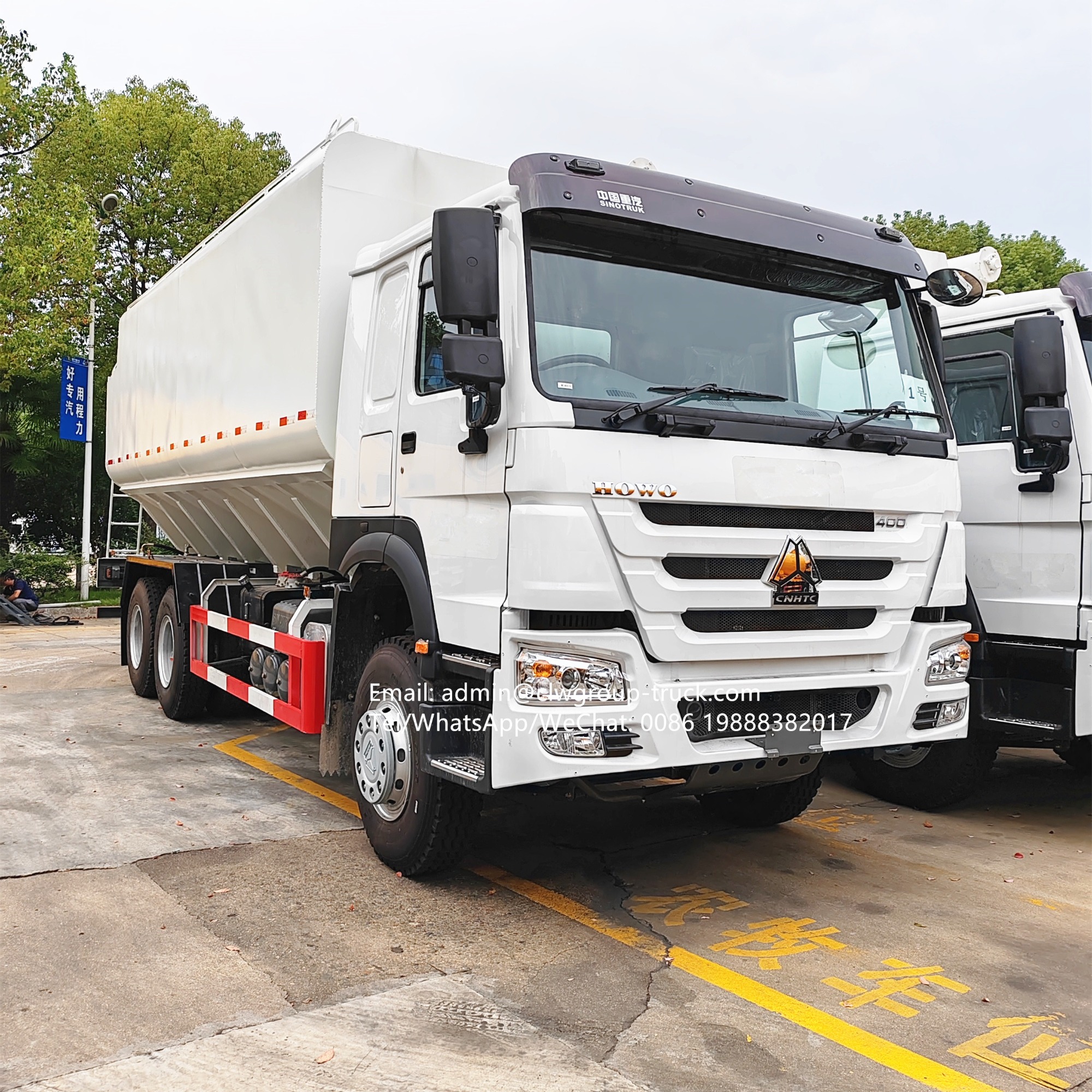

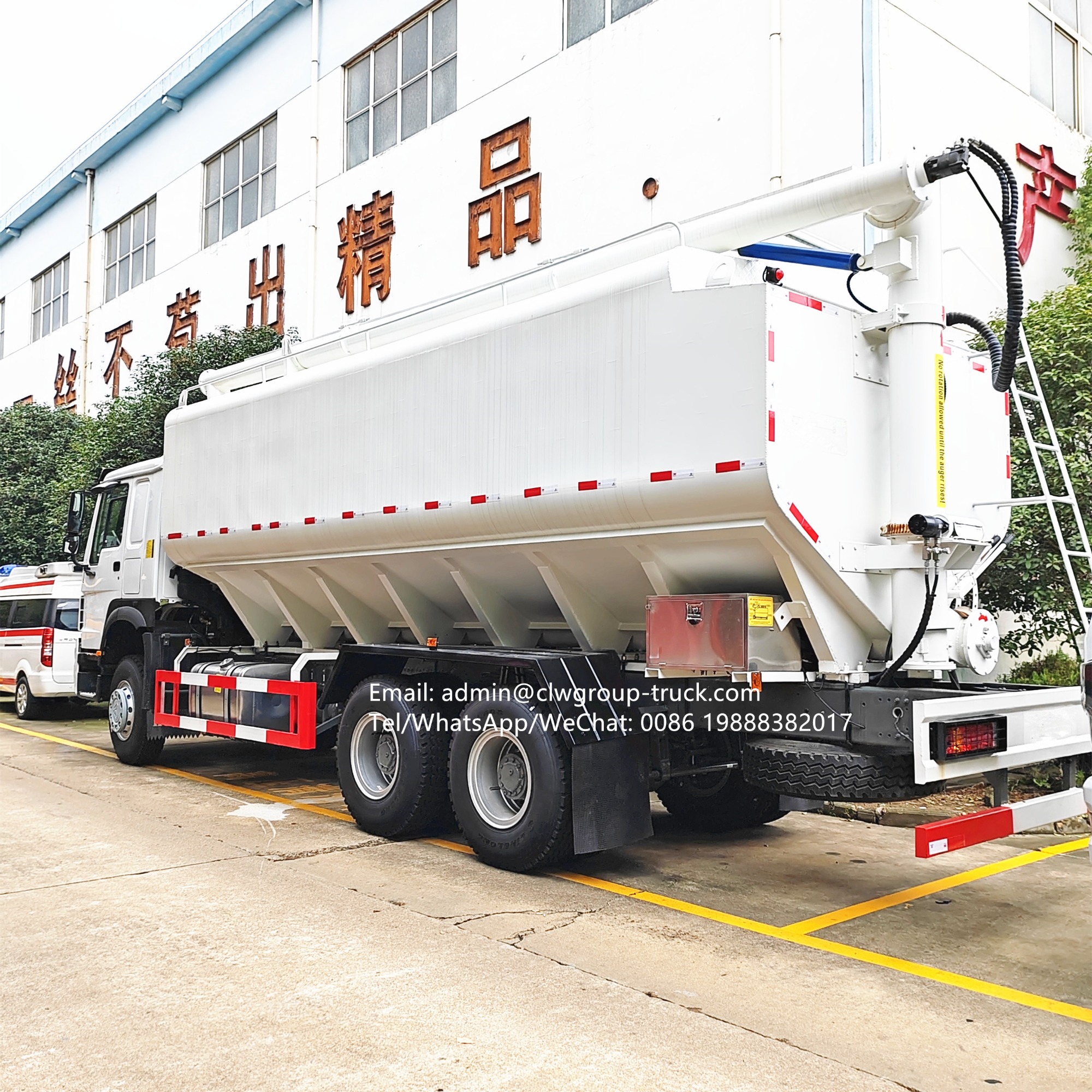

Sinotruk 6X4 30-37m3 bulk feed tanker truck，
The bulk feed tanker truck is a specialized vehicle for feed transportation, generally used for transportation from feed factories to breeding farms. It changes the traditional bagged transportation and reduces labor and cost costs. One person, one vehicle, fully automated operation, realizes that feed does not fall to the ground between feed factories and breeding farms, avoiding pollution. The ton heavy truck bulk feed transport vehicle can transport pig, duck, cow, chicken pellet and powder materials, and can be divided into warehouses to load different types of feed simultaneously.
The entire vehicle is 9.4 meters long, and the tank body is 6.6 meters long (31 cubic meter capacity feed tank)
The entire vehicle is 10 meters long with a tank body length of 7 meters (33 cubic meter capacity feed tank)
The entire vehicle is 11 meters long with a tank body length of 8 meters (36 cubic meter capacity feed tank)
Chassis configuration of bulk feed tanker truck Sinotruk:
Howo; V7; Basic payment; Freight vehicles; Loose and miscellaneous transportation; HW76 new front face cab; WP10.340E22 engine; Manual lifting of the cab; HW19710 gearbox+HW70 flange power take-off; VGD75 front axle (drum); MCX16ZG double bridge (drum); Double decker frame (8+5/300); Front and rear standard multi leaf springs (10/12); ECO108 steering wheel; Road version intake system; Standard version exhaust system; Without ABS; Low bumper (non-metallic); 12R22.5; 400L fuel tank; English instrument; four point eight zero three
Tank configuration of sinotruk bulk feed tanker truck: Adopting a bent shape structure, the tank is divided into three independent compartments (multiple compartments can be customized). The imported hydraulic pump drives the hydraulic motor. The whole vehicle has three twisting dragons, with full hydraulic unloading mode: the twisting dragon hydraulic control can rotate 180 degrees; Fast unloading speed, high safety, and maintenance free when using vehicles at idle speed
Unloading method of bulk feed tanker truck:
1. Connected to an external 380V power supply, driven by three 5.5KW motors, the twisting dragon unloads materials. It comes with a standard remote control and can be optionally equipped with a vehicle mounted generator
2 hydraulic unloads, 3 hydraulic motors drive the winch to unload, standard radiator, remote control
We can use high-quality Q235B carbon steel material or aluminum alloy material for the bulk feed truck material
Electric configuration of bulk feed truck: The tank of the feed truck is made of high-quality carbon steel plate, and the tank is divided into three compartments. The unloading sequence and speed of each compartment can be independently controlled, and it can rotate left and right 180 degrees.
bulk feed tanker truck are divided into multiple tonnage categories, including 4 tons, 10 tons, 20 tons, 15 tons, 6 tons, etc
|
Bulk feed truck sinotruk howo 6X4 |
||
|
Tank capacity（m3） |
30-37m3 |
|
|
Tank compartments |
1-5 |
|
|
Average unloading speed（kg/min） |
510 |
|
|
Rotation angle of the active unloading system |
180 degree |
|
|
Maximum elevation angle of the active unloading system |
60 degree |
|
|
Conveying distance |
Horizontal maximum distance（m） |
7.2 |
|
Vertical maximum distance(m) |
8.2 |
|
|
Residual rate |
0.01 |
|
