What is the difference between a road sweeper truck and a road cleaning washing sweeper truck? This is something that many friends don't particularly understand
Road sweeper truck: an all-in-one automatic cleaning machine that combines vacuuming, sweeping, and water spraying for use in outdoor environments. Ordinary road sweepers can also be divided into pure sweeping, pure suction and suction sweeping. While sweeping, collecting and transporting garbage, the suction-sweeping road sweeper is also equipped with a pneumatic conveying system such as suction nozzles and air ducts, which can absorb road dust, paper scraps, etc. during the cleaning operation, which greatly improves road cleaning. strength. The pure sweeping and pure suction sweepers have relatively simple functions. The pure sweeping type is suitable for general roads, such as asphalt roads and highways; while the pure suction type is more suitable for indoor, airport, park, community and other roads.

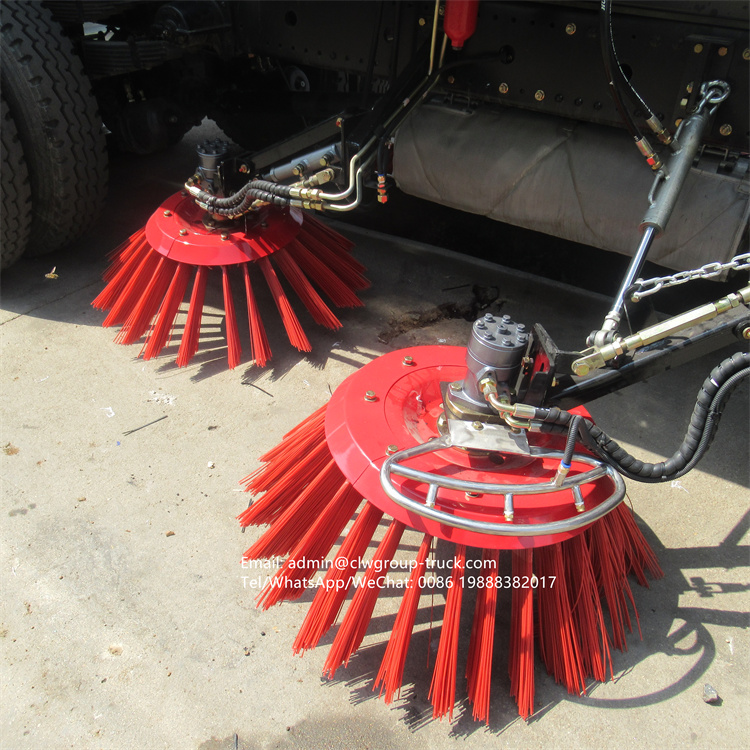

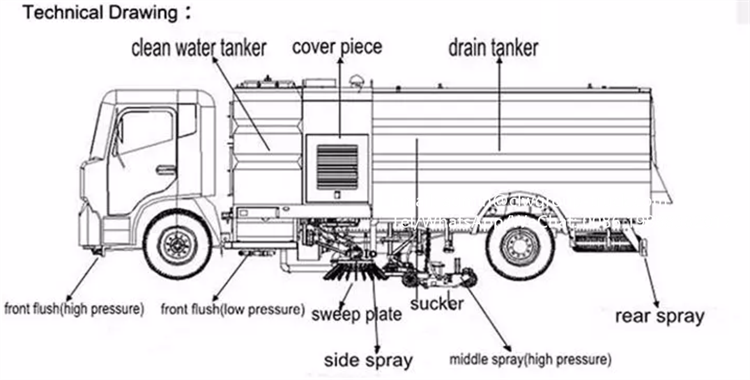

The main structure of the road cleaning washing sweeper truck is composed of 16 parts: 1. Vehicle chassis 2. Auxiliary engine 3. Car compartment 4. Hydraulic valve group 5. Brush drive motor 6. Hydraulic system filter 7. Electronic control system 8. Vortex water pump 9. Cleaning device 10, suction fan 11, central sweeping brush 12, rear suction cup 13, stainless steel dustbin and water tank 14, diversion groove and large-area filter 15, TV monitor 16, warning device
The performance of the road cleaning washing sweeper truck is also special: it integrates the functions of a road sweeper and a high-pressure cleaning vehicle, and realizes cleaning, high-pressure cleaning and collection of garbage and sewage in one operation. An anti-overfill alarm device and a high-pressure spray cleaning device are installed in the trash can. The anti-overflow alarm device can prevent the sewage from overflowing from the straw during operation, causing secondary pollution; the high-pressure spray cleaning device can automatically clean the sewage tank after dumping the garbage, which greatly reduces the labor intensity of the operator.
Since the function of the road cleaning washing sweeper truck is more diverse, the structure will be more complex, and the relative price is higher, but the price difference is also related to the model, brand, etc., not all road sweepers are cheaper than the road cleaning washing sweeper
A word describes: the difference between a road sweeper and a road cleaning washing sweeper truck is that the water tank of the road sweeper is small in volume, and a low-pressure water pump is used. When sweeping the road, the water only acts on the spray to reduce dust, and some stubborn garbage, such as dry soil sticking to the ground. , the sweeping brush can not be swept away or sucked up!
The water tank of the road cleaning washing sweeper truck has a large volume, and a high-pressure water pump is used. When sweeping the road, the road surface is washed with high pressure with water, and then the stubborn garbage can be directly washed up, and then the garbage can be collected by suction to achieve a better cleaning effect.
To put it more simply, a high-pressure water pump is added to the road cleaning washing sweeper truck than the road sweeper, which increases the volume of the water tank and increases the horsepower of the auxiliary engine.
To sum up: the road cleaning washing sweeper truck can replace the road sweeper, that is to say, it is an upgraded version of the road sweeper, but one thing of the road cleaning washing sweeper truck is that the wheelbase of the car chassis must be above 3800MM, while the sweeper does not have this restriction , The washing and sweeping car can be used as a sprinkler, a road sweeper, and a high-pressure cleaning car. Although the cost is relatively high, it can really achieve multiple uses in one car.
