Isuzu road sweeper parameter configuration
Engine: Isuzu 130 hp engine
Transmission: Five-speed gearbox
Dimensions: 6190×1990×2590
Wheelbase: 3360mm
Front/rear axle: 2.5/4.8 tons
Tire: 7.00R16 steel tire
1. The Isuzu road sweeper is refitted from the Sino-Japanese joint venture Chongqing Isuzu road sweeper special chassis. Chongqing Isuzu is a high-end brand in the Isuzu series products. The cab is round and full, and the interior design is fashionable and generous. It is the benchmark product of the Isuzu series .
2. The Isuzu road sweeper adopts the original diesel engine of Chongqing Isuzu. The engine is equipped with intercooling supercharging technology, which can actually output 130 horsepower. With the unique energy-saving technology of Japan Isuzu, the fuel consumption is economical and the power is strong!
3. The gearbox of the Isuzu road sweeper adopts the MSB 5-speed manual gearbox independently developed by Isuzu, and the clutch has a clutch assist, making it easier to shift!
4. The chassis of the Isuzu road sweeper has been re-adjusted, the center of gravity is more stable, the 2.5-ton front axle, the 4.8-ton reinforced rear axle, the 7.00 steel wire tire, the load capacity is stronger!
5. The auxiliary engine of the Isuzu road sweeper also uses the diesel engine of the Isuzu series, which is in the same factory as the chassis engine, which is more convenient for later maintenance.

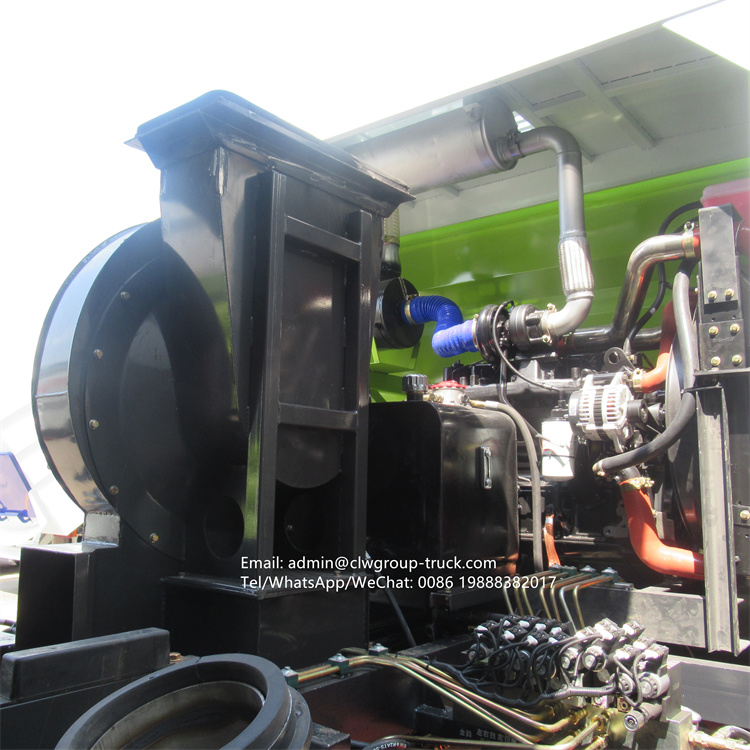

6. The Isuzu road sweeper uses the auxiliary engine to drive the fan to work. There is a vehicle clutch between the auxiliary engine and the fan, which can effectively avoid the impact on the auxiliary engine when the fan starts and stops, and protect the auxiliary engine from damage.
7. The clean water tank and garbage can of Isuzu road sweeper are made of stainless steel. The inside of the box is treated with anti-corrosion and anti-rust treatment, which can prevent the box from rusting and prolong the service life of the box.
8. The volume of the clean water tank of the Isuzu road sweeper is 1.5 cubic meters, and the volume of the garbage can is 4 cubic meters, which can work continuously for more than 4 hours!
9. The core components of Isuzu road sweepers are all imported high-quality parts, which not only have excellent performance, low failure rate, but also have a longer service life!

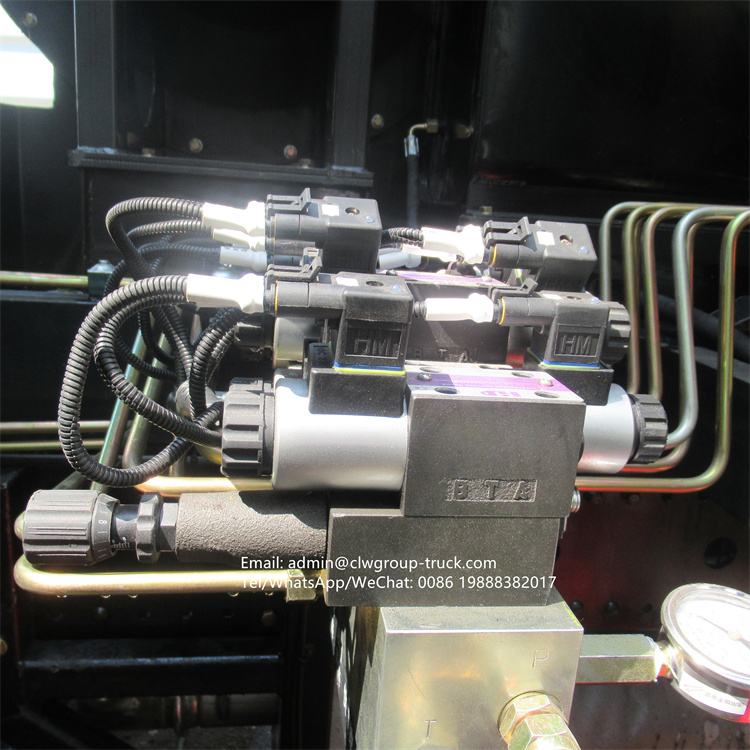

10. The hydraulic pipeline of Isuzu road sweeper adopts German sealing pipeline, which has better sealing effect.
11. The rear of the Isuzu road sweeper is equipped with LED arrow lights, which can effectively warn passing pedestrians and vehicles during work.
12. The Isuzu road sweeper can also be equipped with functions such as front flushing and rear spraying, front and rear spraying, rear manual vacuuming pipe, front snow shovel and other functions according to user needs.
Isuzu 5 ton road sweeper review
Isuzu series products have always been favored by municipal sanitation departments for their excellent performance, stable quality and excellent fuel consumption. Today, the Isuzu road sweeper that I want to introduce to you is the star model in the Isuzu series.
The Isuzu road sweeper is based on the Isuzu 600P series sanitation vehicle special chassis modified by the Sino-Japanese joint venture. It adopts the Isuzu 600P series special cab. It comes standard with the original air conditioner, steering assist, clutch assist, ABS anti-lock braking system, and the driving is more comfortable. . In terms of power, the Isuzu road sweeper adopts an Isuzu 130-horsepower diesel engine. The core technology is derived from Isuzu of Japan. The technology is mature, the quality is stable, and the fuel consumption performance is excellent. The gearbox adopts Isuzu MSB series 5-speed gearbox, with clear gears, smooth shifting and low power loss.
For the special part, the box body of the Isuzu sweeper adopts a split structure, with a front clean water tank, a central connection type cabin cover, and a rear garbage box. The clean water tank makes full use of the vehicle space, and the effective volume reaches 1.5 cubic meters. The water tank has a built-in low water level alarm, which automatically alarms when there is no water to prevent the water pump from being damaged. The inside of the box is treated with anti-corrosion, anti-rust, and anti-virus, and the pump runs more safely. The dustbin adopts a double-layer stainless steel structure with an actual volume of 4 cubic meters. A filter screen is installed inside, which can effectively prevent light objects such as leaves and plastic bags from blocking the air outlet and discharging dust.
The Isuzu road sweeper is equipped with a water level indicator outside the clean water tank. Through the water level display, sanitation workers can instantly grasp the remaining amount of clean water, adjust the work plan in real time, and improve work efficiency. The water tank filling port is located on the right side of the cab. In order to ensure the water quality, it is recommended to take water through the fire hydrant.
In the sweeping structure, the Isuzu sweeper adopts the industry-wide sweeping structure of "center 4 brushes + rear suction cups". The left and right vertical sweeping is a single sweeping disc. Automatic retraction, it will automatically reset after crossing the obstacle, and the left and right vertical sweeps can be controlled independently to achieve a variety of operation modes.
The hydraulic motor is an important part of the road sweeper. The quality and performance of the motor directly affect the cleaning efficiency and effect of the road sweeper. The hydraulic motor of the Isuzu road sweeper adopts the well-known Zhenjiang Dali brand in China, with mature technology, stable rotation speed during operation, and better cleaning effect. There is also a set of high-pressure nozzles on the left and right front sweeping discs to suppress the dust caused by the rotation of the sweeping disc during the cleaning process, and completely eliminate secondary pollution! The nozzles are made of high-quality stainless steel, which is not easy to rust and durable!
The Isuzu road sweeper is equipped with a night work light above the left and right sweeping discs, and the control switch is located in the cab. When the vehicle performs cleaning work at night, turn on this light to observe the cleaning status in real time and improve work efficiency!
The suction nozzle width of the rear suction cup of the Isuzu sweeper reaches 1100mm, the maximum total working width is greater than 2.2 meters, and the three height-adjustable suction nozzle wheels can easily adjust and ensure a reasonable gap between the suction nozzle and the road, so as to achieve better Good suction effect, the suction rate is over 98%!
The Isuzu sweeper adopts the cab intelligent control system, and all operations of the special part can be completed in the cab. The control system adopts German Siemens imported controller, Japan imported control switch, the system is sensitive, stable and durable!
At the rear of the box, the Isuzu sweeper is equipped with a set of LED arrow lights, and the control switch is located in the cab. Turning this light on during work can effectively remind passing pedestrians and vehicles, improve the safety of cleaning work, and improve work efficiency!

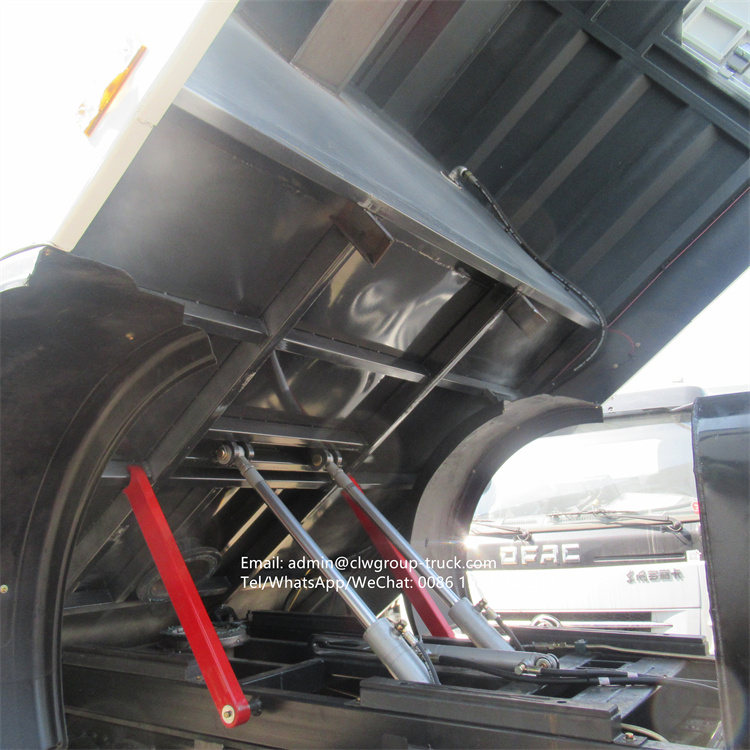

The garbage bin of the Isuzu road sweeper adopts tipping and unloading, double oil cylinder hydraulic lifting, strong support, the tailgate adopts hydraulic opening method, and is directly controlled in the cab. The opening angle is greater than 85 degrees. Trash dumping is easier.
Good appearance, stable quality and excellent performance have made Isuzu a strong brand of road sweepers, and also made this car more popular and popular among customers.
