| Vehicle General | Overall dimension | 9000*2500*3950 mm |
| Gross /Kerb weight | 18000/12900 kgs | |
| Chassis | Brand | Beiben |
| Cabin | Single ,left hand drive or right hand drive | |
| Engine model/power | Weichai engine 290hp WP10.290E32 | |
| Emission standard | Euro III or Euro IV Euro V or VI | |
| Displacement | 10 L | |
| Transmission | 9 forwards 1 reverse | |
| Axle weight | front axle 7 tons rear axle 13 tons | |
| Wheelbase | 4500 4800 mm | |
| Brake system | Air Brake | |

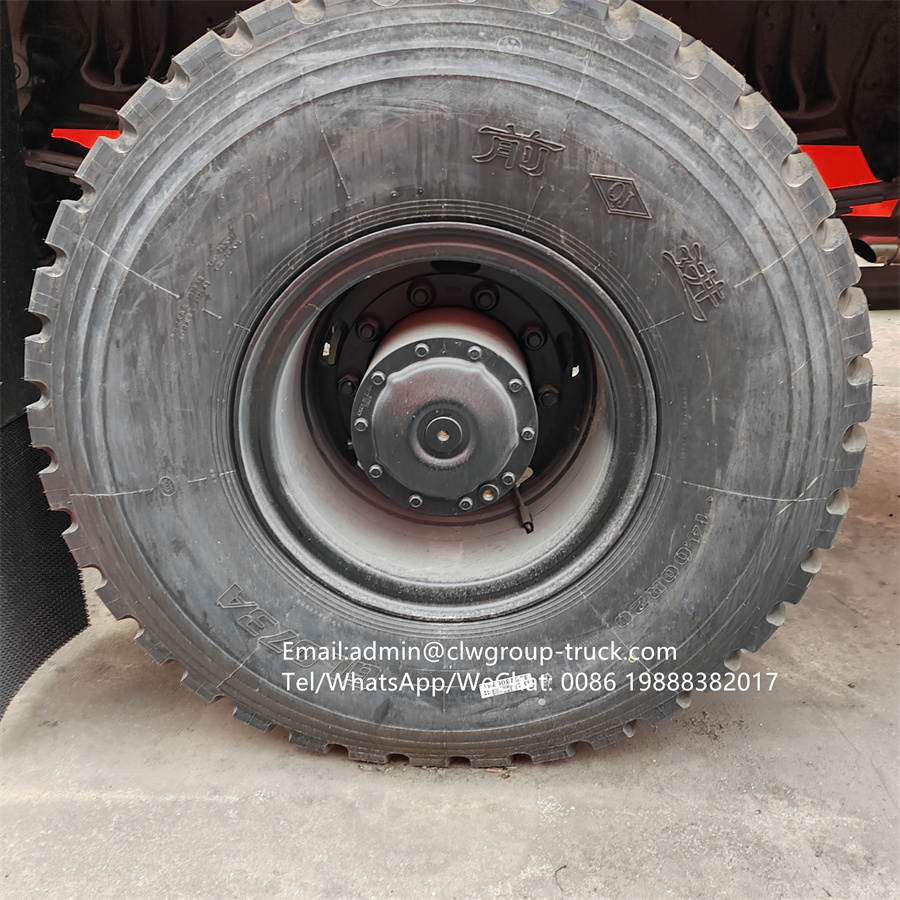

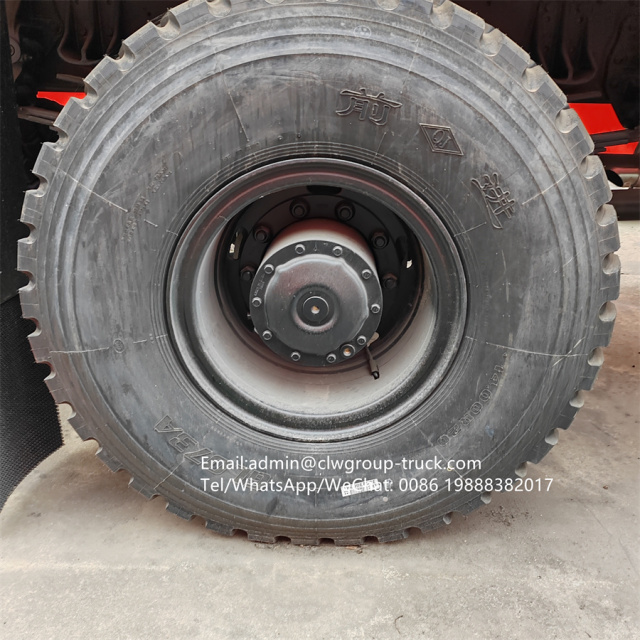

| tire | 14.00R20 6 tires and 1 spare tire | |
| Max speed | 90 km/h | |

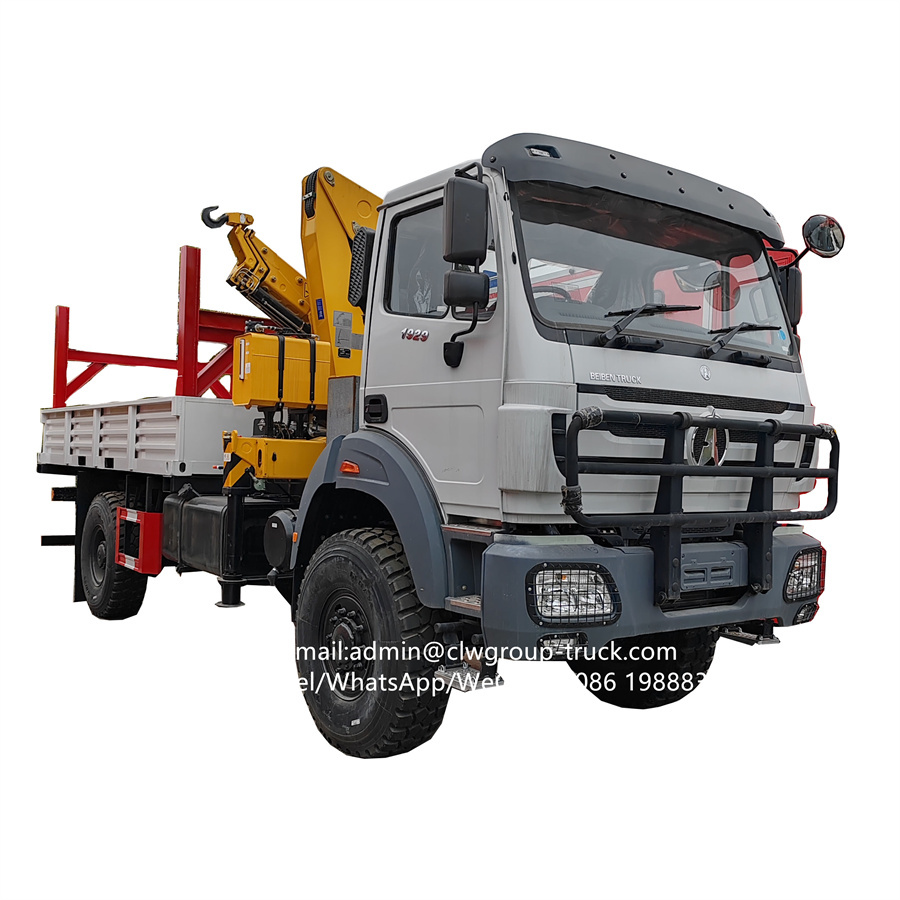

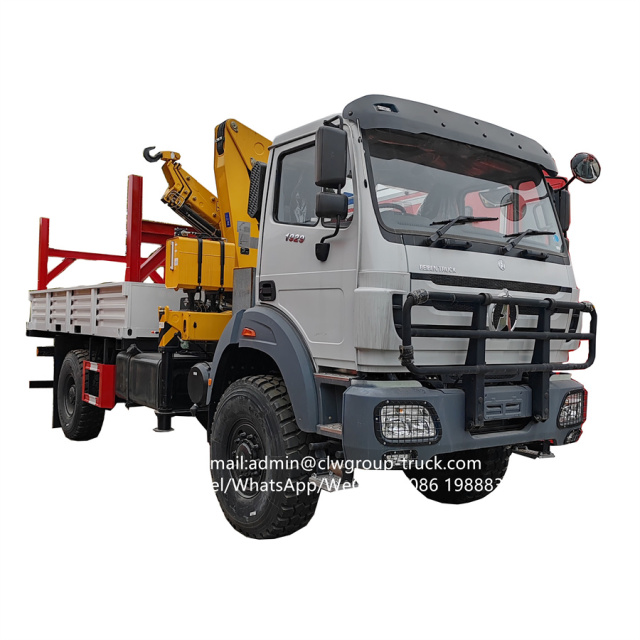

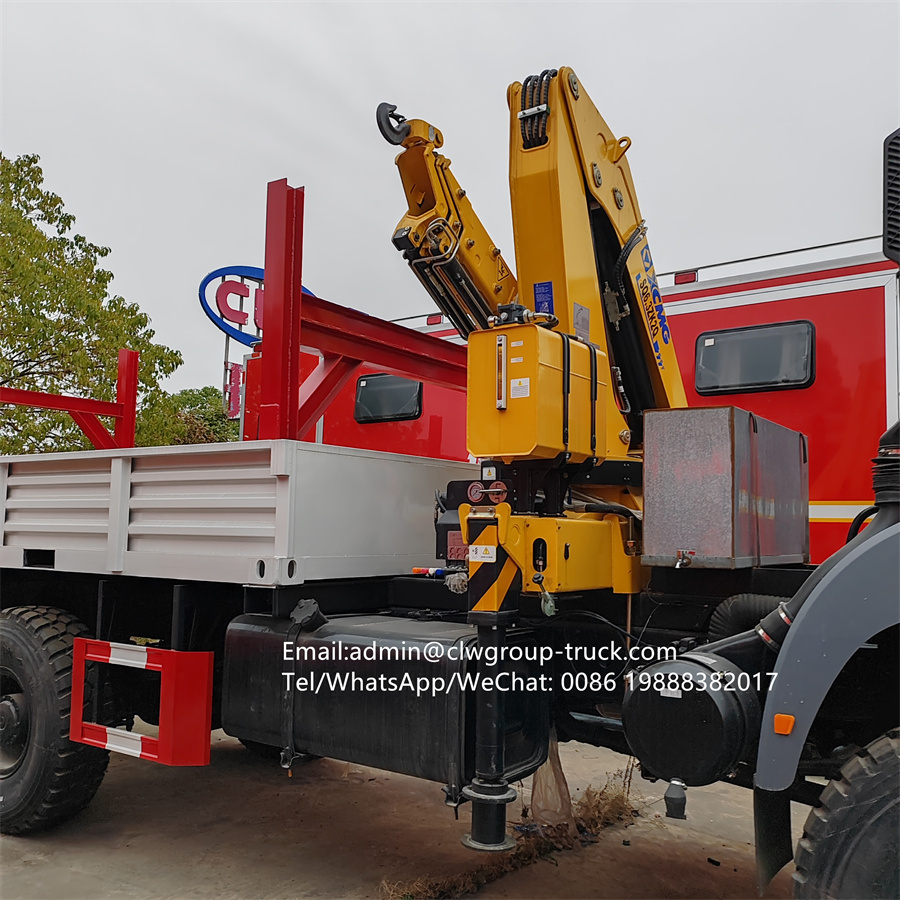

| Crane | Capacity | 6.3tons 8 tons knuckle crane |
| Max lifting height | 10.8m/12.9m | |
| Max working radius | 8.25 m/10 m | |
| Crane weight | 1830/2850kgs | |
| Rotation | 360 degree rotation | |

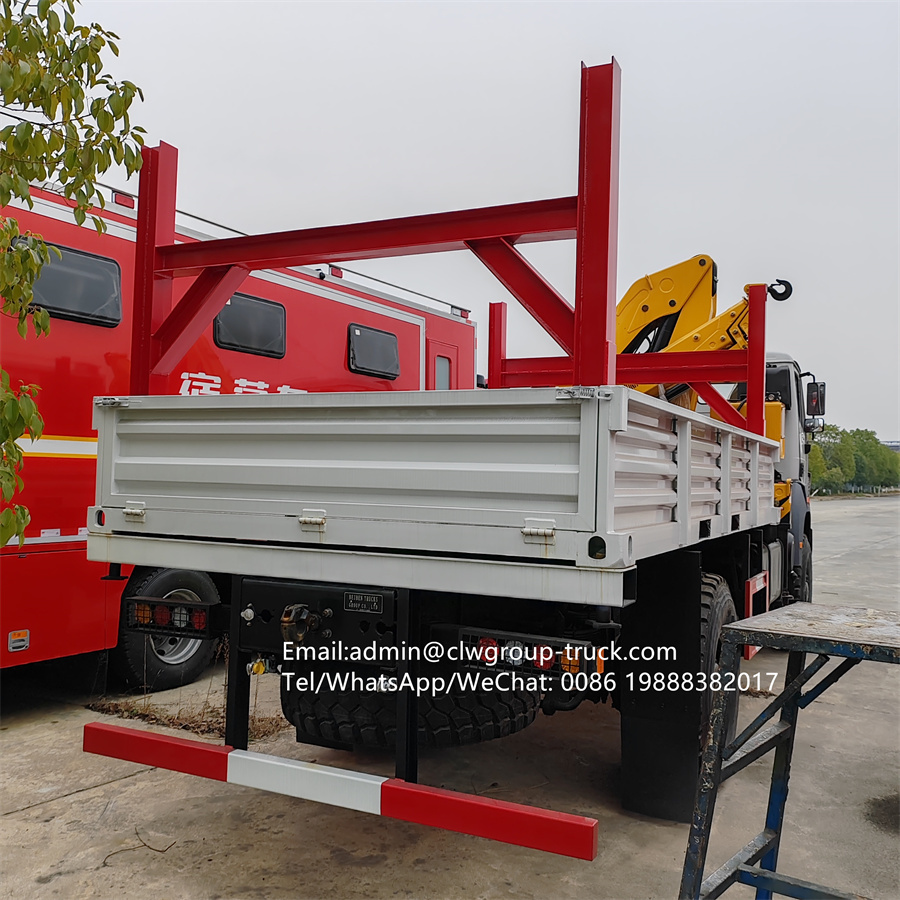

| Lorry box | Dimension | 5600*2400*500 mm |
We are professional manufacturers to do the special vehicles . We are supply all brands of special truck , north benz(beiben) , Faw , Foton , Shaanxi ,Sinotruck , Jac , Jmc , Isuzu ,Dongfeng all available .
The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
We can provide LHD (left hand drive) or RHD (right hand drive) vehicles
1 telescopic boom or knuckle boom all available
2 crane brand :CLW,XCMG ,UNIC, SANY or others
3 Crane capacity : 2 ton ,3.2 ton ,4 ton ,5 ton ,6.3 ton ,7 ton ,8 ton ,10 ton ,12 ton ,14 ton ,16 ton ,20 ton ,25 ton ,30 ton ,40 ton ,60 ton ,70 ton ,80 ton ,100 ton ,120 ton ,150 ton etc
--truck mounted crane(also called Truck with Crane, Truck Crane,boom truck ) is used for lifting different kinds of cargo such as tree, steel pipeline, telegraph pole and stone etc.
According to crane type,there are telescopic/straight arm and knuckle/folding arm truck mounted crane
Truck mounted crane hydraulic control the rear body could be lorry box , tipper , flatbed etc .
We can custom truck as customer's request
If heavy duty truck mounted crane the rear legs equipped to make it more safety when operation
