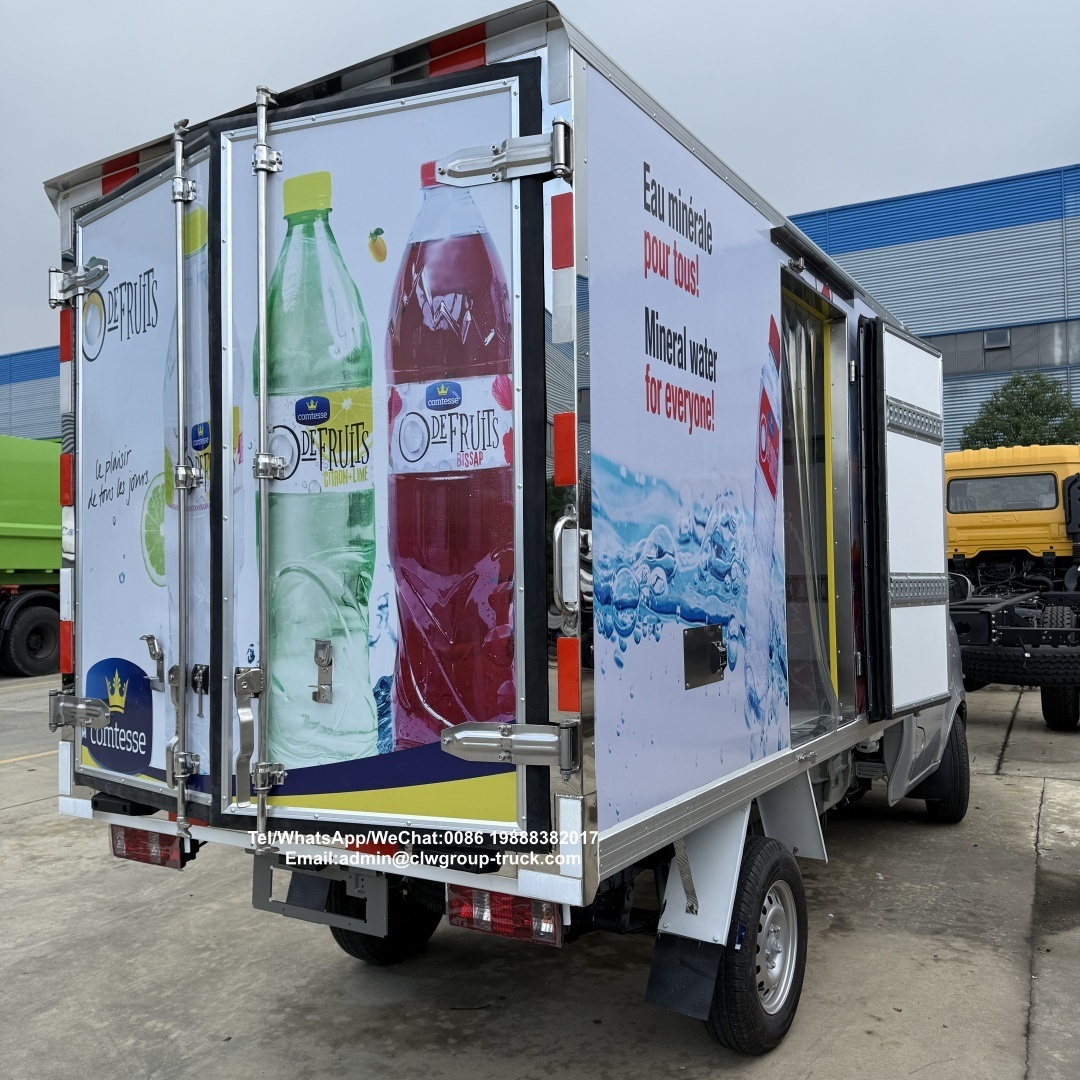

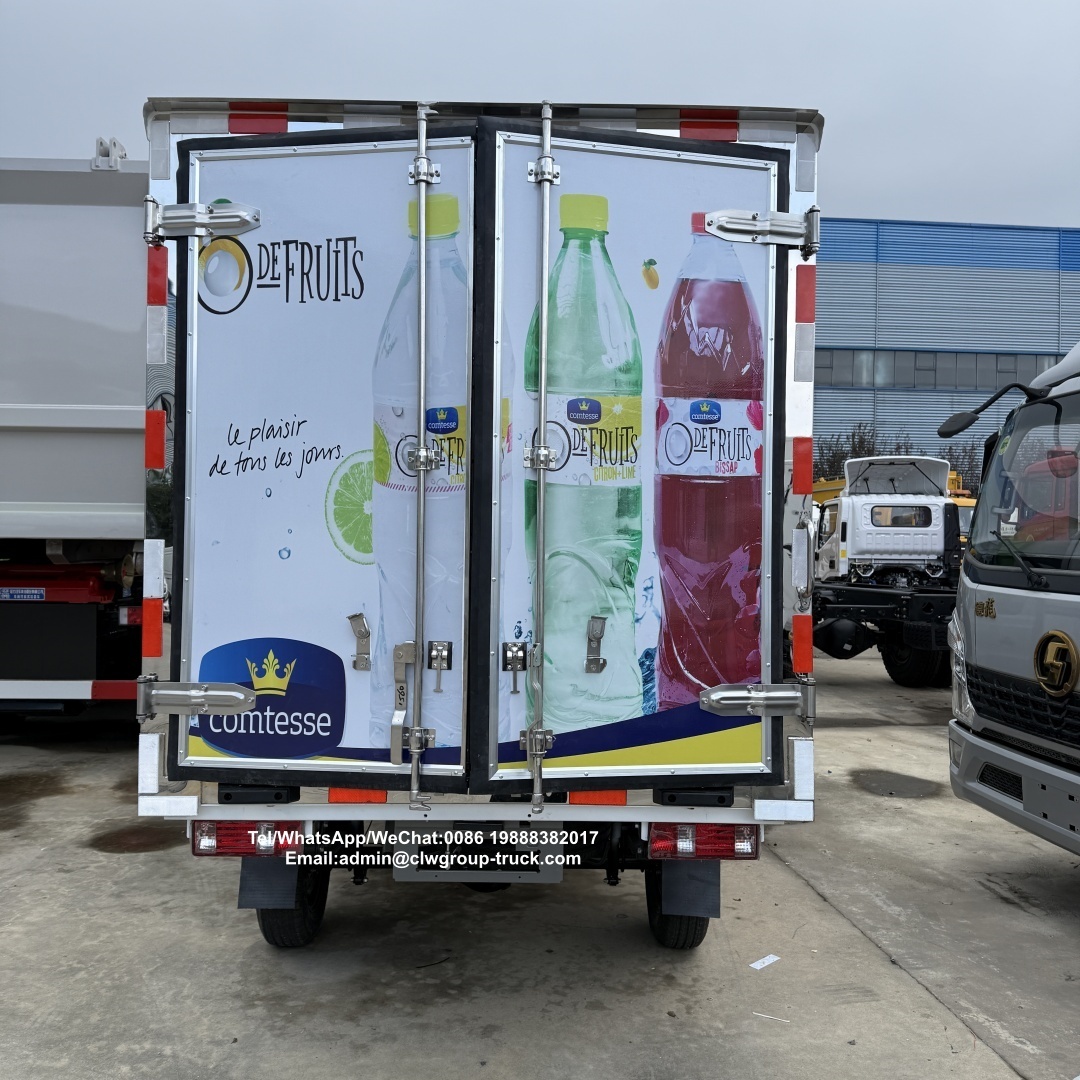

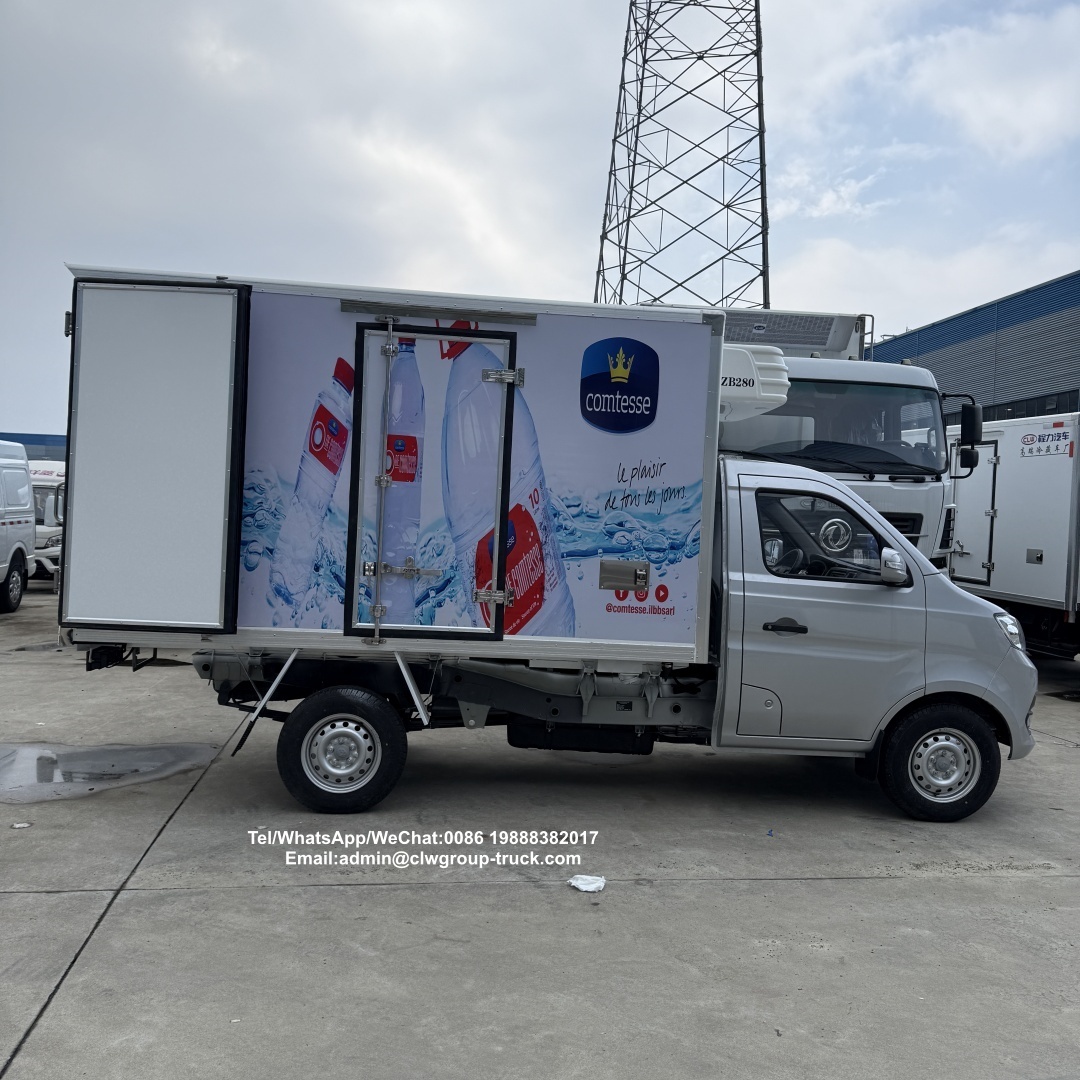

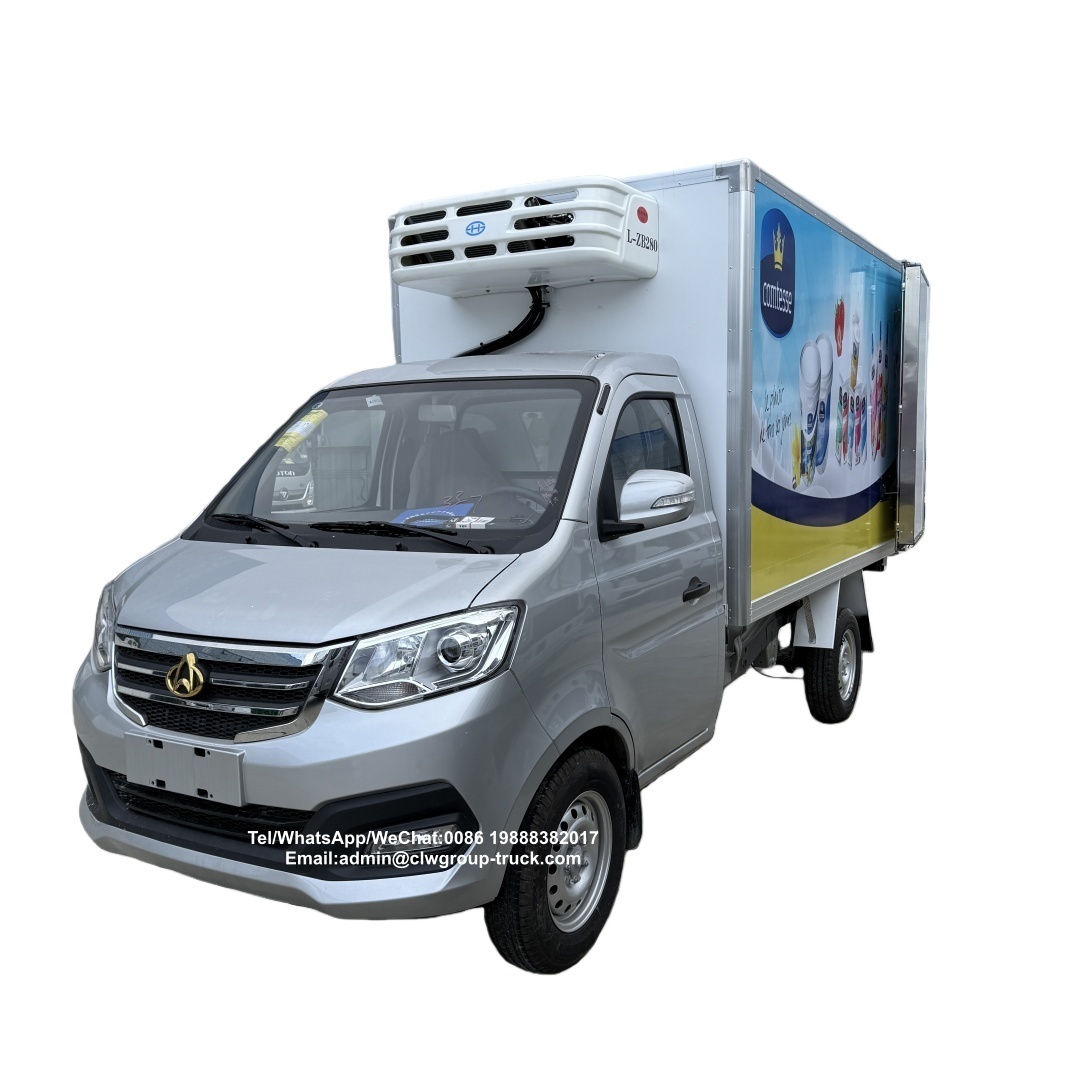

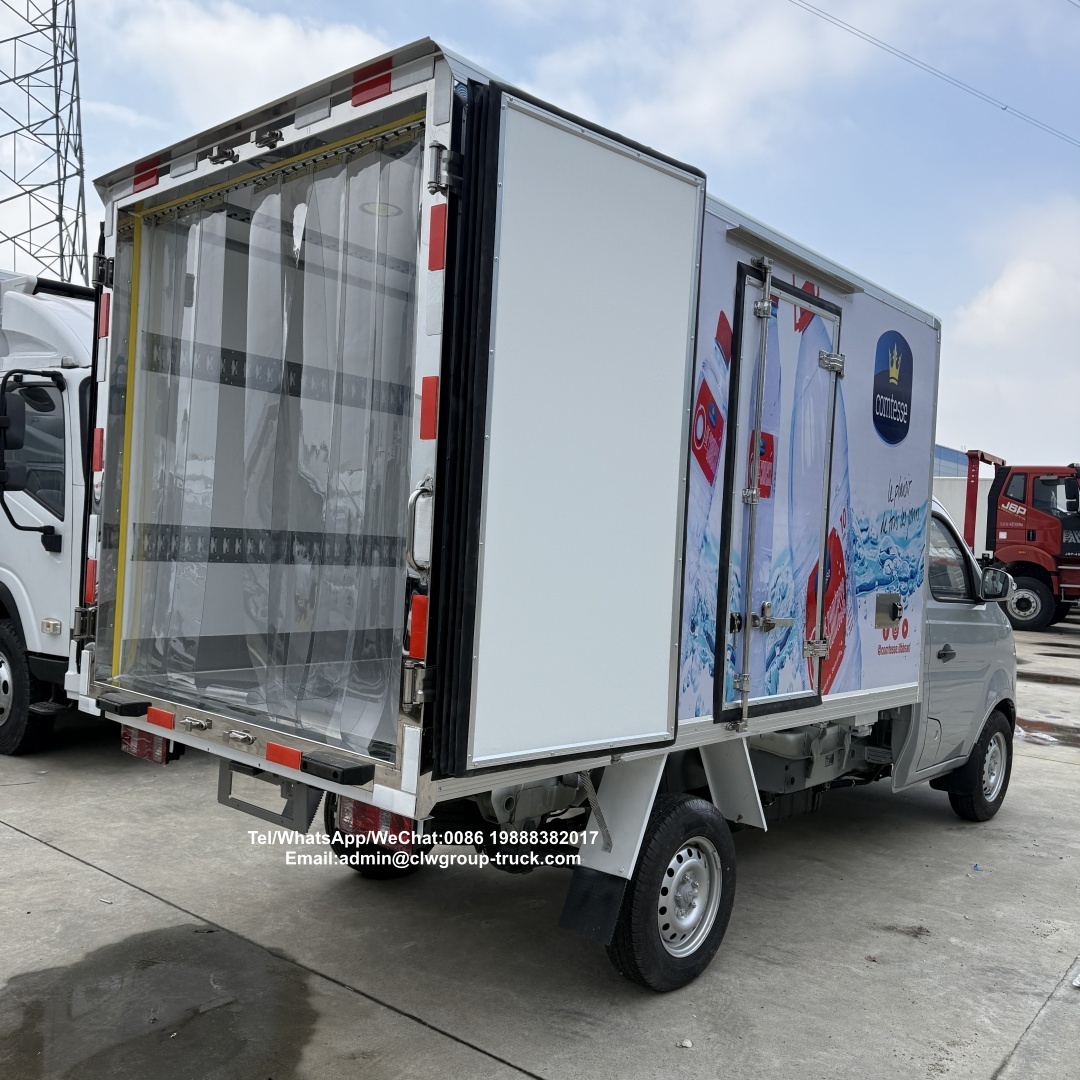

Chang an gasoline 1.5tons mini van Freezer Truck Refrigerated Container Truck

3-meter Changan Gasoline Refrigerated Truck

Overall dimensions: 5130*1650*2580 mm

Cargo box dimensions: 2960*1510*1600 mm

Chassis configuration: 2990 mm wheelbase, five-speed gearbox, Dong'an 1.6L (122 hp) gasoline engine, straight beam frame, 165/R14 8PR tires, original air conditioning, power windows and central locking.

Gross vehicle weight: 3155 kg, Curb weight: 1565 kg, Rated payload: 1460 kg

1.5-ton Gasoline Small Refrigerated Truck [Body Configuration]

(1) The refrigerated truck adopts a steel-wood structure, thermal break insulation technology, galvanized pipe frame, and high-quality fiberglass for the interior and exterior (non-light absorbing, good heat insulation, high hardness, and oxidation resistance). The middle is filled with 8 mm thick XPS extruded polystyrene foam board; high-strength adhesive and positive pressure hot pressing molding (using a fully automatic gluing and pressing machine, gluing and pressing are completed in one go, ensuring even gluing, preventing bulging, and providing fast and efficient panel production).

(2) The floor uses plastic-steel patterned plate, with a 15 cm skirting board on the inside of the cargo box, right-angle edging inside the box, front drainage holes, labyrinth-type rubber sealing strips on the door edges, and a bright stainless steel door frame.

(3) Cargo box accessories: Thickened aluminum alloy edging around the cargo box, stainless steel corner protectors, stainless steel door locks and hinges, stainless steel locking parts and hinges, and energy-saving LED lighting inside the cargo box.

[Refrigeration Unit] Domestic refrigeration unit, -5°C and -15°C options available.

Insulation box structure

     The body of the refrigerated compartment is manufactured by a hydraulic adsorption integrated molding production line, and its thermal insulation performance has reached the national A-level standard. Density polyurethane insulation layer, the bottom of the box is flat nano-fiberglass reinforced plastics, the rear door is fully sealed with FRP double doors, stainless steel rear door hinges and locks, LED lighting and box width indicators are used inside the box.

Refrigerated truck transport category

Refrigerated truck for vaccines and medicines (2~8 degrees)

Vegetables, fruits and milk trucks (0~-5 degrees)

Cold Fresh Meat Transporter (-5℃~-15℃)

Ice Cream Cold Drink Transporter (-10℃~-15℃)

refrigeration unit

Different units  according to the customer's vehicle needs, and the customer can choose -5°C, -10°C, -15°C, -18 to -20°C refrigerated units;

The brands of refrigeration units include domestic Kelly, Jinda K brand, Asiana, Hanxue, Huatai, Songhan, Kaixue, Supercool... and other refrigeration units;

Imported refrigerating units from the United States Carrier and the United States Cold King. Refrigerator units are divided into independent units and split units!

The refrigerated heat preservation vehicle can be equipped with a "cooling + heating" dual-temperature unit (control temperature range is +20°C to -18°C), which can be used in  cold areas!

A refrigerated truck is a closed box type transport vehicle used for transporting frozen or fresh goods, generally consisting of a chassis, a polyurethane insulated compartment, and a refrigeration unit. Commonly used for transporting frozen beef and mutton, fresh seafood frozen products, milk, vegetables, fruits, flowers, vaccines and drugs that require refrigeration treatment, etc

Refrigerated trucks can be classified by brand into Sinotruk howo, Isuzu refrigerated trucks, Dongfeng refrigerated trucks, Foton refrigerated trucks, Jiefang refrigerated trucks, JMC refrigerated trucks, JAC refrigerated trucks, etc. In addition to categorizing the chassis by brand, we can also choose 4X2 3-15 ton refrigerated trucks, 6X4 15-25 ton refrigerated trucks, 8X425-35 ton refrigerated trucks according to tonnage. For refrigerated trucks weighing over 30 tons, we can also customize refrigerated semi trailers to meet customers' different volume requirements.

An important component of a refrigerated truck is the refrigeration unit. Generally, in order to meet the customer's preservation needs, a refrigerated truck with a temperature of minus 5 degrees Celsius can be selected. For freezing needs, we recommend a refrigerated truck with a temperature of minus 15 degrees Celsius. Most commonly used are domestic refrigerated units, which have been researched and updated for many years and are very safe and reliable, such as Hanxue, Kaixue, Kelly, Bingyang, Bingsen, Hana, Songhan, Kailing, Yide, etc. Alternatively, units with a temperature of minus 18 degrees Celsius or minus 30 degrees Celsius can be installed according to customer requirements. Export brand units such as Lengwang, Carrier, K-Pai, Hana, etc. are more suitable for countries with high refrigeration requirements. The advantage of imported refrigerated truck units is the fully automated microcomputer system control, which has the characteristics of low energy consumption, energy saving, and low noise. It uses environmentally friendly, energy-saving, and efficient 404A refrigerant, and the unit shell is made of non fading ABS material and water foil material. The new body has a larger air flow and faster heat dissipation. The unit is also divided into non independent units and independent units. The difference is that an independent unit generates electricity entirely through another unit to maintain operation, while a non independent unit drives the cooling work of the unit entirely through the engine operation of the entire vehicle. Generally, different power refrigeration units are selected based on the volume of the refrigerated compartment and the temperature requirements of the transported goods.

The box structure of the refrigerated truck produced by Chengli Special Purpose Vehicle Co., Ltd.: The insulation box body is designed and manufactured using wooden technology, with an overall plate structure. It is made of non-toxic chemical raw materials from well-known international and domestic brands, polystyrene insulation board, thickened 3mm fiberglass, and formed into a high polymer composite material box body through a special mold pressing, heating, and vacuuming. The box body is made of high-strength imported adhesive overlap, and is a truly fully enclosed polyurethane non-metallic insulation box body. The outer frame is made of 304 stainless steel, with customized thickened aluminum profile edging and 207 stainless steel door lock.

Characteristics of the refrigerated truck body of Chengli Special Purpose Vehicle Co., Ltd

1. Good insulation and air tightness. Adopting the wet wet board method, it is formed by high-temperature pressure curing with a special mold. Four layers of sealing strips are designed between the door panel and the door frame, and the overall frame mechanism is formed by a maze like arrangement. We also use bridge insulation technology, and the insulation effect of the box can be frozen for 8-12 hours without turning on the refrigeration unit
2. Lightweight and not overweight. The overall load-bearing structure has no other metal structural components except for the metal parts used for process connections, which ensures the strength of the box and reduces weight
3. Detailed design of the box body. The door with a sloping edge makes it easier to open, and the secondary beam is folded in one go and locked with a pressure plate. The side guard and rear bumper are molded in one go and locked with screws.

A refrigerated truck consists of the walking part of a dedicated vehicle chassis, as well as insulation and thermal insulation compartment (usually made of polyurethane material, fiberglass, color steel plate, stainless steel, etc.), refrigeration unit, temperature recorder inside the compartment, and other components. For vehicles with special requirements, such as meat hook trucks, optional accessories such as meat hooks, cargo blocking troughs, aluminum alloy guide rails, ventilation troughs, etc. can be added

Chengli Special Purpose Vehicle Co., Ltd. is manufactured using a hydraulic adsorption integrated molding production line, with insulation performance meeting the national A-level standard for vehicle exterior dimensions. The size of the car body is:, and the interior and exterior fabrics of the car body are made of high-quality domestic fiberglass (non absorbing, good insulation, strong hardness, anti-oxidation). The thickness of the car body is 8cm, and the inner lining skeleton is made of rust proof treated high-quality light steel profiles from Wuhan Iron and Steel. The insulation material is filled with polyurethane foam without gaps. The bottom of the car body is made of aluminum patterned plate or selected flat nano fiberglass. The car body is wrapped with galvanized stainless steel corners and thickened aluminum alloy edges. The rear door frame is made of stainless steel, and the thickened stainless steel rear door hinges and locks are used. The interior of the car body is equipped with LED lighting and width lights.

Optional configuration for refrigerated trucks

1. Detachable rail meat hook refrigerated truck: transporting white meat can be suspended for transportation, and the detachable rail is mainly used to avoid the problem of overweight and license plate registration in meat hook refrigerated trucks;
2. Vaccine refrigerated truck: According to the national GSP certification requirements, it is necessary to install five sided ventilation ducts, temperature and humidity recorders with printing devices, positioning systems, dual temperature units, etc;
3. Fresh and live fish refrigerated truck: equipped with water tank, top spray system, oxygenation system, mainly used for the transportation of aquatic products and seafood;
4. Bottom ventilation groove: increase the circulation of cold air inside the compartment to achieve rapid cooling;
5. Backup power system: When the vehicle engine stops working, an external power source can be used to achieve cooling operation of the refrigeration unit;

Refrigerated truck product details:

Technology: sandwich process using vacuum negative pressure technology into one board, the box board is formed by galvanized pipe skeleton and environmentally friendly waterproof wood, filled with 80mm thick polyurethane thermal insulation material in the middle ,3mm thickness glass steel inside and outside and hot pressured by adding high strength adhesive

Refrigerated truck box temperature +30 degree to -20degree, box capacity 2m3 to 60m3

A refrigerated truck for frozen meat and fish consist of meat hook guide rail, stainless steel switch, side wall vent-slot, floor vent slot, rubber anti-collision block, stainless steel top light, stainless steel fixed cargo strip, stainless steel cargo anti-collision lever

A refrigerated truck is a vehicle that is used to transport temperature sensitive cargo. they are insulated and fitted with refrigeration gear, the main purpose is to maintain the desired temperature for products such as meat, dairy and produce. meat can be transported without spoilage because refrigerated trucks can maintain a constant temperature,

Refrigerated truck have temperature control that monitor and adjust the temperature inside the truck to stay within the required limits. This system consists of sensors, controllers and alarm that indicate any temperature fluctuations. insulation is very important for refrigerated trucks. Proper insulation is required to minimize the transfer of heat inside and outside of truck, Maintaining a stable temperature. every refrigerated truck has a refrigeration unit cools the cargo space. temperature mapping is the process of measuring the monitoring temperature distribution within a refrigerated truck to ensure temperature uniformity throughout the cargo space. Door seals and gaskets play a crucial role in maintaining the temperature inside the refrigerated truck by preventing air leaks
