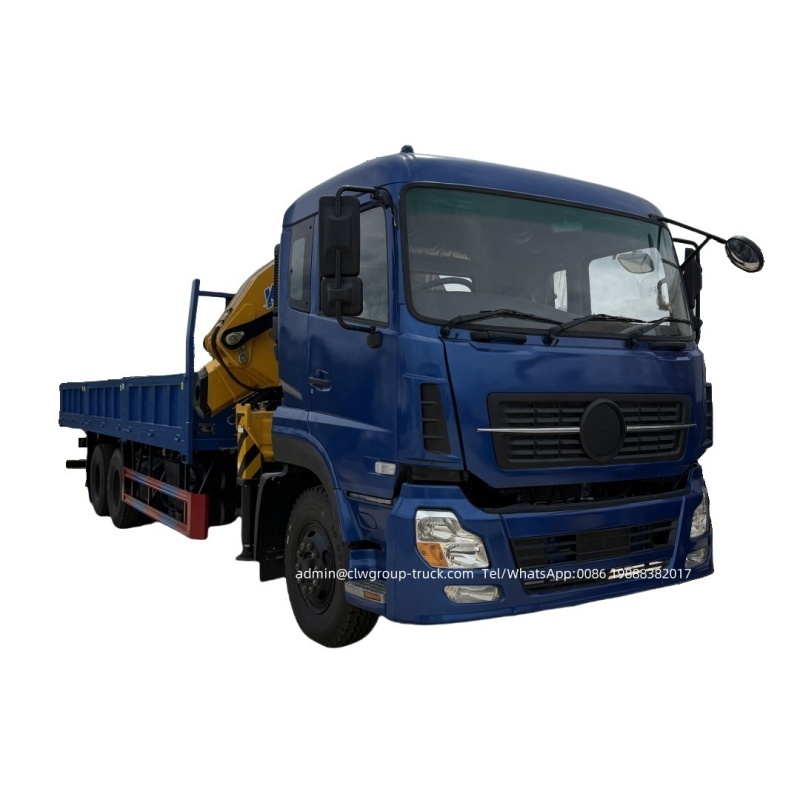

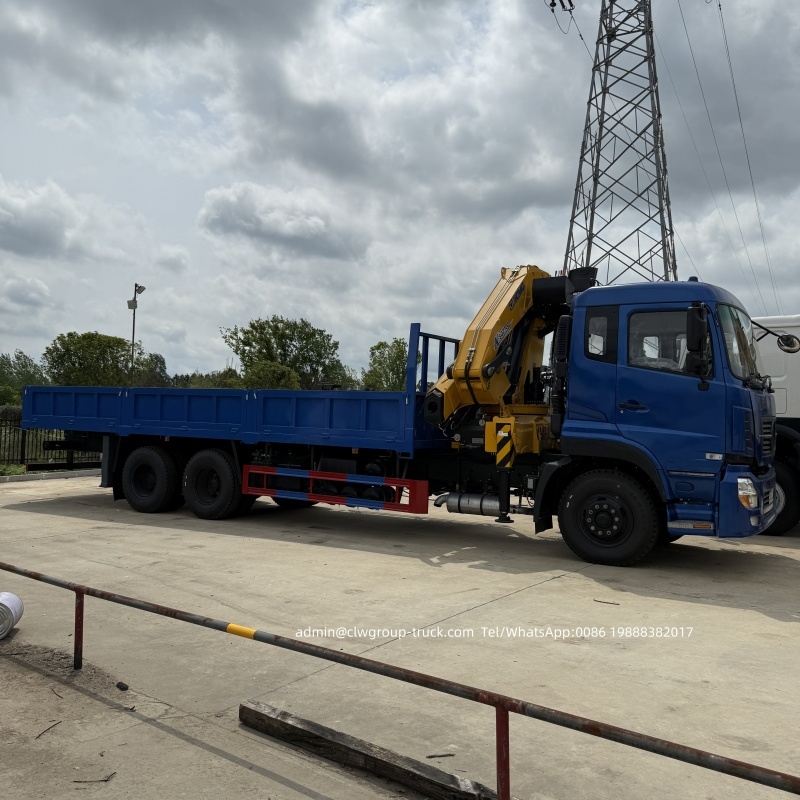

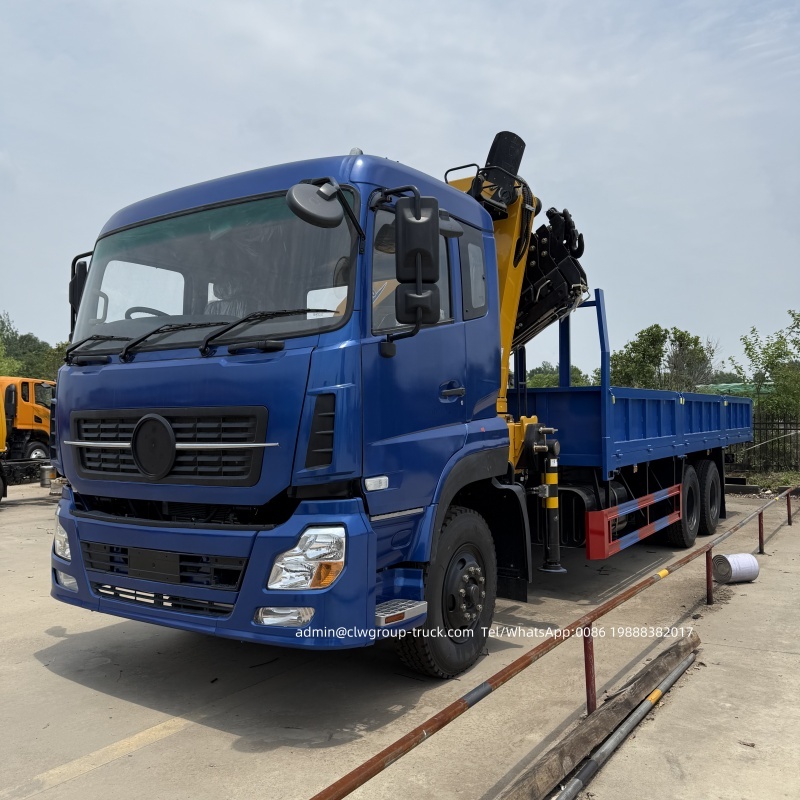

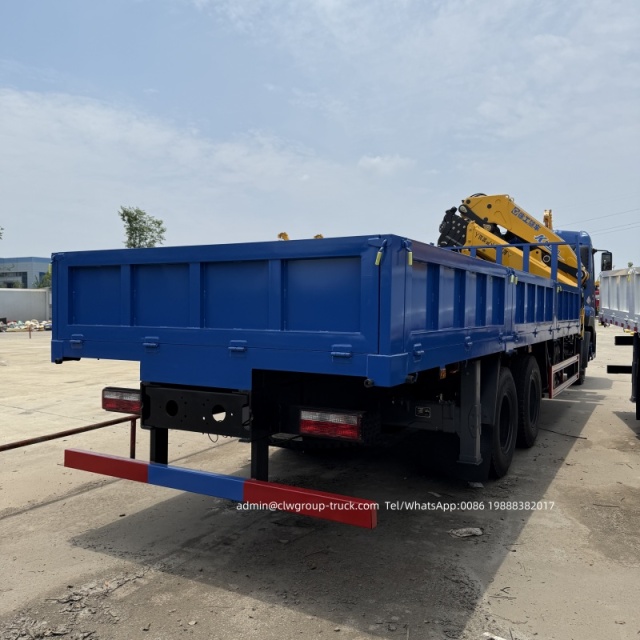

CLW 6x4 knuckle crane truck mounted 10tons 12tons

We are professional manufacturers to do the special vehicles . We are supply all brands of special truck , north benz(beiben) , Faw , Foton , Shaanxi ,Sinotruck , Jac , Jmc , Isuzu ,Dongfeng all available .

The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4

We can provide LHD (left hand drive) or RHD (right hand drive) vehicles

1 telescopic boom or knuckle boom all available

2 crane brand :CLW,XCMG ,UNIC, SANY or others

3 Crane capacity : 2 ton ,3.2 ton ,4 ton ,5 ton ,6.3 ton ,7 ton ,8 ton ,10 ton ,12 ton ,14 ton ,16 ton ,20 ton ,25 ton ,30 ton ,40 ton ,60 ton ,70 ton ,80 ton ,100 ton ,120 ton ,150 ton etc

A truck mounted crane transport vehicle is a type of vehicle mounted crane, generally composed of a chassis, a crane, and a cargo box. During operation, the chassis takes power from the engine and drives the hydraulic pump through the power take-off device, converting the engine's power into hydraulic energy to drive hydraulic cylinders, motors, and other components to complete various functions of the crane.
How to choose the chassis for a truck mounted crane ? Vehicle mounted cranes can be divided into telescopic boom cranes and knuckle boom truck cranes, and different tonnage cranes can be selected according to customers' different requirements. When choosing a crane, we first need to clarify the brand of the chassis. The chassis brand of the accompanying crane transport vehicle can generally choose Dongfeng, Foton, Isuzu, Sinotruk, Shacman, Beiben, etc., and then determine the load capacity of the chassis based on the tonnage of the crane. In general, a 4X2 chassis can accommodate a 3-10 ton crane, a 6X4 chassis can accommodate a 12-14 ton crane, and an 8X4 chassis can accommodate a 14-25 ton crane. We can choose XCMG brand, Unic brand, Chengli brand, etc. according to different brands of cranes. We can make cargo containers with crane according to customer requirements, including large cargo containers, self dumping cargo containers, flat or ladder flat containers, etc. The material can be selected from stainless steel cargo containers or aluminum alloy cargo containers. When installing a crane, we usually use a dedicated chassis for the truck mounted crane. If it is a regular cargo chassis, the main beam needs to be thickened and reinforced.

What are the tonnage options for cranes? The lifting weight of the straight arm truck can be divided into 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 7 tons, 8 tons, 10 tons, 12 tons, 14 tons, and 16 tons. The lifting weight of the articulated crane can be divided into 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 14 tons, 16 tons, 20 tons, and 25 tons.
Generally speaking, the price of knuckle boom crane is higher than that of telescopic boom crane, but it has a smaller working radius and is more suitable for vehicles with composite functions. It has a higher lifting height and a smaller working radius

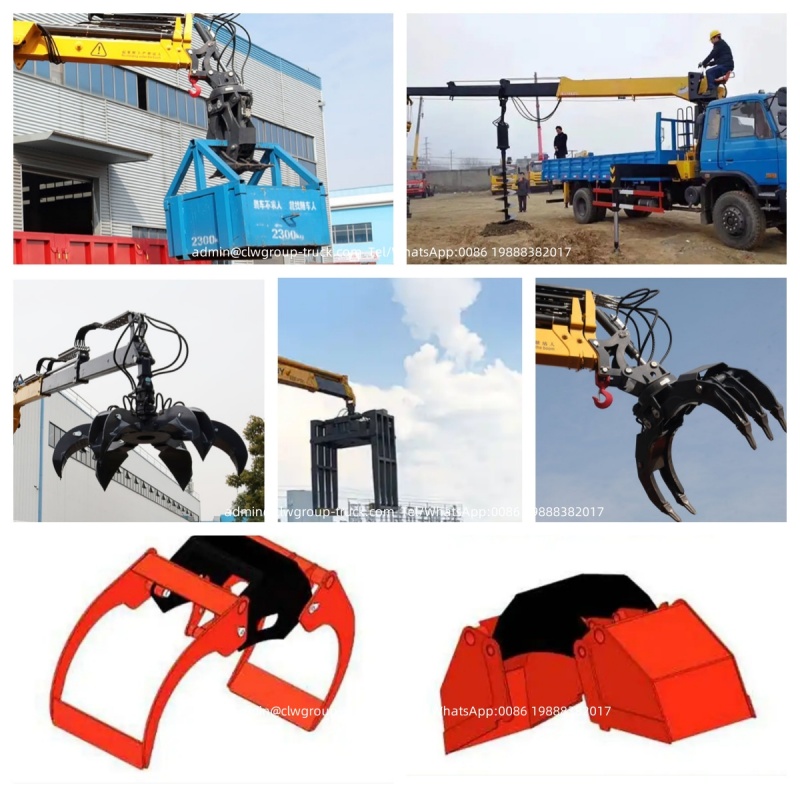

What accessories can be optionally installed on the crane? The truck mounted crane can be equipped with some fixtures and accessories to meet the needs of different working environments. It can be equipped with brick clamps, wood grabbing tools, drill rods, remote controls, single person hanging baskets, or double person hanging baskets. Add single-sided seats, double-sided seats, square seats, fixed rear legs, single chamber rear legs, double chamber rear legs, torque limiters, etc. The accompanying crane has the function of being versatile. Due to the flexible mechanism of the articulated arm accompanying crane, users should generally choose articulated arm products if they need to install auxiliary equipment on the accompanying crane.

How can customers choose an ideal truck mounted crane? Firstly, the actual operating conditions should be considered, taking into account the weight of the lifted goods, the working range, and the lifting height of the goods comprehensively. For example, the maximum lifting capacity of the SQ16 truck mounted crane is 16 tons, which depends on how many meters and how many tons it can lift. The lifting capacity of the crane is closely related to the length of the boom. The longer the boom with the same lifting capacity extends, the lower the lifting capacity. Therefore, when the working range is longer and there is a requirement for lifting height, the customer needs to inform the technical team of how many meters and how many tons they need to lift before deciding which crane is suitable. Secondly, the maximum working capacity of the crane should be achieved at 70% -90% of the maximum load, and the rated lifting capacity of the crane should be slightly higher than the actual capacity.

The crane produced by Chengli Special Purpose Vehicle Co., Ltd. is exported to multiple countries, especially some developing countries in Central Asia, Africa, and Central America. After the customer's deposit is received, the salesperson begins to purchase the chassis, then strengthens the main beam and installs the crane according to the customer's requirements. Before leaving the factory, they provide crane testing videos and usage videos, as well as instructions for installation and use. Spray paint and free LOGO according to customer requirements. In addition to exporting the entire vehicle, we can also customize cranes and cargo boxes according to customer chassis requirements.
Truck mounted crane is one of the types of construction vehicles, which is a mechanical equipment that can perform multiple cycles, repeated intermittent movements, and integrates lifting and transportation functions.
The characteristic of the operation of the crane is to perform cyclic motion, that is, the corresponding mechanisms for picking up, transporting, unloading and other actions alternate in one working cycle. We can see crane trucks everywhere in ports, industrial parks, green planting, and power construction environments. Not only is it convenient to use, but it is also suitable for lifting large heavy objects, making transportation very convenient and practical.
Purpose of truck mounted crane
Applied to lifting and handling equipment: Handling companies will choose to purchase half folding arm truck mounted cranes and truck mounted cranes, which can be used for lifting Strong strength, the folding arm crane can play its unique advantages in environments with small space and low working height, making it very suitable for equipment lifting and handling activities in low rise factories.
Applied to landscape beautification: This type of customer usually chooses a straight arm mounted crane, which can leverage its advantages in outdoor greening assistance work. For activities with small tonnage and long extension distance, a straight arm mounted crane is very suitable.
Applied to docks and ports: The high mobility of the on-board crane has unique advantages in working in busy places such as docks and ports.
Applied to farm forests: There are many types of truck mounted crane grabs, and we can install various types of truck mounted crane grabs, such as various grabs. Truck mounted crane grabs can be perfectly used for tree grabbing work.

1, ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is the biggest special purpose vehicle manufacturer in China.also we are famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW.Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.
2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
 We have been in this field for over 10 years, we have more than 300 types  of special trucks, our workers are more than 1000 and factory is more than 690,000m2 .We have successfully exported our trucks to Ghana, Sudan, Nigeria, Tajikistan, Namibia, Burma, Korea, Iran, Iraq, Vietnam etc. many Africa & Asia countries more than 4000 trucks every year.
3.Quality control:our company truck pass ISO,3C,BV certification.

our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
4.Design capacity :Our factory have 30 technician and designer.
5. Exhibition:our factory attend the Guangzhou Trade Fair each year.
6. Export market: Africa,Asia,South America,Pacific and so on.
7.Our company cooperate with famous chasis manufacturers,include all chinese brand like FOTON , DONGFENG , SHACMAN , HOWO , FAW , GENLYON , NORTHBENZ , CAMC , JAC , JMC .
