DFAC 5tons small liquid waste toilet water fecal suction truck

Septic tank truck (also called liquid waste disposal truck , sewage sucking truck , liquid waste sucking truck , sewage suction tank truck , fecal suction car , septic tank vacuum truck , septic removal truck , liquid sewage truck , septic tanker , septic tank pumping , septic tank cleaner , sewage removal , vacuum truck , septic tank ,sewage pump , fecal sludge truck ) is used to collect , transport and discharge dirty water , sludge , septic , etc . such liquid stuff , It is suitable for cleaning the septic tank , cesspit , cesspool , gully , etc . It is widely used in environment and sanitation field .

Fecal suction truck  is used to suck feces, sewage, sludge slurry and liquid mixed with small suspended debris. It has the characteristics of high suction efficiency, self-priming, self-draining and direct irrigation. It is widely used in large and medium-sized , Small town sanitation, municipal administration, agriculture, chemical industry, factories and mines, property communities, the vacuum suction pump can be self-priming and self-discharging.

Body configuration: The special part consists of power take-off, transmission shaft, vacuum suction pump, water-gas separator, oil-gas separator, multi-way reversing valve, boom, manure tank, manure discharge valve, manure suction gun, clean water tank, It is composed of a dung window, a vacuum pressure gauge, and a pipe network system.

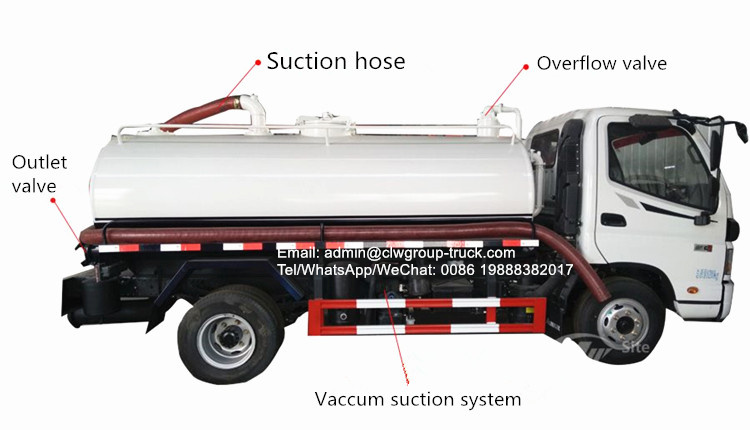

Fecal suction truck structure: It consists of a truck chassis, a fecal tank body, and suction device.

 Fecal vacuum truck configuration: with a fecal window, a self-flow port, hand washing device, a 6-meter suction pipe, with a boom seat, vacuum pump, with water and oil separator, anti-overflow valve.

(1)Septic tank truck (also called liquid waste disposal truck ,sewage sucking truck ,liquid waste sucking truck ,sewage suction tank truck ,fecal suction car ,septic tanker vacuum truck ,septic removal truck ,liquid sewage truck ,septic tanker ,septic tank pumping ,septic tank cleaner ,sewage removal ,vacuum truck ,septic tanker ,sewage pump ,fecal sludge truck ) is used to colloet ,transport and discharge dirty water ,sludge ,septic ,etc. Such liquid stuff .It is suitable for cleaning the septic tank ,cesspool ,guily ,etc. It is widely used in environment and sanitation filed .

(2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

(3)vacuum tank capacity ranges from 3,000 Liters to 22,000 liters

Main features of our factory
1. We are professional manufacturers for the special vehicles. We can supply all brands of special trucks, such as north Benz(beiben), Faw, Foton, Shaanxi, Sinotruck, JAC, Jmc, Dongfeng.
2. The drive type could be 4X2, 4X4, 6X2, 6X4, 6X6, 8X4
3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
4. Our products are Widely used in chemical enterprise, oil depot, storehouse, shop and terminal market.

Product advantage:
1. Factory export department directly sale
2. Export experience more than 12 years
3. Cheap / competitive price, high quality, you get more than your paid
4. With CCC, ISO, BV approved
5. The heart of the service, rational design

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

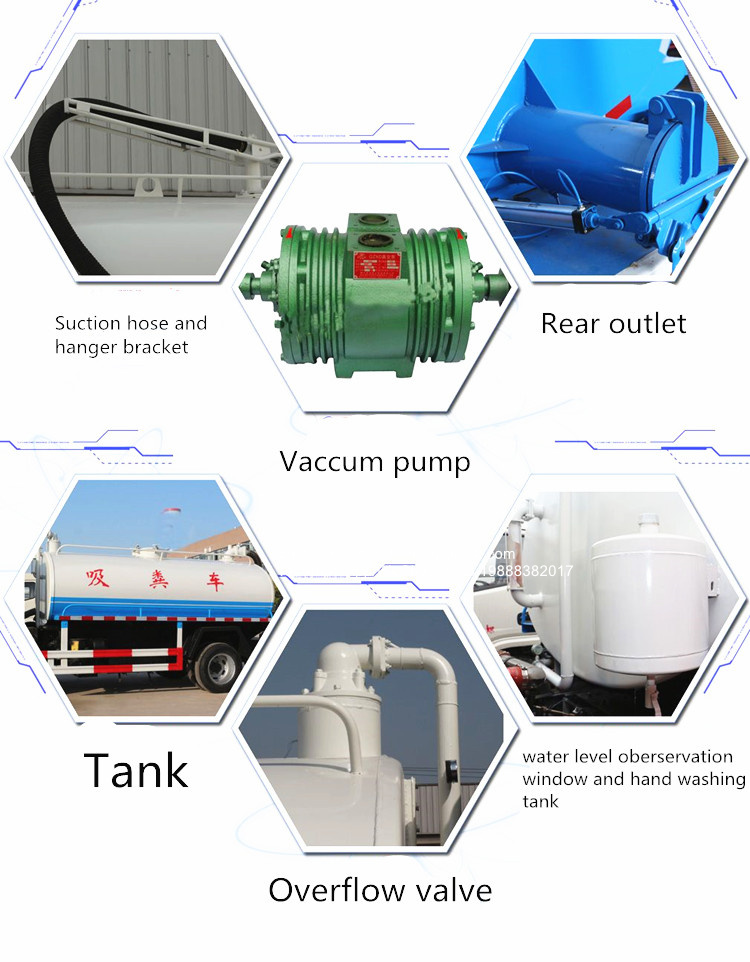

Performance and characteristics of fecal suction truck
1. Adopt Dongfeng Class II chassis s, 3308 wheelbase, Yunnei 126 horsepower, power 93KW, 7.00 steel tire. Emissions meet the National VI standard, the vehicle has a beautiful appearance, comfortable driving, reliable quality, convenient and fast after-sales, and a variety of engines are available.
2. Tank body: volume 5 cubic meters, the tank body is made of national standard Q235 carbon steel 5mm thick, and the tail is 220 sewage outlet.
3. Sewage suction part: Install Yifeng 5T vacuum pump with oil-water separator.
4. Vacuum pump: The pump is the core part of vacuum suction and discharge in use. It draws the air in the sealed tank to a certain vacuum, forms a negative pressure in the tank, and automatically sucks various liquids such as manure, sewage, and oil below or above the ground into the tank. In addition, the sewage in the tank can be discharged by pressurizing the tank body.
5. Water-gas separator: The water-gas separator is an accessory of the oil pump vacuum pump, which separates water and gas to prevent gas from entering the pump and damaging the vacuum pump.
6. Oil-gas separator: The oil-gas separator is an accessory of the oil pump, used for vacuum pump lubrication, to separate the generated oil and gas, and the separated oil can be reused.
7. Sewage visual pipe: used to detect the sewage level in the tank.
8. Anti-overflow valve: installed on the top of the tank to prevent sewage from flowing into the vacuum pipeline and vacuum pump when the sewage tank is full.
9. Tank mouth: also known as manhole cover, you can enter the tank through the manhole cover to inspect and repair the interior. When entering the interior, make sure to operate under no pressure. The sediment in the tank is generally cleaned and dust suppressed every six months.
10.360° boom seat: The boom seat is located at the top of the container, connected to the manure suction hose in front and the siphon in the back. It can rotate 360°. The boom seat bears the labor intensity of manure suction pipe. There are cleaning holes on the outer diameter of the bending. When the manure suction hose or siphon is blocked, the cleaning hole cover can be opened to clear the blockage.
11. An 8-meter sewage suction pipe is standard.
12. Vehicle procedures: vehicle certificate, chassis certificate, environmental protection list, vehicle registration invoice, vehicle tools, vehicle warranty manual.
