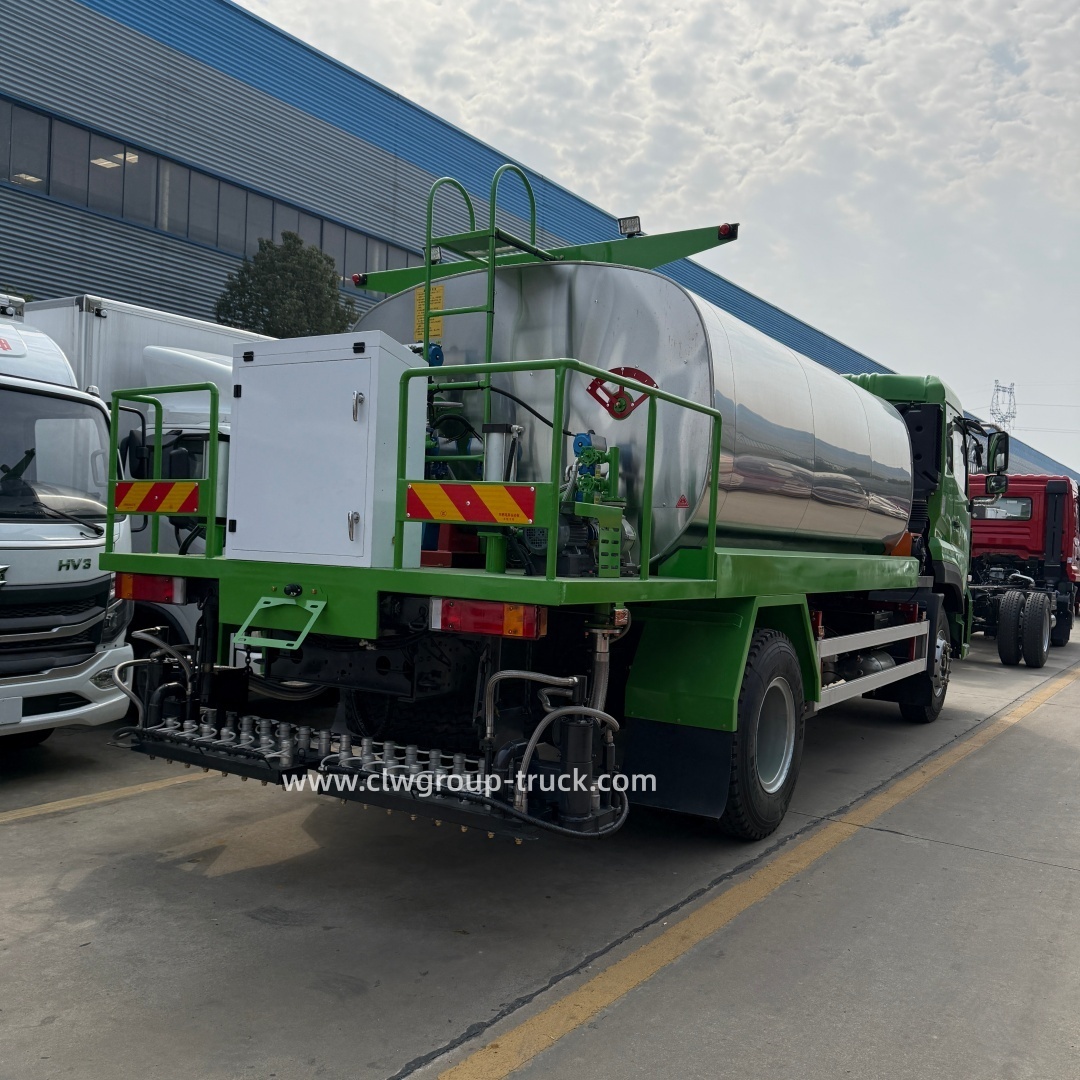

Dongfeng 10tons Construction Sprayer Truck Bitumen Asphalt Distributor Spraying Truck

Chengli Special Purpose Vehicle Co., Ltd. is a manufacturer specializing in the production of asphalt distribution trucks.

The capacity of asphalt distribution trucks is 3-4 tons, 5 tons, 7-8 tons, 10-12 tons, 14-16 tons

The spraying medium of asphalt distribution trucks includes emulsified asphalt, hot asphalt, modified asphalt, etc

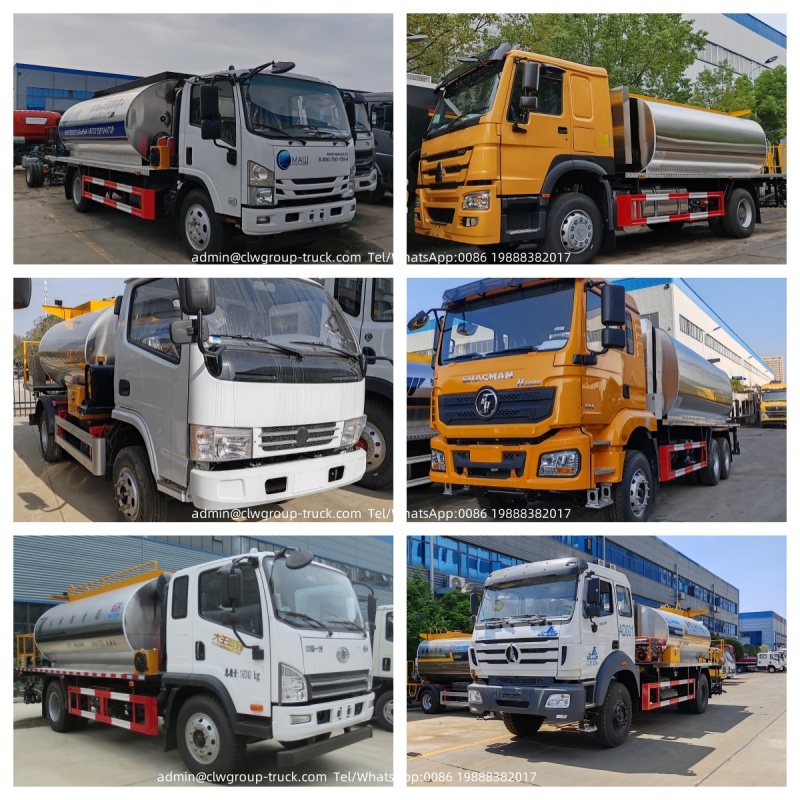

We can choose chassis from Dongfeng, Foton, Shacman, Sinotruk howo, Isuzu, FAW, etc. for asphalt distribution trucks

We can divide the configuration of asphalt distribution trucks into ordinary types according to customer requirements. Equipped with high viscosity asphalt pump, hydraulic motor, burner, and no thermal oil. Only used for spraying emulsified asphalt.

If emulsified asphalt, hot asphalt, SBS hot asphalt, and modified asphalt need to be sprayed, we need standard configurations. Standard asphalt distribution trucks are equipped with separation and manual directional valves, controlled by the rear work platform operation box, with burners and gasoline generators.



The intelligent asphalt distributor truck has the above configuration control method, which is the cab touch screen computer intelligent control. The control system is Siemens from Germany, and the spreading width is wider.

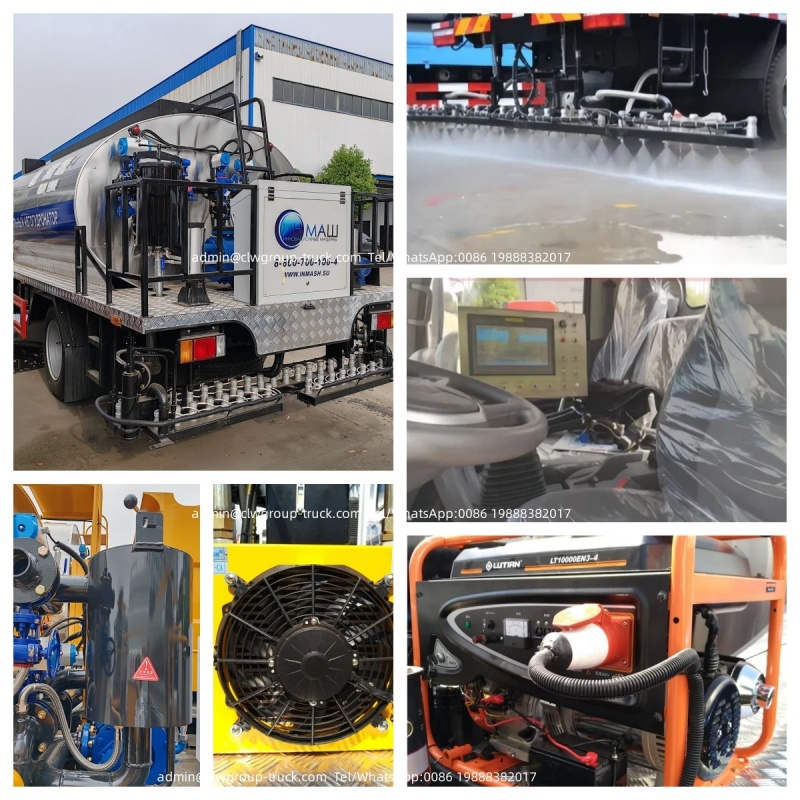

Asphalt distributor truck refers to a tank type specialized truck equipped with insulation containers, asphalt pumps, heaters, and spraying systems for spraying asphalt. Its main components include high viscosity asphalt pump, generator, spraying cylinder, burner, heat transfer oil pump, radiator, hydraulic motor and heat transfer oil pump motor, pneumatic butterfly valve, globe valve, cab control panel, etc. The power take-off is responsible for driving the hydraulic system of the entire vehicle to ensure smooth operation of various functions. During the construction process, the electronic and pneumatic control systems will accurately control the flow rate of the asphalt pump, and evenly distribute the asphalt on the road surface through the clever coordination of pipelines, post spraying, and nozzles. In addition, the asphalt distributor truck also offers multiple optional configurations, each with different working principles to meet various construction needs

Both the intelligent and standard asphalt spraying rods adopt a three-stage folding structure, which can be adjusted up and down, and the spraying range can be expanded left and right, effectively avoiding obstacles. The ordinary spraying nozzles are manual and relatively easy to operate. Ordinary asphalt distributors are limited by their old-fashioned nozzles and are only suitable for specific types of asphalt, making it difficult to flexibly adjust the spraying amount, resulting in relatively high fuel consumption. Therefore, they are rarely used in practical applications. The working process is roughly as follows: after the power take-off is started, it drives the hydraulic pump, which in turn drives the hydraulic motor of the asphalt pump, making the asphalt pump start working.

On the basis of traditional standard models, intelligent asphalt distributors have introduced modern technology to improve management accuracy. Not only does it have all the functions of a standard sprinkler truck, but it also adds intelligent features such as automatic control system and GPS positioning system. With the support of these intelligent technologies, intelligent asphalt distribution vehicles can more accurately control the spraying amount, spraying speed, and spraying path, thereby improving work efficiency and construction quality.

The cleaning method of the tank body is generally equipped with pneumatic cleaning or diesel cleaning, and the insulation layer is made of rock wool material. The tank material is made of high-quality Q235 carbon steel, with a stainless steel coating on the surface of the tank and a 6-meter hose with a handheld spray gun. The spreading area of the asphalt distributor truck is equal to the tank volume divided by the amount of asphalt sprayed.

The parameters of the asphalt spreader are excellent, including spreading width, spreading amount, heating method, and diversity of spraying materials, ensuring construction quality and adapting to various environments

The asphalt distributor truck is equipped with advanced automatic control and heating systems, which achieve automation in temperature control and spray volume adjustment, ensuring construction efficiency and quality.

Equipment performance characteristics

The car adopts a well-known chassis, excellent and powerful carrying capacity, flexible and light maneuverability, and beautiful appearance, providing safe, efficient and reliable services for the vast number of intercity logistics customers;

According to the needs of spraying volume and working width, the computer can make any combination of determinant nozzles;

The manual/automatic control mode can realize the individual control of each nozzle, thus realizing the arbitrary adjustment of the spraying width.

Asphalt distribution control can not only be done in the cab, but also can be controlled on the operating platform at the rear of the vehicle;

The automatic control system of the car can measure the speed of the vehicle and automatically calculate the rotation speed of the asphalt pump according to the input spraying amount, spraying width and asphalt type, and then automatically adjust the pumping number of the asphalt pump through the system.

The heating system adopts the burner imported from Italy, with automatic ignition and temperature control functions;

Using the international advanced imported high-viscosity asphalt pump, the external asphalt can be pumped into the tank to achieve "self-priming", and the asphalt in the tank can also be pumped out; the key parts of the whole machine (such as hydraulic pump CBQ550-L, hydraulic Motor 05-110-BD31, asphalt pump QGB680, proportional valve EFBG-03-160-HF, automatic

The dynamic control system (CLW-34-01, etc.) adopts internationally renowned components to ensure the reliability of the whole machine and improve the service life;

Under the premise of ensuring that the maintenance and disassembly of other parts are not hindered, each part of the ladder and handrail are arranged for easy operation;

All heat pipes have thermal insulation layers on the outside to reduce heat dissipation and avoid scalding operators;

The vehicle-mounted rapid heating system (10-15℃/h) can improve the heating efficiency and reduce the construction auxiliary time to ensure the spraying temperature;

The asphalt spraying rod adopts a three-section folding structure. Double or multiple spraying can be realized by moving the spraying rod up and down. The spraying range can be expanded by moving the spraying rod left and right, and obstacles can be effectively avoided;

The manual spraying function allows the asphalt to be sprayed through the hand nozzle, which is flexible and convenient, and is suitable for small-scale and corner construction conditions. Get the gun in hand. Open the main oil outlet valve, open the transfer valve, open the oil return valve, and use the oil return valve to adjust the pressure of the spray gun.

There is a sedimentation sewage tank inside the asphalt tank, and is equipped with a liquid level display and alarm and safety devices;

Nozzle flushing This function can blow out the remaining asphalt from the nozzle through diesel fuel and high-pressure air to prevent the asphalt from freezing on the nozzle, which can greatly improve the service life of the nozzle. Close the main oil outlet valve, oil return valve, open the pneumatic valve, open the self-priming valve and open the nozzle in turn.

A good thermal insulation layer can ensure that the static thermal insulation performance index is less than or equal to 12°C/8 hours, and it is anti-corrosion and durable;
