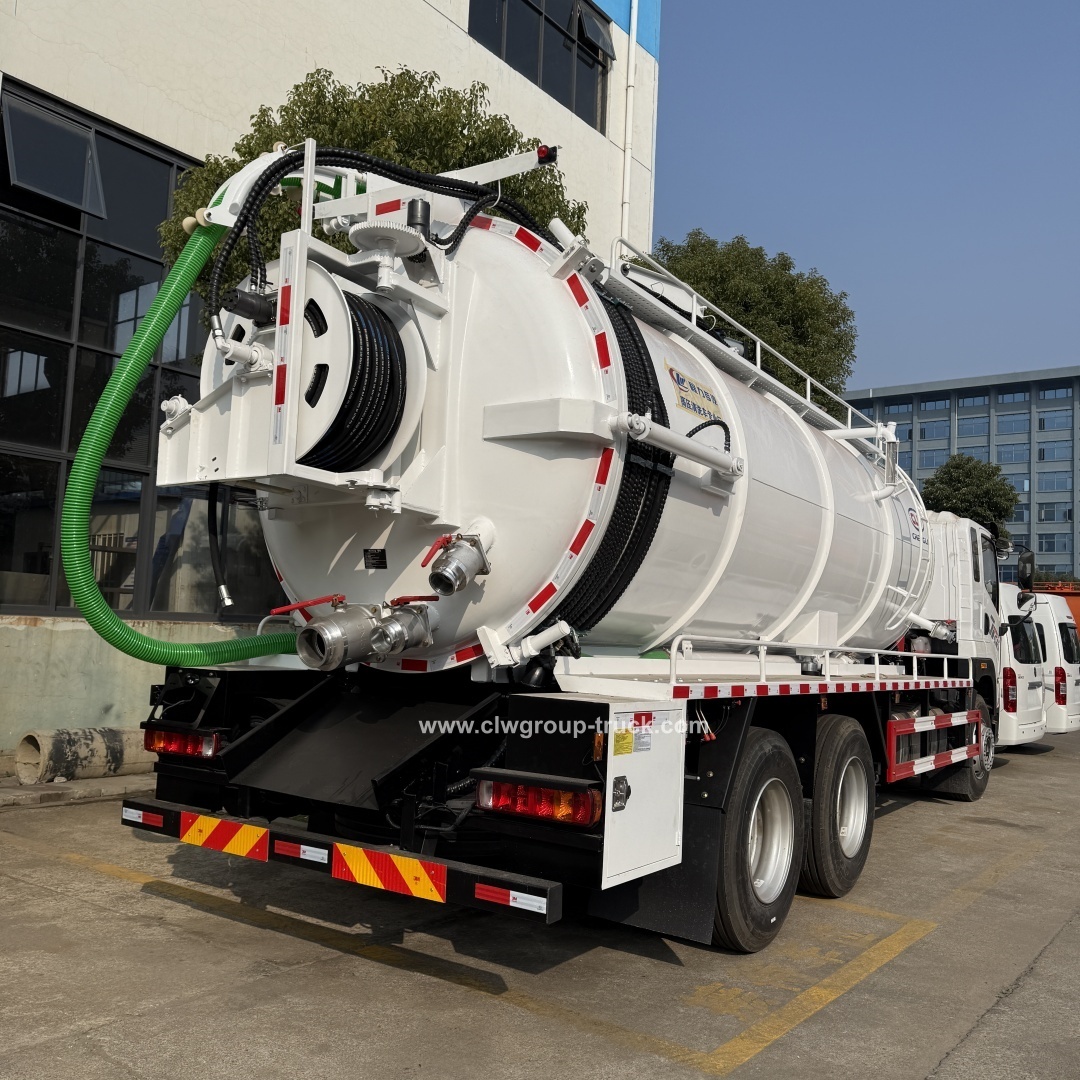

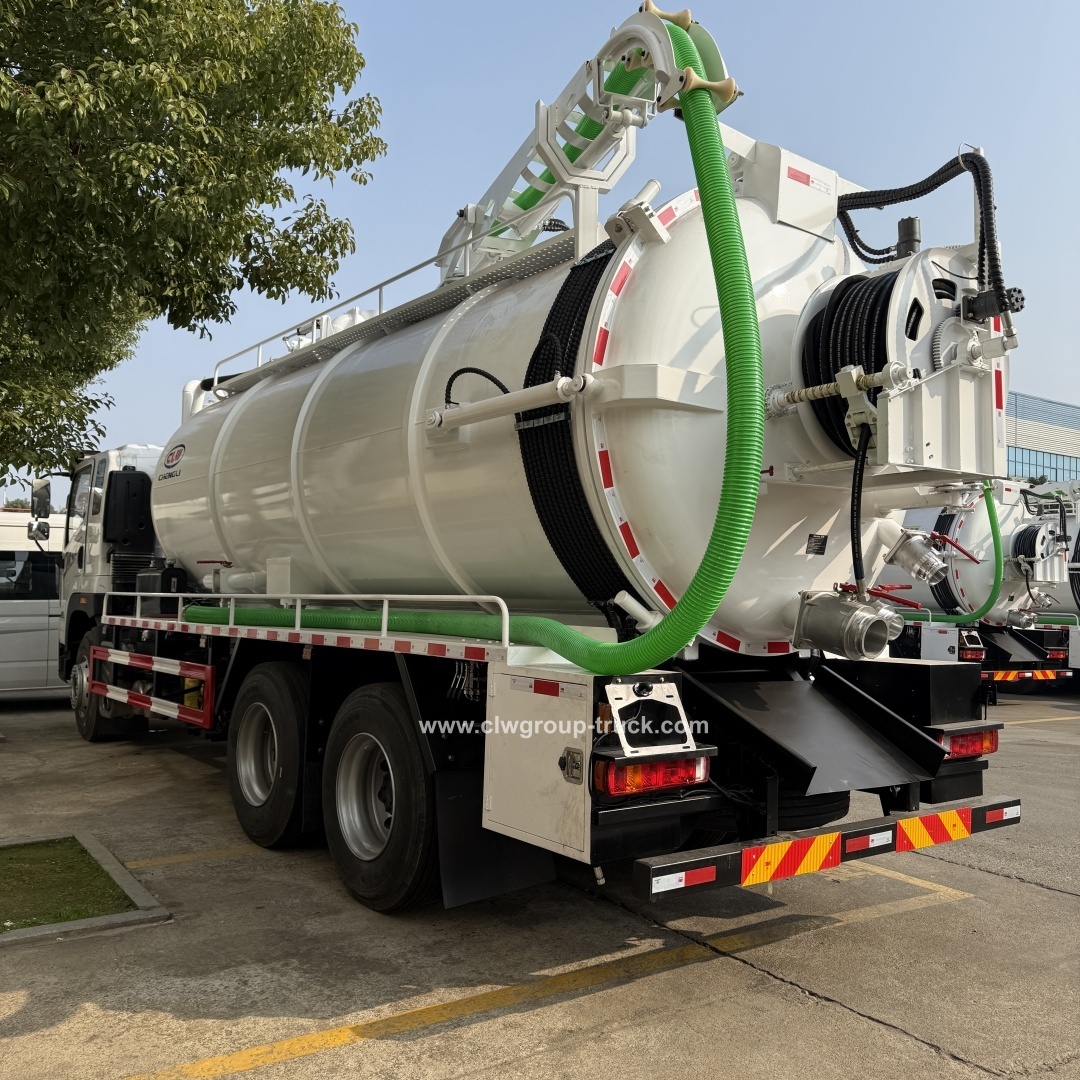

FAW 6x4 20tons water ring vauum pump sewer cleaner drainage jetter truck

The FAW 6X4 320hp vacuum sewage truck with a 15 cubic meter capacity is a custom-built sewage truck and 5 cubic meters clean water tank with several significant features compared to traditional sewage trucks:
1. The suction tank is made of stainless steel for greater durability.
2. The control system of the sewage truck has been upgraded from ordinary hydraulic control to electric control, making it more intelligent and convenient.
3. A secondary anti-overflow system has been added to improve the sealing of the tank and maintain the cleanliness of the city.
4. High-pressure cleaning nozzles and a larger, wider toolbox have been added, greatly increasing the practicality of the sewage truck.

Vacuum suction truck, also known as vacuum suction truck or suction truck, uses the principle of vacuum negative pressure to suck feces and liquid pollutants into a vehicle storage container, achieving containerization of feces collection, reducing secondary pollution, and equipped with a vehicle cleaning device.

The composition of the sewage suction truck includes an oil-water separator, a water gas separator, a dedicated vacuum sewage suction pump, a volumetric pressure gauge, a pipeline system, a suction duct, a self flow valve, a vacuum tank body, a connector (fecal window), a fully automatic overflow valve, and a hydraulic kit. The tank body of a sewage suction truck is usually circular. When choosing the chassis of a sewage suction truck, well-known local brands that are convenient for after-sales service can be selected, such as Dongfeng, Foton, sinotruk, Isuzu, Jmc, JAC, FAW, etc. The wheelbase should not be too large because the tank body of the sewage suction truck is relatively heavy but the center of gravity is relatively concentrated. The wheelbase selection needs to be precise and not too long. The back cover of the sewage suction truck can be customized according to customer requirements, usually an aluminum alloy sewage discharge valve with a sewage outlet of 100, equipped with a tank door locking device. The back cover can be manually opened or hydraulically opened for self dumping. The volume of the sewage suction truck can generally reach 3 to 30 cubic meters, and the maximum capacity of a 4X2 6-wheel chassis can reach 15 cubic meters. There are also a few cases where the rear axle is large It can achieve 18 cubic meters, 6X4 The chassis with 10 wheels can achieve 16 to 22 cubic meters, and can be equipped with dual pumps or European brand vacuum pumps, which have high suction and clean flushing. The suction truck has a high vacuum degree and a suction range far away from the vacuum state for sludge and sewage suction, cleaning urban sewers, pipeline sediments, dredging dead corners of mud ditches, and can also be used for cleaning industrial drainage pipelines, walls, etc. It can also be used for watering, transporting water, and flushing roads. In emergency situations, it can be used for firefighting.

ensuring the sealing and hygiene of sewage and feces. At the same time, it has a suspension rod seat at the top of the tank that can be lifted, and a 6-meter suction pipe that can suck sewage. The suction truck generally adopts a 4X2 6-wheel chassis, and the suction tank capacity can reach 3-12 cubic meters. The tank of a fecal suction truck is generally elliptical in shape, equipped with a vacuum pump to vacuum suction sewage. An anti overflow valve is located at the top of the tank to remind users when the sewage is too full. At the same time, a visible transparent tube can be installed to observe the liquid level inside the tank. Oil water separator and water gas separator. Bring a hand washing device. Customers can choose to install suction pipes of different lengths and vacuum pumps of different brands with suction capabilities. The color logo of the tank can be customized according to their requirements.

Cleaning and suction trucks are a common type of specialized vehicle in municipal environmental sanitation, with two functions: cleaning and suction. They belong to multifunctional environmental sanitation vehicles and are mainly used for sewage suction treatment, blockage and dredging of sewers. Compared with suction trucks, cleaning and suction trucks are more expensive, but due to their multiple functions, they are widely recognized in the market. Overall, the tank mounted on cleaning and suction trucks can be divided into two types: water tank side hanging type and tank type. The water tank side hanging type can be divided into semi enclosed and fully enclosed structures, and the tank type can be divided into integrated tank type and split type tank type. Below, we will introduce them in detail.

Water tank side hanging type: The water tank side hanging type cleaning and suction truck has a relatively high space utilization rate, a larger effective volume, and a more compact structure. The semi enclosed structure: there is a sewage tank in the middle of the entire chassis beam, which can be hydraulically lifted, and square water tanks on both sides. The water tank is fixed to the chassis and cannot be lifted. It has an advantage in overall vehicle price, but the disadvantage is that the water tank cannot be lifted, making maintenance and repair inconvenient. Full surround structure: This type of cleaning and suction truck also has a sewage tank in the middle and clear water tanks on both sides. The advantage is that the clear water tank has a larger capacity, and the clear water tank and sewage tank can be lifted at the same time, making maintenance and repair more convenient. There is also a suction pipe placement platform below the clear water tank, which is also convenient to use, but the requirements for the lifting oil cylinder are relatively high. The tank type cleaning and suction truck is similar in appearance to the suction truck, but the difference is that the tank can be separated from the middle to hold clean water and sewage respectively. Its advantage is that it can allocate the volume of the two according to its own needs. For example, a cleaning and suction truck with a total volume of 8 cubic meters can be divided into 3 cubic meters of sewage, 5 cubic meters of clean water, or 4 cubic meters of sewage and 4 cubic meters of clean water.

Integrated tank: This type of tank appears to be a single tank in appearance, separated by steel plates inside the tank to form two independent tanks. This structure connects the two tanks together and cannot be separated.

Split type tank: This type of cleaning and suction truck appears as two independent tanks in appearance. The sewage tank can be lifted, while the clean water tank is fixed to the chassis. The disadvantage of this structure is that maintenance is not very convenient.

The above are several structural forms of the tank body installed on the cleaning and suction truck, and the more common ones in the market are the integrated tank body and the fully enclosed water tank side hanging type, which have advantages in all aspects

 The Vacuum cleaning and suction truck, also known as the pipeline dredging truck, is a new type of environmental sanitation vehicle that collects, transfers, and transports sludge and sewage to avoid secondary pollution. The suction truck can self suction and discharge, with fast working speed, large capacity, and convenient transportation. It is suitable for collecting and transporting liquid substances such as feces, mud, and crude oil

A Vacuum cleaning and suction truck is a special vehicle that combines cleaning and suction functions by adding suction pumps, suction tanks, suction pipelines, and other facilities on the basis of a high-pressure cleaning truck. It consists of two tanks, two pumps (high-pressure cleaning pump, vacuum suction pump), and two sets of pipelines.

Performance characteristics: The Vacuum cleaning and suction truck has high suction efficiency, self suction, self discharge, and direct injection. The time to fill the manure tank is ≤ 5 minutes, and the suction stroke is ≥ 8m. It has a long service life, fast working speed, easy operation, and convenient transportation. High pressure cleaning has high water pressure, reliable performance, long service life, water saving and good cleaning effect. The high-pressure nozzle has no scattering, small pressure loss, and does not rust, with a long service life. It fully utilizes the kinetic energy of high-pressure water flow to clean in a high-pressure, low flow manner. The hydraulic components have stable and reliable performance. This car can also clear pipelines and sewers, and can also pump septic tanks and absorb sewage. It is a dual-use vehicle that saves money and effort, and is cost-effective.

Working principle: In order to absorb the accumulated water in the sewer through the sewage suction pipeline system, the vehicle mounted winch is uniformly placed on the high-pressure pipeline. When the high-pressure flushing pipeline works, the rotating force causes the high-pressure flushing pipeline to enter the blocked area of the sewer that cannot be reached by manpower, and carry out high-pressure flushing operation. By minimizing the coverage of water and sewage on the blocked area through the sewage suction pipeline, the best flushing effect is achieved, and the purpose of dredging the sewer is achieved

The pipeline dredging operation series of sanitation vehicles produced by Chengli Special Company Co., Ltd. currently includes suction trucks, suction trucks, high-pressure cleaning trucks, pipeline dredging trucks, cleaning suction trucks, and cleaning suction trucks with 2, 3, 5, 6, 8, 10, 12, 15, 18, 20, and 30 cubic meters, which can meet the needs of different customers

(1) Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.
(2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

(3) Vacuum tank capacity ranges from 3,000 Liters to 20,000 liters

Features:

a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.

b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.

c.Pump can be operated by a hydraulic motor or by an auxiliary engine.

d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.

e.Nice shape ,rational structure,durable and long service life.
