| Vehicle general | Overall dimension | 5965*2040*2980 mm |
| Gross weight/Kerb weight | 4175/3405 kg | |
| Chassis Specification | ||
| Chassis | Chassis Brand | FAW |
| Cabin | Left hand drive or right hand drive | |
| Engine Model/Power | Weichai engine WP3.7Q130E50 95kw/130hp | |
| Emission standard | Euro V | |
| Displacement | 3700 ml | |
| Gear box | 6 forwards 1 reverse | |
| Front and Rear axle | Front axle 2.6 tons rear axles 5 tons | |
| Wheelbase | 3600mm | |
| Brake system | Air Brake | |
| Tire | 7.50R16,6 tyre with 1 spare tire | |
| Maximum speed | 95 km/h | |
| Led Van box body | ||
| 1 Left and right side P6/P5/P4/P3 LED outdoor waterproof full color display screen, size 3840*1728mm, Rear side P6 LED monochrome screen 1280*1440mm 2. Internal and external electrical distribution box; 3. Circulating ventilation and cooling systems; 4. One unit 8KW-15KW silent diesel generator set 5. One set industrial computer with control system, sound system 6. Waterproof box, Amplifier 1pc, Control Panel 1pc; Aluminum patterned floor; 7 Optional hydraulic stage 10m2,one or two side screen lifting to 1.5m ,hydraulic outrigger |
||
LED truck is also called LED video truck, led advertising truck, mobile led truck, led tv screen truck, led billboard truck, mobile advertisement vehicle, led display advertising truck, led mounted billboard truck advertisement truck, led screen truck, led display truck, etc.
Advertising vehicles generally consist of five parts. Including large screen system, power supply system, hydraulic system (some without parts), operating system, and chassis system. The chassis is generally selected as a light duty small chassis, and brands such as Foton, Dongfeng, Isuzu, Faw, JMC, JAC can be chosen. The power supply usually uses industrial 380V electricity or self generated generators.
Generator brand display
Gasoline engine led truck adopted Yihu brand gasoline generator power 6.5KW or 8KW
Diesel engine led truck adopted OUMA brand diesel silent generator power 8.5KW,12KW,16KW

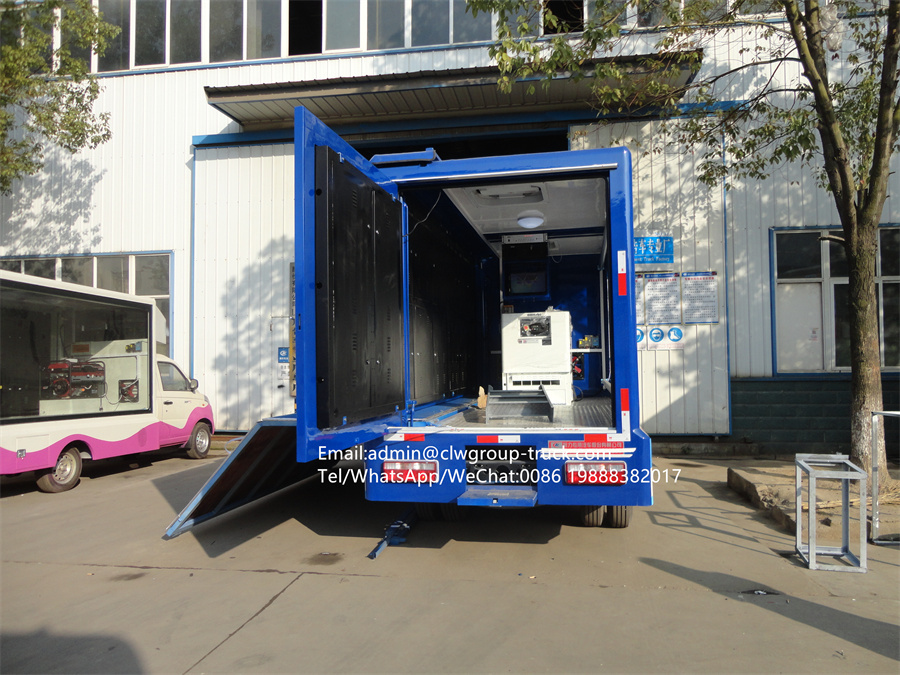

The advertising truck body material adopts a 5mm composite steel frame body, with high-temperature resistant aluminum patterned panels for the interior. The electronic control system is safe, intelligent, and automatically switches between the internal and external networks. The ventilation system is a powerful exhaust fan and sunroof. The floor material can be selected as wooden flooring or aluminum patterned panels. The industrial control system can be selected as wooden flooring or aluminum patterned panels. The industrial control system can be equipped with I4 high-end industrial control computer or USB direct insertion video playback system.
LED advertising vehicles have several advantages as new media promotion tools:
3 The promotional effect is good. From a distance, LED displays are more effective in attracting people's attention and achieving better promotional effects than ordinary plastic promotional paper.
