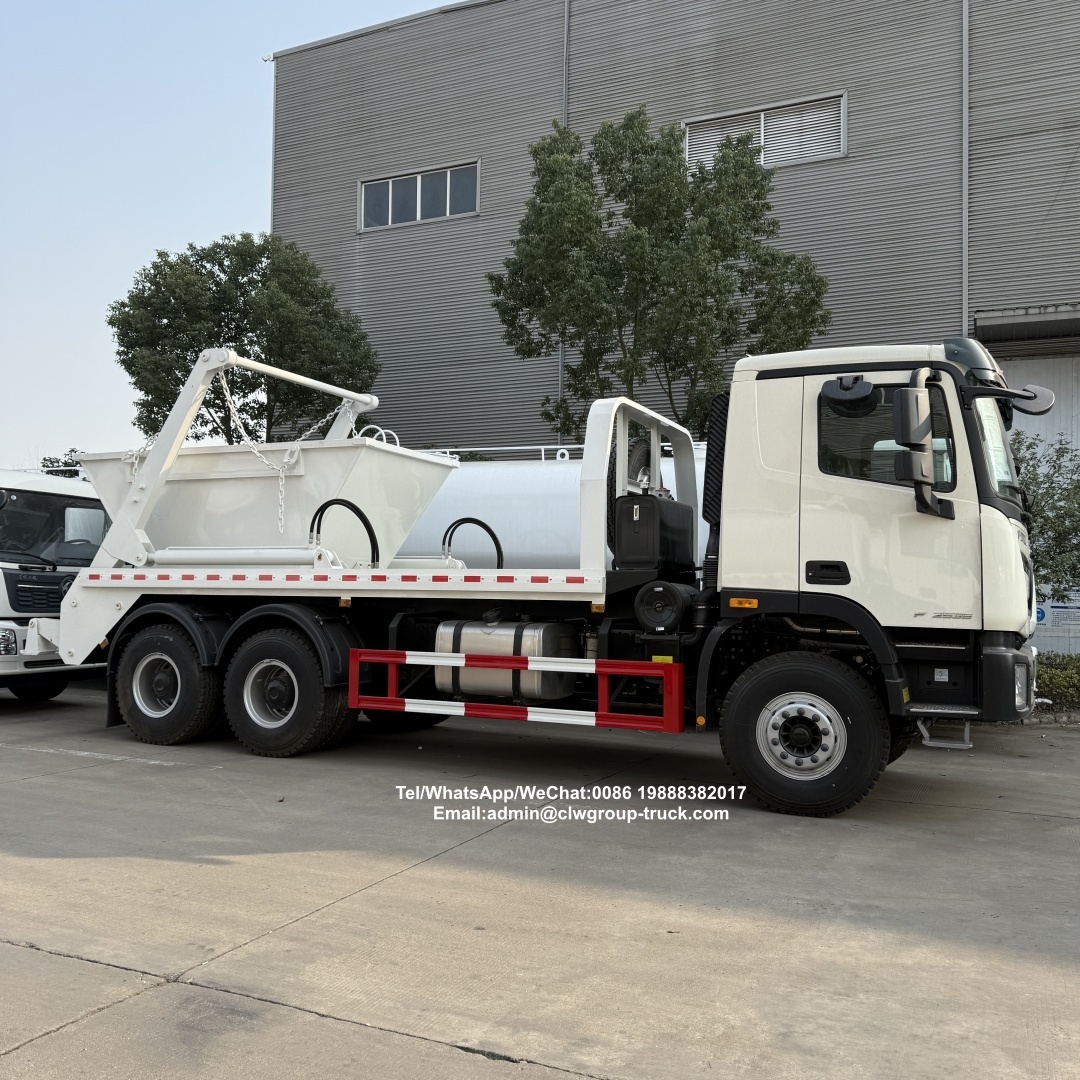

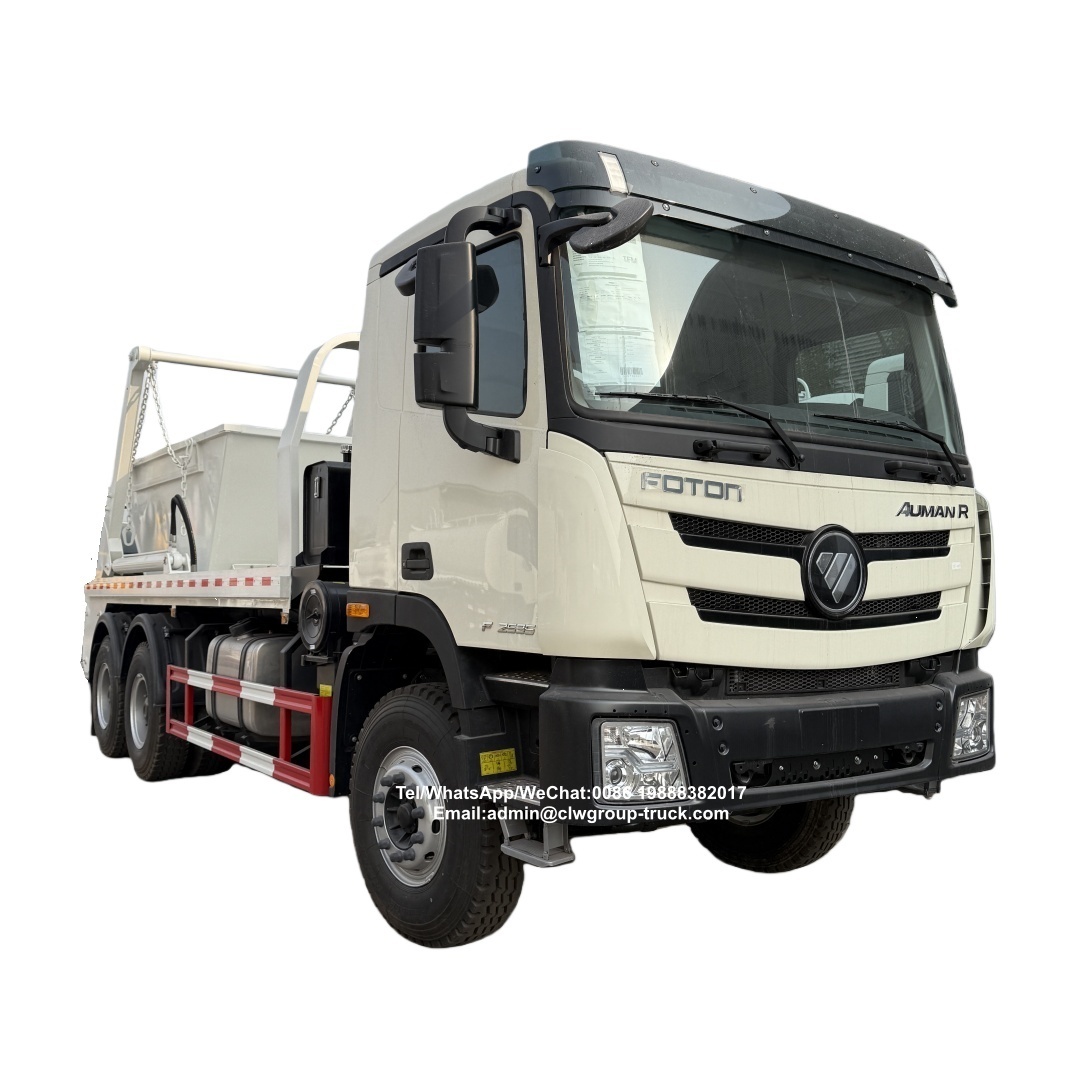

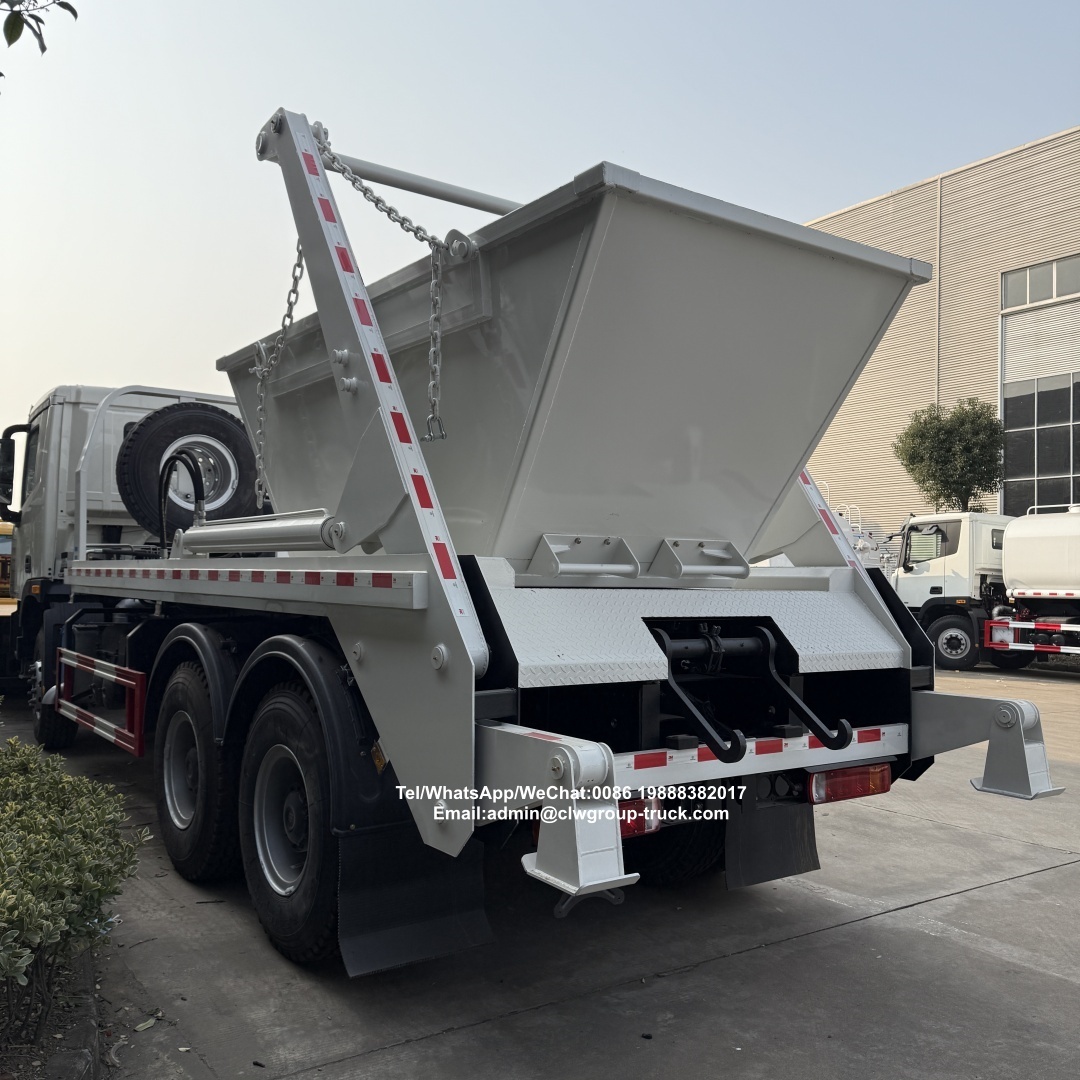

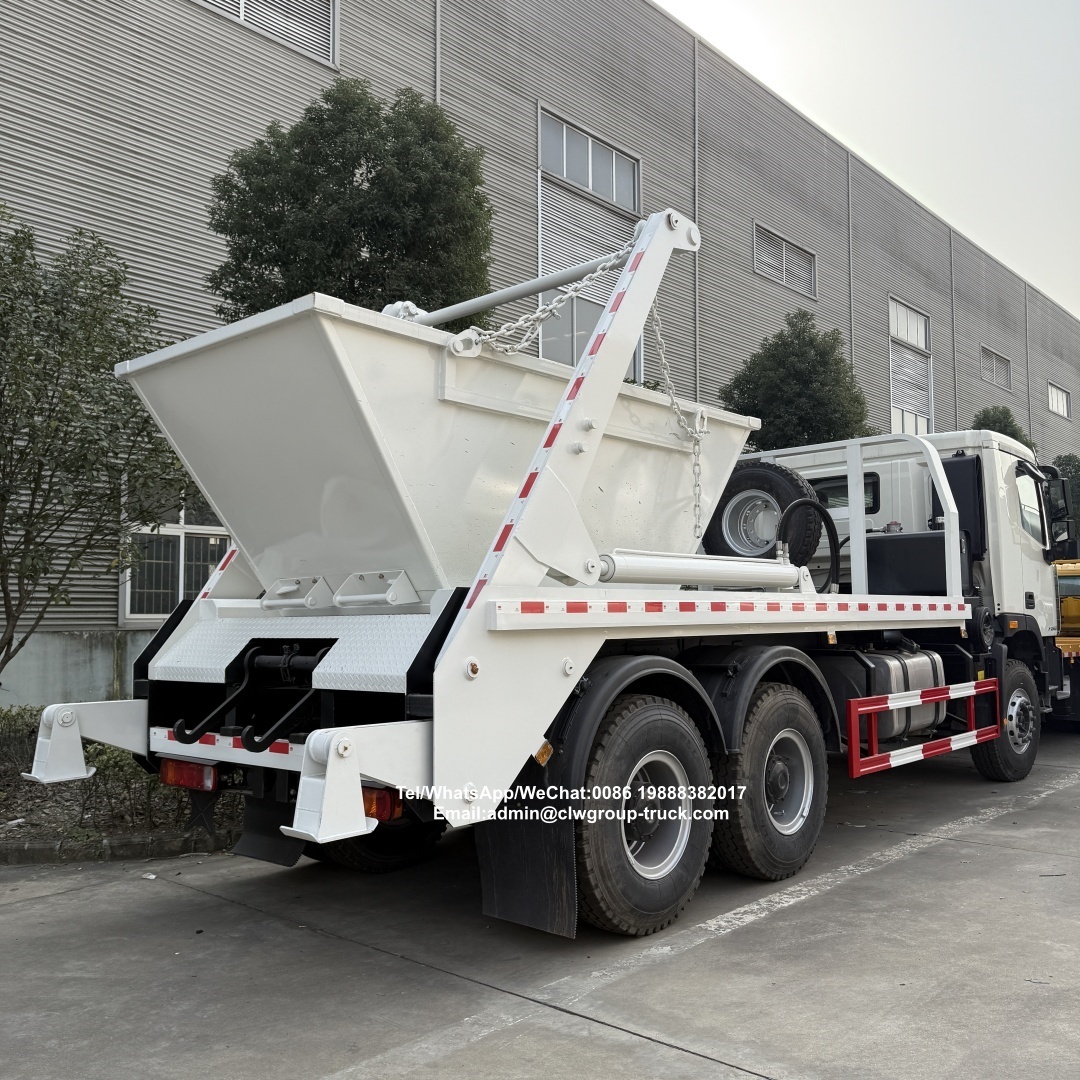

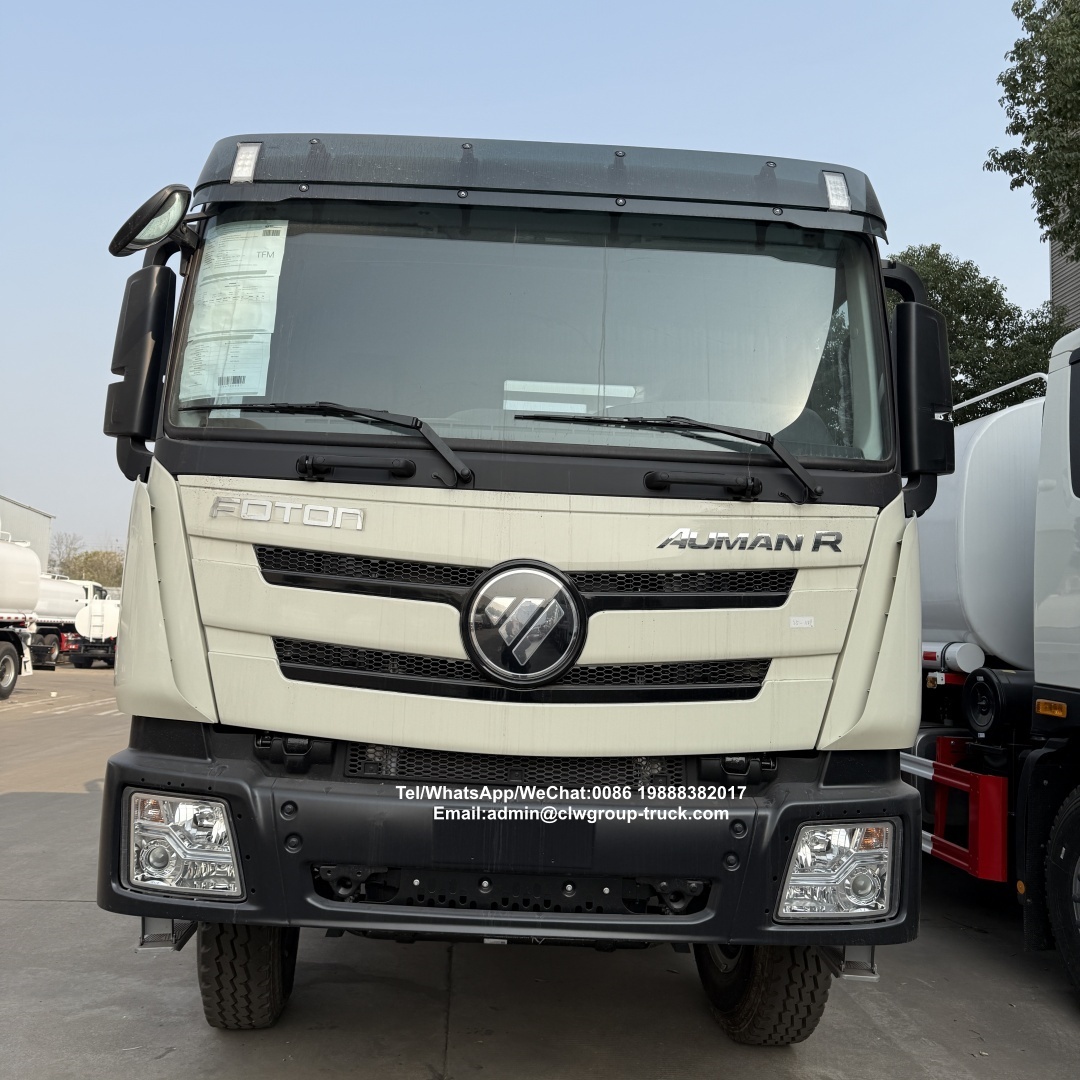

Foton 6x4 10-12cbm Swing Arm Garbage Truck Skip Loader Dumpster Roll-off Refuse Garbage Vehicle

The 6X4 12 cubic meter swing arm garbage truck is a customized model. The volume of conventional swing arm garbage trucks is 3-10 cubic meters. Configuration of heavy-duty 6X4 swing arm garbage truck:

The swing-arm garbage truck bucket can hold 12 cubic meters of domestic garbage. It is equipped with a hydraulic gear pump, a power take-off, an independently controlled hydraulic dump arm, and the hydraulic system can lift 16 tons. With boat-shaped swing arm bucket, the swing arm chain can be adjusted independently, and the cab controls the loading and unloading of the garbage bucket.

The chassis can be configured according to customer requirements from Isuzu, Sinotruk, Shaanxi Automobile, Dongfeng, Foton, etc.

The swing-arm garbage truck is equipped with a unified hydraulic lifting assembly, and the swing-arm garbage bucket is transported through the left and right arms. It can be equipped with multiple compartments in one vehicle and has a self-unloading function.

You can dump your own garbage. A sealing cover can be installed to prevent leakage and flying pollution. It can effectively avoid secondary pollution during the loading and unloading transportation process to adapt to the requirements of different environments. The vehicle has a simple structure, stable and convenient operation, high loading and unloading efficiency, high degree of mechanization, and saves manpower. It adopts domestic leading technology and accessories from military industrial enterprises, with reliable quality, safety and stability. The manufacturer can provide users with garbage container drawings to assist users in designing garbage containers.

Swing arm garbage truck components: well-known domestic brand chassis, garbage bin, power take-off, multi-way reversing valve, swing arm, hydraulic system, operating system, etc. (The lifting cylinder and locking cylinder are double-acting cylinders independently developed and produced by our factory.)

Garbage bins: divided into pit-type swing arm trash bins and ground-type swing arm trash bins (trapezoid bucket, square bucket, sealed bucket)

Hydraulic system: It consists of a fuel tank, an oil pump, a multi-way reversing valve, a hydraulic cylinder, an oil filter and pipelines. This system can realize various special functions of loading and unloading garbage.

Operating system: Through this system, the conversion of various functions can be realized. The loading and unloading work can be completed by operating the handle of the multi-way reversing valve. (When operating the multi-way reversing valve, the power take-off should be mounted to drive the oil pump to work)

Main features: simple, efficient, environmentally friendly garbage collection method (no secondary pollution), reliable quality, low failure rate, easy maintenance, and low operating costs. It is widely used in municipal sanitation, municipal administration, factories and mining enterprises, property communities, residential areas with large amounts of garbage and concentrated garbage, and urban street garbage disposal.

1. Swing arm garbage truck, also called skip loader truck,is specially designed and produced to transport and transfer garbage truck with its high efficient that one garbage truck can match multiple garbage hoppers in different sites.

2. Our product capacity is available in 5 cubic meters~15 cubic meters garbage hoppers capacity. Commonly, we use 4x2 type chassis of wheelbase from 3300mm to 5000mm to produce different capacity roll arm garbage trucks. For more large volume, we have more better type roll off garbage trucks or hook lift garbage trucks.

3. Roll arm: the actions of roll arm garbage trucks putting down and lifting up garbage hopper are finished by hydraulic roll arm.

4. Control system: operation handles.

5. Garbage hopper: 3mm side or 4mm side plate, 4mm floor or 5mm floor option.

1. Swing arm garbage truck is characterized by separated trash bin and truck chassis, realizing the combination use of one truck
   with multiple trash bins, circular transport.
   2. The cargo hopper has square-shape and ship-shape, the square-shape is used for the pit type, and the ship-shape is placed on
   the ground, fully improves the transport capacity, especially suitable for short-distance transport, such as the sanitation
   department to clean up the urban garbage, transport and so on.
   3. The truck can be designed to be fully enclosed in order to prevent light cargo from falling in transit.The garbage bucket can be hoisted up and down, and the working cycle time of swing arm is 60S.

 1, ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is the biggest special purpose vehicle manufacturer in China.also we are famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW.Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.

2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
 We have been in this field for over 10 years, we have more than 300 types  of special trucks, our workers are more than 1000 and factory is more than 690,000m2 .We have successfully exported our trucks to Ghana, Sudan, Nigeria, Tajikistan, Namibia, Burma, Korea, Iran, Iraq, Vietnam etc. many Africa & Asia countries more than 4000 trucks every year.
3.Quality control:our company truck pass ISO,3C,BV certification.

our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
4.Design capacity :Our factory have 30 technician and designer.
5. Exhibition:our factory attend the Guangzhou Trade Fair each year.
6. Export market: Africa,Asia,South America,Pacific and so on.
7.Our company cooperate with famous chasis manufacturers,include all chinese brand like FOTON , DONGFENG , SHACMAN , HOWO , FAW , GENLYON , NORTHBENZ , CAMC , JAC , JMC .

Generally speaking, 25 workdays after we received 30% of contract value T/T down payment. The specific delivery time depends on the products and the quantity of your order.
