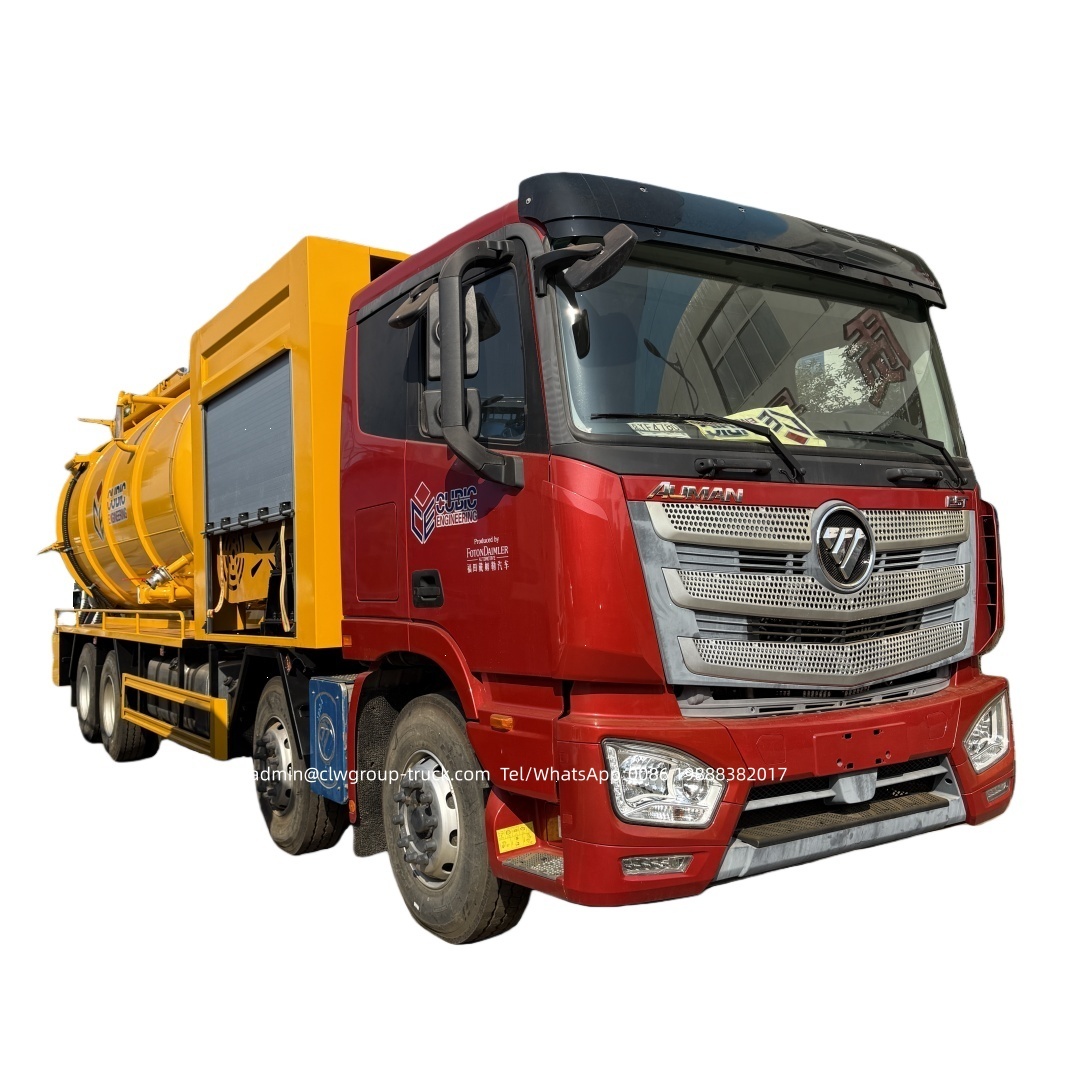

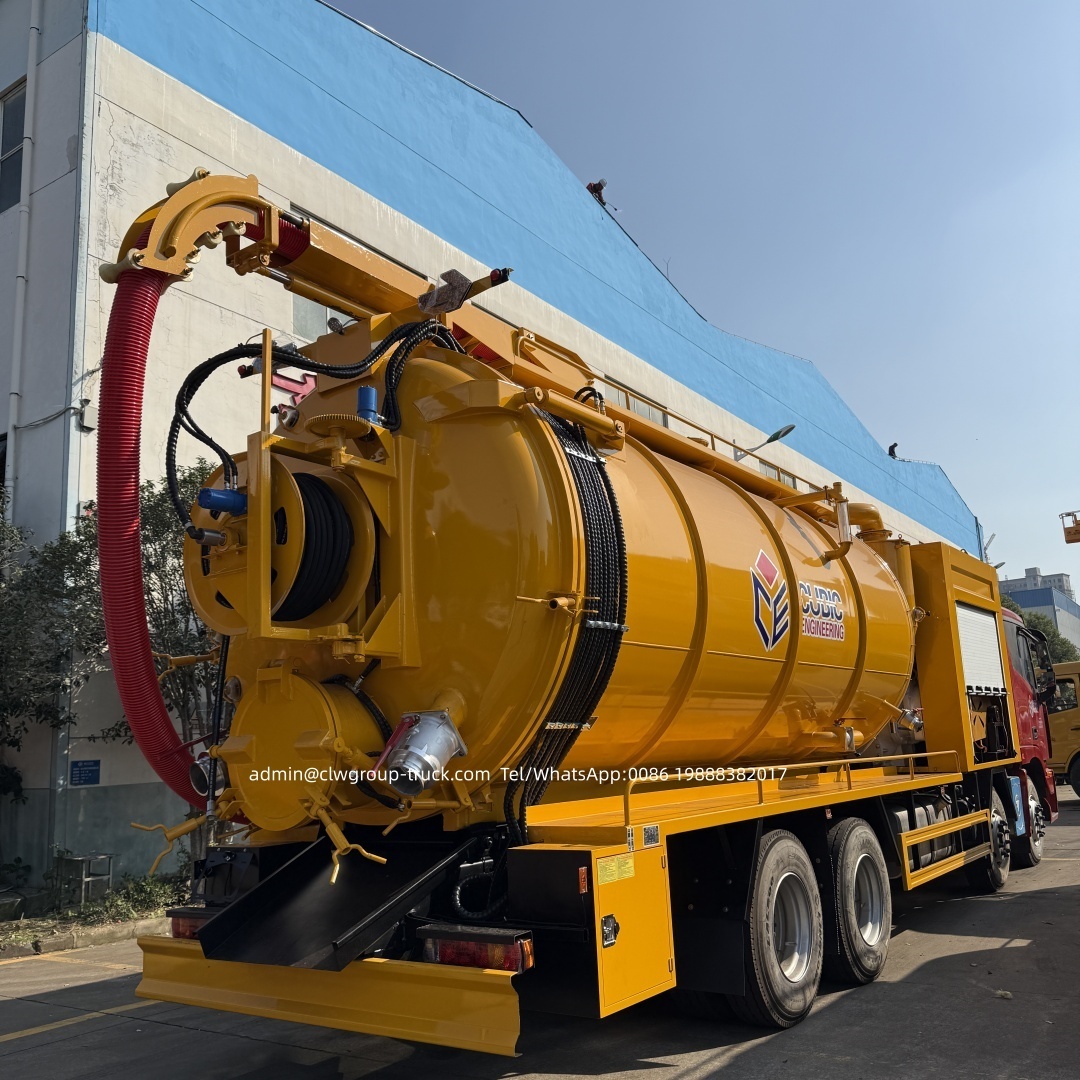

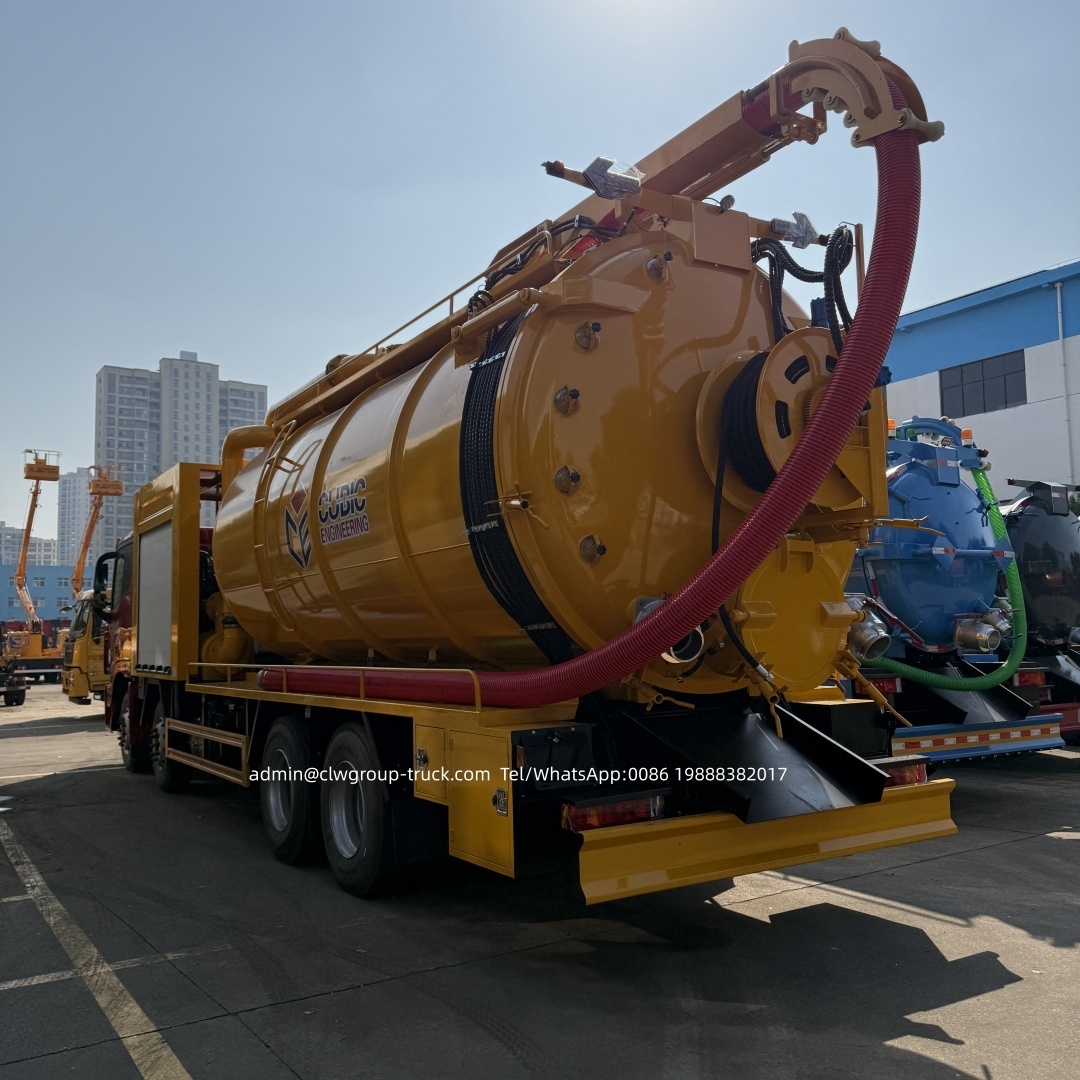

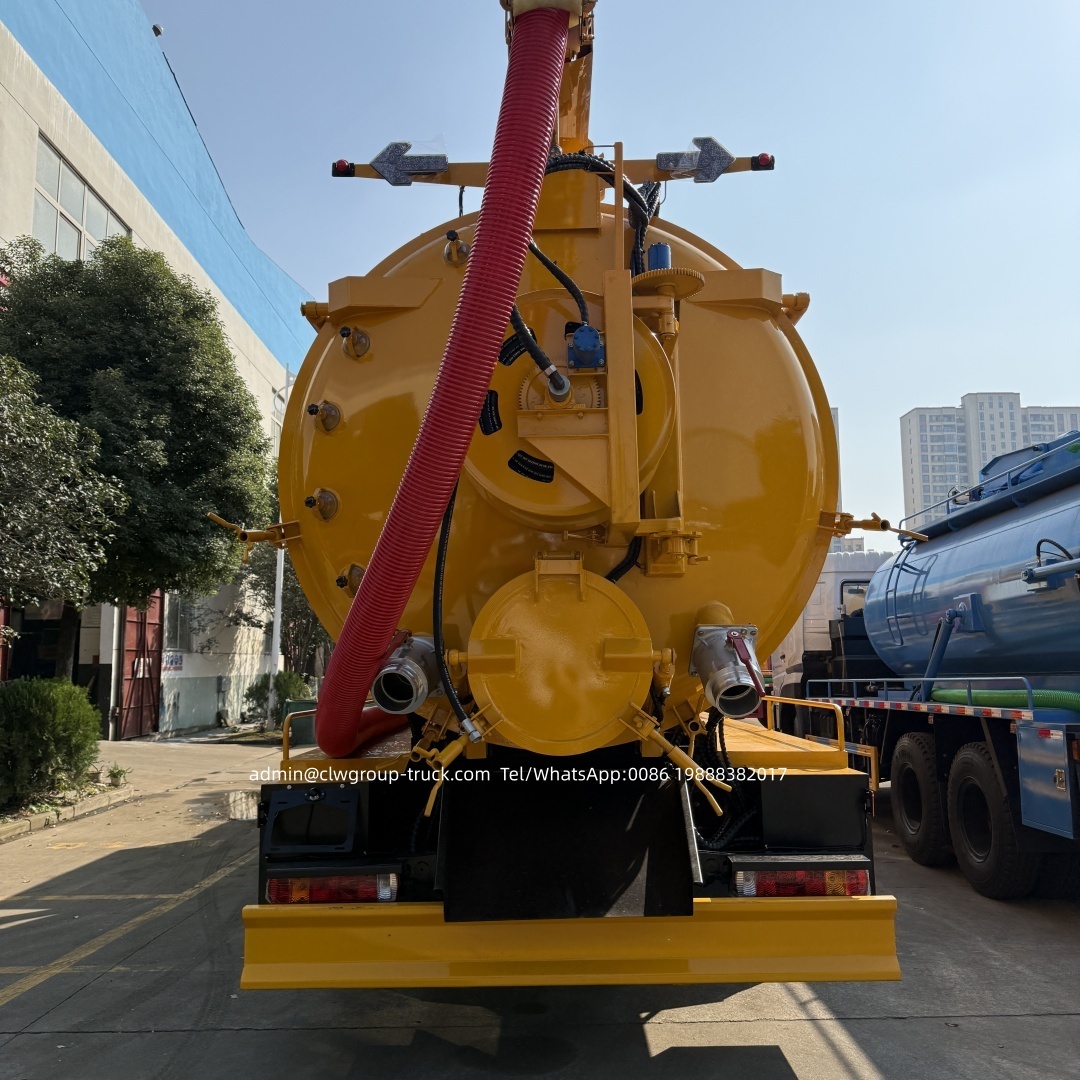

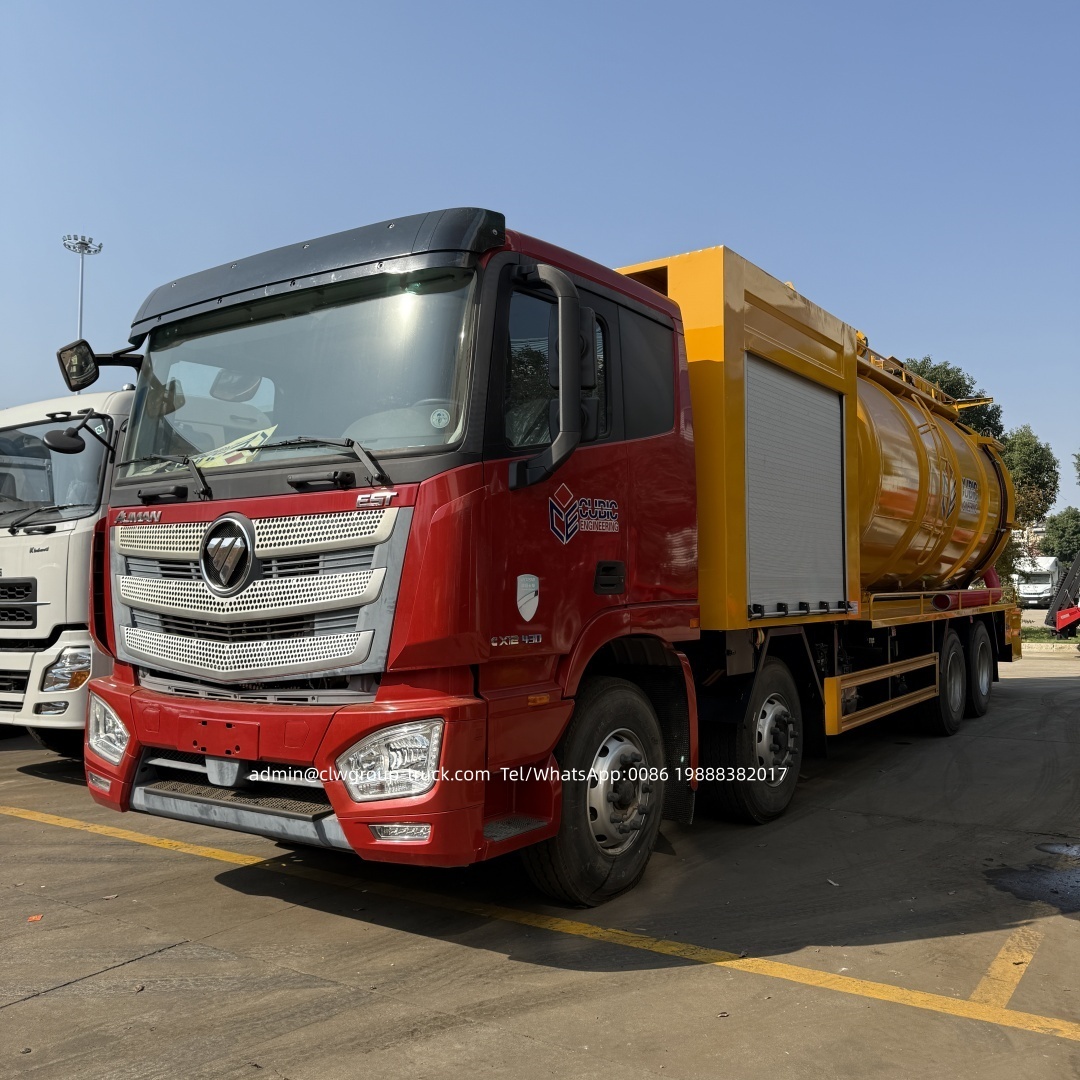

Foton 8x4 12 wheeler 30m3 35m3 vacuum cleaning and suction truck

Introduction to Foton 8X4 vacuum cleaning and suction truck with a capacity of 25 cubic meters: Chassis configuration: Cummins 430 horsepower Euro IV high-pressure common rail diesel engine, displacement 11800ML, wheelbase 1800+4700+1350, clutch manual hydraulic pneumatic assist, 12 gears forward and 2 gears rear, 9-ton front axle and 16 ton rear axle, 295/80R22.5 18PR vacuum tires, electric doors and windows, central locking, airbag seats, 350L aluminum alloy fuel tank

Upper configuration: Clear water tank capacity: 13 cubic meters, sewage tank capacity: 20 cubic meters (clear water tank and sewage tank can be freely distributed), tank body material: Q235 Wuhan Iron and Steel 8MM thick carbon steel plate, standard configuration: Yifeng high-power double 10 ton vacuum pump (optional water circulation pump), oil-water separator, anti overflow valve, sight pipe, equipped with a 6-meter suction pipe, tank head is formed by one-time die-casting, tank body has lifting function, rear door hydraulic opening, equipped with high-pressure pump: Tianjin Tongjie high-pressure pump (optional Italian imported high-pressure pump), pressure: 15Mpa, flow rate: 330L/min, hose length: 60m, pipe rolling force: 1800 N, hose inner diameter: φ 19 mm, joint type: 1-10. Tube rolling speed: 0-25m/min, hole clamp angle: 15 °, 25 °, propulsion force: ≥ 180 N. Equipped with 10 different types of high-pressure nozzles on board. 1-5 are used for pipeline dredging, and 6-10 are used for pipeline cleaning. A water tanker equipped with a high-pressure water pump is used to clean sediment in urban sewers and dredge them. It can also be used to clean industrial drainage pipelines, walls, etc. The vehicle can be equipped with a sprinkler function, which can also be used for watering, transporting water, and flushing roads. It can be used for firefighting in emergency situations.
Introduction to the structure of Foton vacuum cleaning and suction truck:

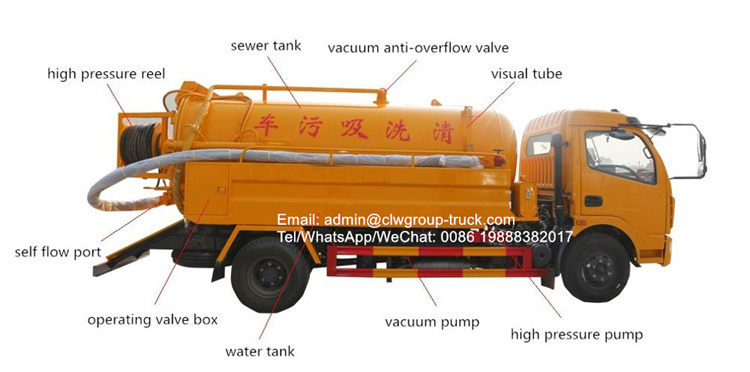

The Foton vacuum cleaning and suction truck is mainly composed of chassis, tank body, sandwich power take-off, high-pressure pump, high-pressure tee, pipe roller, high-pressure pipe, nozzle, hydraulic system, vacuum pump, vacuum system, hydraulic lifting mechanism and other parts. Foton vacuum cleaning suction truck high-pressure part: mainly uses a full power power take-off to drive the high-pressure pump to generate high-pressure jet water, and uses the reflected water pressure of the high-pressure nozzle to flush various blockages in the pipeline to achieve the purpose of clearing and cleaning the pipeline.      Foton vacuum cleaning suction truck suction part: The vacuum pump is driven by a side mounted power take-off to extract air from the tank, creating a vacuum inside the tank and sucking the dirt into the tank through atmospheric pressure!   The working principle of the Foton vacuum cleaning and suction truck is to use a secondary engine to drive the vacuum pump for operation. So as to achieve the functions of cleaning and suctioning, colleagues can use it, greatly improving work efficiency!

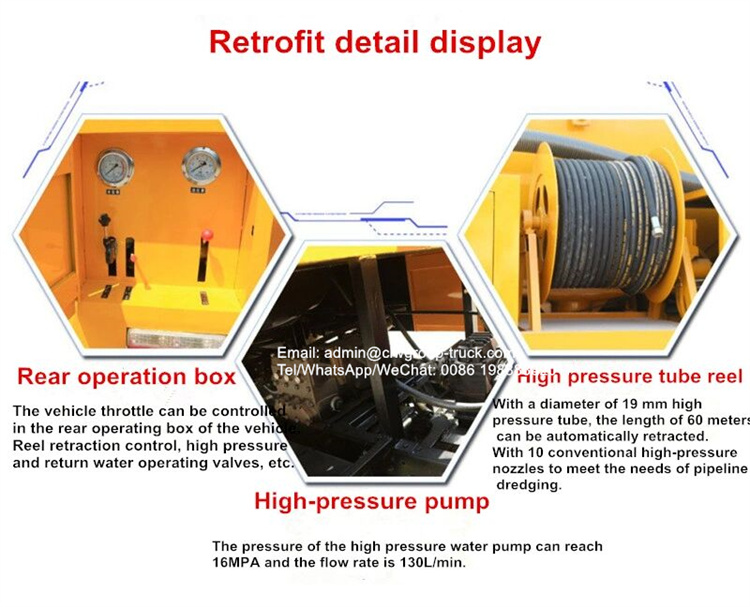

Features of Foton 8X4 vacuum cleaning and suction truck: Adopting mature products from Foton's Class II chassis series, with reliable quality and convenient and fast after-sales service. Equipped with a well-known Cummins engine, it boasts high power and excellent performance Clear water tank: 8mm board, cylindrical, with built-in anti wave board. Equipped with a low water level alarm protection device, with a total volume of 5m3. Sewage tank: 8mm sheet metal, cylindrical, with automatic opening and closing of the back cover, tipping and unloading. Equipped with a high liquid level alarm protection device, with a total volume of 17m3. Power taking method: The transfer case takes power from the chassis engine and sends it to the vacuum pump and high-pressure water pump respectively. High pressure dredging and cleaning: The high-pressure pump has a flow rate of 330L/MIN and features high water pressure, large flow rate, and long dredging distance. The working pressure can be freely adjusted according to the situation. The high-pressure dredging pipe is hydraulically retracted and equipped with different types of nozzles to meet different working conditions Water pipe reel: hydraulic drive, forward and reverse rotation, stepless speed regulation. Installed on the back cover of the sewage tank, it can wrap and store DN25 specialized rubber hoses with a length of no less than 80m. Special High Pressure Pipe: A domestically produced high-quality DN25 sewer dredging hose that is resistant to high pressure, lightweight, has low friction resistance, and strong scratch resistance. Standard configuration pipe length: 80m. Triangle nozzle: simultaneously spraying forward and backward. Suitable for completely blocked pipelines. Mushroom shaped nozzle: The nozzle is arranged at two angles with high thrust and is used for pipelines with grease. Thunder shaped nozzle: The nozzle forms a 15 ° or 30 ° angle with the nozzle axis and is usually used. Self made long nozzle: tube length of 50-80cm, used for vehicle cleaning, road cleaning, and dirt hardening treatment. Vacuum pumping: The Italian imported vacuum pump has the characteristics of long suction distance and high suction stroke. The vertical suction force shall not be less than 15 meters, and the horizontal distance shall not be less than 50 meters. Unloading method: gravity unloading, central lifting oil cylinder. Special suction pipe: High quality PVC synthetic material suction pipe, lightweight and tough Inner diameter 102mm, length 30m. Control system: The high pressure, return water, forward and backward movement of the rubber hose, as well as the control of the reel retraction and left and right rotation, all use manual and wireless remote control methods.

The sewage cleaning truck (the water tank is on the side of the tank body) is based on the original sewage suction truck. Water tanks are installed on both sides of the tank body, and a set of high-pressure waterway system is installed to improve the cleaning and sewage suction function. , it is a new sanitation vehicle that combines the functions of a high-pressure cleaning vehicle and a sewage suction vehicle. In addition to cleaning urban sewers, sediments in pipes, and dredging of dead-end mud ditch, it can also be used to clean industrial drainage pipes and walls. It integrates sewage suction and cleaning, and can effectively solve the dredging work of sewer blocked areas and dead corner mud ditch that cannot be reached by workers.

The combined dredging vehicle is composed of a second-class vehicle chassis, a power take-off, a clean water tank, a sewage suction tank, a high-pressure water pump, a vacuum pump, a hydraulic control device, a mechanical winch device, a high-pressure flushing pipeline, a vacuum sewage suction pipeline, and a sewage system.
