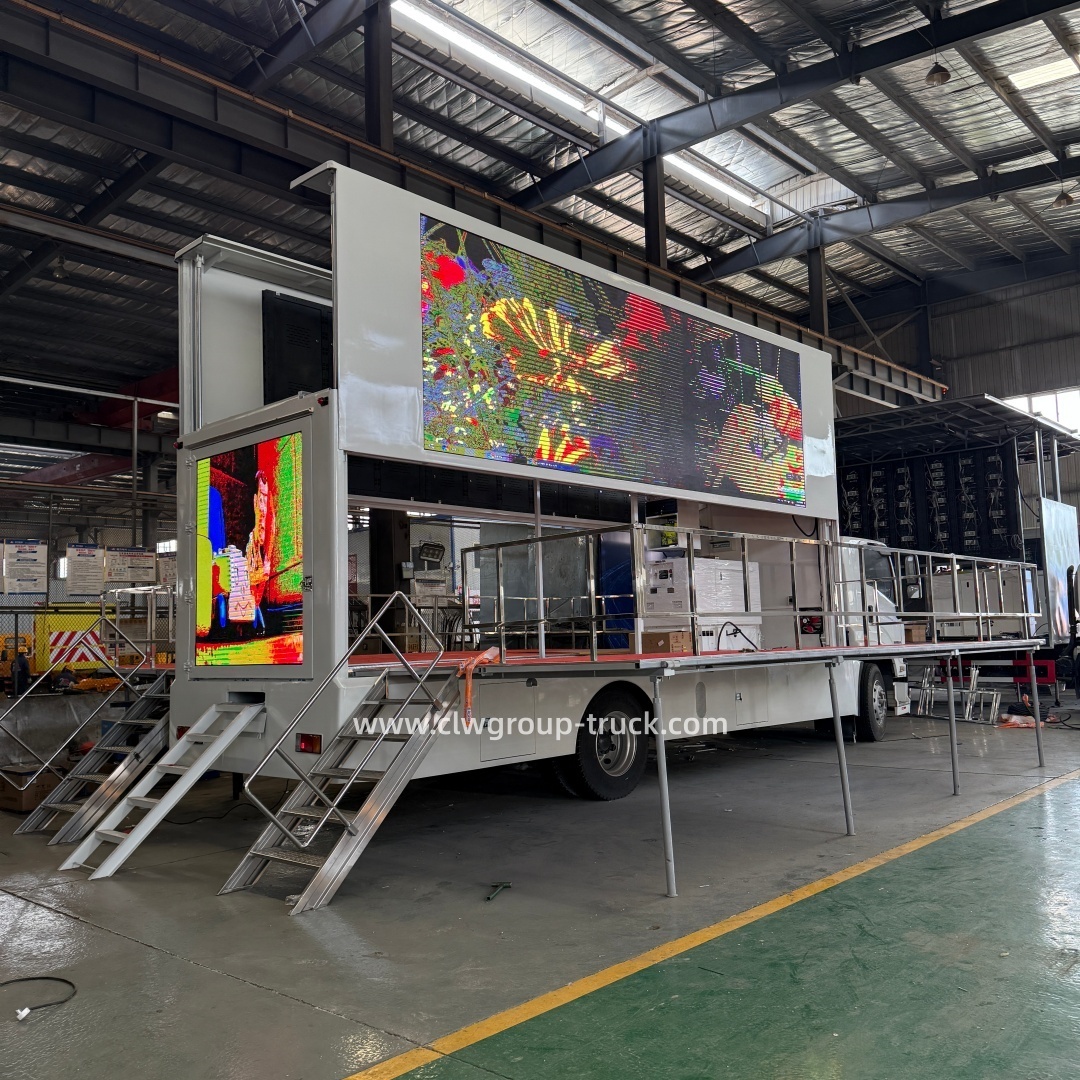

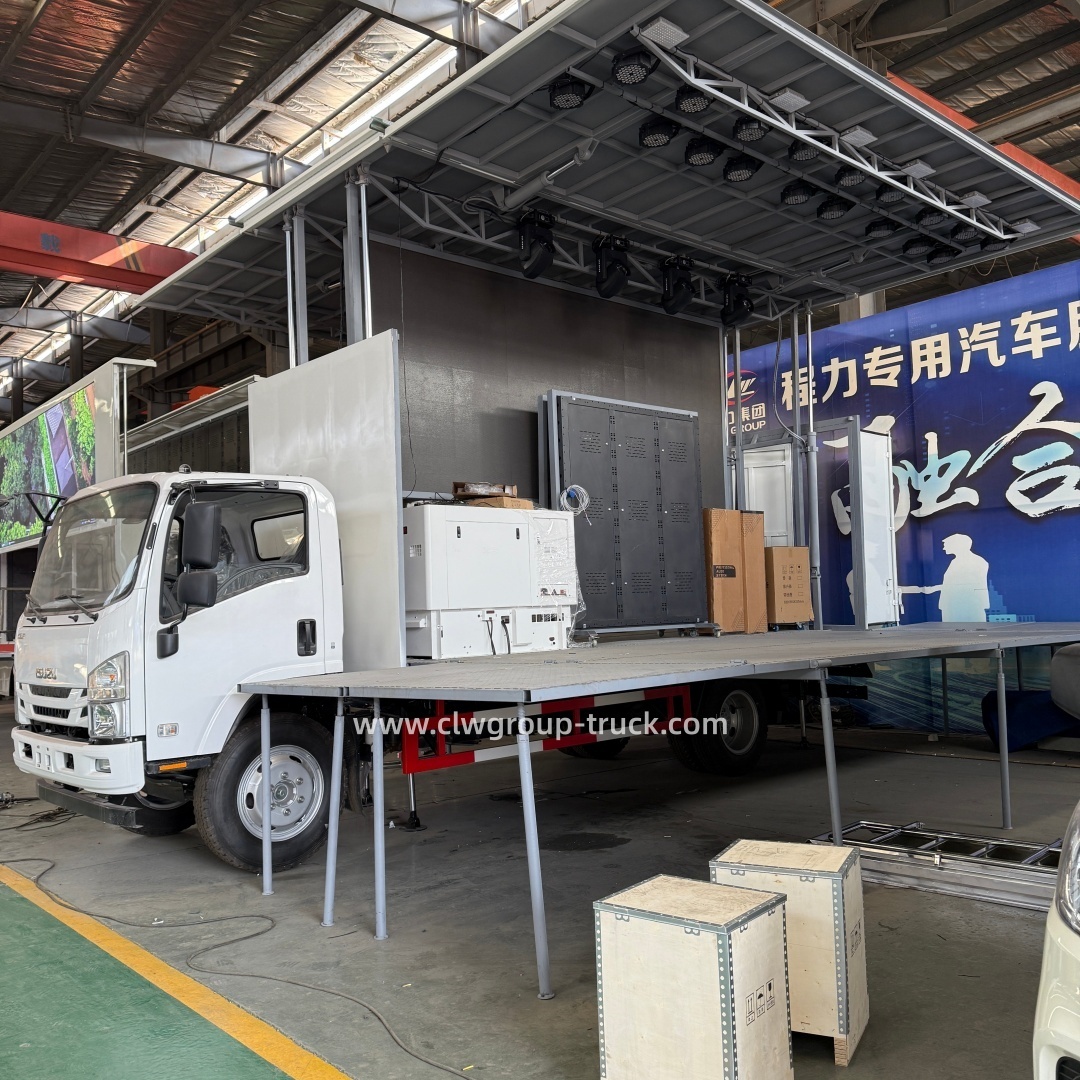

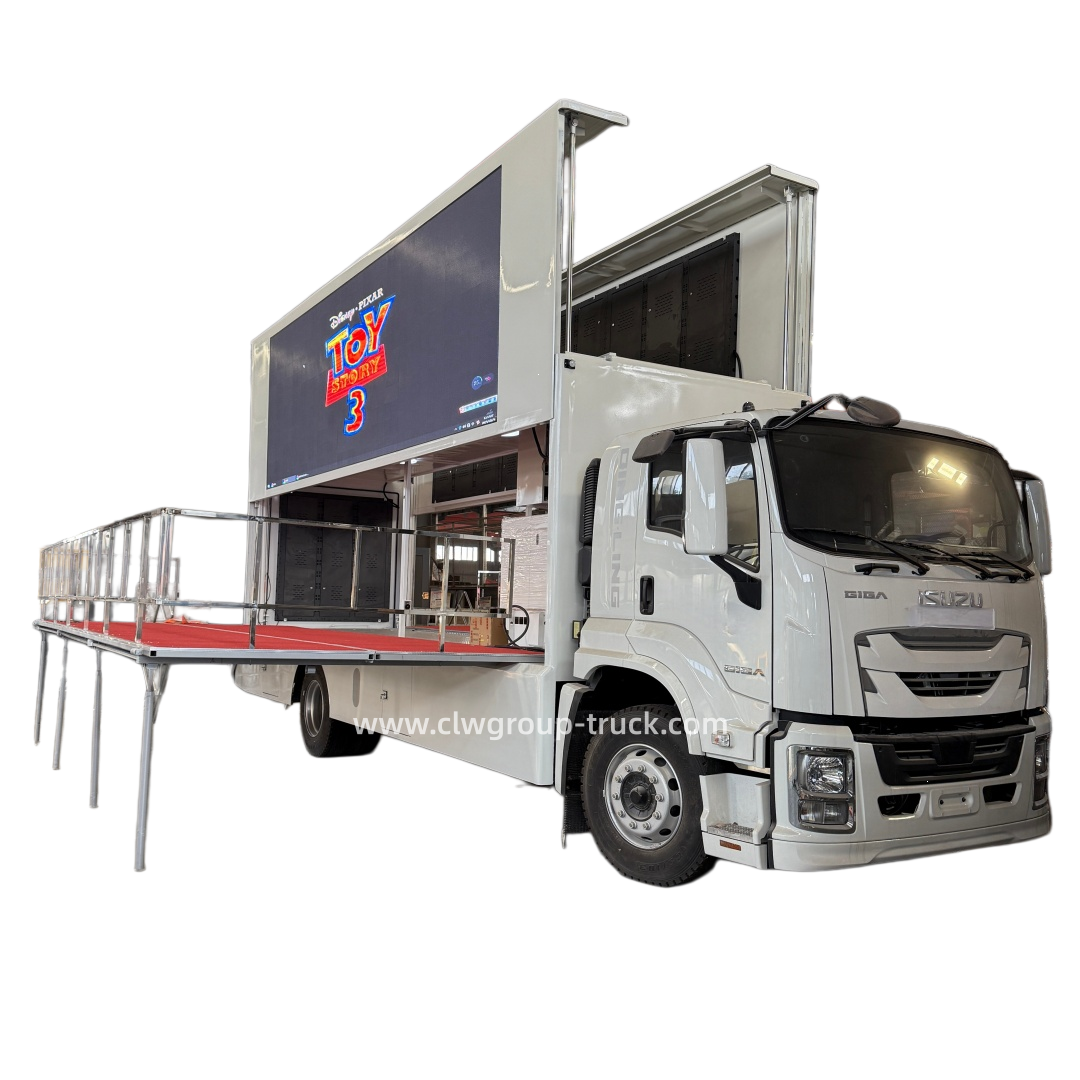

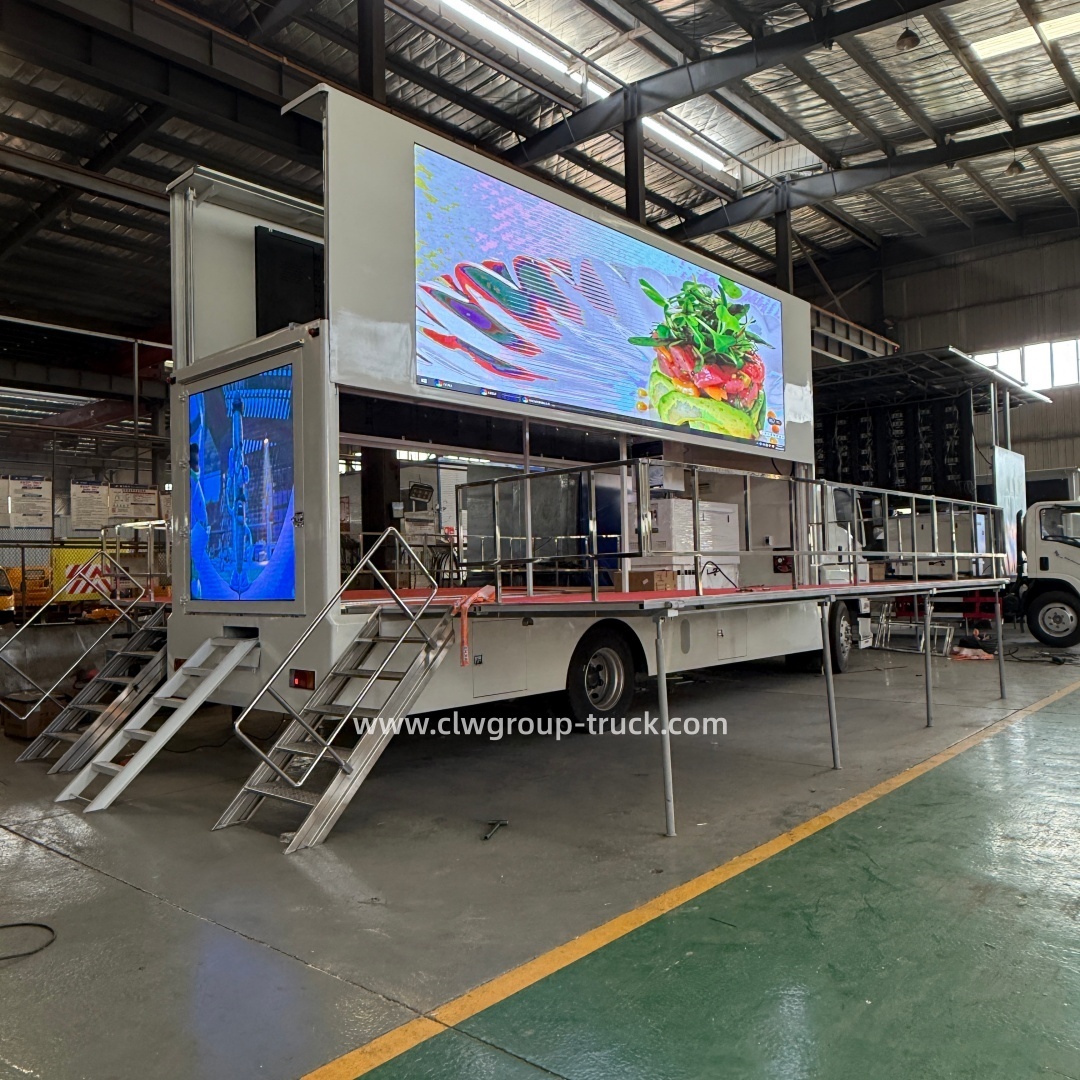

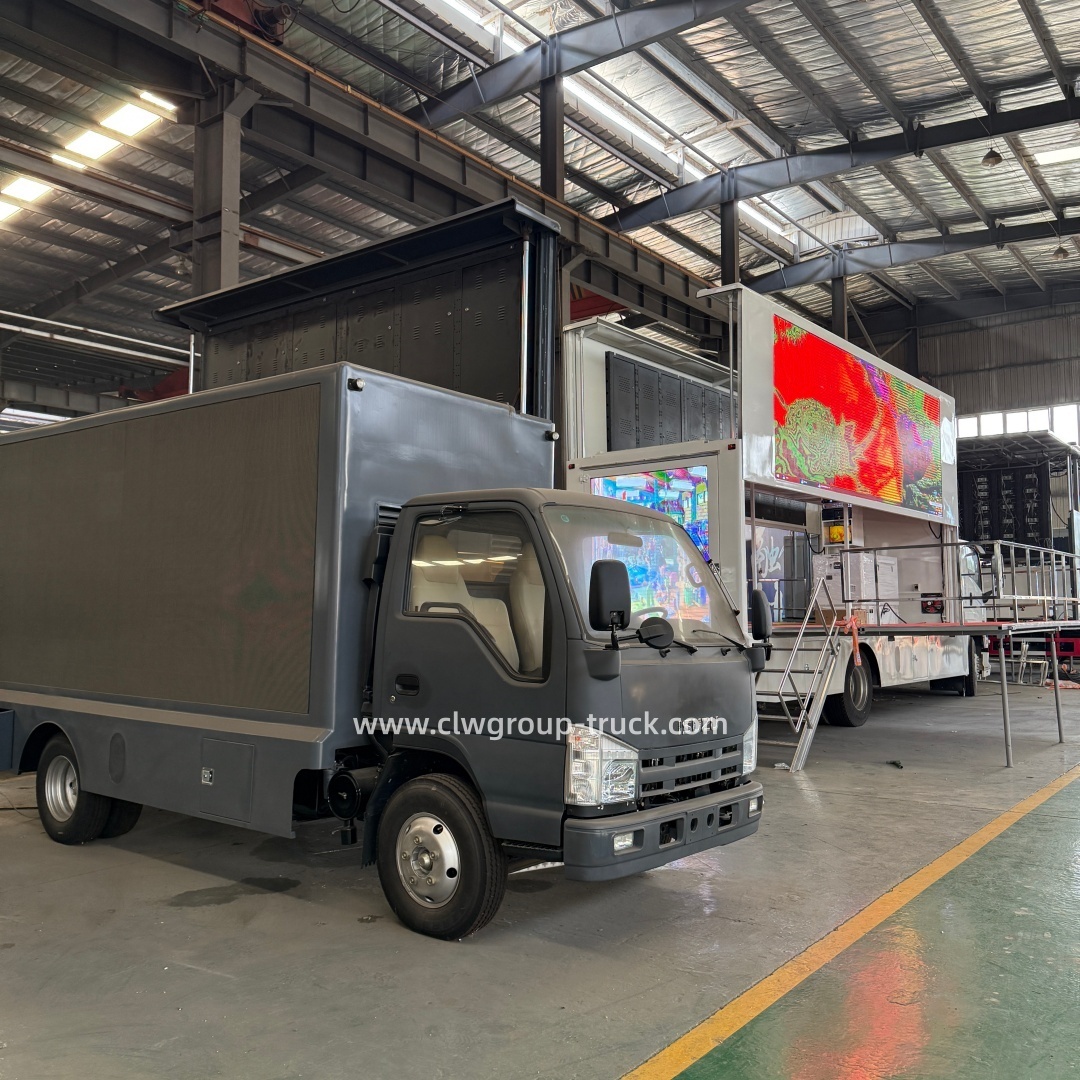

Name: Isuzu hydraulic lift outdoor led screen p4 billboard display mobile stage truck
Brand: Chengli Special Automobile Co.,Ltd

Description

Vehicle general	Overall dimension	896523403580 mm
Vehicle general	Gross weight/Kerb weight	18005/7405 kg
Chassis Specification
Chassis	Chassis Brand	Isuzu
	Cabin	Left hand drive or right hand drive
	Engine Model/Power	Isuzu engine 205hp 240hp
	Emission standard	Euro VI
	Displacement	5193 ml
	Gear box	6 forwards 1 reverse
	Front and Rear axle	Front axle 6.3 tons rear axles 13 tons
	Wheelbase	4500 mm
	Brake system	Air Brake
	Tire	295/80R22.5 ,6 tyre with 1 spare tire
	Maximum speed	95 km/h
Led Van box body
1. Left and right side P4/P3 LED outdoor waterproof full color display screen, size 60801920 mm, Rear side P4 LED monochrome screen 17601760mm 3. Internal and external electrical distribution box; 4. Circulating ventilation and cooling systems; 5. One unit 35KW silent diesel generator set 6. One set industrial computer with control system, sound system 7. Waterproof box, Amplifier 1pc, Control Panel 1pc; Aluminum patterned floor; 8 Optional hydraulic stage 10m2,one or two side screen lifting to 1.5m ,hydraulic outrigger

LED truck is also called LED video truck, led advertising truck, mobile led truck, led tv screen truck, led billboard truck, mobile advertisement vehicle, led display advertising truck, led mounted billboard truck advertisement truck, led screen truck, led display truck, etc.

Advertising vehicles generally consist of five parts. Including large screen system, power supply system, hydraulic system (some without parts), operating system, and chassis system. The chassis is generally selected as a light duty small chassis, and brands such as Foton, Dongfeng, Isuzu, Faw, JMC, JAC can be chosen. The power supply usually uses industrial 380V electricity or self generated generators.

Generator brand display

Gasoline engine led truck adopted Yihu brand gasoline generator power 6.5KW or 8KW

Diesel engine led truck adopted OUMA brand diesel silent generator power 8.5KW,12KW,16KW

The advertising truck body material adopts a 5mm composite steel frame body, with high-temperature resistant aluminum patterned panels for the interior. The electronic control system is safe, intelligent, and automatically switches between the internal and external networks. The ventilation system is a powerful exhaust fan and sunroof. The floor material can be selected as wooden flooring or aluminum patterned panels. The industrial control system can be selected as wooden flooring or aluminum patterned panels. The industrial control system can be equipped with I4 high-end industrial control computer or USB direct insertion video playback system.

LED advertising vehicles have several advantages as new media promotion tools:

Save time. Common advertising methods require a lot of time to combine LED display backgrounds, large screens, etc. However, LED advertising vehicles do not require too much time to build, disassemble and assemble these devices, fully demonstrating their own convenient advantages.
Break through the limitations of location, flexibly display product information, and flexibly promote it in any appropriate place according to the needs raised by users.

3 The promotional effect is good. From a distance, LED displays are more effective in attracting people's attention and achieving better promotional effects than ordinary plastic promotional paper.
