| Vehicle General | Overall dimension | 7410×2380×2320 mm |
| Gross /Kerb weight | 8280/5210 kgs | |
| Chassis | Chassis brand | Isuzu |
| Cabin | Single ,left hand drive or right hand drive | |
| Engine model/power | Isuzu engine 130hp | |
| Engine emission standard | Euro V or Euro VI | |
| Engine displacement | 2.5 L | |
| Transmission | 5 forwards 1 reverse | |
| Front & Rear axles | front axle 3 tons rear axle 5 tons | |
| Wheelbase | 3815 mm | |
| Brake system | Air Brake | |
| Tire | 7.00R16 6 tires with 1 spare tire | |
| Max speed | 98 km/h | |
| Platform bed | Platform | 5600*2350 mm |
| Winch | 4 T | |
| Steel rope | 21 m | |
| Control | hydraulic control or remote control | |
| Equipped | A set of auxiliary wheel. four bandage,long row of warming light etc | |
★Definition of wrecker truck: Wrecker truck is equipped with lifting, towing, lifting and other devices on the basis of a special cargo chassis. Beautiful appearance, safe and reliable. Widely used in highways, airports, docks, auto repair industry and highway companies and other departments, can promptly and quickly clean up accidents, failures, illegal vehicles and other vehicles.
★Classification of wrecker trucks: Wrecker trucks can be divided into light, medium-heavy and super-heavy types according to their ability to clear the wrecker; according to the structural characteristics of the operation device, wrecker vehicles can be divided into separate types of support-hoisting, support-hoisting combined Body type, flat back-loading type, platform lifting type; according to the unique functions of the boom and support arm in the wrecker truck, the wrecker truck can be divided into boom rotation type, boom sliding type, and boom folding (load) type Wait.
★Users who have special requirements for road wrecker vehicles, please call the wrecker vehicle modification factory. We can design and modify the user's order, and can also install accessories such as steering assist and air conditioning.

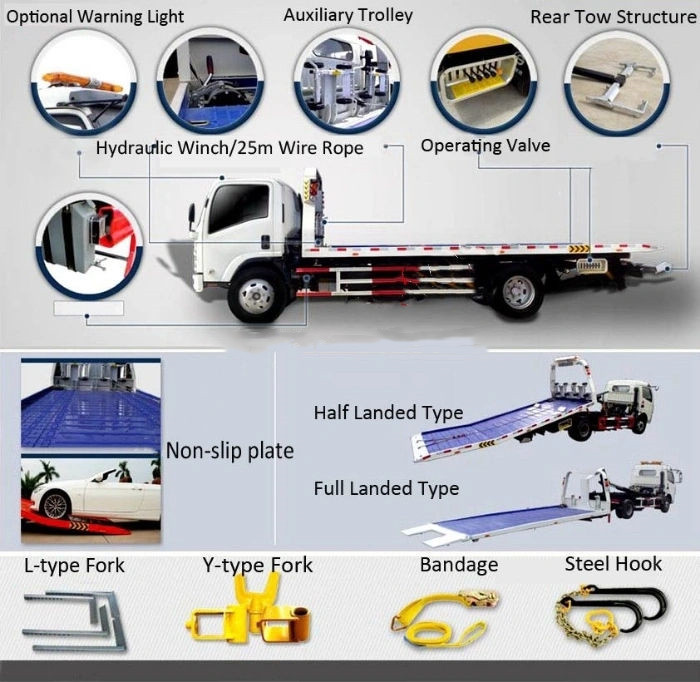

The flatbed wrecker is mainly composed of a power take-off device, a hydraulic transmission mechanism, a traction system, a deck mechanism, a lift mechanism, etc.;
It can handle two accident vehicles at the same time, dragging on the upper back and lower, mainly suitable for cars within 3 tons; optional automatic clamping device;
Equipped with lights, straps, auxiliary wheels, J-hook, optional air conditioning, air brake
The wrecker rescue vehicle, also known as road wrecker, trailer or road rescue vehicle, has a number of functions such as lifting, pulling and lifting traction, mainly used to remove road obstacles, clean up accident vehicles, organize the urban environment, and provide help and rescue services for drivers and vehicles. With the increasingly busy urban traffic and the increasing number of vehicles, the rescue vehicle is playing an increasingly important role in ensuring the smooth flow of roads and reducing the loss of traffic accidents
The rescue vehicle is widely used in highway, urban construction, automobile repair industry, airports, docks and highway companies. It plays an important role in traffic accident handling, vehicle fault rescue, illegal vehicle towing and so on. At the same time, the rescue vehicle also has the special transportation function of "trouble-free vehicle", such as the transportation of large equipment and the escort of valuables
.Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck :howo,Dongfeng,faw,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck : Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton, 60ton, 70tons, 80tons.
