| Vehicle general | Dimension | 10100*2550*3850 mm |
| Gross weight/Kerb weight | 25000/17500kgs | |
| Chassis | Chassis brand | Isuzu |
| Cabin | Single,left hand drive | |
| Engine model /power | Isuzu engine 300hp | |
| Emission standard | Euro VI | |
| Displacement | 7.8 L | |
| Transmission | 8 forwards 1 reverse | |
| Axle weight | front axle 6.3 tons rear axle 13 tons | |
| Wheelbase | 4350+1370 mm | |
| Brake system | Air brake | |
| Tire | 295/80R22.5, 10 tires and 1 spare tire | |
| Max speed | 95 km /h | |
| Sewage& pressure tanker | Sewage tank capacity | 16cbm |
| Vaccum pump | SK-30 30m3/h | |
| Clean water tank capacity | 5 cbm | |
| Pressure pump | 330L/min 19 Mpa | |
| Equipped | 1 sewage tanker & clean tanker material are carbon steel 2 Equipped 60m high pressure tube,diameter 19mm 3 Equipped with 10pc different thrust cleaning nozzles .suitable for cleaning and dredging of different sewer 4 Equipped with looking sludge window,suction hose 7m etc |
|

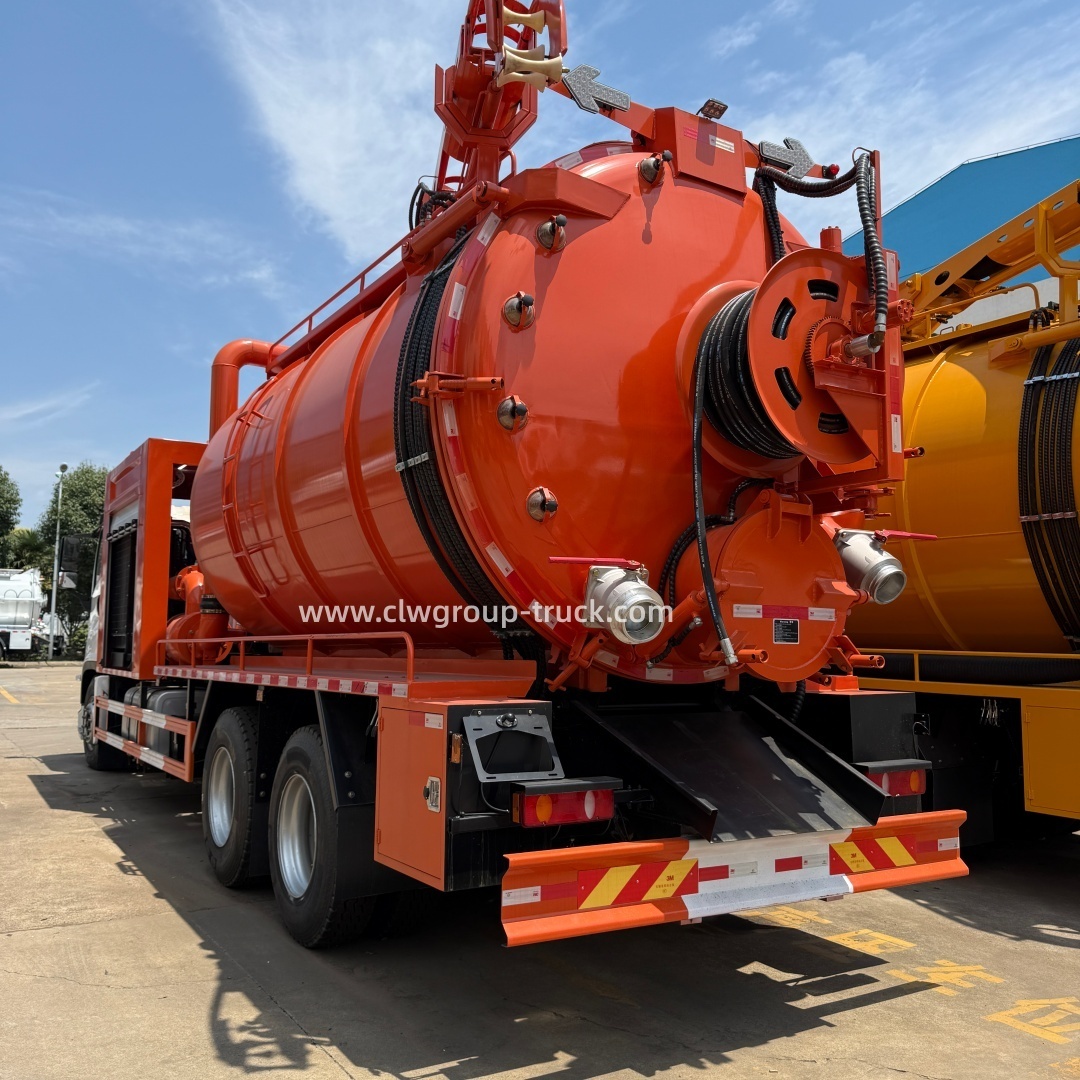

The sewage cleaning truck (the water tank is on the side of the tank body) is based on the original sewage suction truck. Water tanks are installed on both sides of the tank body, and a set of high-pressure waterway system is installed to improve the cleaning and sewage suction function. , it is a new sanitation vehicle that combines the functions of a high-pressure cleaning vehicle and a sewage suction vehicle. In addition to cleaning urban sewers, sediments in pipes, and dredging of dead-end mud ditch, it can also be used to clean industrial drainage pipes and walls. It integrates sewage suction and cleaning, and can effectively solve the dredging work of sewer blocked areas and dead corner mud ditch that cannot be reached by workers.

The combined dredging vehicle is composed of a second-class vehicle chassis, a power take-off, a clean water tank, a sewage suction tank, a high-pressure water pump, a vacuum pump, a hydraulic control device, a mechanical winch device, a high-pressure flushing pipeline, a vacuum sewage suction pipeline, and a sewage system.

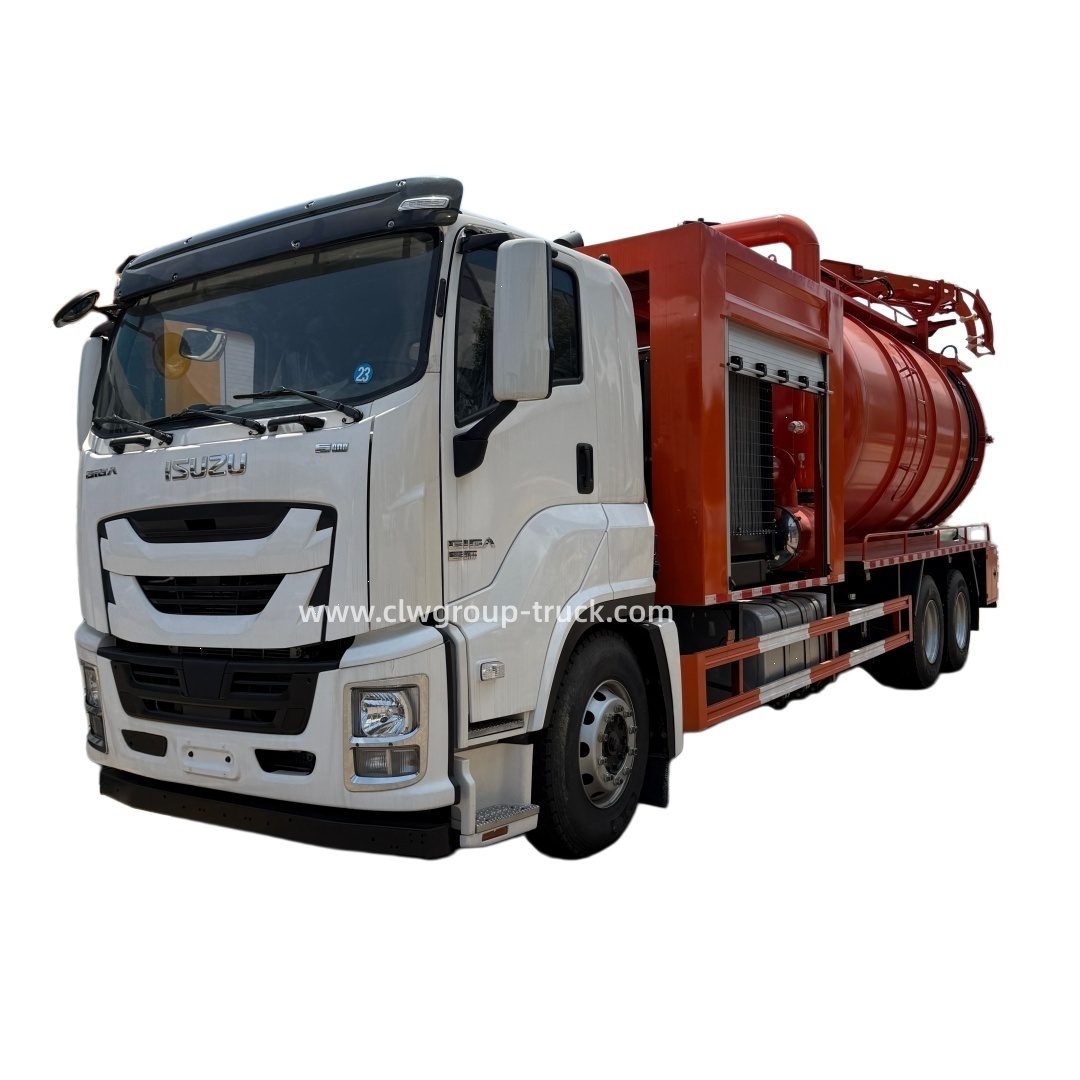

CLW group Giga 6*4 20000 Liters Sewage Vacuum Suction Truck Combination Truck Sludge Truck Sewer Jetting for Sale
Certificate: ISO9001, CCC, EC, OTTC.
- More than 30 independents workshops for different trucks.
- 1000 sets of equipment, 25 assemble lines.
- 8000 staffs including 300 senior engineers and technicians.
- 800 kinds of trucks and semi-trailers covering different industry.
- 20 years wholesale experience.
- Export to 90 countries.
Cooperates with DONGFENG, SINOTRUK, ISUZU, FOTON, FAW, BEIBEN, etc.
Welcome to visit CLW group- Chengli Special Automobile Co.,Ltd in Suizhou City, Hubei Province,China.The nearest airport is WUHAN TIANHE INTERNATIONALAIRPORT, 2 hours from Beijjing, Shanghai or Guangzhou.
