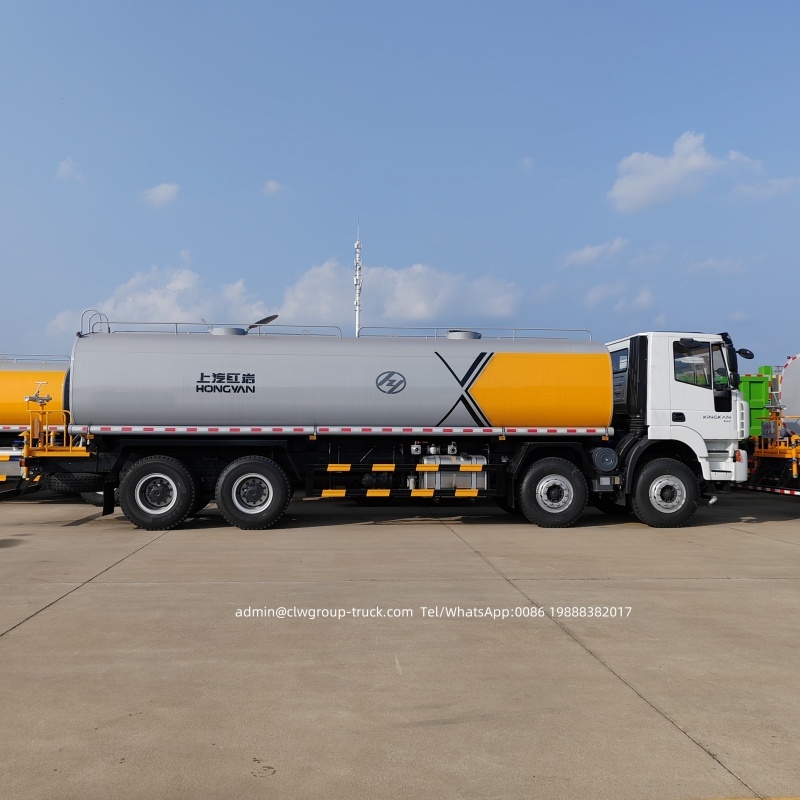

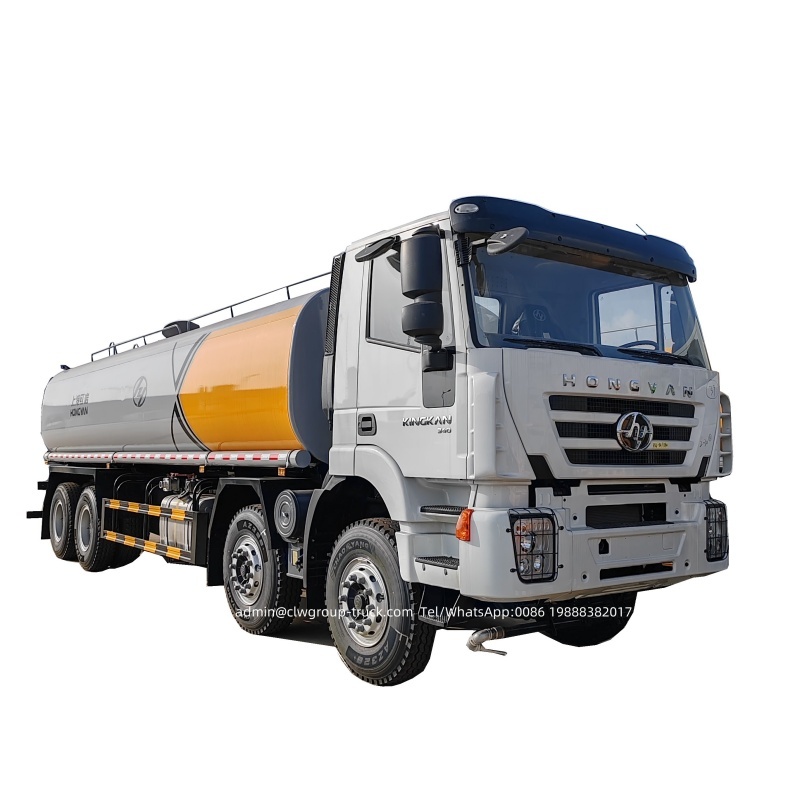

Iveco hongyan 8X4 12 wheeler 30m3 truck mounted water tanker

Water sprinkler trucks, as the most basic tank type vehicles, play a very important role in landscaping, especially in urban road cleaning, irrigation of green plants, and engineering dust reduction. The basic configuration of the water sprinkler truck is a carbon steel water tank with a capacity of 3 to 30 cubic meters, equipped with a rear platform, front flushing and rear spraying, fire outlet and water pump. We can also choose to install car wash diesel engines and reels, fog cannons, hand washing faucets, etc. according to customer requirements. Carbon steel sprinkler tanks are generally used for industrial water, and we recommend customers to use stainless steel tanks or carbon steel tanks with a layer of rust proof coating for drinking water.
Chengli Special Purpose Vehicle Co., Ltd. is a manufacturer with the qualification to produce water sprinkler trucks. The sprinkler trucks produced have been selling well both domestically and internationally for many years and have received unanimous praise.
 How to choose an ideal water sprinkler truck
Firstly, we need to determine the volume of the water sprinkler truck. Generally, a 4X2 truck has a volume of 3-15 cubic meters, a 6X4 truck has a volume of 16-25 cubic meters, and an 8X4 truck has a volume of 26-35 cubic meters.

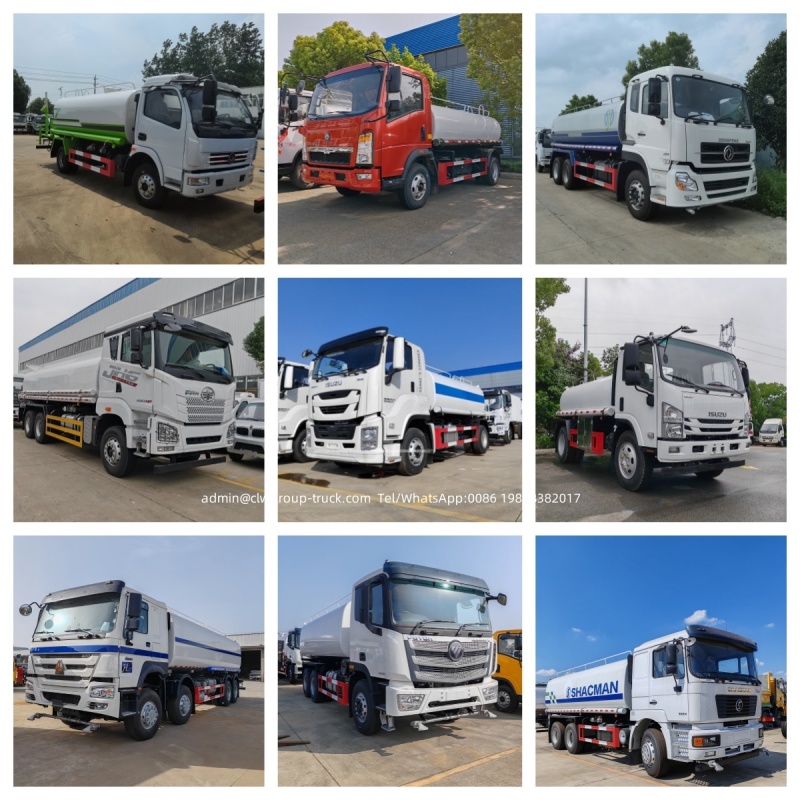

Secondly, we need to determine the chassis of the water sprinkler truck. The chassis of the sprinkler truck can be selected from brands such as Dongfeng, Foton, sinotruk, FAW, JAC, Isuzu, Shacman, as well as the Chengliwei brand chassis independently produced by Chengli Company.
Once again, we need to determine whether the purpose of the water sprinkler truck is to hold drinking water or for green spraying. Green spraying uses carbon steel material to configure water pumps and cannons. If used to install drinking water tanks, the material and production standards are different.
What are the types of water sprinkler trucks and sprinkler pumps? How to use and precautions
One of the most widely sold pumps on the market is Hangzhou Weilong Pump, which stands out in terms of product quality, quality, and service life. Currently, it is the best quality sprinkler pump manufacturer in China, with high pump costs and relatively high prices. The commonly used brand of sprinkler pump is Suizhou Yifeng sprinkler pump, which works on the same principle as Weilong pump. Due to its affordable price and direct after-sales service in Suizhou, the product quality is the most commonly used by various sprinkler truck manufacturers

The type of water pump for sanitation sprinkler trucks is directly related to the flow rate, which can be simply divided into small flow nozzle pumps and large flow nozzle pumps. The high flow sprinkler pump has a large nozzle flow rate. The small flow sprinkler pump has a relatively small nozzle flow rate.
Generally, sanitation sprinklers weighing less than 8 tons use small flow sprinkler pumps, while those weighing over 8 tons use large flow sprinkler pumps. There are sanitation sprinkler trucks under 8 tons, such as Dongfeng Dorica, Foton, Dongfeng Furuika, etc. Sanitation sprinklers weighing over 8 tons are Dongfeng Dulika, Dongfeng Tianlong, Dongfeng Tianjin sprinklers, etc. Small flow sprinkler pumps and large flow sprinkler pumps can be used according to this standard. At present, there are a large number of sprinkler pumps used by sanitation vehicles such as water trucks in China, but the main ones are Hangzhou Weilong sprinkler pumps, with high flow pumps of 80QZ60/90 and low flow pumps of 60QZ40/50

Chengli Sprinkler Truck specializes in the production of water sprinkler trucks and fog cannon trucks. It is a leading standardized production line in China, with the latest designed upper style and new bolt riveting assembly technology. The Chengli water Sprinkler Truck is mainly used for road washing, tree, green belt, lawn greening, bath center insulation and water transportation, community disinfection, construction site dust suppression, high-altitude building washing, etc. The diversified sprinkler truck products are widely used in enterprise construction, urban road washing, military vehicles, mine bottom explosion-proof sprinkler, foreign trade exports, etc. We produce over a thousand sprinkler trucks annually, with an annual output value exceeding 100 million yuan. Cheng Li chose Cheng Li sprinkler not only for the brand, but also for the quality. Firstly, since its operation in 2004, Chengli Water Sprinkler has gradually taken over the national market and even exported a large amount to other countries, occupying a significant market share. Not only is the product comprehensive and able to meet all customer needs, but the quality is also very strong with very low after-sales rate. Sprinkler trucks have the following advantages:
Assembly process on assembly line: The entire water sprinkler truck is assembled on an assembly line, which enables unified and standardized production of products. And the various components of mature standardized products can be pre manufactured and stocked, thereby reducing the production cycle of ordering bicycles. At the same time, the components assembled on the assembly line are painted first and then assembled, so that the entire vehicle can be painted 360 degrees without dead corners, and the painting quality is better.
Vehicle assembly design: The various components of the sprinkler truck are designed in an assembled manner, which facilitates the disassembly, maintenance, and upkeep of each component. For example, the side protection is assembled with bolts, which facilitates disassembly and replacement when the side protection is damaged or deformed, as well as maintenance and replacement of the pump and main pipeline suspended at the bottom of the vehicle.

The main pipeline of the sprinkler truck is assembled from standardized cast aluminum parts. Compared with traditional welded main pipelines, cast aluminum pipes can achieve lightweighting of the pipeline, and all cast aluminum parts are standard parts, which are easy to disassemble, repair and replace.

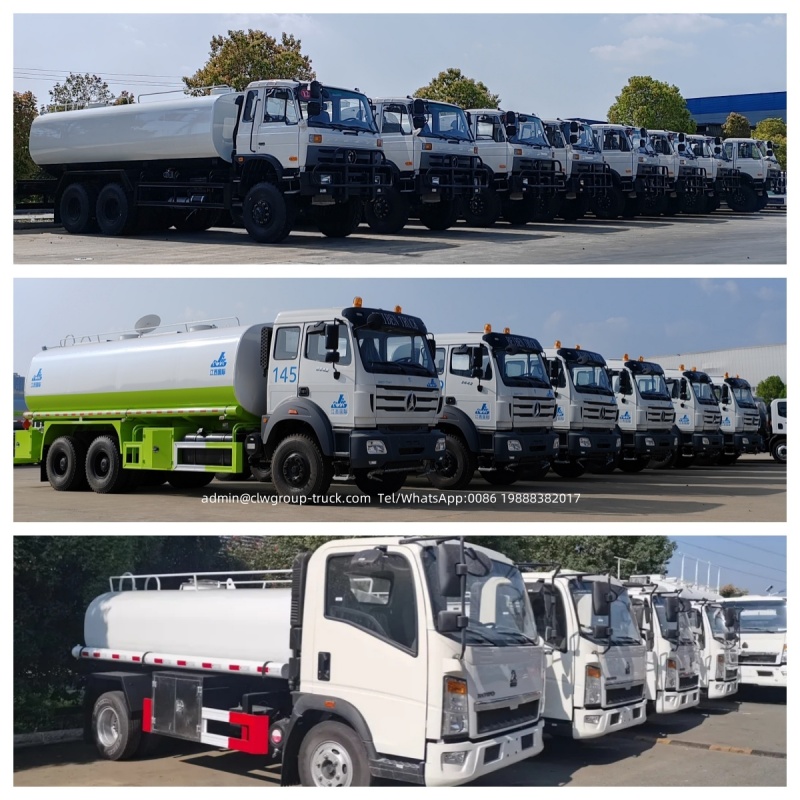

Choosing Chengli water sprinkler truck is not only about choosing the brand, but also about choosing the quality. Since its operation in 2004, Chengli Water Sprinkler has gradually occupied the national market and even exported a large amount to other countries, occupying a significant market share. Not only is the product comprehensive and able to meet all customer needs, but the quality is also very strong with very low after-sales rate.

According to the purpose, it is divided into water sprinkler truck,watering truck, greening sprinkler, multi-function sprinkler, truck-mounted sprinkler,water delivery truck, water transport truck sprinkler, and fire sprinkler.

 Water truck丨water spraying truck performance characteristics:

1. Self-priming height: ≤7m, sprinkler width: ≥20m, range: ≥28m; it can be adjusted into a column shape with a range of ≥28m; it can also be adjusted into a fog shape with a range of ≥5m.

2. It is used in urban roads, large factories, gardens and other units to clean road surfaces, sanitation, dust prevention, watering, spraying pesticides, etc., to achieve the effect of beautifying the environment.

3. For temporary emergency fire sprinkler, each water sprinkler truck is equipped with a fire interface.

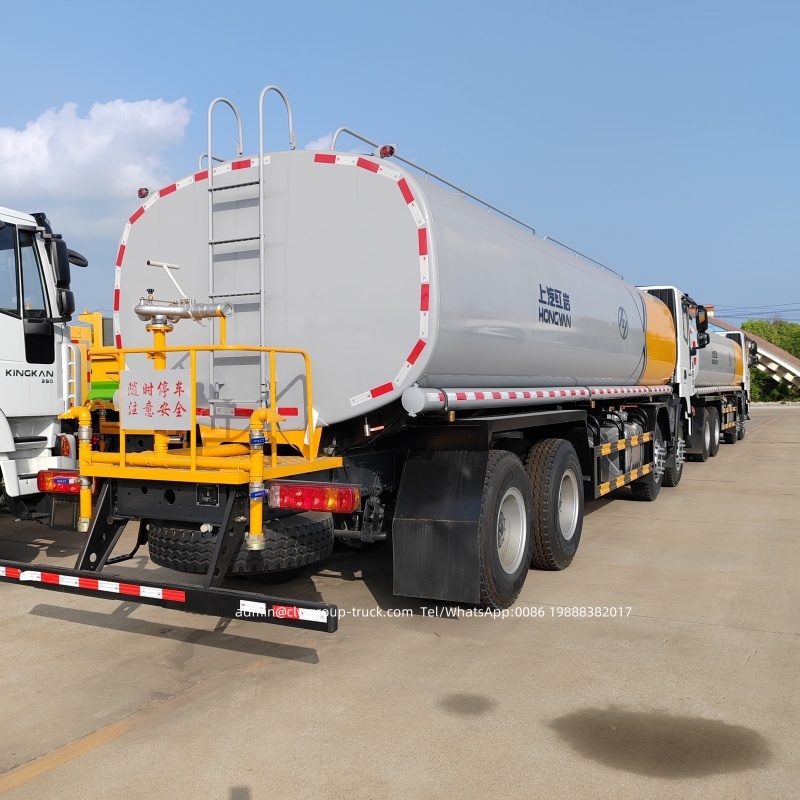

4. Front dash rear spraying, with duck-shaped nozzle or round head flushing nozzle at the front, cylindrical sprinkler nozzle or shower head nozzle at the back, and a working platform at the back, equipped with high-pressure water cannon. The rear can also be equipped with 8 nozzles (optional) water jets are generally used for street washing.

Tanks and accessories on water trucks

Material: The tank body adopts Q235, the thickness of the partition plate is 3mm, the thickness of the tank body carbon steel is 4mm, and the thickness of the head is 5mm.

Cast aluminum pipe fittings: aluminum alloy elbow tee, aluminum alloy flange tee, aluminum alloy pump outlet tee, aluminum alloy pump inlet straight, mold one-time die-casting, no welds, avoid water leakage, standardized design, mutual Good changeability, easy maintenance and replacement, aluminum alloy material is lighter, beautiful and practical, and improves product quality. Other accessories: aluminum alloy rear sprinkler, stainless steel ball valve, S-type new high-pressure water cannon

Water Sprinkler truck丨water sprinkler truck optional configuration:

1. Pneumatic ball valve integrated control can be selected for front flushing, rear spraying and side spraying, and stainless steel can be selected for greening anti-aircraft guns;

2. Hangzhou Weilong sprinkler pump can be optional, and electric sprinkler can be installed at the front of the cab;

3. The rear of the tank can be equipped with arrow indicators and long warning lights, and the rear can be equipped with an arc spray device;

4. Snow removal equipment, snow removal shovel, rolling sweep, guardrail cleaning machine, etc. can be installed;

5. It can be used as fire sprinkler and installed with rolling shutter;

6. A 30-120m air-supplied sprayer can be installed.

Common accessories for water trucks: water truck pump, three-way aluminum alloy valve, fire-fighting high-pressure water gun, pneumatic valve, butterfly valve, music horn, universal duckbill, high-pressure water gun, air cylinder

Water Sprinkler truck 丨 Water truck construction process:

1. Chassis options:

The chassis of the sanitation sprinkler is driven by the second-class chassis, and adopts the second-class chassis of domestic Dongfeng,FAW, Foton,JAC, Sinotruk, SHACMAN, Beiben, Isuzu and JMC

2. Piping system:

The sanitation sprinkler is composed of pipelines, four-position three-way ball valve, straight-through ball valve, filter screen, and water outlet (front flushing, rear spraying, side spraying; high-position side shower; rear working platform, with green sprinkler artillery).

3. Tank process:

The automatic assembly line production process is divided into domestic production processes such as blanking, automatic welding of panels, head spinning, and one-time roll forming of tanks. The tank material is mostly made of carbon steel plate. In the case of special purposes, 304 stainless steel can also be used according to customer needs.

4. Operating system: The sanitation sprinkler works by the engine driving the gearbox, the power take-off installed on the gearbox drives the sprinkler pump, the sprinkler pump generates power, and the liquid inside the tank is sprayed out through the pipe network. Working range: Self-priming height: ≥7m, sprinkler width: ≥14m, range: ≥28m; it can be adjusted into a column, and the range is ≥28m; it can also be adjusted into a fog, with a range of ≥5m,

5. Power take-off: The sprinkler is powered by the main engine and is operated pneumatically. The operation switch is pulled back, the power take-off tooth enters the meshing position, and the water pump is driven to work through the transmission shaft. The switch returns to the front, and the water pump stops working. The power take-off is a device installed on the box side of the gearbox of the sprinkler. Generally, the automobile gearbox has a mounting port. The installed power take-off can transmit the power through the rotation of the regular gear of the gearbox, and then The power is transmitted to the drum and pressurizing pump of the mixer through the transmission components and the controller.

6. Sprinkler pump: equipped with Hangzhou Weilong high-power sprinkler pump, with fire joint, with self-flow valve, with self-priming function optional configuration of sprinkler: can be equipped with spray tray, medicine pump, anti-corrosion and anti-rust in the tank, and more Azimuth inlet and outlet water joints, solenoid valves, pneumatic valves and other facilities to meet the needs of different users.

Water Sprinkler truck丨 Scope of application of water truck :

Community property - road watering, landscape belt maintenance, lawn watering, etc.

Municipal sanitation - road flushing, cooling and dust pressure, green belt maintenance, etc.

Landscaping - nursery watering, plant watering, landscaping spraying, etc.

Construction sites, coal yards - spray dust, suppress dust, transport water for washing, etc.

Forest fire - fire water transport, etc.

Bathhouse center - heat preservation and water transportation, hot spring water transportation, etc.
