A sedan is a specialized vehicle used for transporting sedans and other small vehicles The main structure of a sedan car includes the following parts: the lower chassis and upper chassis are the basic structures of the sedan car, bearing the weight and load of the entire vehicle. The lower chassis is usually designed as a double-layer structure to increase strength and stability. The upper chassis is lifted up and down by a lifting device for easy loading and unloading of vehicles
The side panels, front panels, rear doors, and roof panels constitute the body of the sedan. The side and front panels are usually enclosed with a cover to protect the vehicle from external damage during transportation. The design of the rear door facilitates the entry and exit of vehicles, while the roof panel is designed in the form of a canopy or other forms according to different vehicle models.

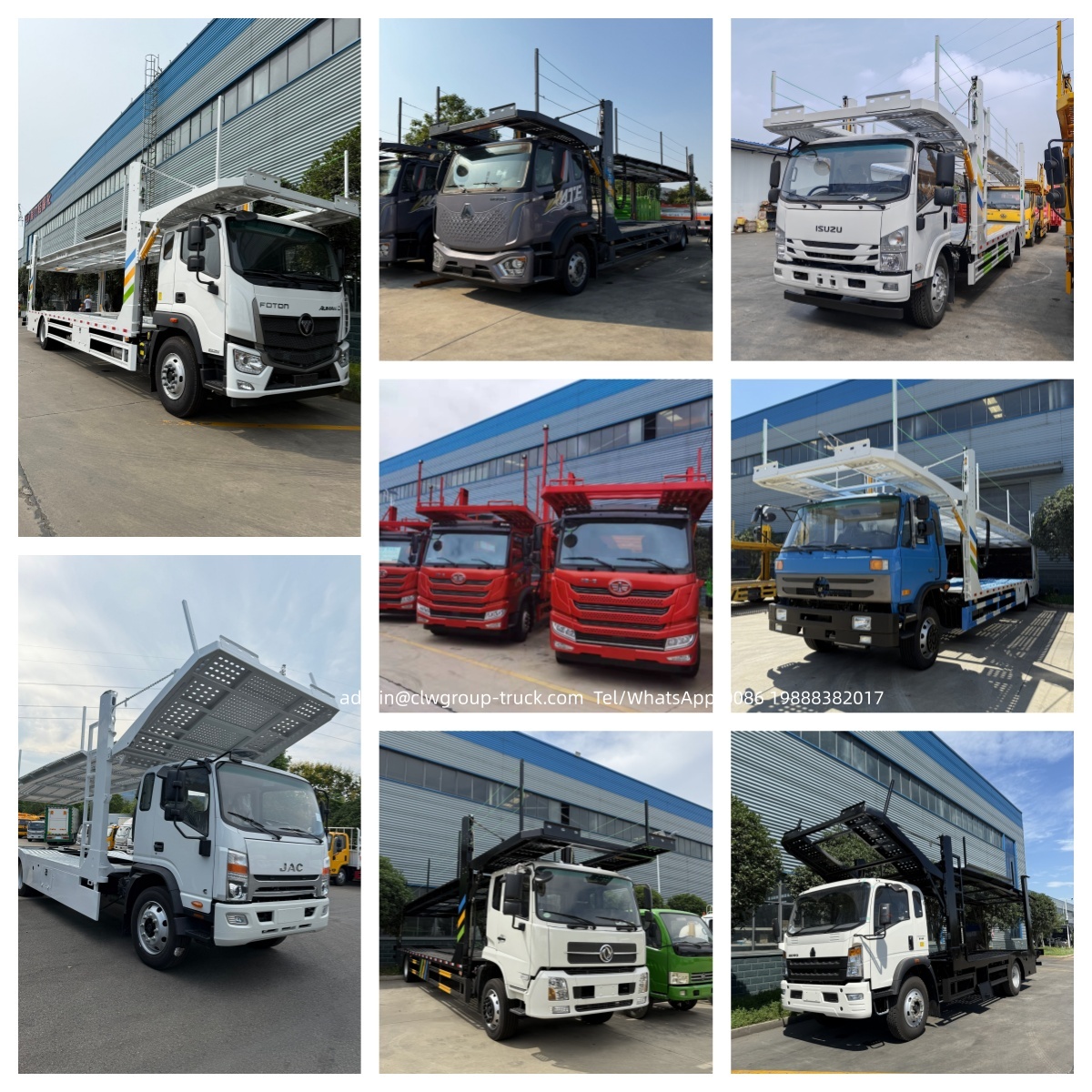

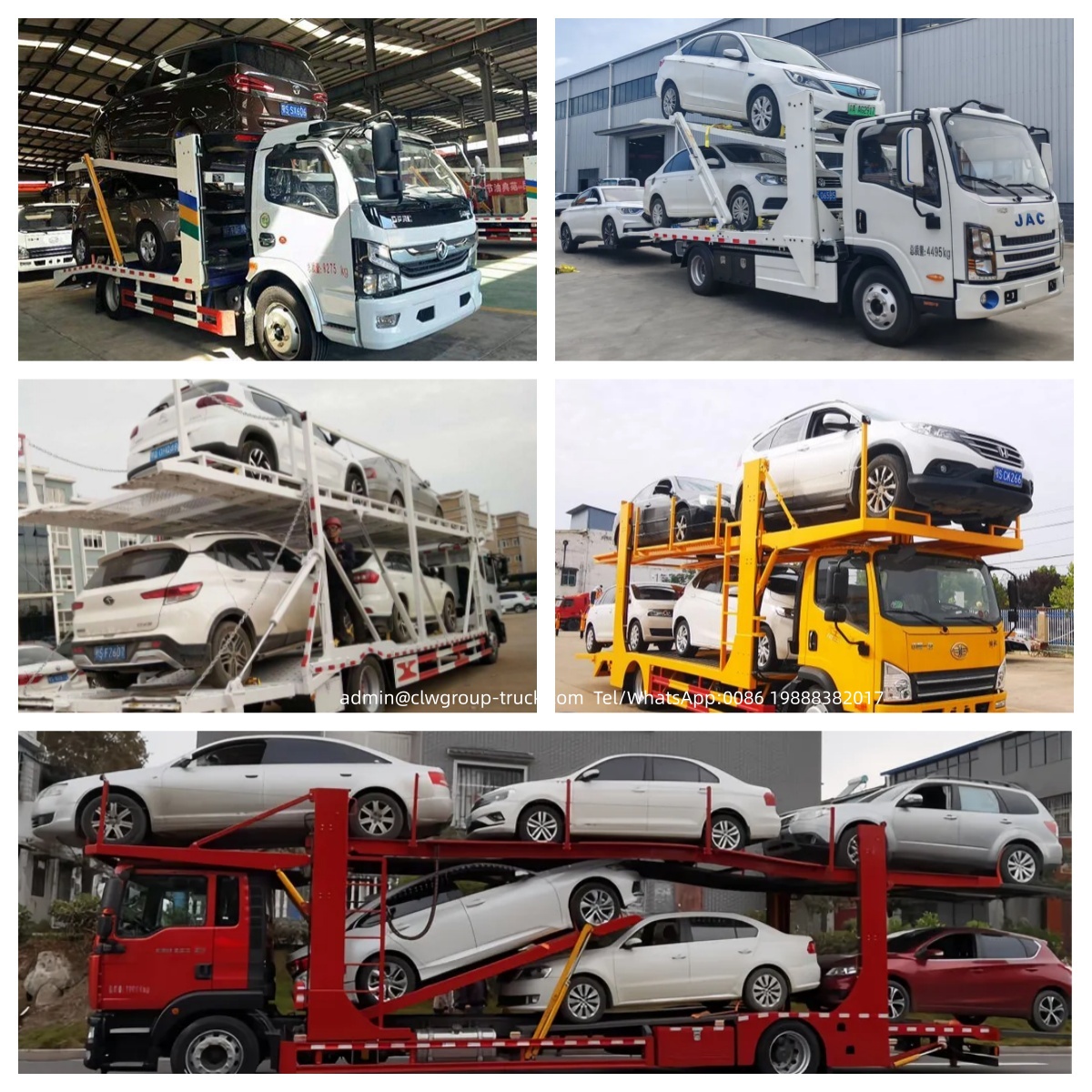

Chengli Automobile Co., Ltd. produces a multi-purpose vehicle transport car sedan, which can be used for one to two, one to three, one to four, one to five, and there are also new mid axle sedan cars waiting for you to choose from. The brand series of two seater sedan transport vehicles (three seater sedan transport vehicles) includes brands such as Dayun, Dongfeng, JAC FAW, Kaima, Liuqi, FOTON, SINOTRUK HOWO, Yuejin, etc.

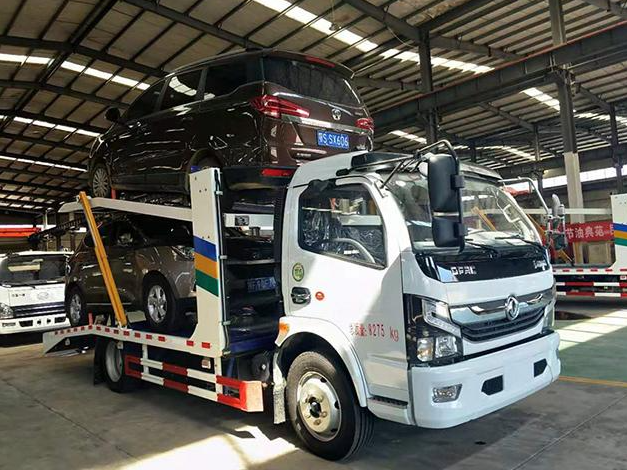

Two seater sedan upper configuration: The upper plate is equipped with a net length of 4.1 meters and a width of 2.2 meters, the lower plate is equipped with a net length of 4.2 meters and a width of 2.4 meters, and the lower plate surface is 0.8 meters above the ground. The whole car is equipped with four imported oil cylinders and an imported Italian Hyde hydraulic control system. The upper part is made of high-strength low-alloy materials. Optional hydraulic winch Yellow card two seater sedan upper configuration: the upper plate is standard with a net length of 5.2 meters and a width of 2.2 meters, the lower plate is standard with a net length of 5.7 meters and a width of 2.4 meters, and the lower plate surface is 0.8 meters above the ground. The whole car is standard with 4 imported oil cylinders and an imported Italian Hyde hydraulic control system. The upper configuration is made of high-strength low-alloy materials. Optional hydraulic winch Optional 4-ton trailing arm.
Heavy Truck HOWO four seater sedan transport vehicle, Weichai 160 horsepower National VI, Heavy Truck eight speed high and low speed, upper main board length of 8.5 meters, front extension of 1.2 meters, lower main board of 6.5 meters, rear extension of 2 meters, 245/70R19.5 tires, 4500 wheelbase
Dongfeng Tianjin five seater sedan transport vehicle

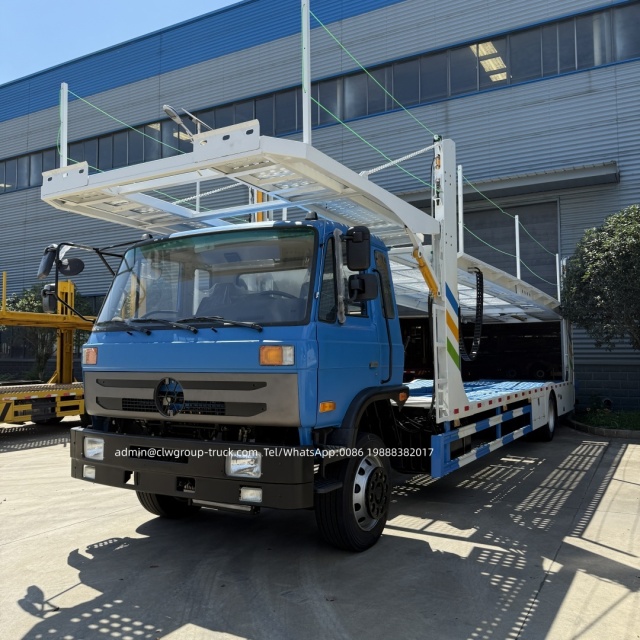

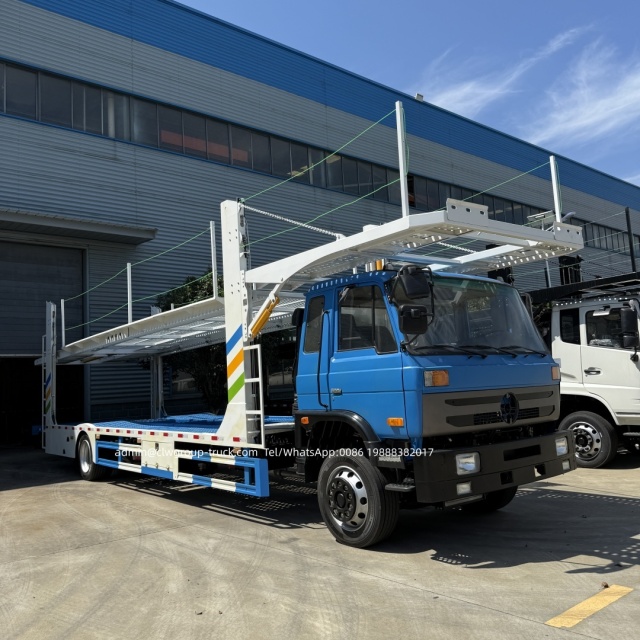

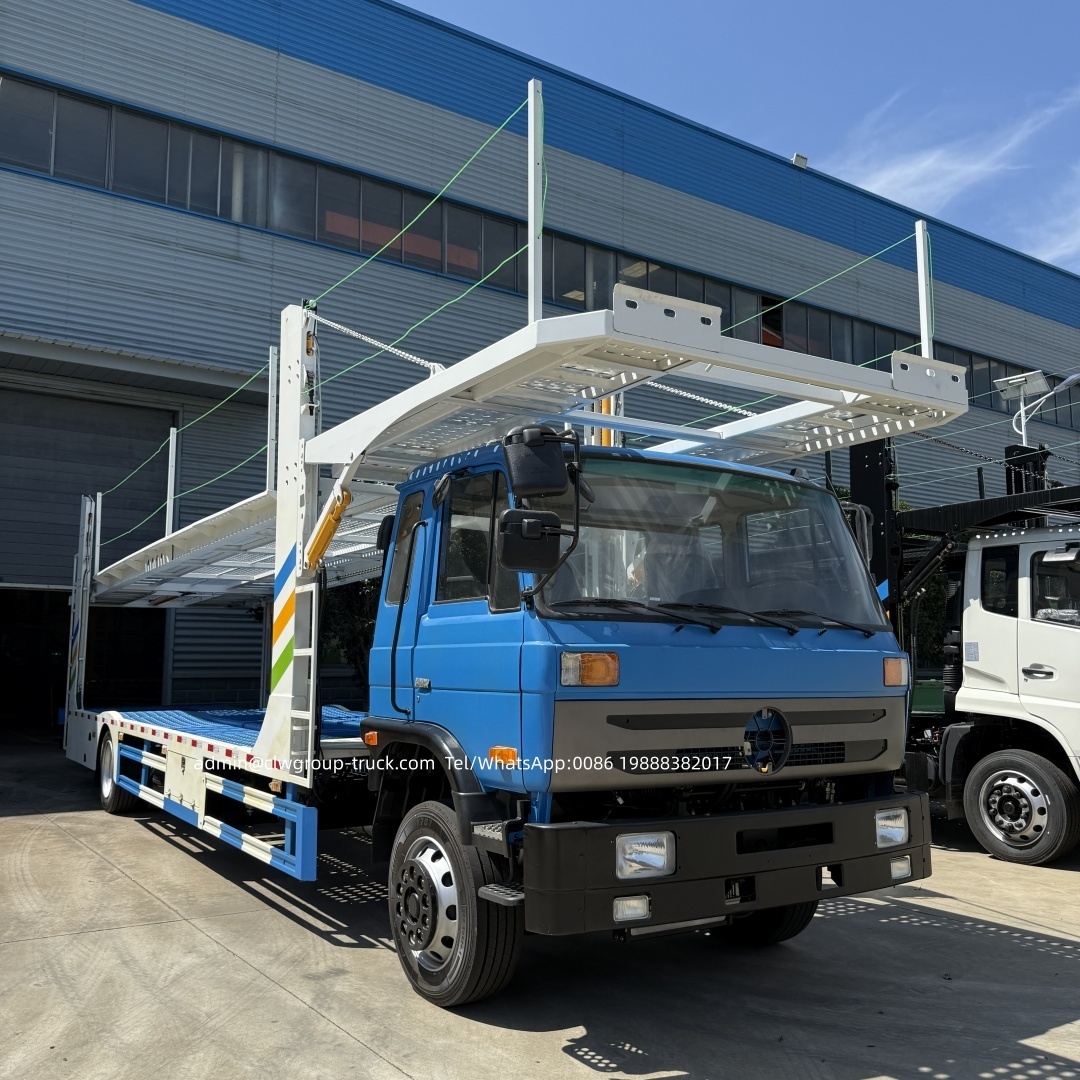

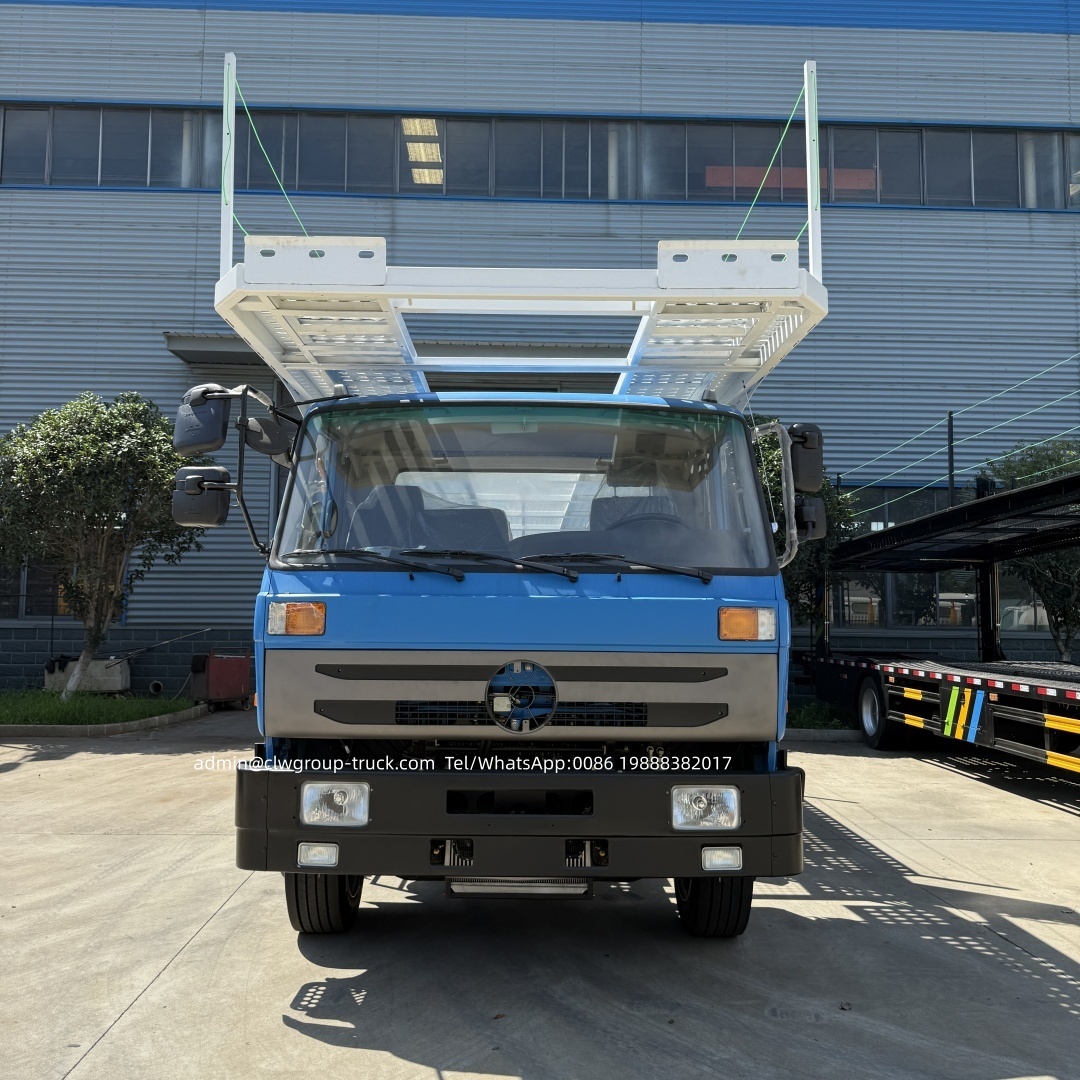

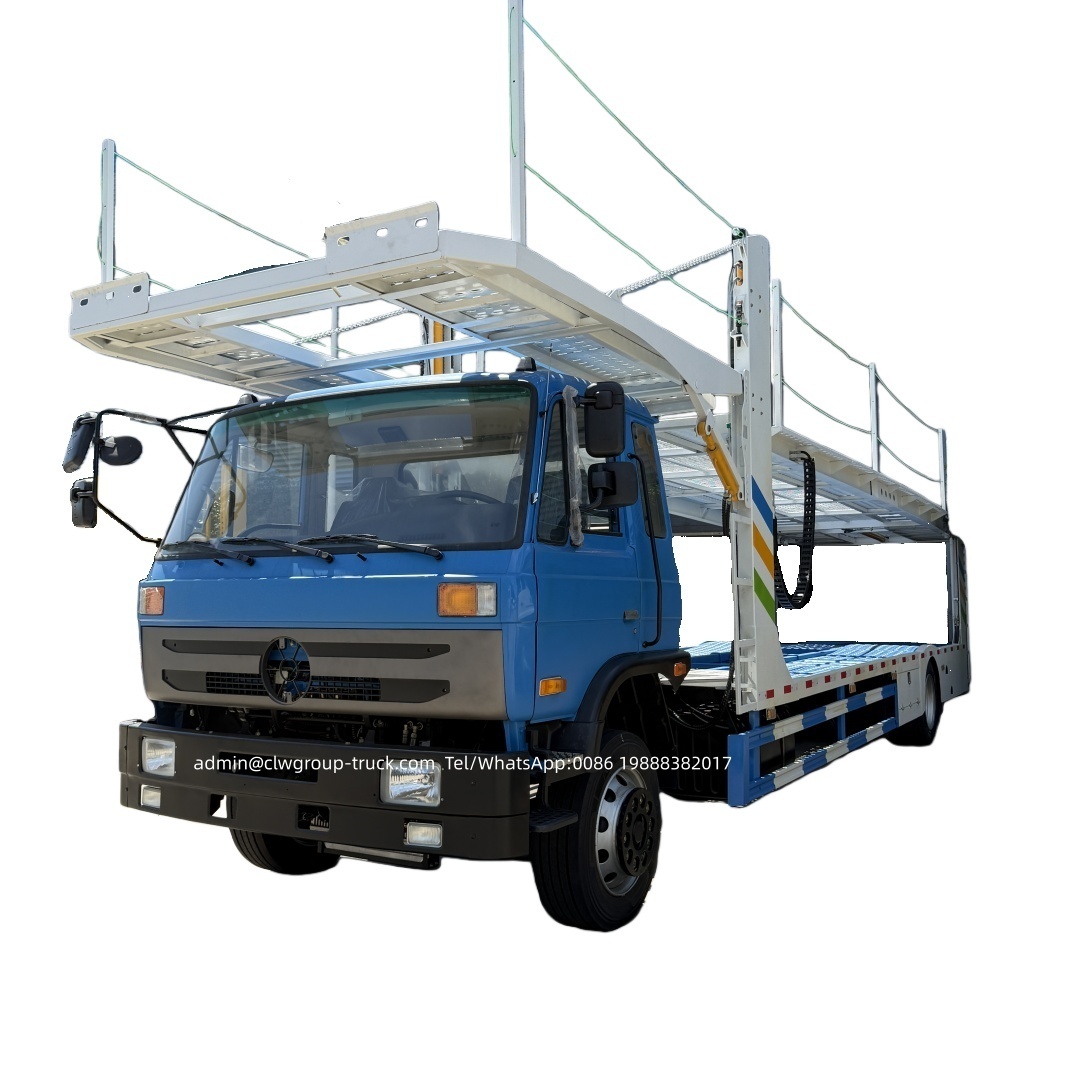

Dongfeng Tianjinpai semi cab, dedicated chassis for sedan transport vehicles, optional Cummins 6-cylinder 230 horsepower, Cummins 4-cylinder 240 horsepower, Yuchai 6-cylinder 220 horsepower, Yuchai 6-cylinder 245 horsepower. The engine is equipped with an in cylinder brake, a Fast 8-speed transmission, Dongfeng Dena axles, a front axle of 5 tons, a rear axle of 10 tons, a 250 (7+4) high-strength frame, 295/60R22.5 vacuum tires, original Payne air conditioning, a 250L aluminum alloy fuel tank, remote control central locking, remote control lifting windows, and a sleeper. Upper configuration: The entire vehicle comes standard with 10 oil cylinders (imported oil seals), which are fully synchronized with the Italian Heide hydraulic control system.
The upper plate is 13-14 meters long (including a front manual extension of 0.5 meters and a rear hydraulic extension of 1.5 meters), and the lower plate is 10 meters long. The upper plate is only 2.7 meters above the ground, and the lower plate loading surface is only 0.7 meters above the ground. The distance between the upper and lower plates can be adjusted freely, and the distance between the upper and lower plates can be adjusted from 0 to 2.4 meters. The upper plate is made of low-alloy high-strength materials, painted in sedan grade, with a set of tools and 24 straps. Other accessories are standard.
Advantages of Chengli Car Transport: Strong load-bearing capacity.
The use of high elastic solid tires can enhance the trailer's load-bearing capacity Long service life, reducing damage to goods caused by vehicle bumps during driving The structure design is reasonable, and the frame is a through beam mechanism, with the longitudinal beam adopting a straight or goose neck type The height of the web plate with excellent craftsmanship ranges from 400mm to 550mm. The longitudinal beam is welded by automatic submerged arc welding, and the frame is shot blasted. The crossbeam penetrates the longitudinal beam and is welded as a whole. Time saving and labor-saving, the double suspended rotating bracket is used, which can adjust the balance and stability of the car by itself.
