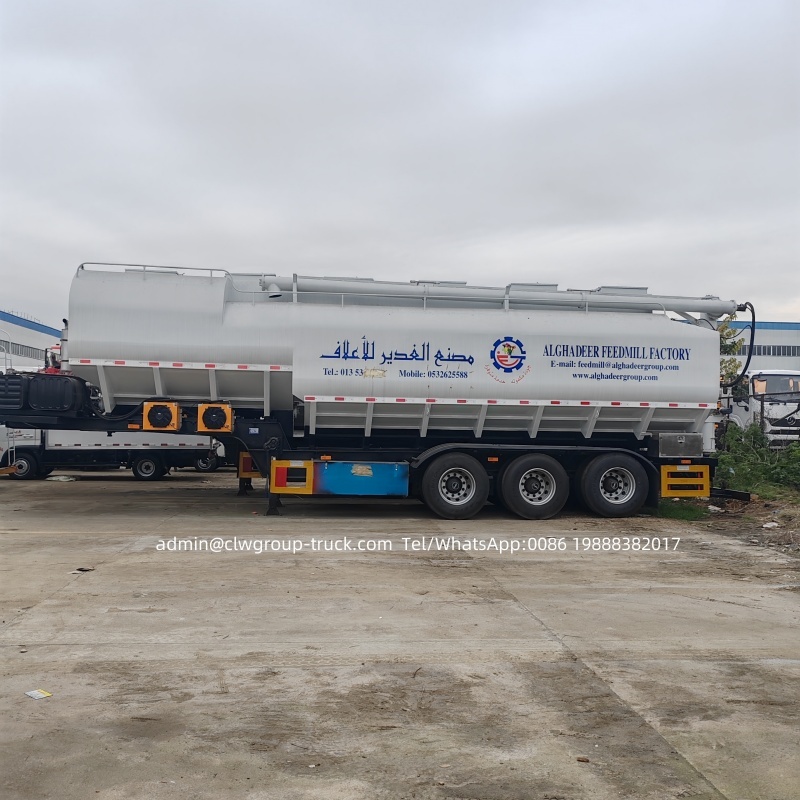

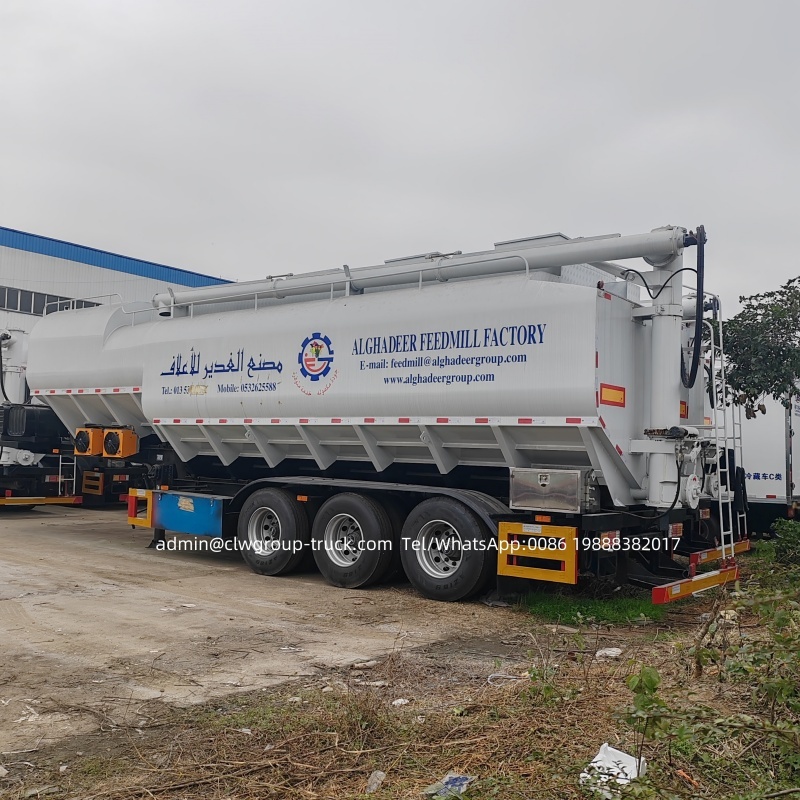

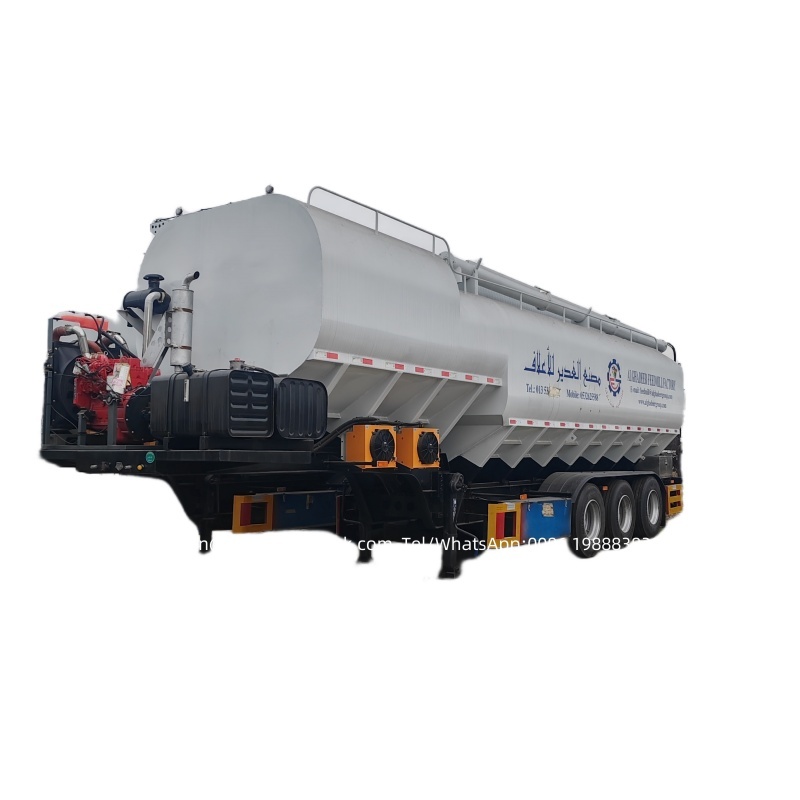

| Trailer General |
Overall dimension |
13750×2550×4000 mm |
| Gross /Kerb weight |
40000/12710 kgs |
| Feed tanker |
Total Volume (L) |
58 m3,5 compartments |
| Material |
Carbon steel |
| Manhole cover |
3~5 units manhole fixed on top of Tank |
| Tank ladder |
one ladder |
| Unloading valve |
3-5 outlet |
| Axle |
3 units of FUWA band Axle load capacity:13 ton/axle |
| Landing Gear |
28tons x2pcs |
| King Pin |
90# or 50# |
| Tire |
12 units of 12R22.5 |
| Tool box |
One trailer tool box |
| One trailer tool box |
1pcs |
| Lights and wire |
24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable. |
| Rated discharge capacity |
450~600(kg/min) |
| Residual rate |
≤0.22 |
| Discharge rotation angle |
+ 180 degree |
| Painting |
Color as customer choice |
11 meters. 11.6 meters three-axis sunken bulk feed semi-trailer
Vehicle dimensions: 11600.11000 × 2550 × 3995.3980
Three axle high and low semi-trailer skeleton, 5050.4600+1310+1310mm wheelbase, upper wing plate and lower wing plate web plate of the main beam, 90 # traction pin, 28 ton support leg, 10 ton Guangdong Fuhuaqiao, axle/3-axle, 16 ton brake pads, 12R22.5 tires, ABS, 10 springs, one toolbox, one spare tire rack, and four large and two small air chambers., The tank body is made of high-strength steel and is divided into 5 compartments. The unloading sequence and speed of each compartment can be independently controlled. The vehicle has 4 winches (two bottom horizontal winches, tail lifting winches, and top discharge winches) and 4 5.5 motors with 380V external power supply to drive each winch to work. The high plate part does not sink, and the rear half sinks completely. The top can be operated by wireless remote control. The top winch (8.5 meters) is hydraulically controlled for lifting and can rotate 180 degrees left and right.
Chengli special automobile co.,ltd supply 2 axles 3 axles bulk feed trailer ,the bulk feed bodies can be made of aluminum alloy or high quality carbon steel or stainless steel material, 4-8 compartments optional
Transport medium: feed, animal feeds, grain, soybeans, corn etc,
Bulk feed semi trailer is also called bulk feed trailer, bulk feed tanker trailer, animal feed semi trailer, livestock feed delivery semi trailer, feed tanker vehicle, feed tank semi trailer, feed transport semi trailer, bulk feed transport vehicle, bulk feed delivery semi trailer, bulk feed transporter semi trailer, etc.
It is a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-class chassis.
feed tank capacity: 45cbm to 70cbm bulk feed truck trailer.
Quantity of compartments: 2-8warehouses as our standard.
Discharge method: Electric or hydraulic screw conveyer discharge system, electric can be powered by a generator.
3-axle bulk feed transport semi trailer.
45-60m3 feed tank capacity.Tank material: 5mm thick aluminum alloy or carbon steel

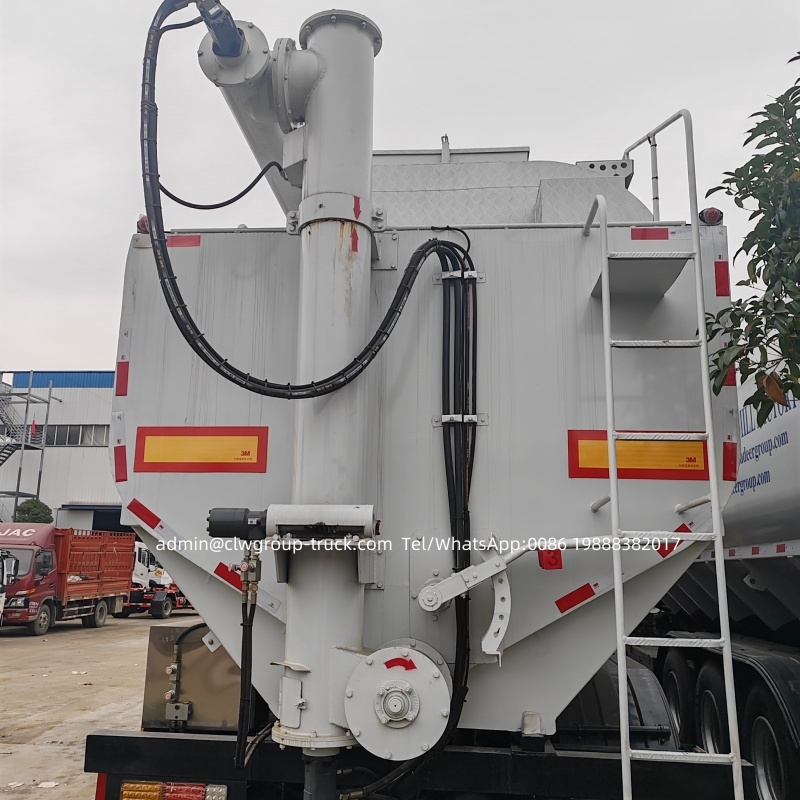

With 4 electric dragons, driven by 4 Siemens motors. The top dragon is 10 meters long. Hydraulic control lifting.
The tank is divided into 5 compartments.4*12T BPW axles, 315.80R22.5 tires.
Bulk feed truck is also called animal feed truck, feed delivery truck, feed tanker vehicle, feed tank truck, feed transport truck, bulk feed transport vehicle, bulk feed delivery truck, bulk feed transporter truck, etc
Bulk feed truck introduction:
Bulk feed transport vehicleis a special transport vehicle made of high-quality, high-strength steel plate welded forming tanks and equipped with electric or hydraulic auger unloading system on the basis of various types of trucks or second-class chassis.Bulk feed truck consists of the chassis, the loaded feed tank, the discharge auger system and the electro-hydraulic operating system.
Bulk feed transporter tanks are welded with high-quality steel plates. Different bins can be loaded and unloaded at the same time. Electro-hydraulic auger unloading saves manpower and time, convenient loading and unloading, less residue and beautiful appearance.
The advantages of bulk feed trucks1. Save costs without using bags or manual loading and unloading, greatly reducing labor and time, and improving factory revenue and efficiency2 bulk feed trucks can be divided into compartments according to customer requirements and can transport various types of feed. According to different customer requirements, the feed box can be divided into multiple small compartments, which can transport different types of feed or expansion media simultaneously (such as solid feed, granular feed, forage, soybean meal, grains, meat and bone meal, whey powder, oil, fish meal, miscellaneous meal)Sealed transportation to avoid pollution, equipped with an automatic feeding system storage tower for bulk feed transport vehicles. Feed is directly fed into the tower, and the site design allows bulk feed transport vehicles to unload without entering the site, thereby reducing potential pollution problems caused by external transport vehiclesAutomatic feeding does not require manual feeding. Hydraulic pellet feed truck, achieving fully automated operation, can automatically feed into the groove at fixed time and quantity.5. The hydraulic system is easy to operate, fully automatic hydraulic system, easy to operate and use. The chassis adopts a heavy-duty truck chassis, and the gear pump hydraulic motor adopts well-known Chinese brands and imported hydraulic components.
Chengli Special Purpose Vehicle Co., Ltd. Feed Truck TechnologyAuger technology, intermediate connection support structure, graphite bearings, significantly improves the service life of Jiaolong compared to traditional iron bearings, maintenance free, ensures smooth operation of auger, reasonable Jiaolong clearance, pitch, speed, and reduces the crushing rate of feedThe tank process adopts strict welding technology to ensure the sealed transportation of the tank, reduce losses, and avoid pollution. The fully automatic loading and unloading can operate continuously, saving a lot of time and improving production efficiencyThe welding process for the bulk feed truck tank is strictly in accordance with the welding process. The auxiliary beam and reinforced rib lights are all fully welded, ensuring the strength and sealing of the tank bodyThe painting process uses specialized corrosion-resistant paint, which effectively ensures that the paint does not peel off or crack under frequent disinfection conditions in the breeding farmThe rear ladder of the vehicle is installed at the rear of the feed truck, and the body ladder is made of stainless steel welding technology, which is sturdy and reliableThe top sloping roof design increases strength and is less prone to water accumulation. The walkway uses patterned boards for greater safetyInstall an alarm on the bulk feed truck. When the feeding is completed, the lifting dragon will detach from the fixed position of the horizontal bracket, and the buzzer in the cab will sound to remind the driver to put the lifting dragon in its original position. Install a tail work light for more convenient night operationStrict inspection is required, and each feed truck factory must undergo strict feeding testing before use. Professional thickness gauges, hardness testers, layer thickness gauges, torque plates, ultrasonic flaw detectors, and other effective testing equipment are used
